Energy Power Meter/Wattmeter/Ammeter 100A 30KW
˂
˃
Energy Power Meter/Wattmeter/Ammeter 100A 30KW
Price:
₦23,100
Brand: Generic
Share:
Product Description

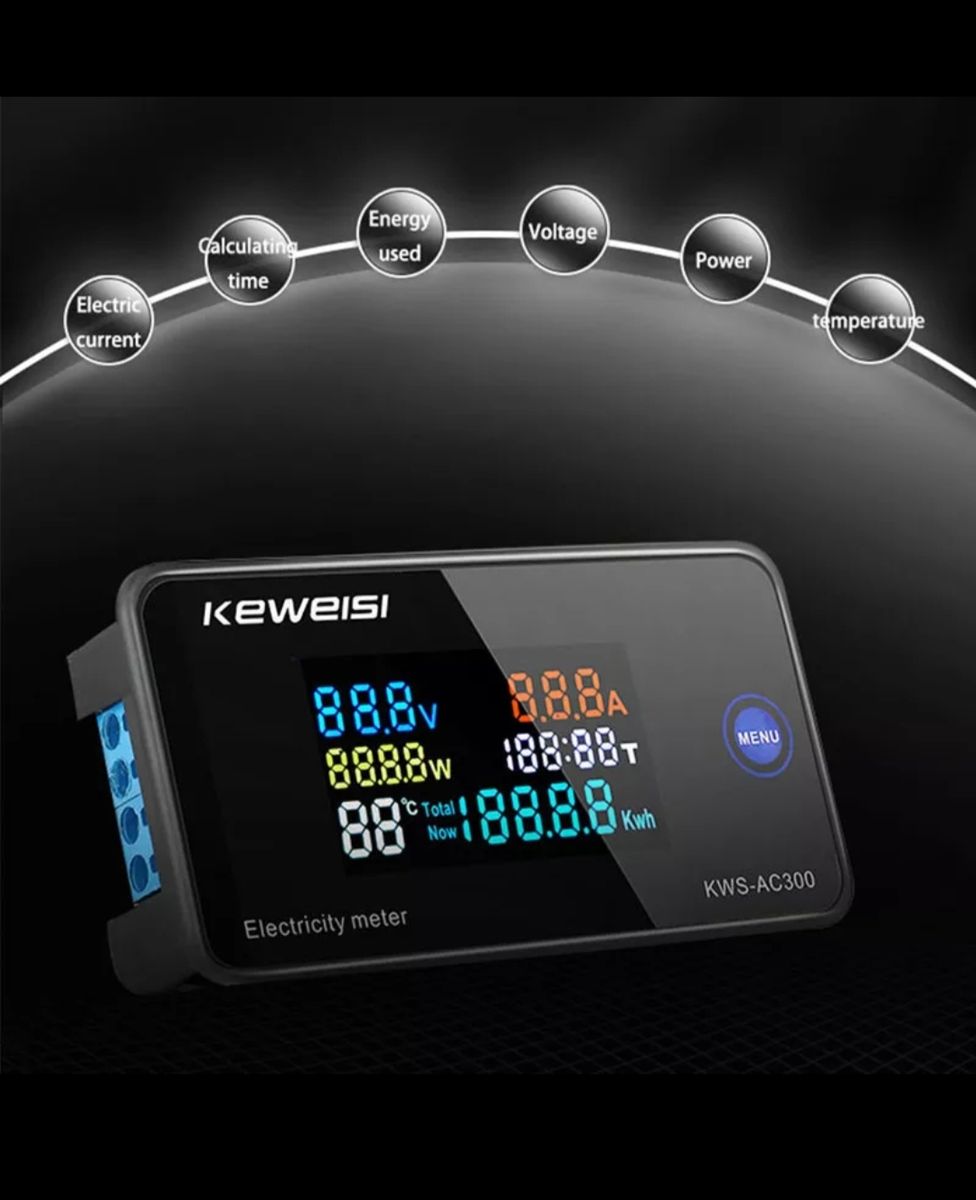

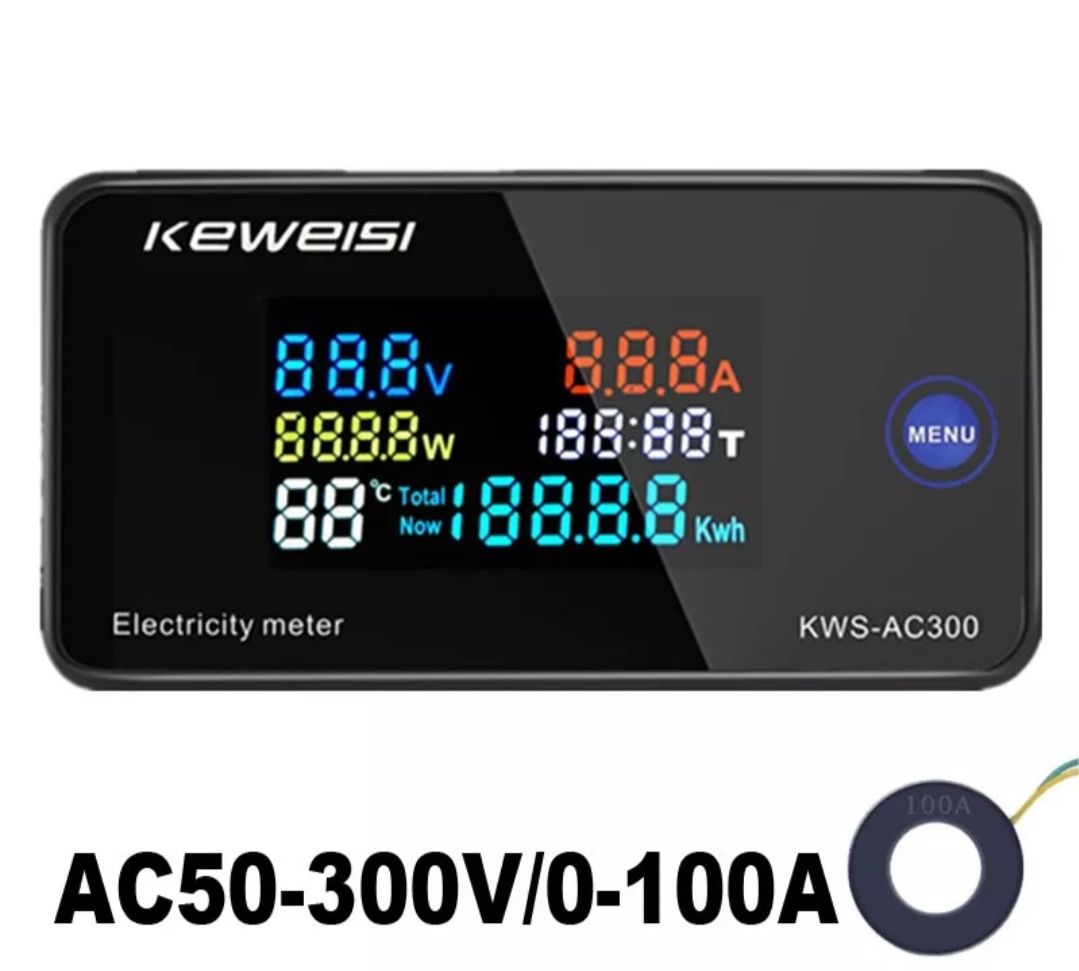

KWS-AC300 Voltmeter Ammeter KWS Power Energy Meter AC 50-300V LED AC Wattmeter Electricity meter with Reset Function 0-100A
Measures and display immediate and accumulated energy consumption
Feature:
Model:AC300-10A1.Voltage: AC50-300V2.Current: 0-10A3.Power: 0-3000W4.Capacity: 0.01-19999Kwh5.Timing: 0-200H6.Temperature: -10 ° C to 99 ° C7.Package include:1*1 x Meter(10A is without shunt/CT Coil),1*User Manual Model:AC300-100A1.Voltage: AC50-300V2.Current: 0-100A3.Power: 0-30KW4.Capacity: 0.01-19999Kwh5.Timing: 0-200H6.Temperature: -10 ° C to 99 ° C7.7.Package include:1*1 x Meter,1 x 100A shunt/CT Coil,1*User Manual
Function
1.Volage curent, power, timing, Current electical energy,cumulative electrical energy2. Electric energy and timing can be reset3. Electric energy and iming have power down memory function 4. Rated frequency 45-65Hz
OperationClick the MENU button on the panel to view the current electrical energyand cumulative electrical energy. Electric energy and timing reset method: Press and hold the MENU button for 5 seconds, the number in the timingarea will flash, then click the button to select timing, current electricalenergy and cumulative electrical energy reset. When the number flashes,double-click the button to reset. Press and hold the button for 5 seconds save the settings.
Measures and display immediate and accumulated energy consumption
Feature:
Model:AC300-10A1.Voltage: AC50-300V2.Current: 0-10A3.Power: 0-3000W4.Capacity: 0.01-19999Kwh5.Timing: 0-200H6.Temperature: -10 ° C to 99 ° C7.Package include:1*1 x Meter(10A is without shunt/CT Coil),1*User Manual Model:AC300-100A1.Voltage: AC50-300V2.Current: 0-100A3.Power: 0-30KW4.Capacity: 0.01-19999Kwh5.Timing: 0-200H6.Temperature: -10 ° C to 99 ° C7.7.Package include:1*1 x Meter,1 x 100A shunt/CT Coil,1*User Manual
Function
1.Volage curent, power, timing, Current electical energy,cumulative electrical energy2. Electric energy and timing can be reset3. Electric energy and iming have power down memory function 4. Rated frequency 45-65Hz
OperationClick the MENU button on the panel to view the current electrical energyand cumulative electrical energy. Electric energy and timing reset method: Press and hold the MENU button for 5 seconds, the number in the timingarea will flash, then click the button to select timing, current electricalenergy and cumulative electrical energy reset. When the number flashes,double-click the button to reset. Press and hold the button for 5 seconds save the settings.
What's In the Box
Package include:1*1 x Meter,1 x 100A shunt/CT Coil,1*User Manual
Product Specification
| Model | KWS-AC300A |
|---|---|
| Production Country | China |
| Weight (kg) | 0.2 |
| Certifications | Eco Friendly |
| Color | Black |
| Main Material | n/a |
| From the Manufacturer | Shenzhen Ruigui Co LTD |
| Care Label | Pls do not exceed rated capacity of 100A. Pls ensure correct wiring |
