About this item

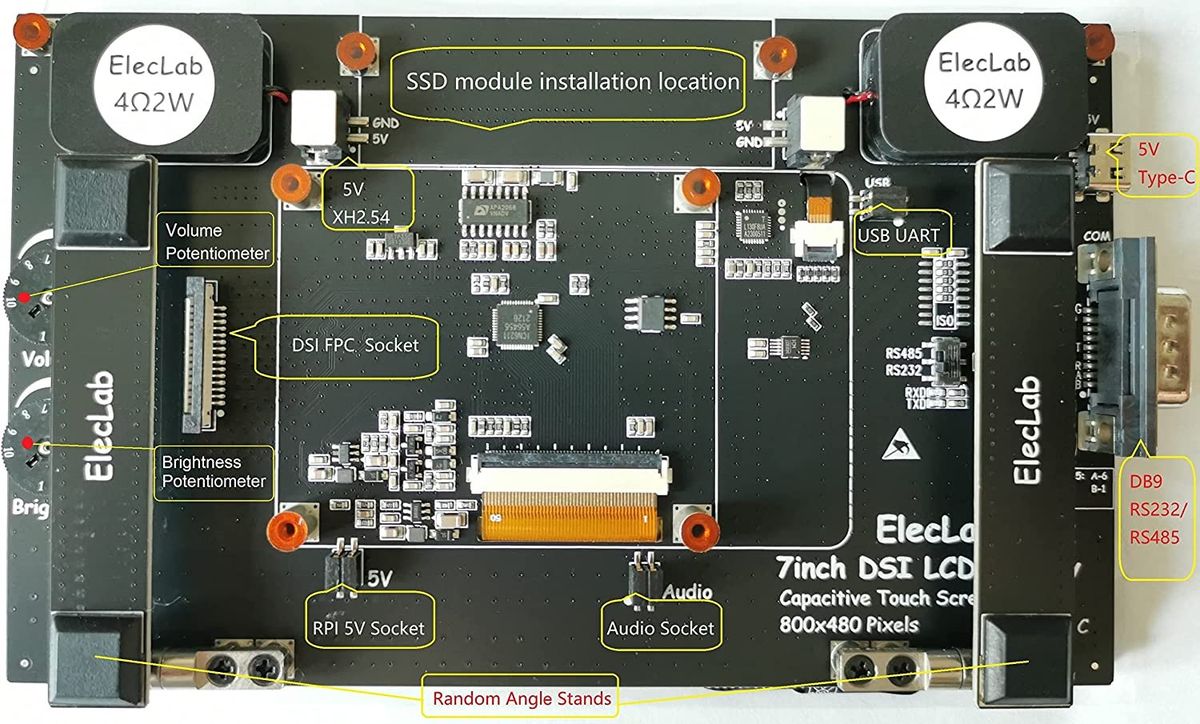

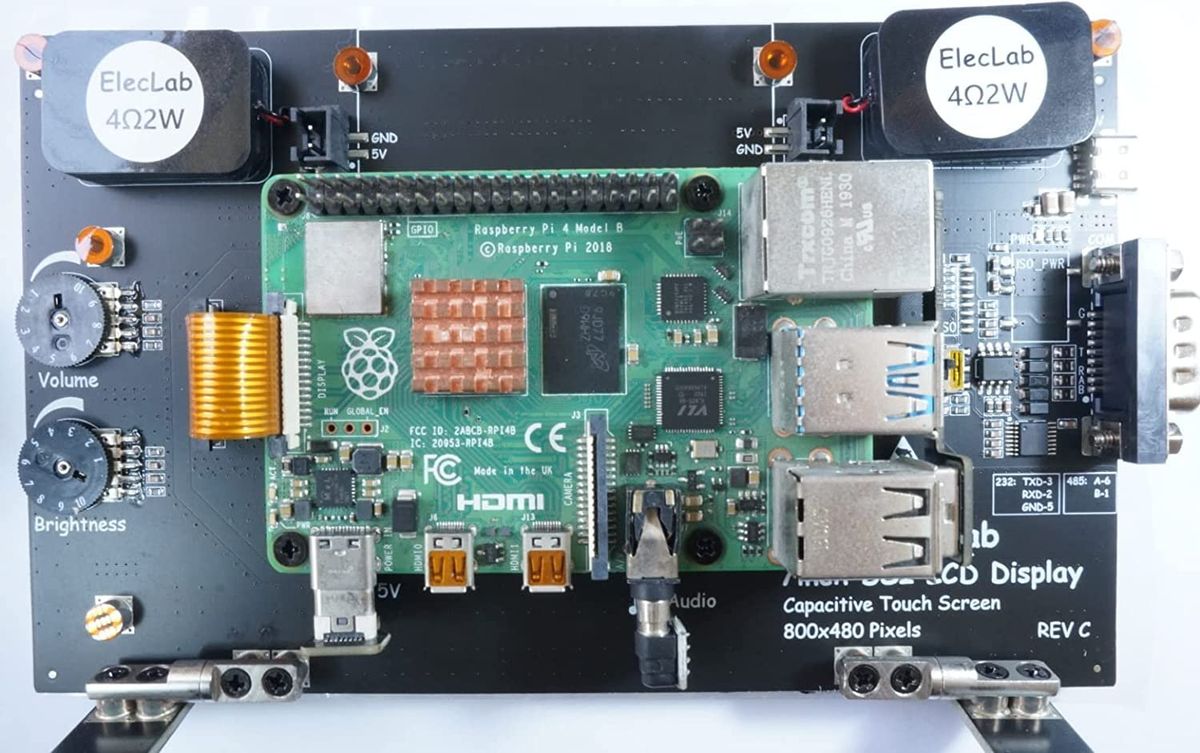

• This display only supports the Raspberry Pi DSI interface, and the Raspberry Pi can be easily installed on the back of the monitor through 4 positioning holes. The display provides power to the Raspberry Pi through the power adapter board, and the two XH2.54 sockets can supply power to fans or other peripherals.
• DSI interface 7-inch LCD 800x480 resolution and 5-point capacitive touch screen, display brightness can be adjusted by potentiometer and software PWM, integrated audio amplifier and 2W dual channel stereo speakers and volume potentiometer.
• Reserve an SSD adapter PCB mounting location for running Raspbain directly from a USB3.0 SSD, or as a high-speed mass storage device as a media library for NAS or Volumio.
• Integrated with CH340E and DB9 male header, RS232 or RS485 function can be selected by DIP switch. The TXD/RXD signal has LED indicators to show the communication process of sending and receiving. Can be connected to PLC, stepper/servo drive, LORA module...

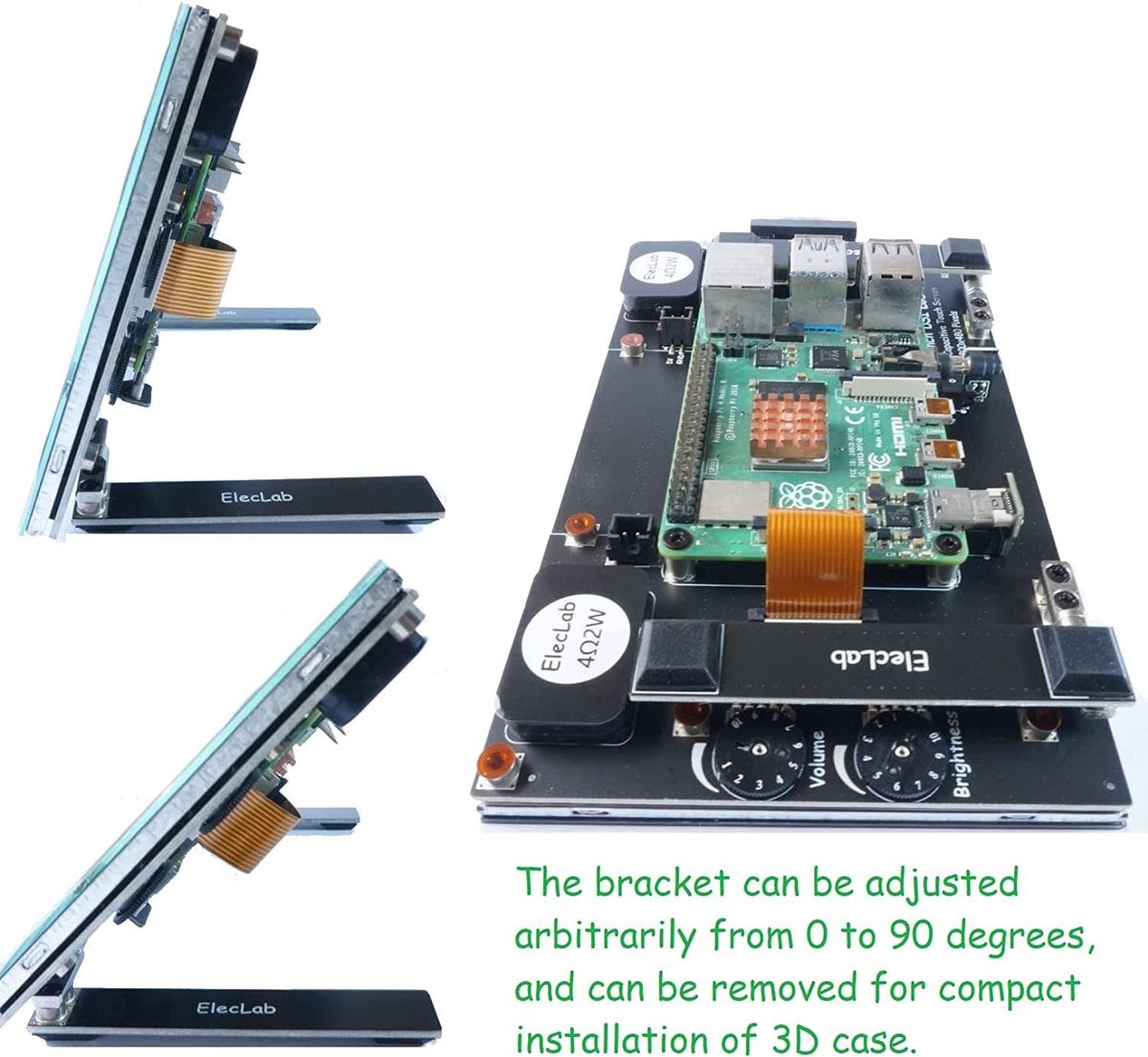

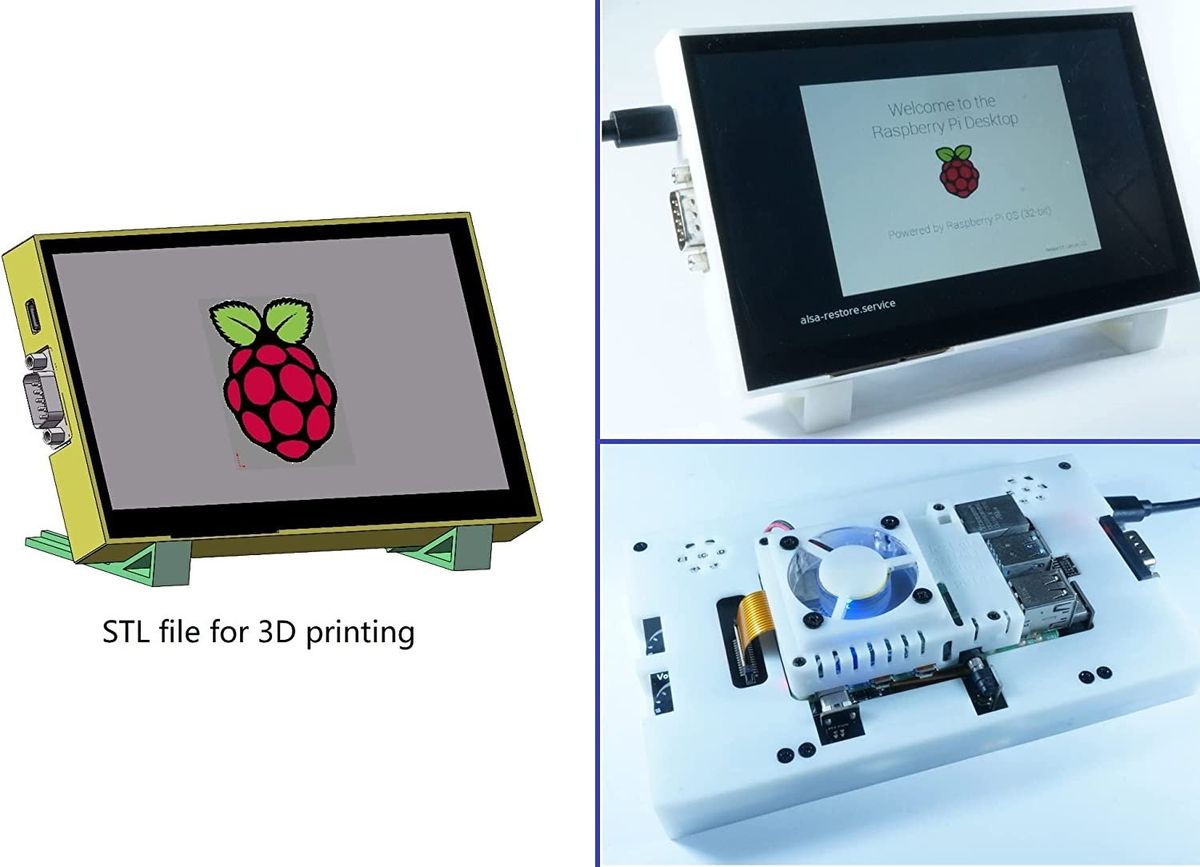

• The display is equipped with 2 damping shaft brackets, the display angle can be adjusted arbitrarily, and the brackets can also be removed to install the case. The STL file for the 3D printed case is available under eleclab-rpi/7INCH_DSI_DISPLAY, and the fan case STL file is under eleclab-rpi/rpi_fan_case.

Product Description

Product details

Features and Specs

The 7" LCD display is an LCD display which connects to the Raspberry Pi through the DSI connector.

It is capacitive touch LCD screen.

It has 2x2W speaker.

It has rs232/rs485 interface.

It is compatible with Raspberry PI 1 model A+ B+/ PI 2 model B/PI 3 model A+ B B+/PI 4 model B nd 2B.

It doesn't need install driver, and you can plug and play.

The Physical resolution of LCD display is 800*480.

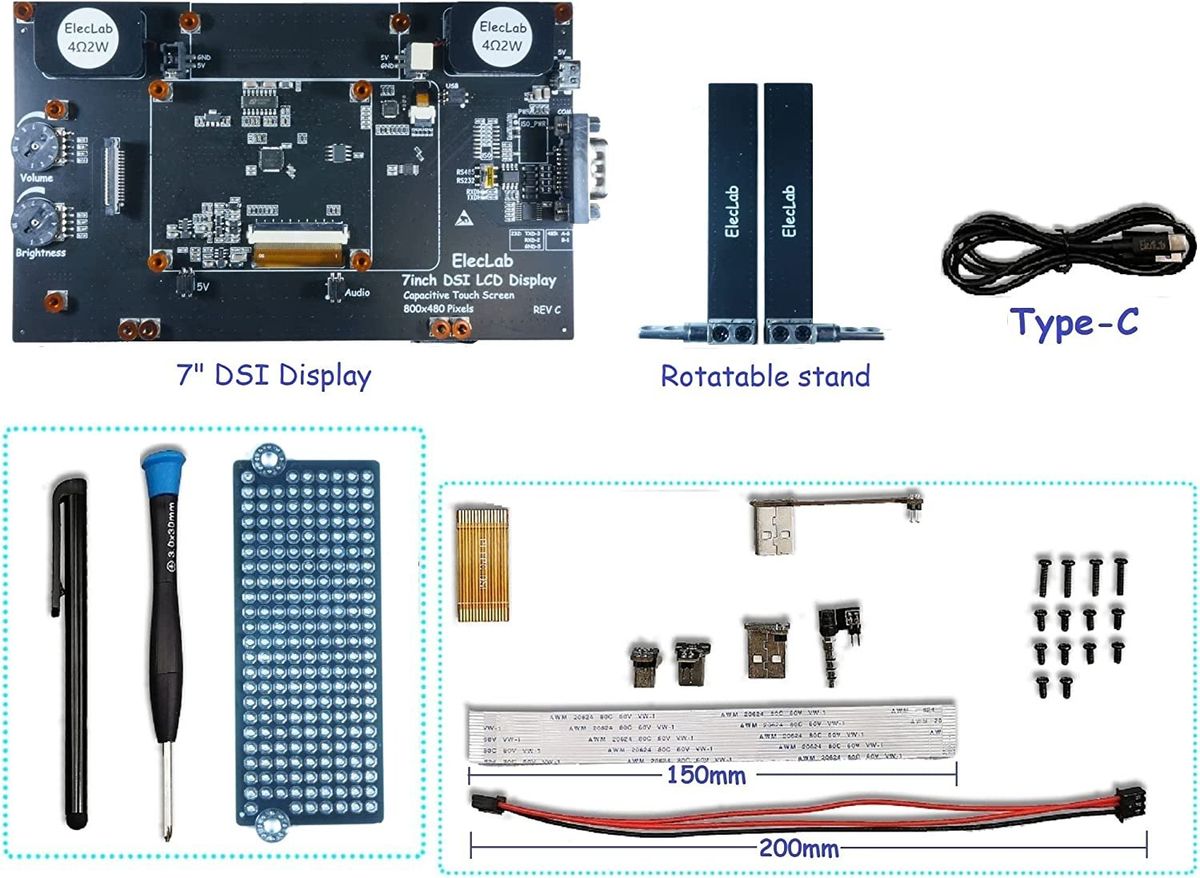

Package Includes

1 x 7 inch display

1 x TypeC USB cable

1 × DSI short cable

1 × DSI long cable

5 x pcb(audio board, micro usb power board, typeC usb power board, RPI3 usb board, RPI4 usb board)

1 x XH2.54 long cable

1 x touch pen

4 x M2.5x5 screw

4 x M2.5x10 screw

1 x straight screwdriver

2 x Any angle brackets can be removed to mount the enclosure.

1 x user manual

RPI Settings

1. If use Raspberry pi 4, make sure that VC4-KMS-V3D is prohibited in config.txt

#dtoverlay = VC4-KMS-V3D

2.The volume is adjusted directly by Raspbain or other application software.

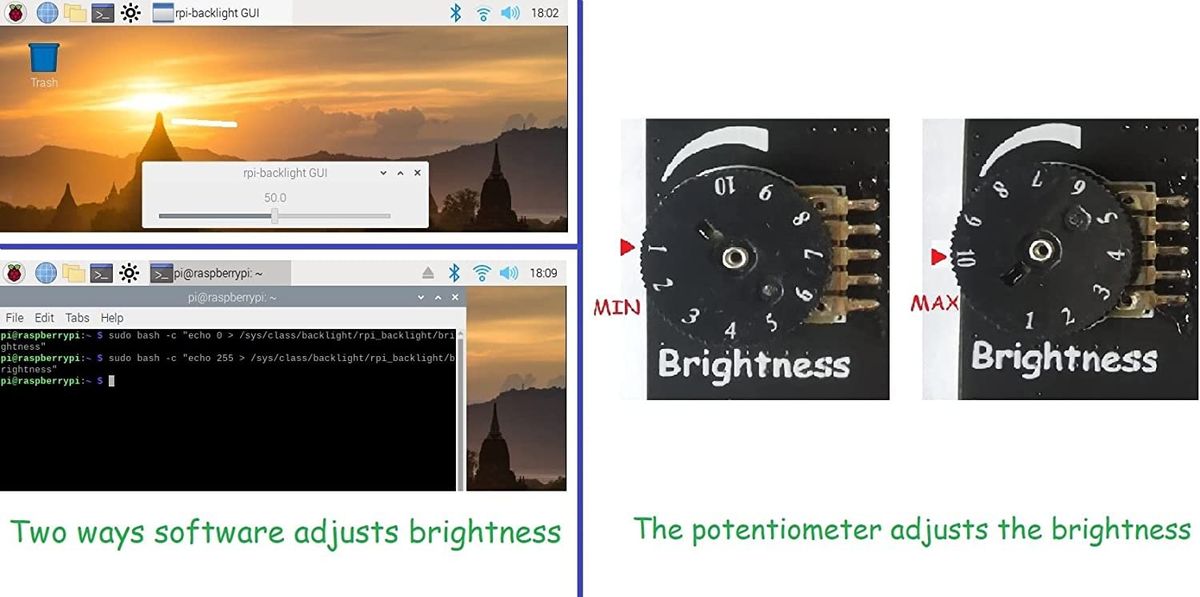

3. Brightness can be adjusted by installing rpi-backlight, or using the following command line:

N: 0~255

bash -c "echo N > /sys/class/backlight/rpi_backlight/brightness"

Key Features

Item Weight : 1.41 pounds
Manufacturer : ElecLab
Country of Origin : China
Item model number : EL070DSITN
Date First Available : October 15, 2020
box contents : stand

What's In the Box

• stand
