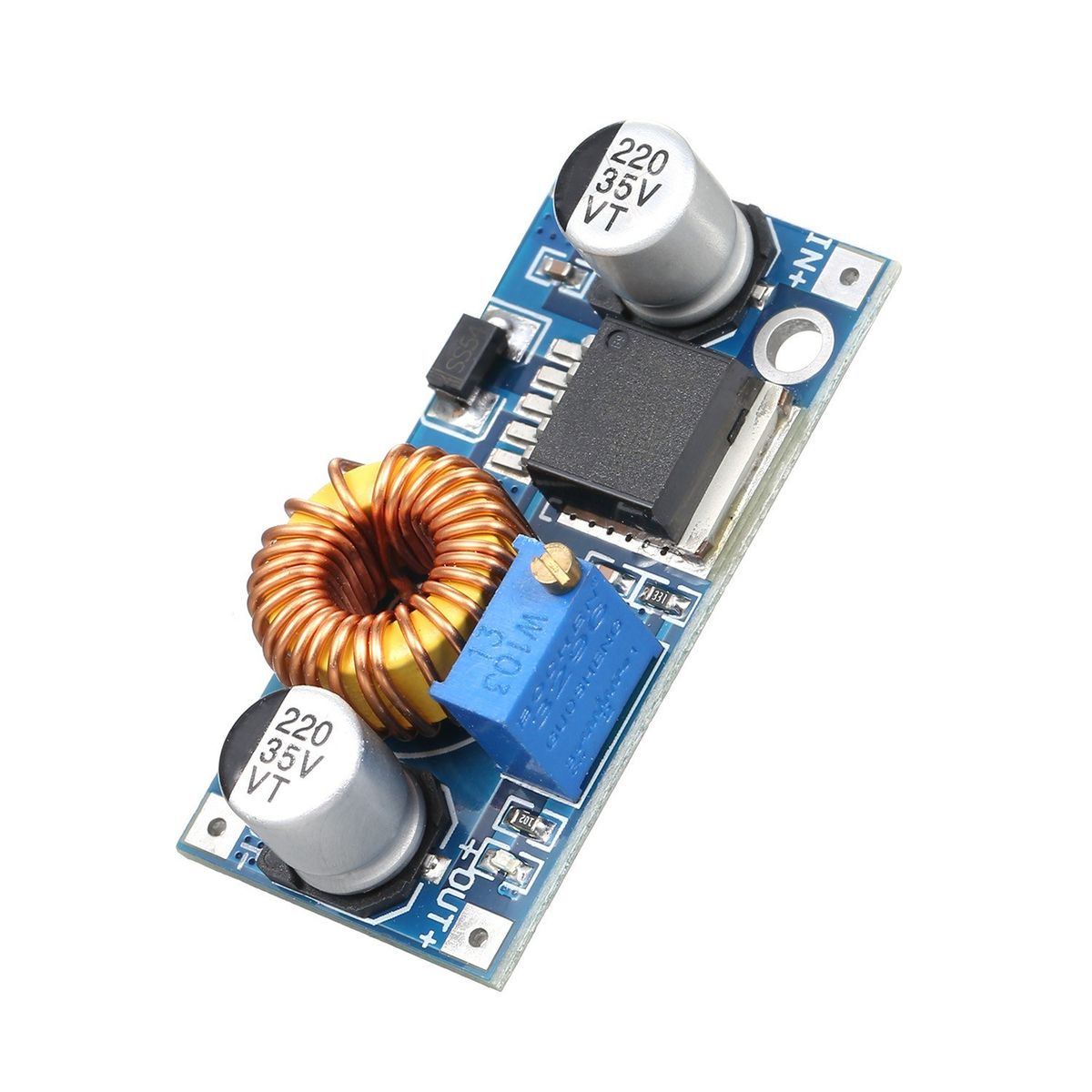

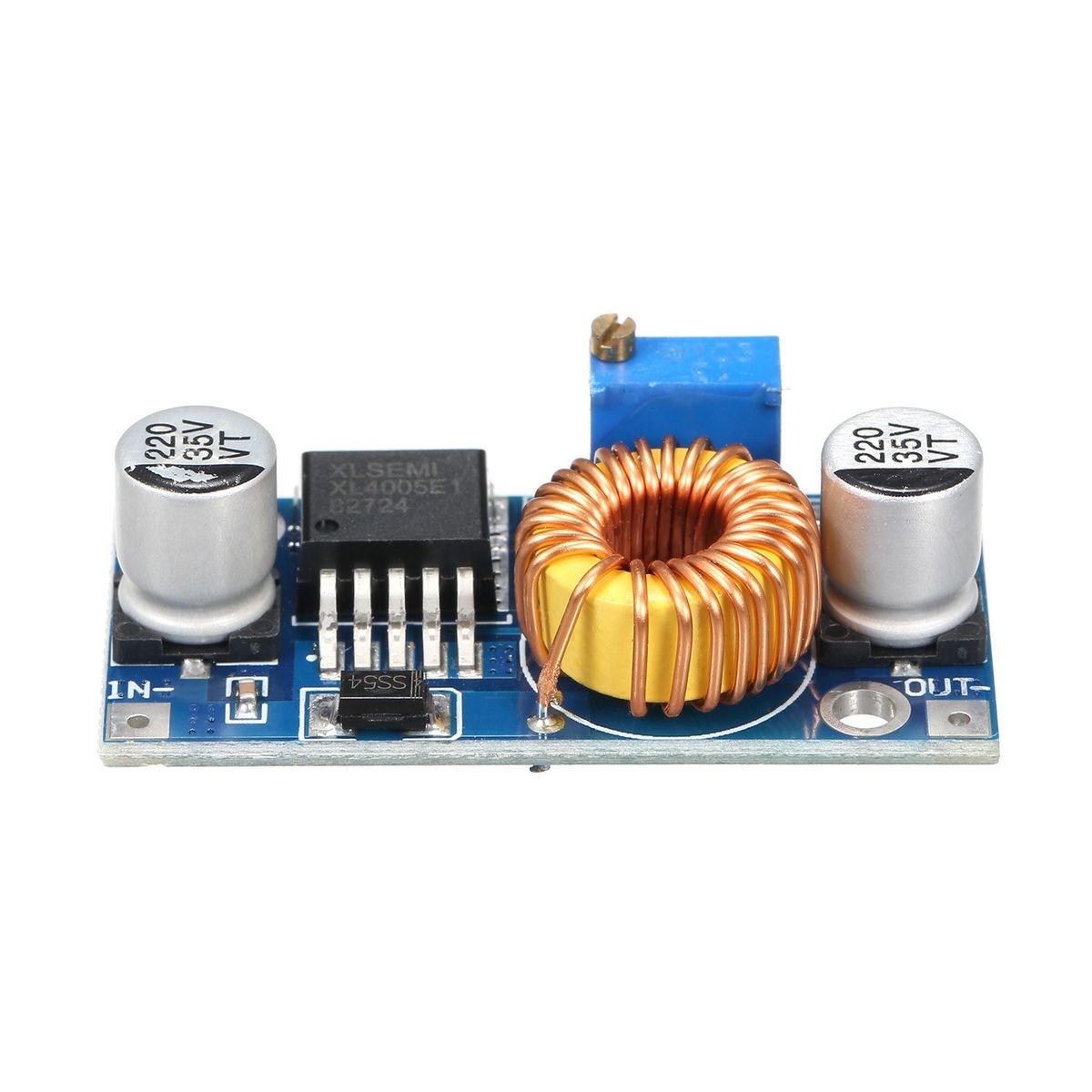

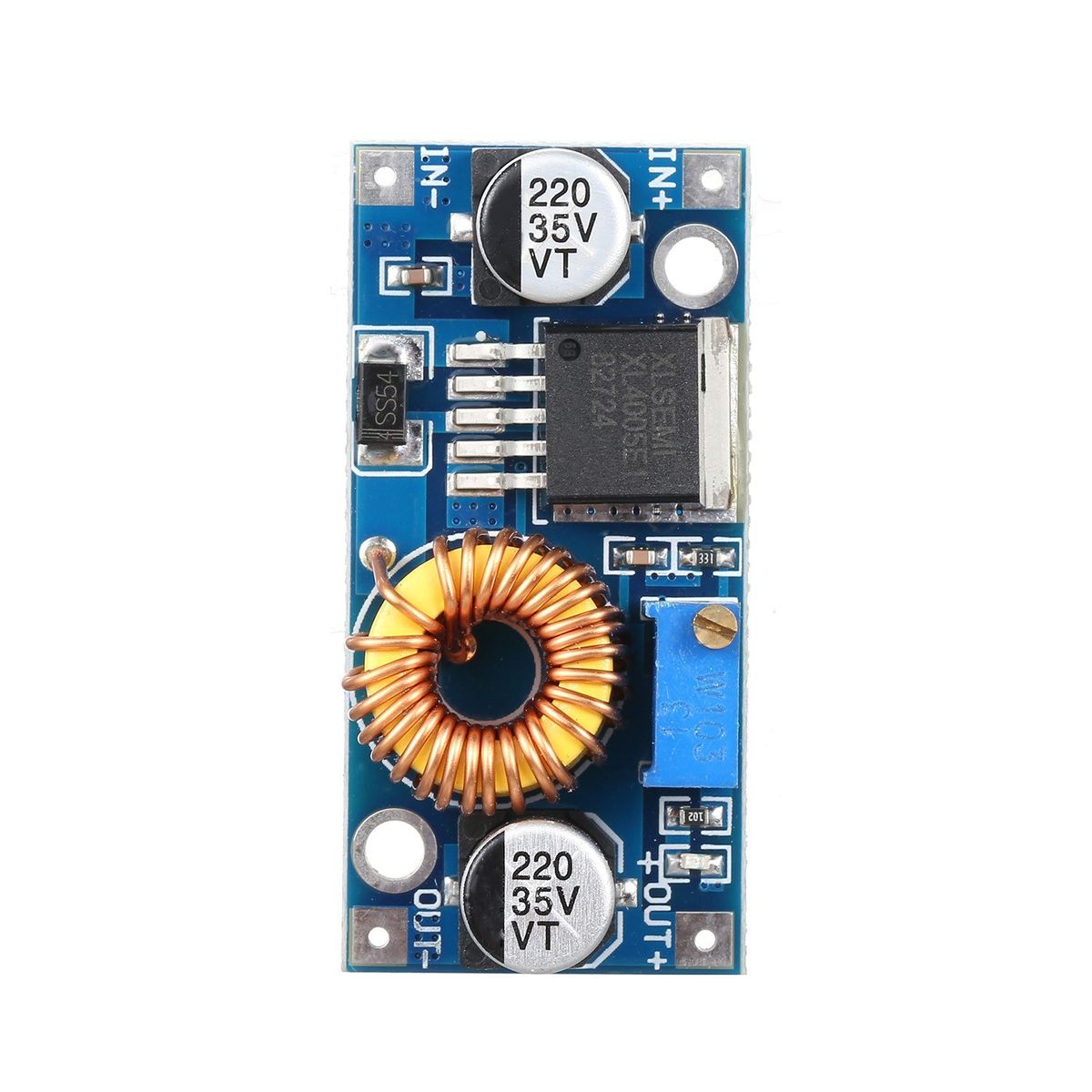

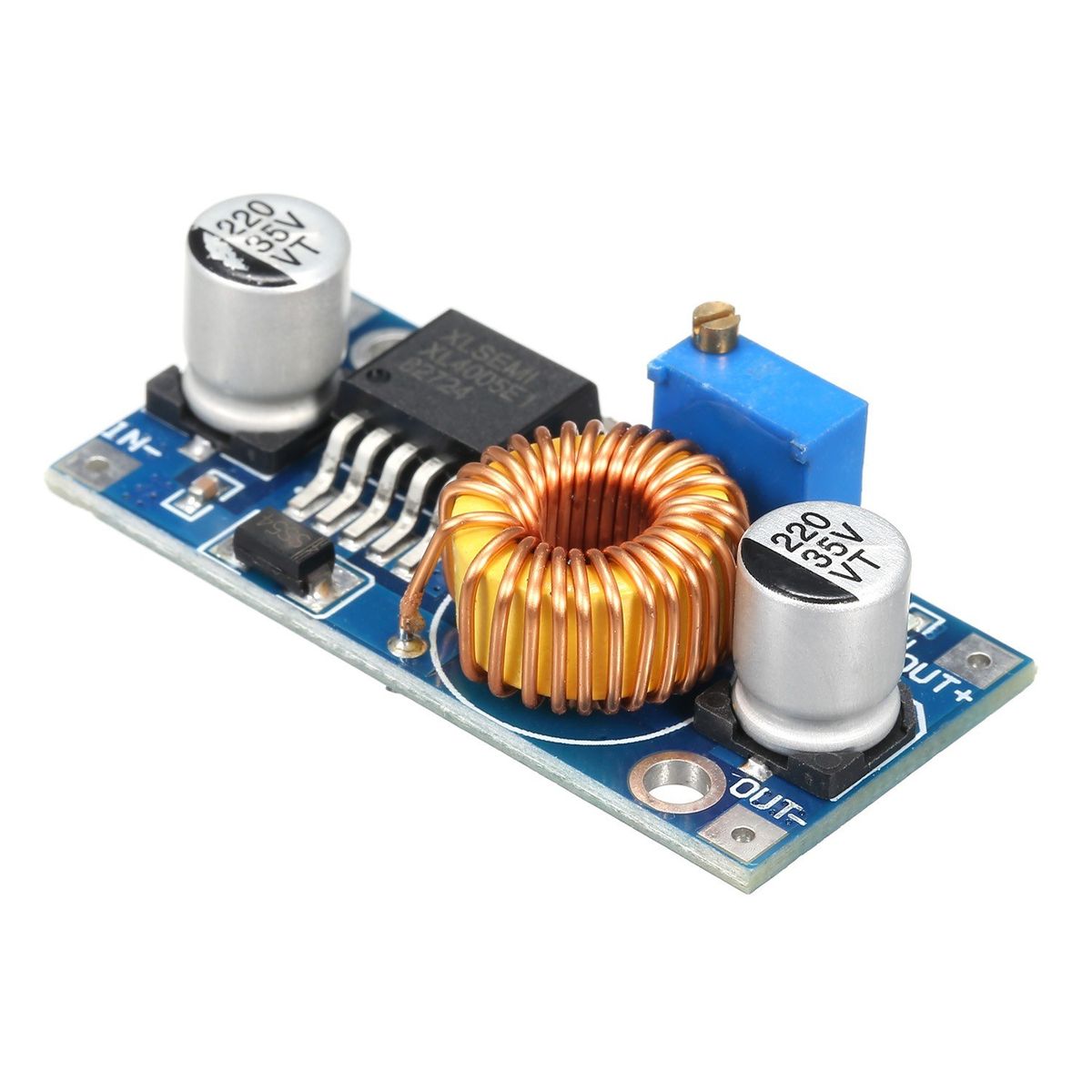

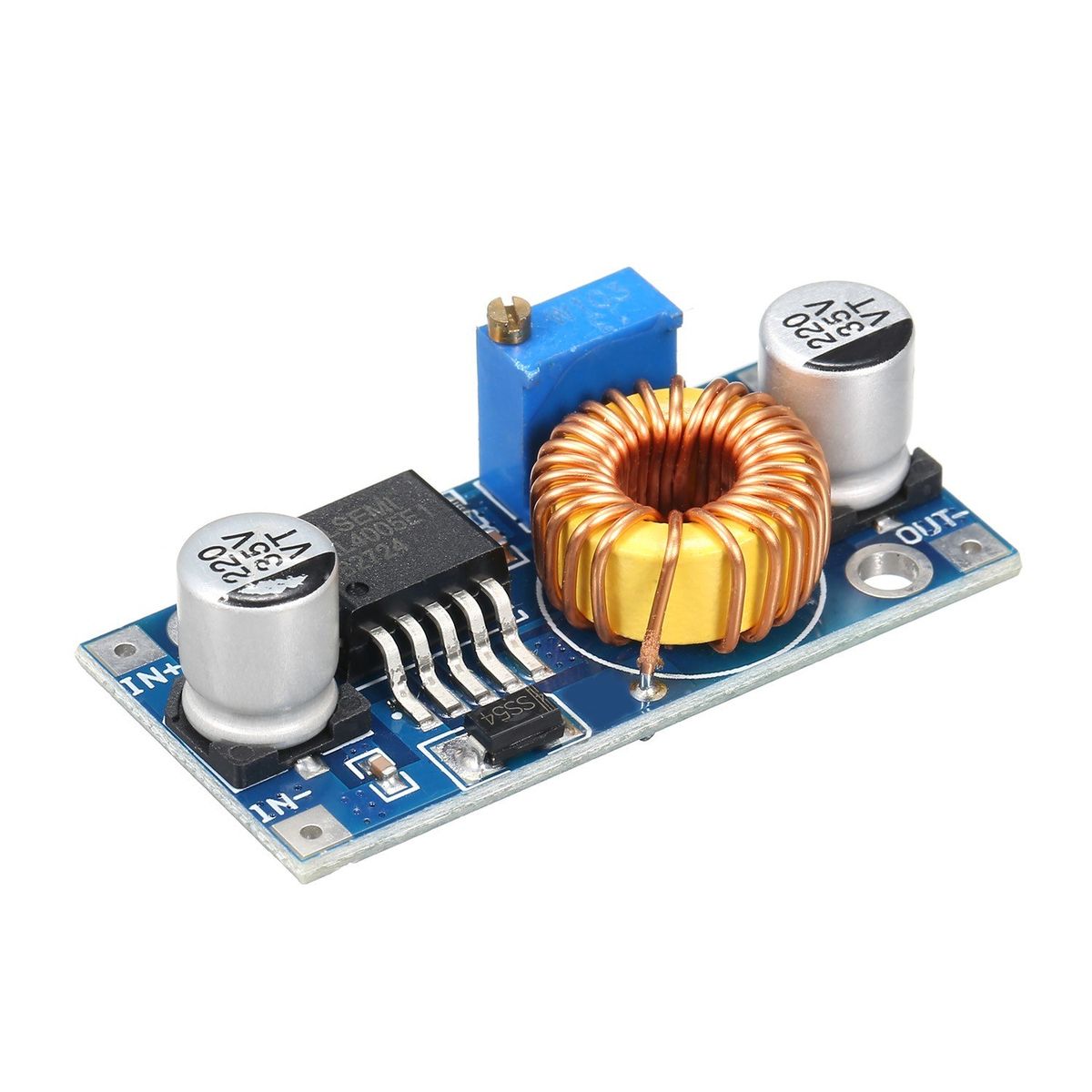

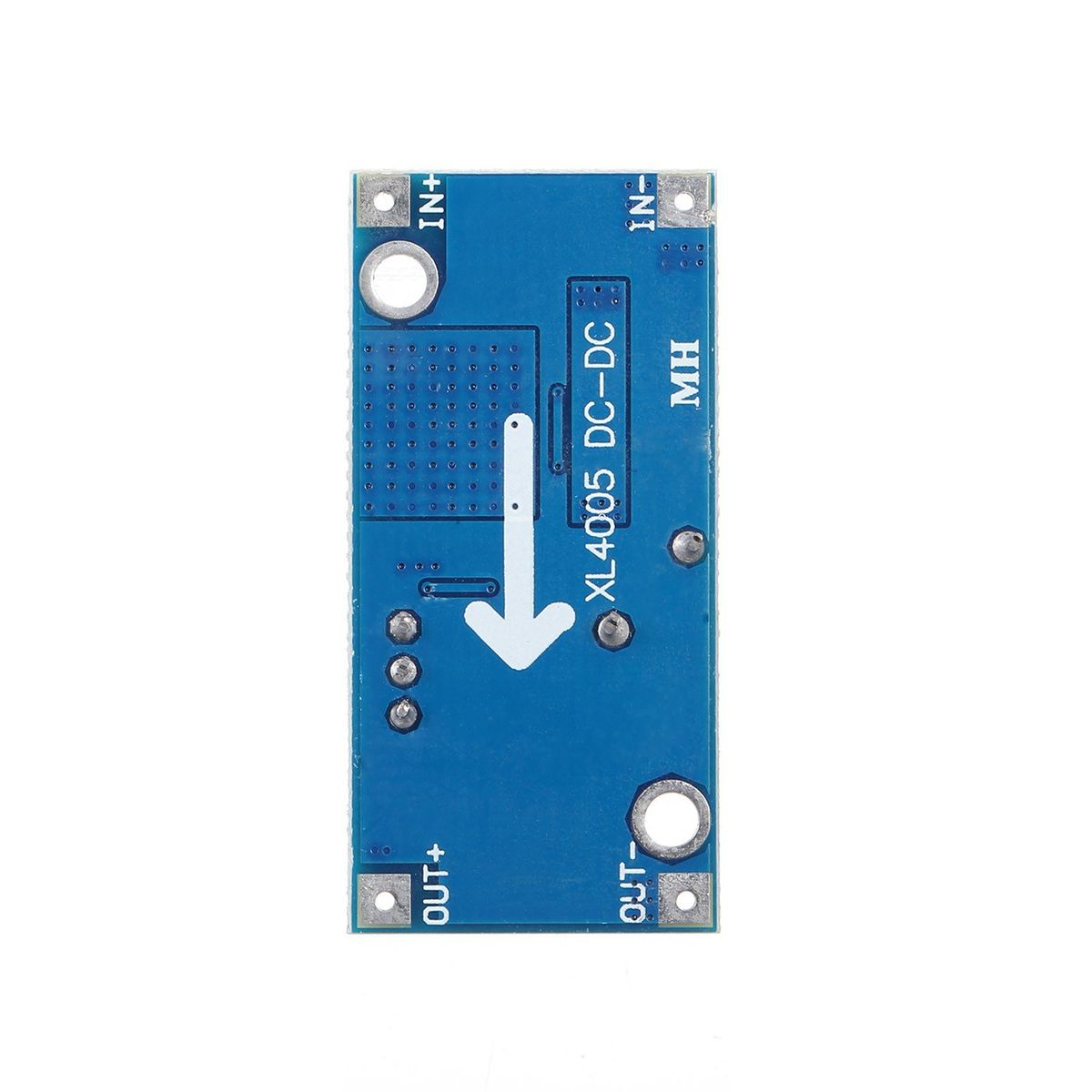

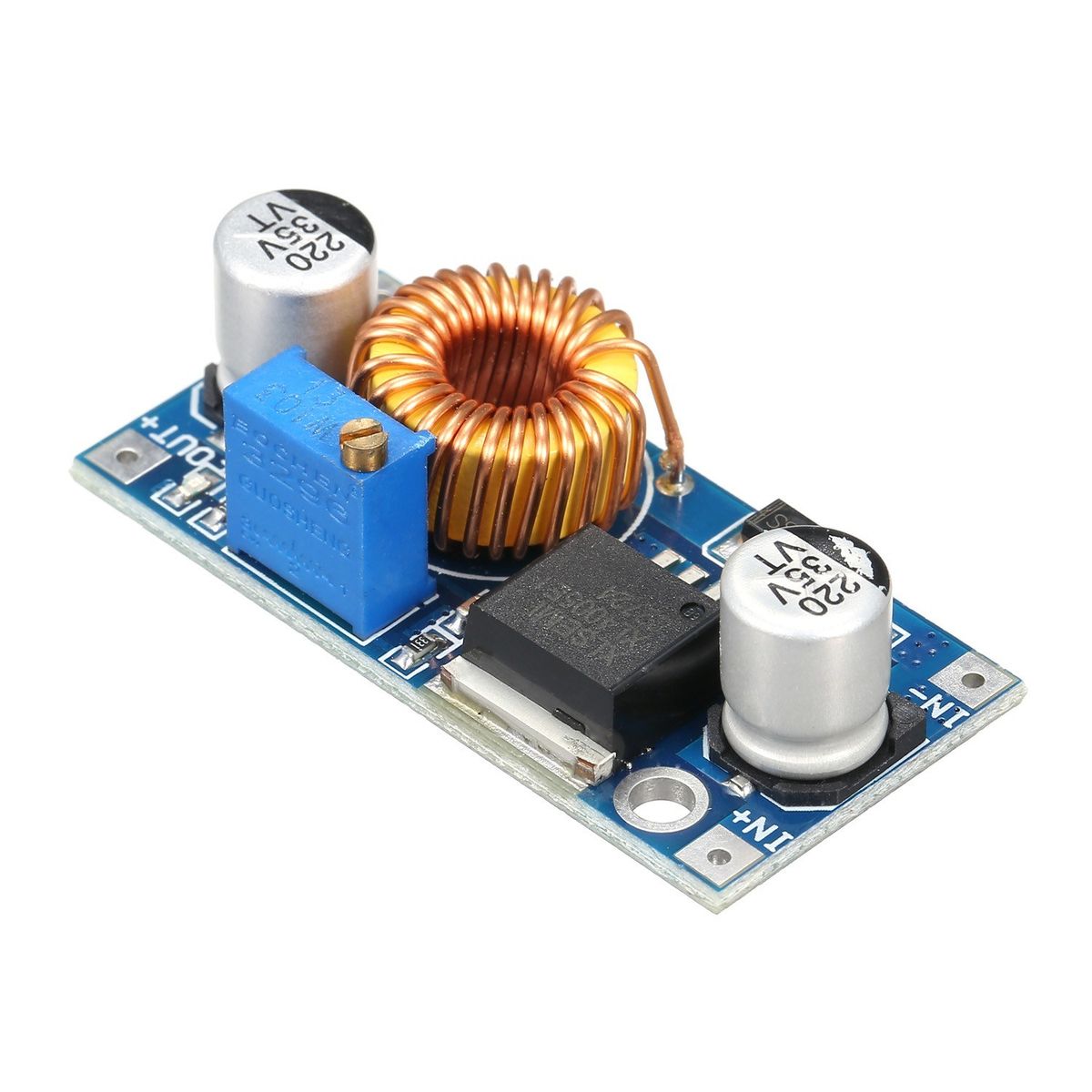

XL4005 DC-DC Adjustable Step-Down Module 4~38V 5A High

This step-down DC-DC converter module will provide 1.25V to 32V output voltage at up to 5A current with high efficiency and low ripple.

Features:

Input Voltage: 4~32V ( lt;=38V is recommended)

Output Voltage: 1.25~32V (adjustable)

Output Current: 0~5A ( lt;4.5A is recommended)

Output Power: 75W is recommended ( gt;50W, please use heatsink)

Operating Temperature: -40℃ ~ +85℃

Switching Frequency: 180KHz

Conversion Efficiency: up to 96%

Load Regulation: S(I) lt;=0.8%

Voltage Regulation: S(u) lt;=0.8%

Power Indicator: YES

Short Circuit Protection: YES (limit current 8A)

Overtemperature Protection: YES (automatically shut off the output after overtemperature)

Input Reverse Polarity Protection: No (if necessary, input a high flow diode into the input)

Specifications:

Module Properties: non-isolated buck module (BUCK)

Installation: 2pcs 3mm screws (not included)

Connection: welding, V-IN is the input, V-OUT output

Size: 54 * 23 * 18mm / 2.12 * 0.9 * 0.71in

Package Size: 45 * 45 * 20mm / 1.77 * 1.77 * 0.79in

Package Weight: 18g / 0.63ounces

Note:

1.Due to the different display screen and light effect, the actual color of the might be slightly different from the color showed on the pictures.

2.Please allow a little measuring deviation due to manual measurement.

Package List:

1 * Step-Down Module
