99 Gears Of Adjustable Mini Spots Welding Machine Control
99 Gears Of Adjustable Mini Spots Welding Machine Control
Features:
The welding process is based on the principle of high current and high temperature, rapidly melting part of the nickel sheet, and cooling.

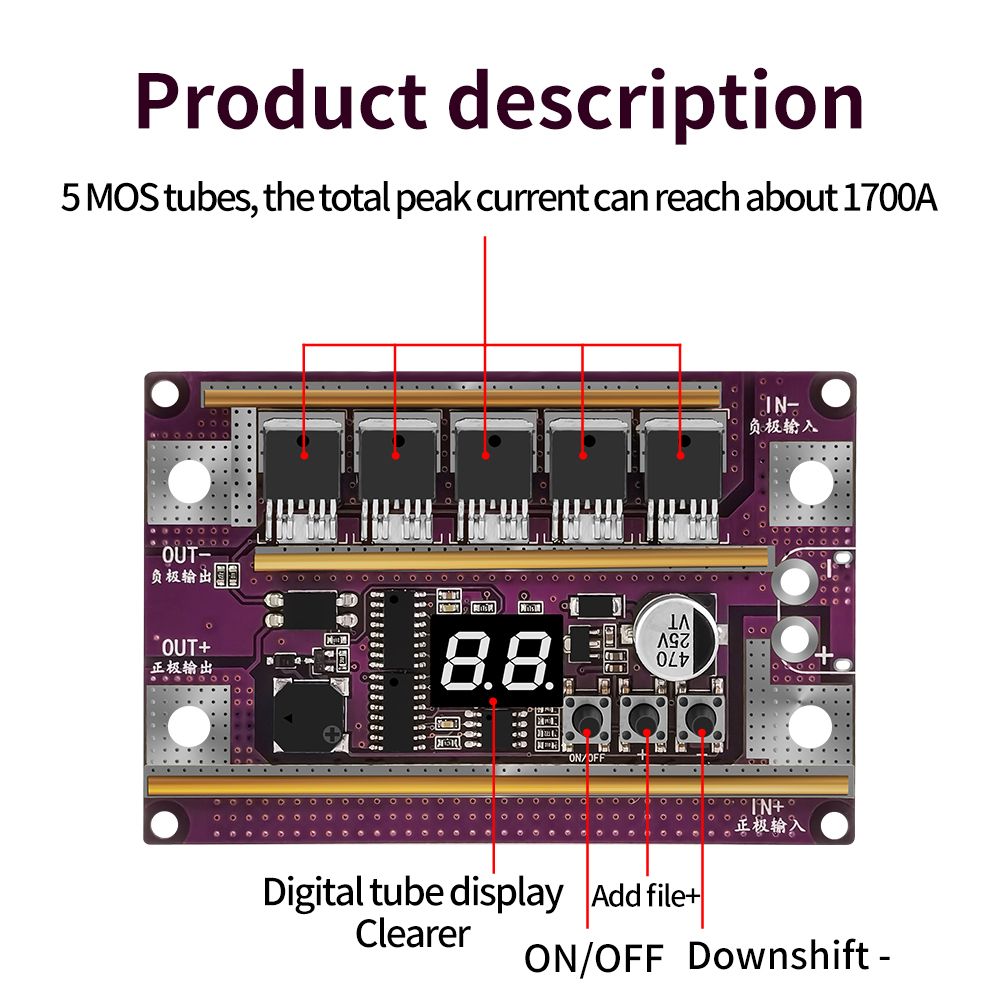

Adopt 5pcs MOS tubes, and the maximum current is up to 1700A; there are 5 MOS tube locations reserved on the back of the printed circuit board for DIY players to increase their own MOS tubes.
High output design, 99 gears of output adjustable, more accurate welding, suitable for continuously welding thousands of points on nickel/nickel-plate sheet.

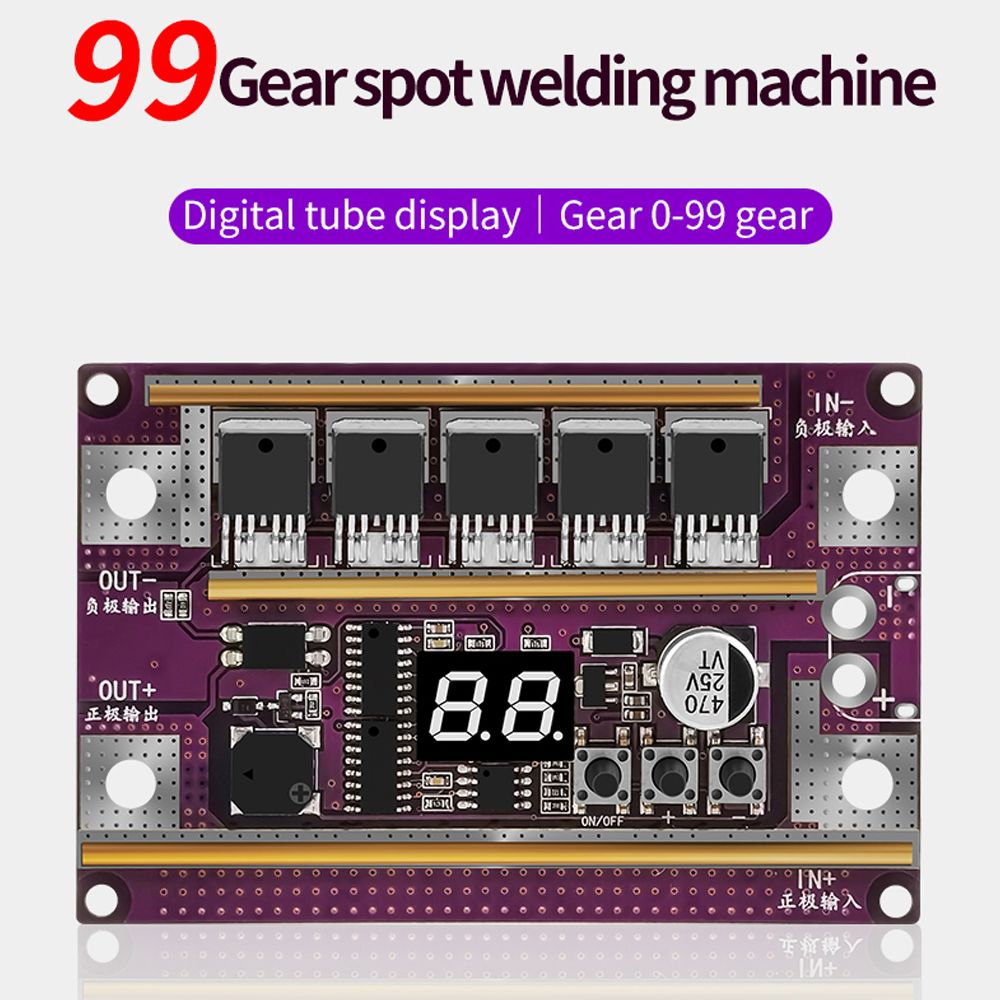

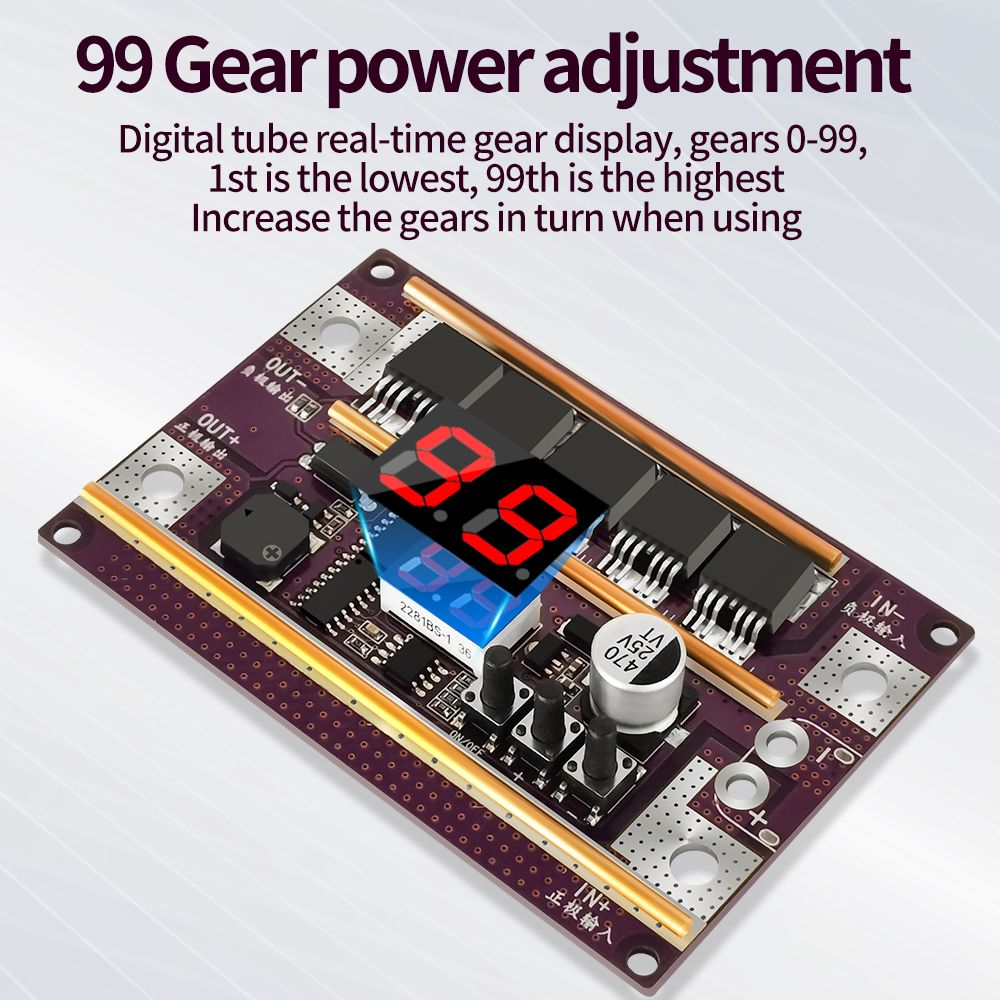

With the digital tube real-time gear display function, 0-99 gears, 1-gear is the lowest, 99-gear is the highest, and the gears are gradually increasing.
It supports 0.1-0.3mm nickel welding sheets with solid and beautiful welding spots.
This product can be widely used on spots welding cylindrical lithium batteries and nickel metal hydride batteries such as 14650/17490/18650/21700/26650/32650 etc.

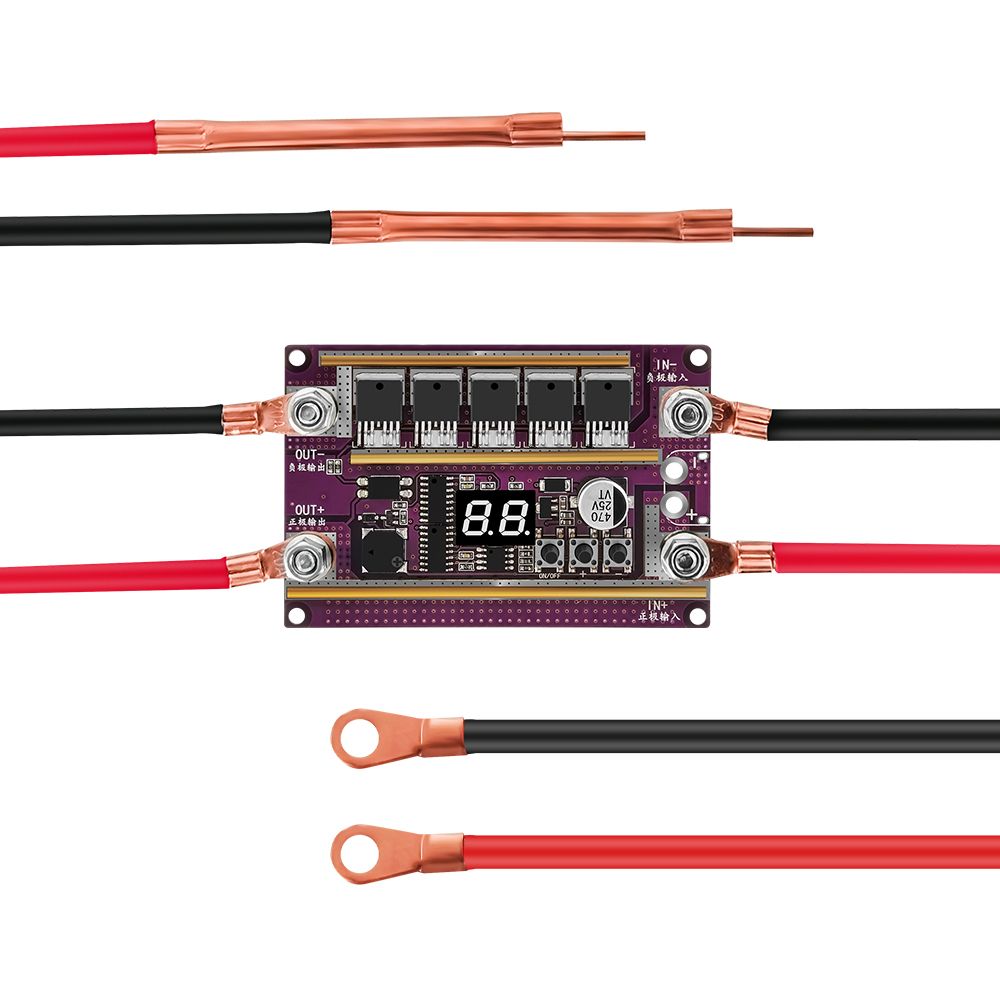

8 square welding pen, 10AWG wire consists of multiple strands of high-temperature wire with high torsional resistance and more sensitive operation.
Thickened pure copper welding pen design, with alumina copper spots welding needles to ensure high current passing capacity and durability.
The cold pressing process can make large contact areas with pure copper joints to reduce internal resistance.
Optional Housing:
Transparent protective housing, beautiful and safer, prevents short-circuiting damage to the control board due to leaks from exposed component.
Note:
The switching supplies, transformers, chargers, water batteries, and rechargeable batteries are not allowed to be used as supplies!
Specifications:
Name: Spots Welding Machine Set
Material: printed circuit board
Type: with housing, without housing (optional)
Working voltage: 6.5-16V
Working current: ＜20ma
Standby consumption: ＜0.5ma
Recommended working temperature: -10℃ to 60℃
Voltage: 12.0V
Welding current: 1700A Max
Welding thickness: 0.1-0.3mm
Capacity: 20AH-80AH (new battery not more than 45AH, more than 45AH please consulting our customer service for current limiting method) or: 4-5 strings of super-Farah capacitors
Item size: 90 * 60mm / 3.54 * 2.36in
Package size: 120 * 120 * 20mm / 4.72 * 4.72 * 0.79in
Package weight: 180g / 6.35ounce
Packing List (without housing):
1 * Control Board
2 * Input Cable
1 * Pair of Welding Pen
2 * Heat Shrink Tubing
6 * Screw
1 * Nickel Sheet
1 * Guideline
OR
Packing List (with housing):
1 * Control Board
2 * Input Cable
1 * Pair of Welding Pen
2 * Heat Shrink Tubing
6 * Screw
1 * Nickel Sheet
1 * Housing Kit
1 * Guideline
Key Features
The welding process is based on the principle of high current and high temperature, rapidly melting part of the nickel sheet, and cooling.
Adopt 5pcs MOS tubes, and the maximum current is up to 1700A; there are 5 MOS tube locations reserved on the back of the printed circuit board for DIY players to increase their own MOS tubes.
High output design, 99 gears of output adjustable, more accurate welding, suitable for continuously welding thousands of points on nickel/nickel-plate sheet.
With the digital tube real-time gear display function, 0-99 gears, 1-gear is the lowest, 99-gear is the highest, and the gears are gradually increasing.
It supports 0.1-0.3mm nickel welding sheets with solid and beautiful welding spots.
This product can be widely used on spots welding cylindrical lithium batteries and nickel metal hydride batteries such as 14650/17490/18650/21700/26650/32650 etc.
What's In the Box
(without housing):,1 x Control Board,2 x Input Cable,1 x Pair of Welding Pen,2 x Heat Shrink Tubing,6 x Screw,1 x Nickel Sheet,1 x Guideline,
| Model | without housing |
|---|---|
| Production Country | China |
| Size (L x W x H cm) | 12.00×12.00×2.00 |
| Weight (kg) | 0.18 |
| Color | Multicolor |
| Main Material | printed circuit board |
