VC97 Auto Range Digital Multimeter Capacitance Resistance Tester

Description :

VC97 Auto Range Digital Multimeter Capacitance Resistance Tester

Features :

Model : VC97

New type , streamline design.

Strong antimagnetic and performance.

Large LCD makes the reading clearly.

Full function protection.

Unit symbol display, very easy to reading.

Relative value, frequency/duty cycle measuring, data hold.

Specification :

Meter size : 185 x 90 x 35mm




Basic function


Range


Basic accuracy




DCV


400mV/4V/40V/400V/1000V


(0.5%+4)




ACV


4V/40V/400V/1000V


(0.8%+6)




DCA


400uA/4000uA/40mA/400mA/20A


(1.0%+5)




ACA


400uA/4000uA/40mA/400mA/20A


(1.5%+5)




Resistance


400/4k/40k/400k/4M/40M


(0.8%+1)




Capacitance


4nF/40nF/ 400nF/4F/40F/200F


(3.5%+8)




Frequency


100Hz/1kHz/10kHz/100kHz/1MHz/30MHz


(0.5%+4)




Centigrade temperature


-40C~1000℃ (can be converted toF)


(0.8%+4)






Special function


VC97




Diode







hFE







Continuity


Approx. less than 3010




Low indication


Approx less than 2.4V




Duty cycle measuring







Data hold







Auto off


Approx.15minutes




Function protect







Input impendence


10M




Sampling rate


3times/s




AC frequency response


40-400Hz




Operation way


Manual or auto range




. display


4000




LCD size


65x41mm







3V AAAx2




dissipation


Quiescent current approx. 2mA




Package Included :

1 x VC97 Digital Multimeter

1 x Leads

1 x Manual

1 x TP01 temperature probe

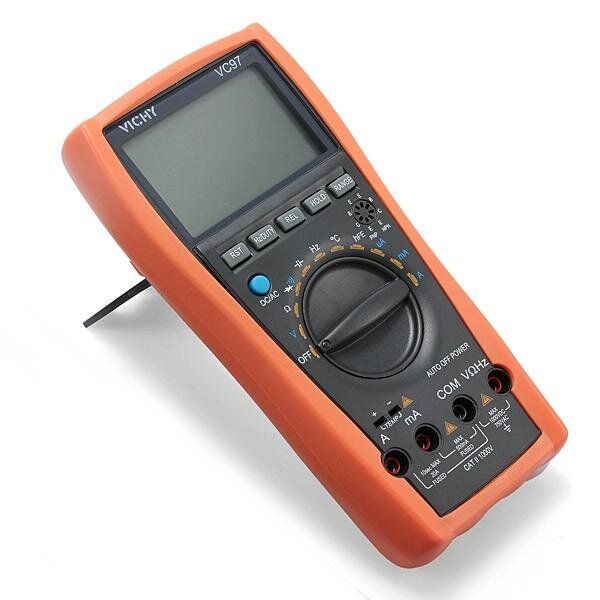

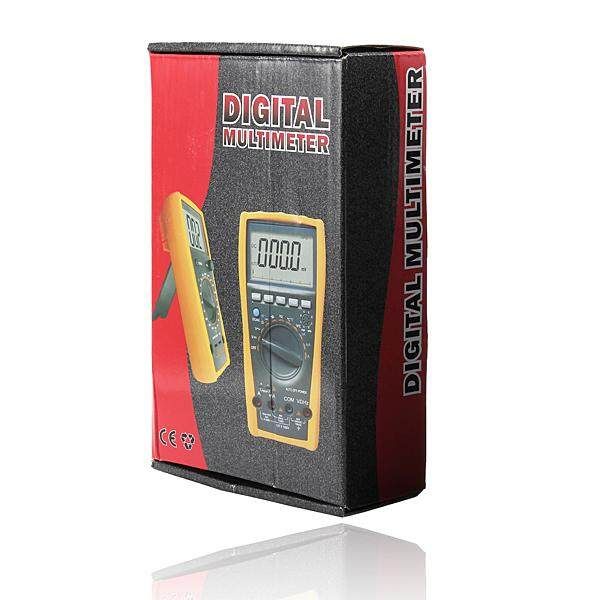

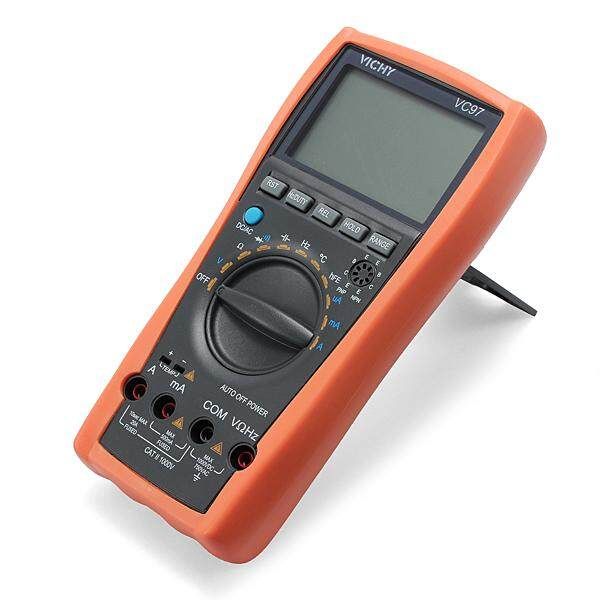

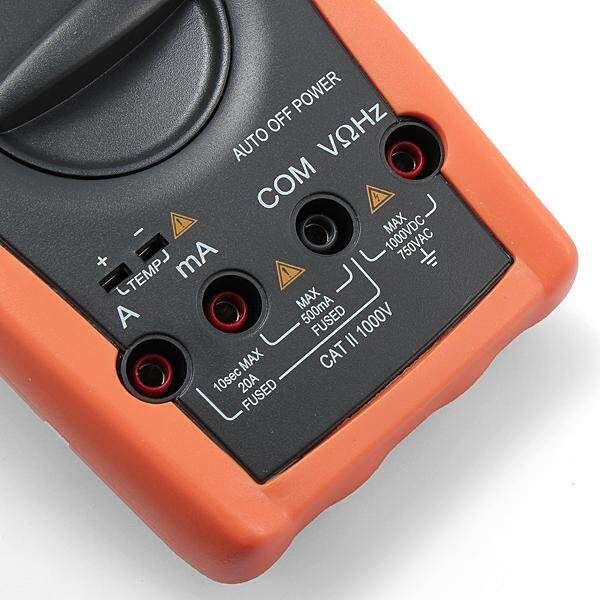

Details pictures :




















Description :



VC97 Auto Range Digital Multimeter Capacitance Resistance Tester



Features :



Model : VC97

New type , streamline design.

Strong antimagnetic and performance.

Large LCD makes the reading clearly.

Full function protection.

Unit symbol display, very easy to reading.

Relative value, frequency/duty cycle measuring, data hold.



Specification :



Meter size : 185 x 90 x 35mm





Basic function



Range



Basic accuracy





DCV



400mV/4V/40V/400V/1000V



(0.5%+4)





ACV



4V/40V/400V/1000V



(0.8%+6)





DCA



400uA/4000uA/40mA/400mA/20A



(1.0%+5)





ACA



400uA/4000uA/40mA/400mA/20A



(1.5%+5)





Resistance



400/4k/40k/400k/4M/40M



(0.8%+1)





Capacitance



4nF/40nF/ 400nF/4F/40F/200F



(3.5%+8)





Frequency



100Hz/1kHz/10kHz/100kHz/1MHz/30MHz



(0.5%+4)





Centigrade temperature



-40C~1000℃ (can be converted toF)



(0.8%+4)









Special function



VC97





Diode









hFE









Continuity



Approx. less than 3010





Low indication



Approx less than 2.4V





Duty cycle measuring









Data hold









Auto off



Approx.15minutes





Function protect









Input impendence



10M





Sampling rate



3times/s





AC frequency response



40-400Hz





Operation way



Manual or auto range





. display



4000





LCD size



65x41mm









3V AAAx2





dissipation



Quiescent current approx. 2mA







Package Included :



1 x VC97 Digital Multimeter

1 x Leads

1 x Manual

1 x TP01 temperature probe



Details pictures :
