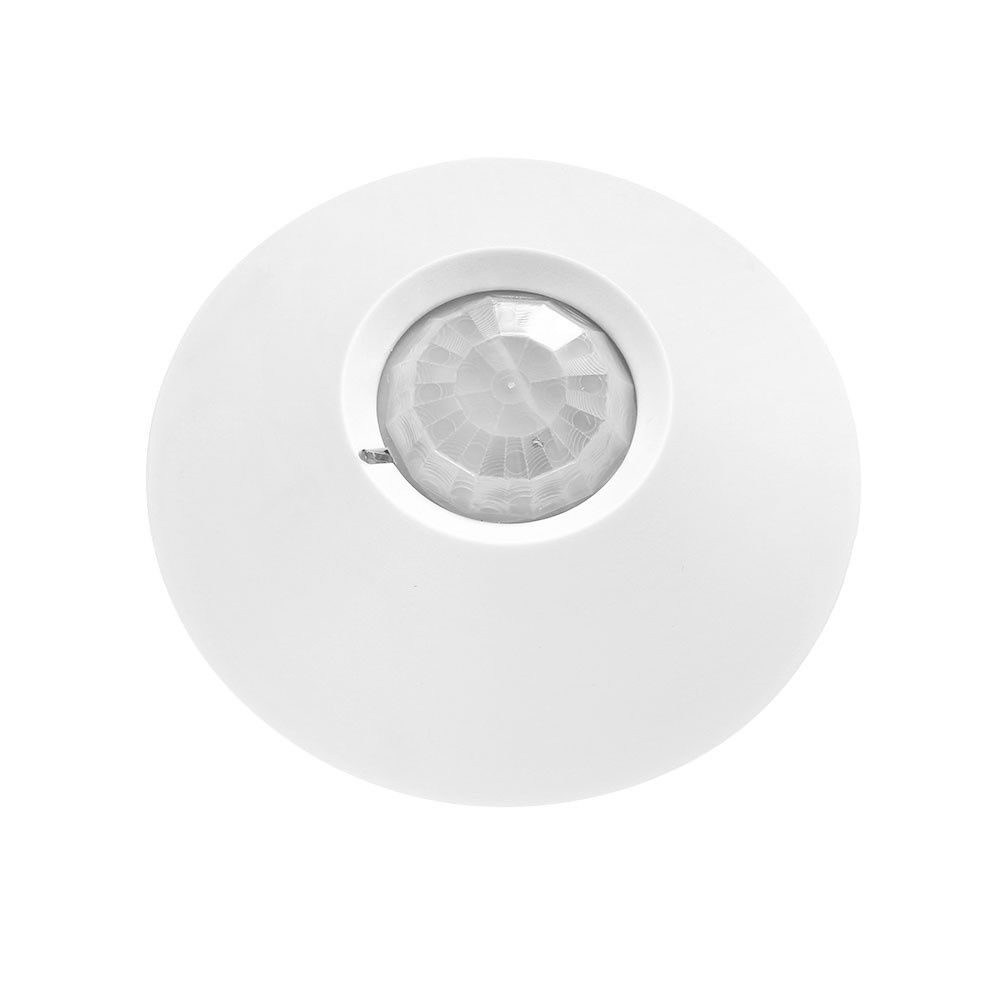

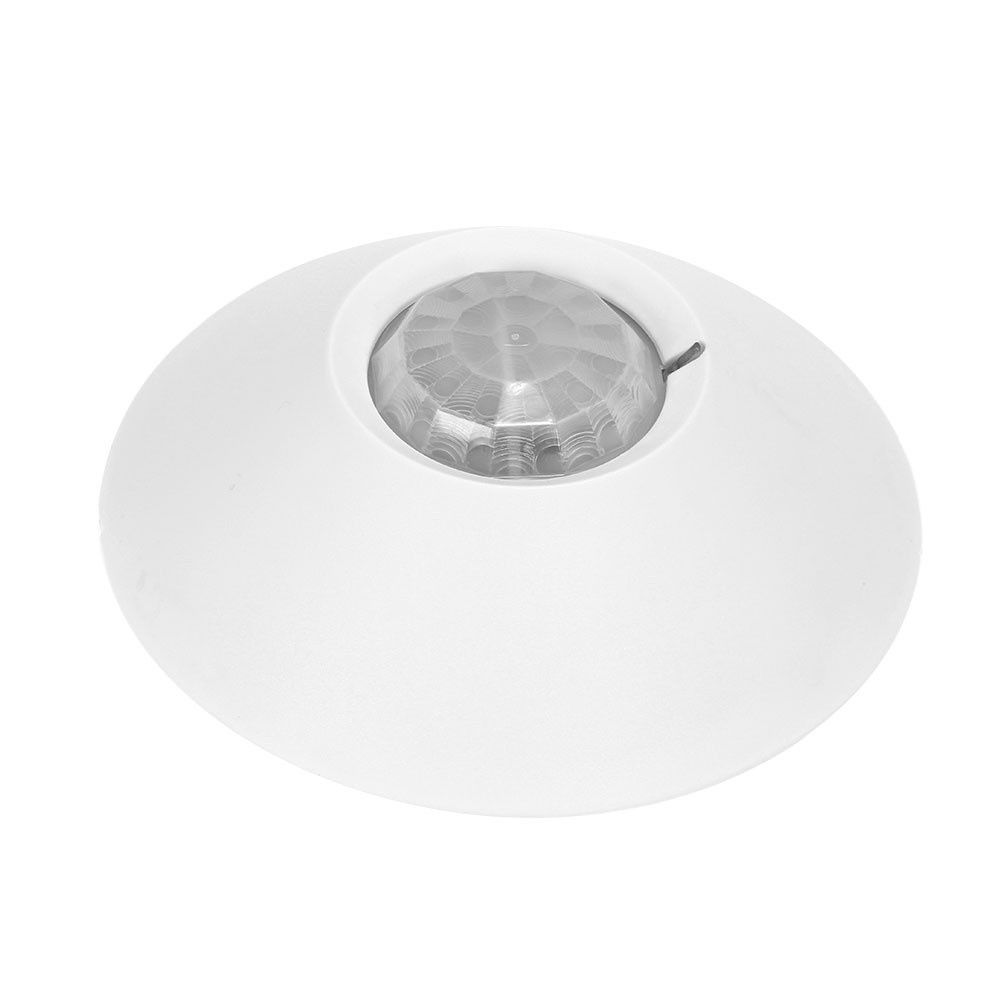

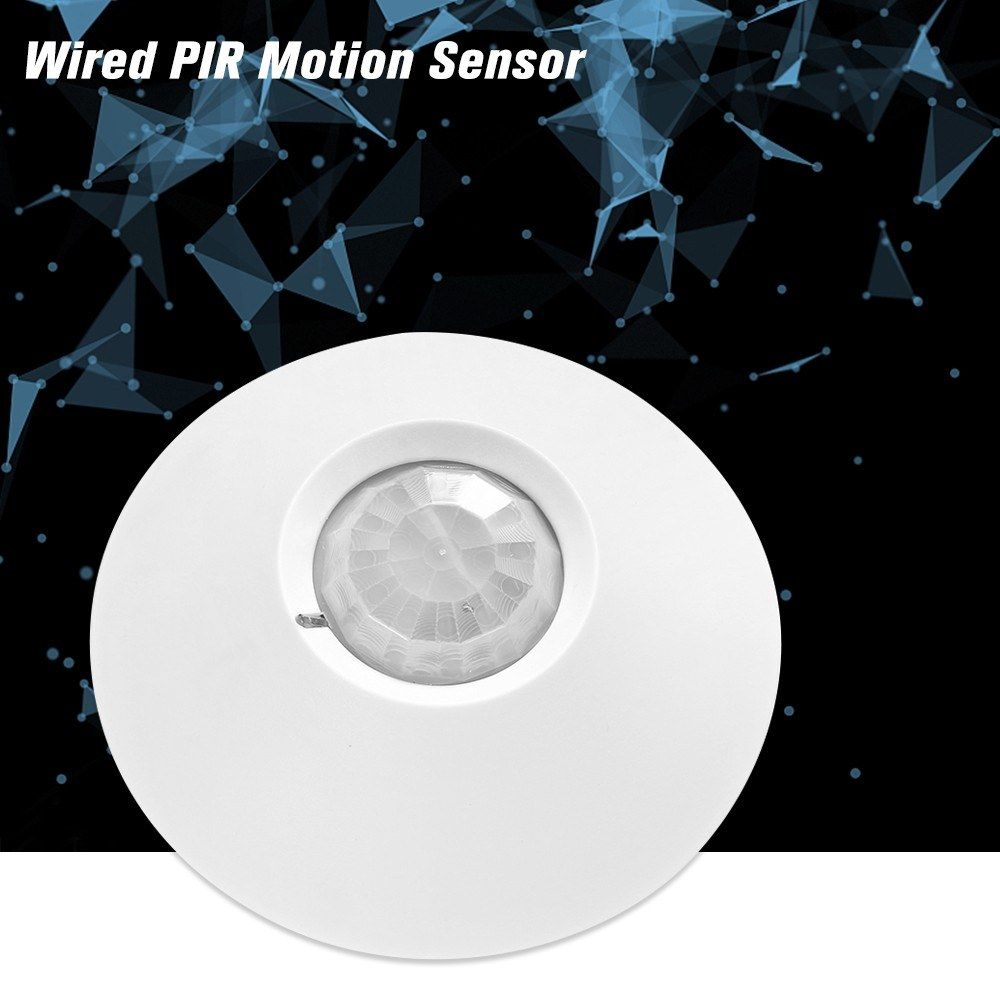

Wired PIR Motion Sensor

Note: Do not mount the unit in direct sunlight or near heat sources.

Overview:

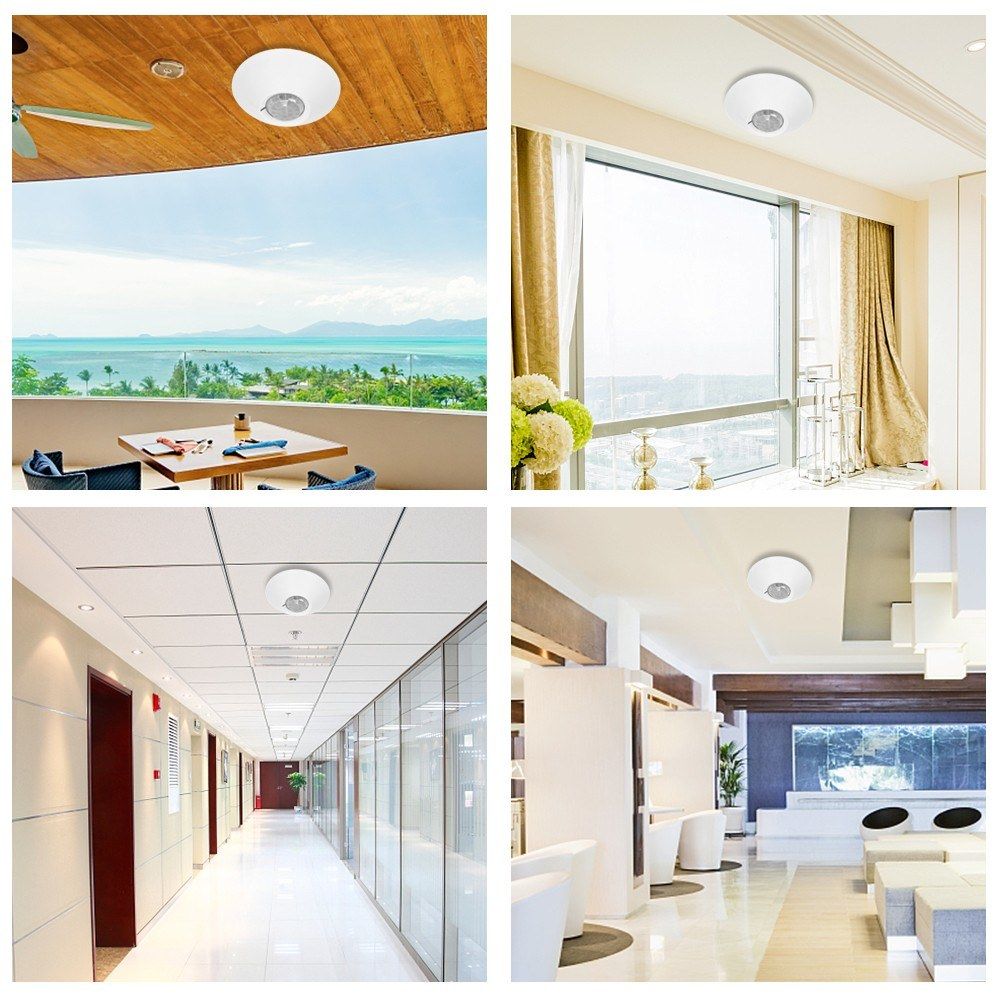

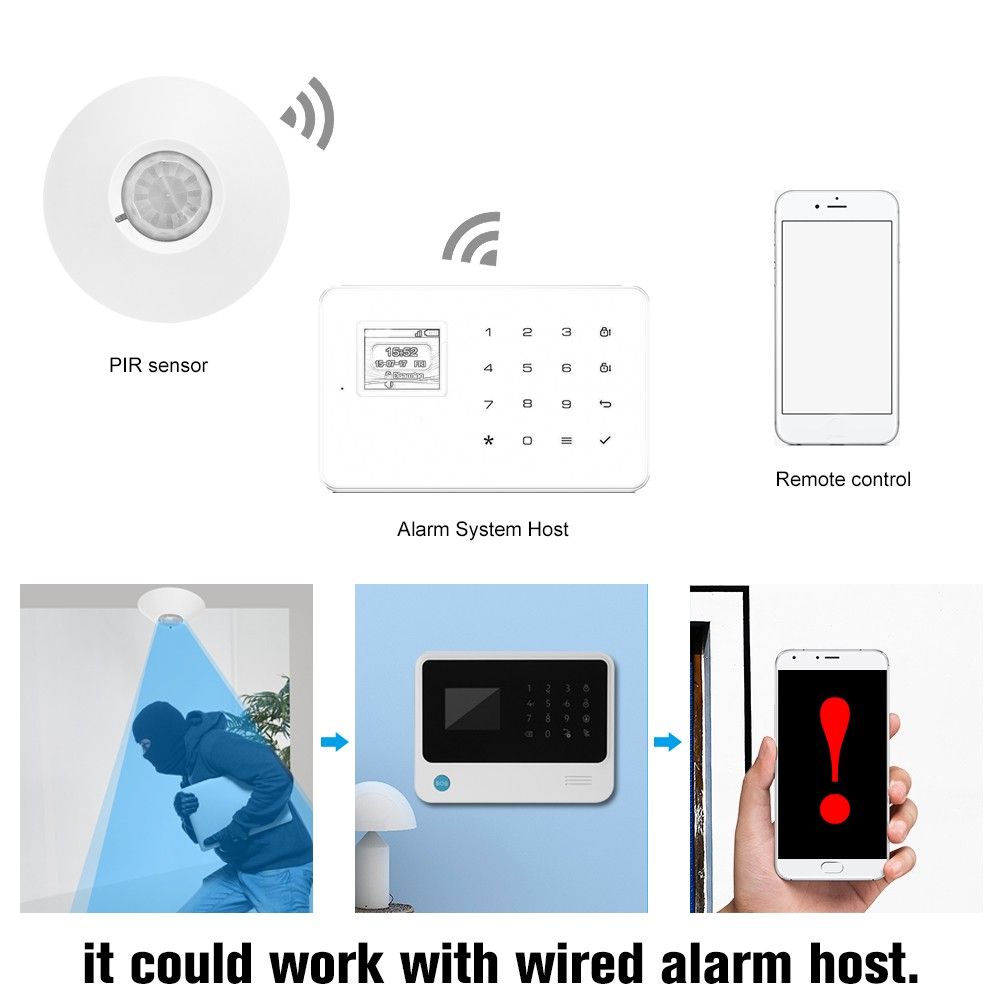

This product is a 360 deg; wired ceiling mounting passive infrared detector, exquisite design, easy installation. Fit for the locations of the apartment, building, factory, office, hotel, balcony, window, door, corridors, etc. Imported high-end infrared sensor, SMT chip technology, anti-EMI amp; anti-RFI design, temperature compensation, pulse count, LED switch, etc. can be integrated with wired alarm host.

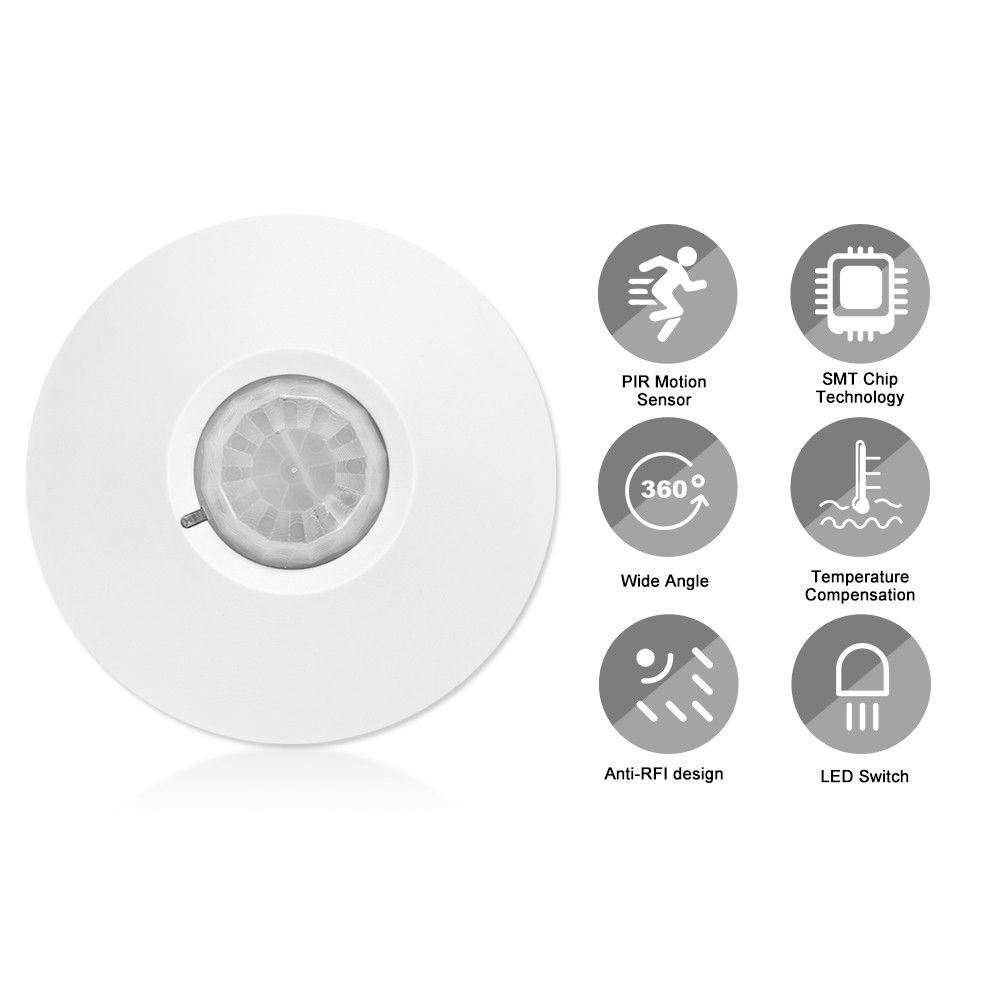

Features:

*MCU technology to prevent all kinds of false alarms. With high catch performance.

*SMT chip, anti-EMI amp; anti-RFI design. Anti-tamper alarm function to enhance anti-damage.

*The PIR sensor is a 360 deg; wide angle, detection range: 7m times;6m(installation height at 2.4m), 10.7m times;6m(installation height at 3.7m).

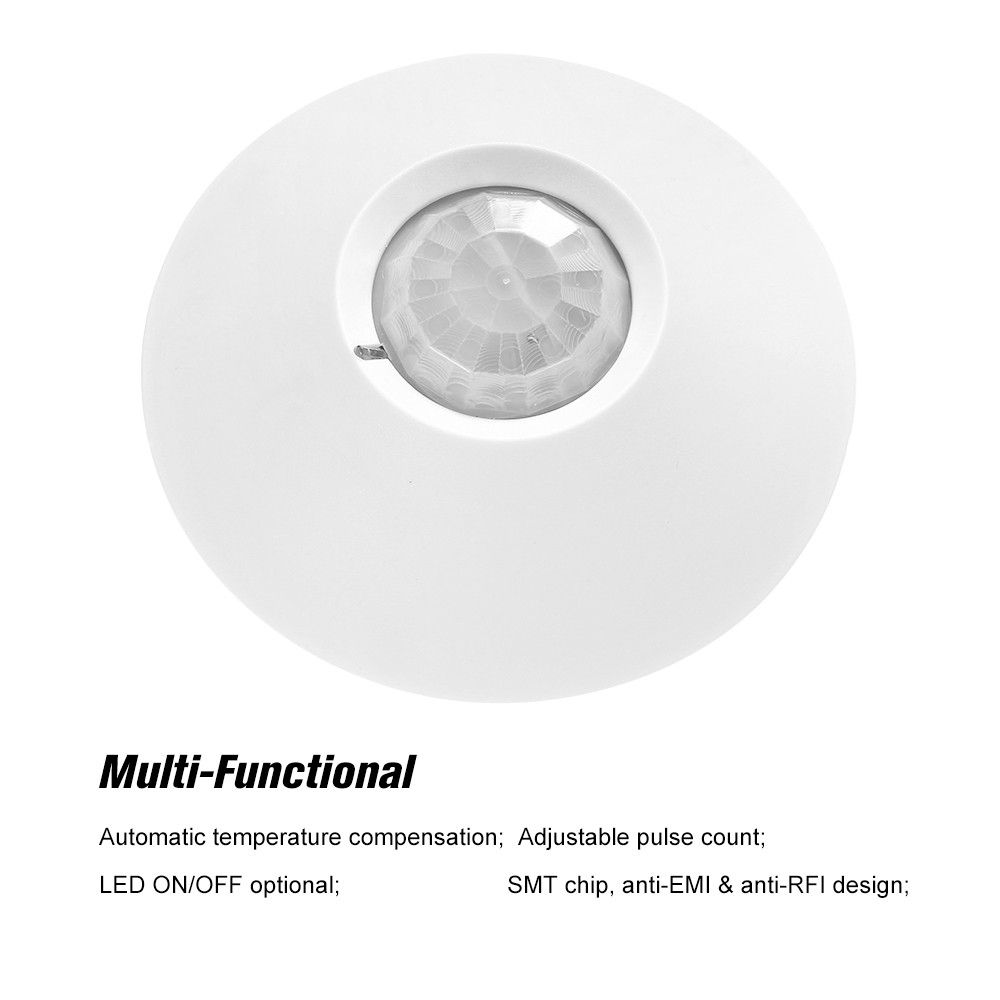

*Automatic temperature compensation, adjustable pulse count.

*LED ON/OFF optional, better concealment.

Specifications:

Input Voltage: 9V-15V

Standby Current: 12mA

Working Current: le;18mA

Detection angle: 360 deg;

Detection range: 7m times;6m (installation height: 2.4m)

Detection range: 10.7m times;6m (installation height: 3.7m)

Signal: NC normally closed

LED indication: ON/OFF optional

Alarm Indicator: Red led, constant light 3s

Installation Way: Ceiling Mounting

Installation Height: 2.2m-4.5m Adjustable

Casing Material: ABS

Operating temperature: -10 deg;C to 50 deg;C

Size: Approx. 10.8 * 10.8 * 3.5cm

Weight: Approx. 66g / 2.3oz

Package Information:

Package Size: Approach. 10.8*10.8*4cm/ 4.3*4.3*1.6in

Package Weight: Approach. 86g / 3oz

Package List:

1 * Wired PIR Motion Sensor

1 * User Manual (English)
