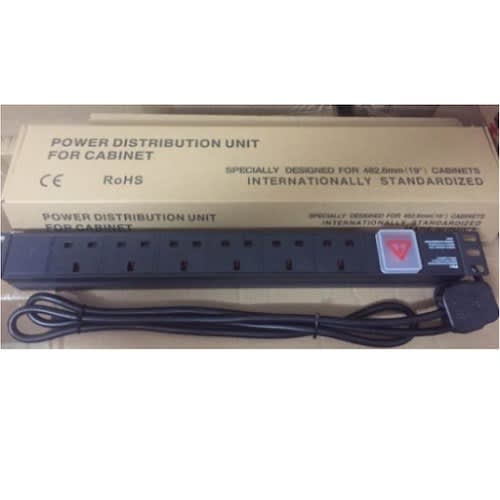

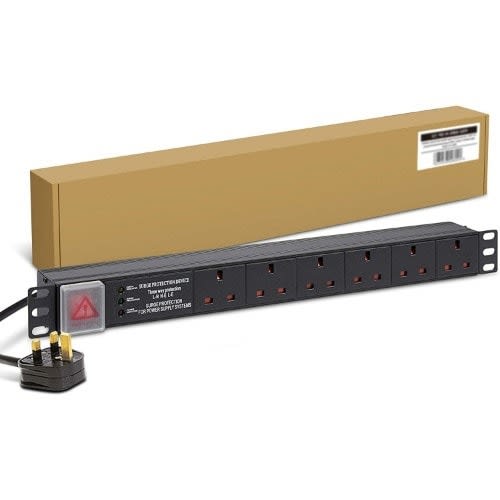

Power Distribution Unit(pdu) - 6 Way

PDU shell material and color: aluminum alloy shell / black

PDU size: 19-inch standard racks occupy 1.5U of rack space

PDU outlet configuration description:

7 British standard jack 13A output with double-break switch

PDU power parameters:

Rated input voltage: 220-250VAC 50/60HZ

Maximum input current: 13A

Rated output voltage: 220-250VAC 50/60HZ

Output current: 13A

PDU power line parameters: 3*1.5mm2

Length: 2 meters

Plug: British Standard 13A

Input method: Left single input

Installation method: 19-inch positive direction installation

Looking for high performance power distribution for your heavily loaded systems? This kind of product designed for standard networking or data cabinets equipment to provide 6 UK sockets. The newly developed 13A heavy-duty horizontal PDU using the IEC-C14 plug input connector which is ideal for many device requirements including server, network and other industrial-type equipment functions such as broadcast and HVAC applications. Combining a fully certified IEC-C14 plug input combined with a compatible heavy load power flex means you can be assured this PDU can work without problems, 24/7. Furthermore, incorporated onto the horizontal form-factor are industry standard UK sockets, ideal for data, telco and broadcast equipment with the added benefit of integral electrical surge protection. Robust in design, with an integral neon illuminated rocker switch for assured functionality, the PDU is designed to deliver maximum electrical power today and tomorrow.

The hybrid power strips are suitable for both horizontal and when the rotating end brackets are re-aligned, vertical mounting within standard 19" enclosures. The units feature a combination of 13 AMP, IEC C13 and C19 sockets and are supplied with a 3Mtr lead terminated in either an IEC C13, C20 or 13 AMP plug
