PoE Injector

• IEEE 802.3af compliant
• Auto-determine the necessary power requirements
• Gigabit speed support
• Plug-and-Play, requires no configuration
• What This Product Does: The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

• HARDWARE FEATURES
  Interface	2 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 48VDC POWER INPUT PORT
  Network Media	10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
  Power Supply	15.4W (Max. 48VDC)
  LED Indicator	PWR
  Dimensions ( W x D x H )	3.2 × 2.1 × 0.9 in. (81 × 54 × 24 mm)

  SOFTWARE FEATURES
  Basic Function	Compatible With IEEE 802.3af Compliant PDs Delivers Power Up To 100 Meters Auto-Determine The Necessary Power Requirements

What's In the Box

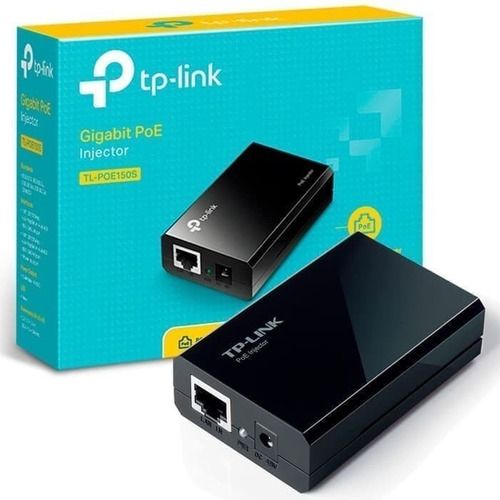

Gigabit PoE Injector TL-POE150S
Power Adapter
RJ45 Cable
Installation Guide
