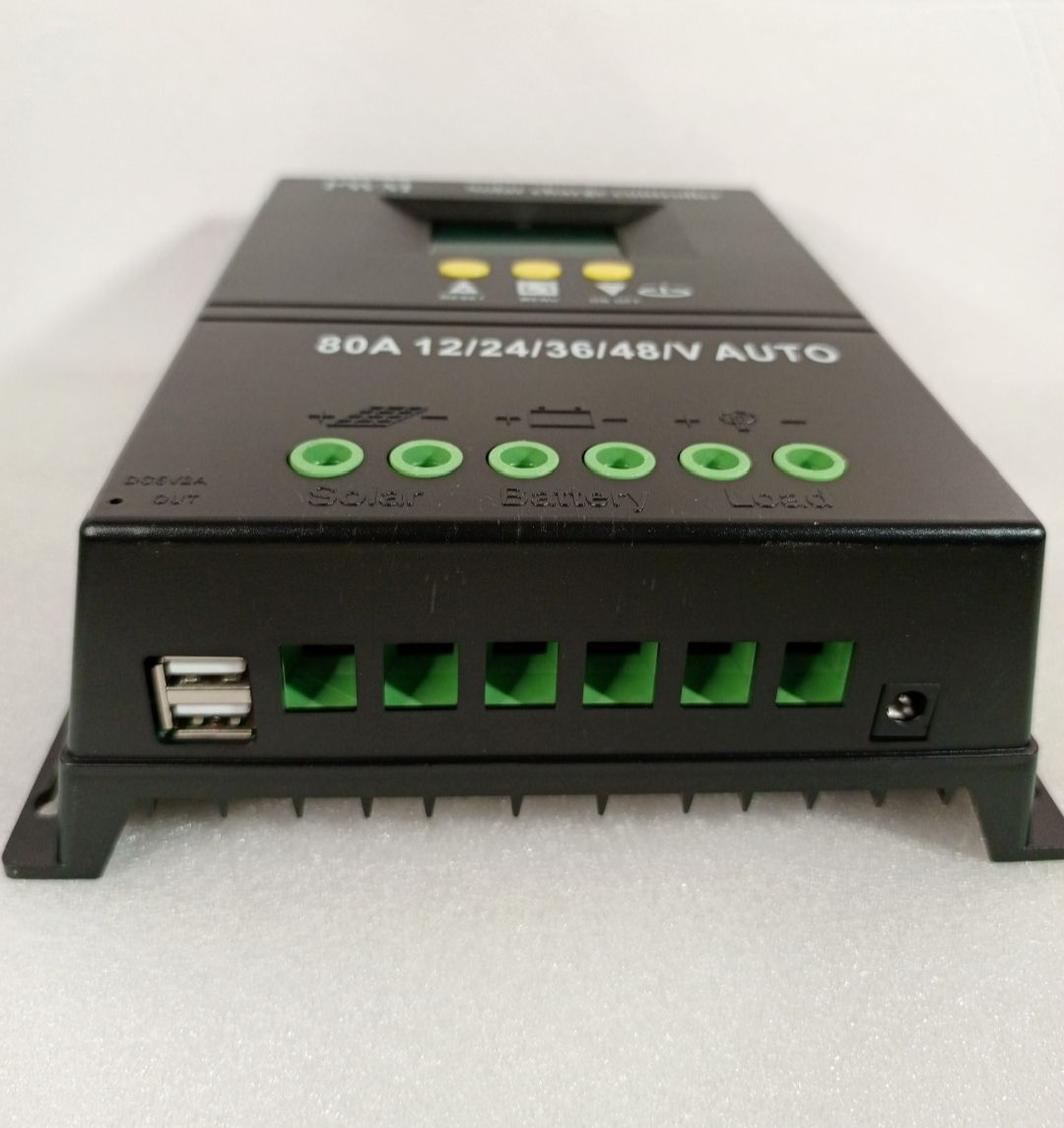

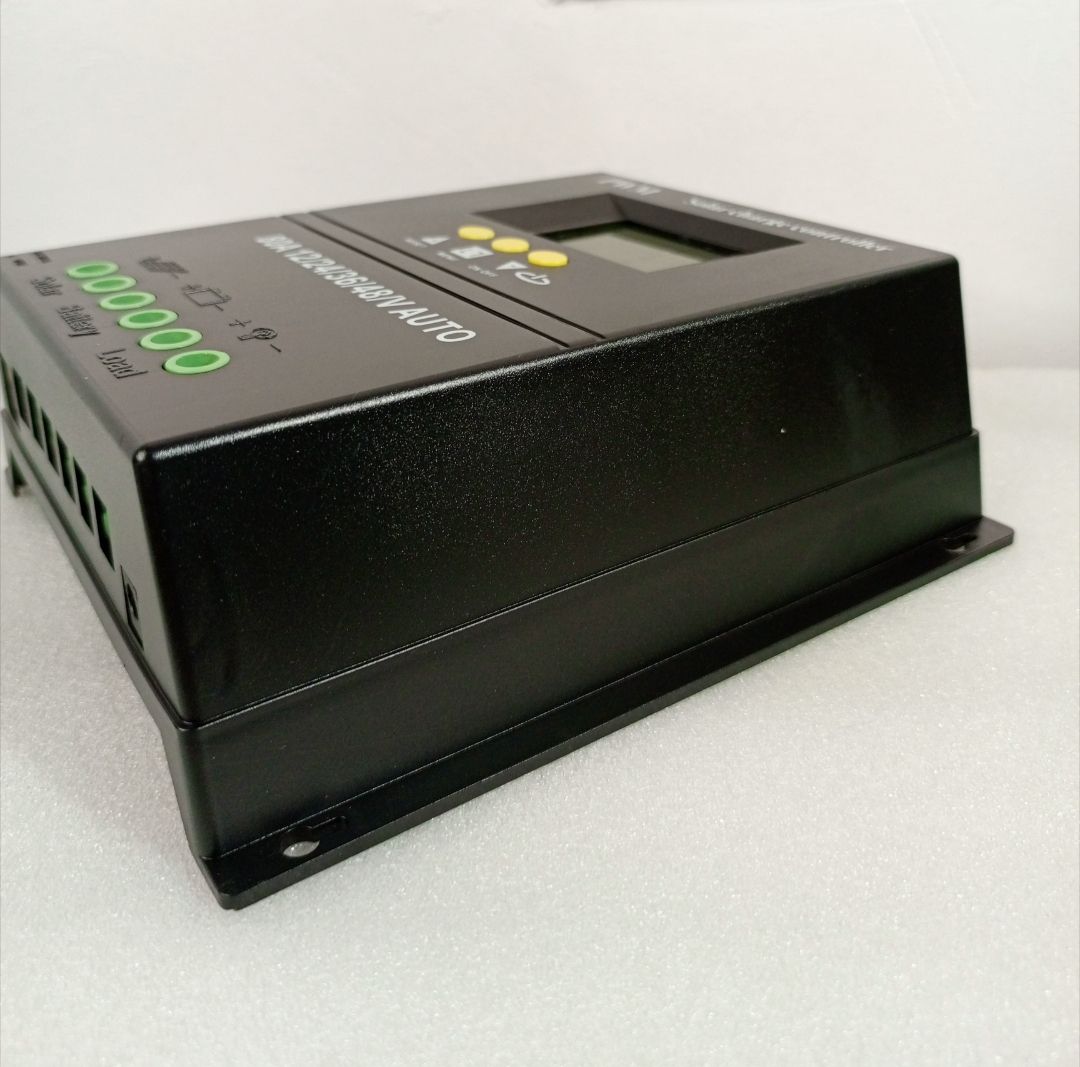

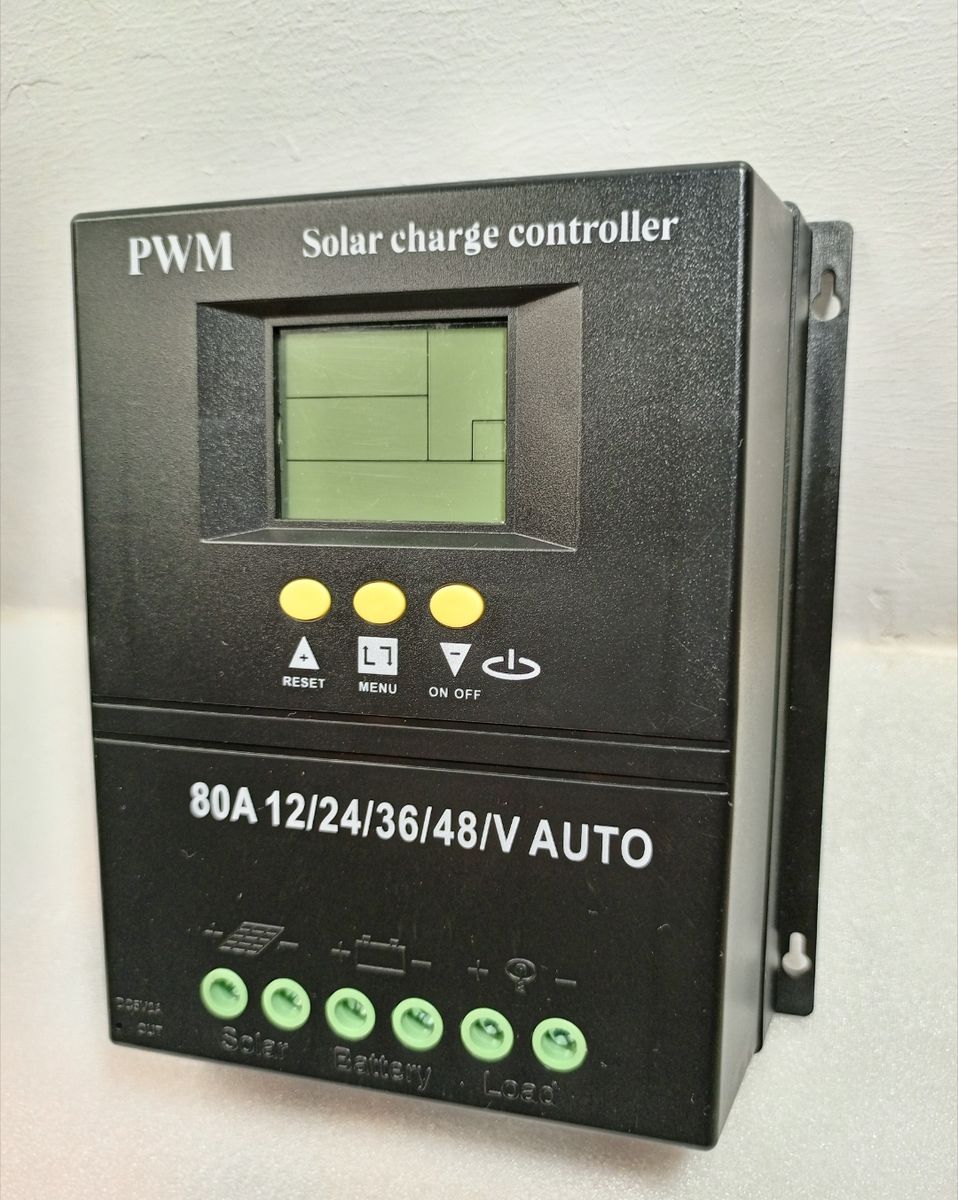

PWM Solar Charge Controller 80A 12/24/36/48V Auto

PWM Solar Charger Controller - 80Amps
Input Voltage 12/24/36V/48VVisual LCD graphic symbolBrief key operationGrade auto switch of system voltageIntelligent PWM Charging ModeAuto temperature compensationAdjustable charging & discharging parameterSettable working modes of loadsAccumulative function of charging & discharging Protection for battery back dischargingLow Voltage Protection12V at 10.5v24V at 21.4v36v at 32.10v48v at 42.80v
Overloading & short-circuit protectionBattery reversed protectionDelayed auto restart after overloading protectionModel: 80A PWM Solar Charge ControllerRated working voltage :12V/24V/36V/48V DC AUTOSystem Pan Voltage- 15v-23v(12v)30v-45v (24v)45v-69v (36v)60v-90v (48v)Float charging voltage (settable) :13.8V/27.6V/41.1V/55.2VLow voltage recovery (settable) :11.5V/23.0V/34.5/46VNo load loss : Temperature compensation :-4mInstallable maximum cable:3# AWG (25mm2)Working temperature: -30 -70Weight: 1.00kgCharging mode: PWM Solar panel power: 1200W/12V; 2400W/24V,48V/3840WColour:;Black
Specification
Model Number SY4880A
ApplicationCharger ControllerWork Time (h)24 hoursMax PV Power3840WMax PV Voltage95VProduct namePWM Solar Charge ControllerDisplayLCD ScreenPWM efficiency98-99%Rated Current80A
ApplicationCharger ControllerWork Time (h)24 hoursMax PV Power3840WMax PV Voltage95VProduct nameMPPT Solar Charge ControllerDisplayLCD ScreenPWM efficiency98-99%Rated Current80A

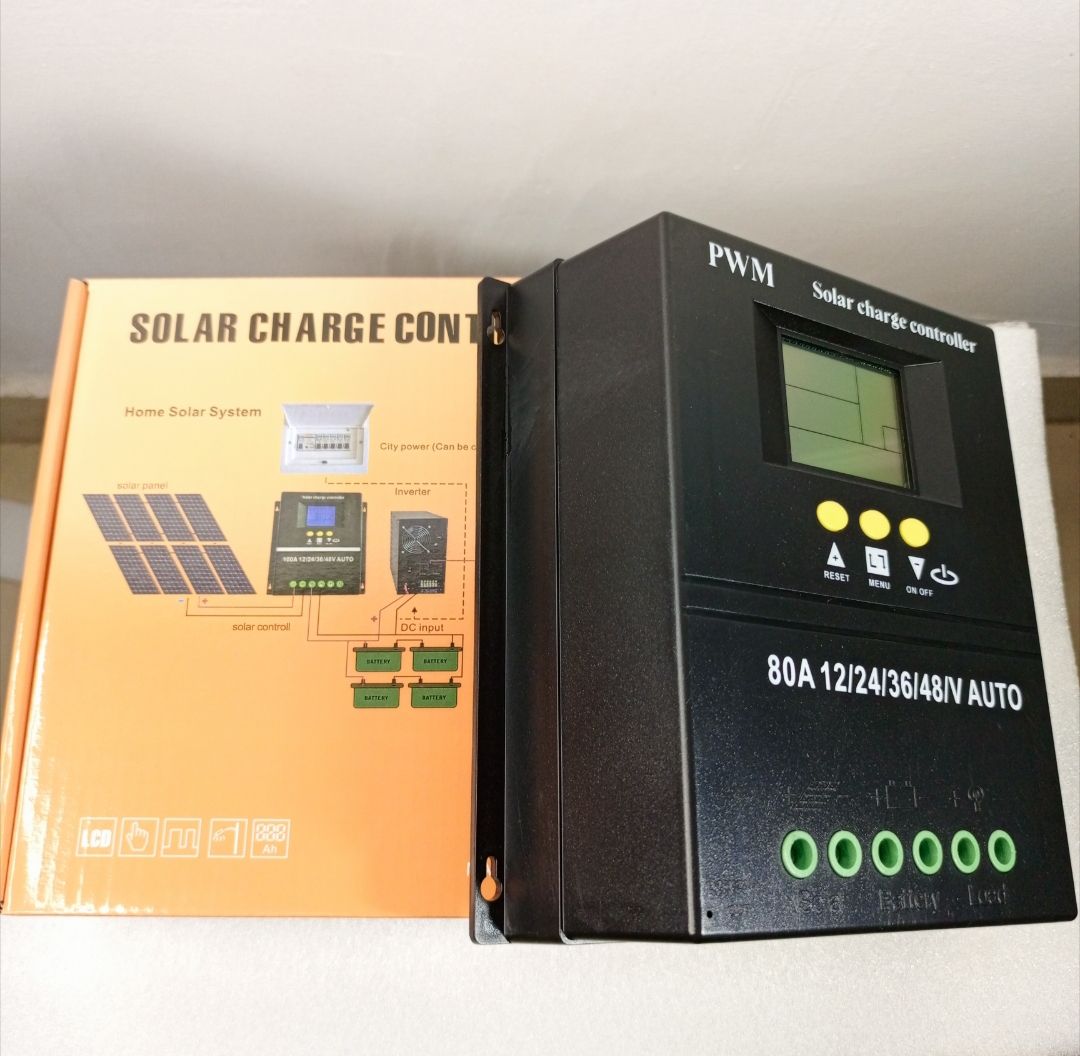

What's In the Box

1* 80A PWMManual
