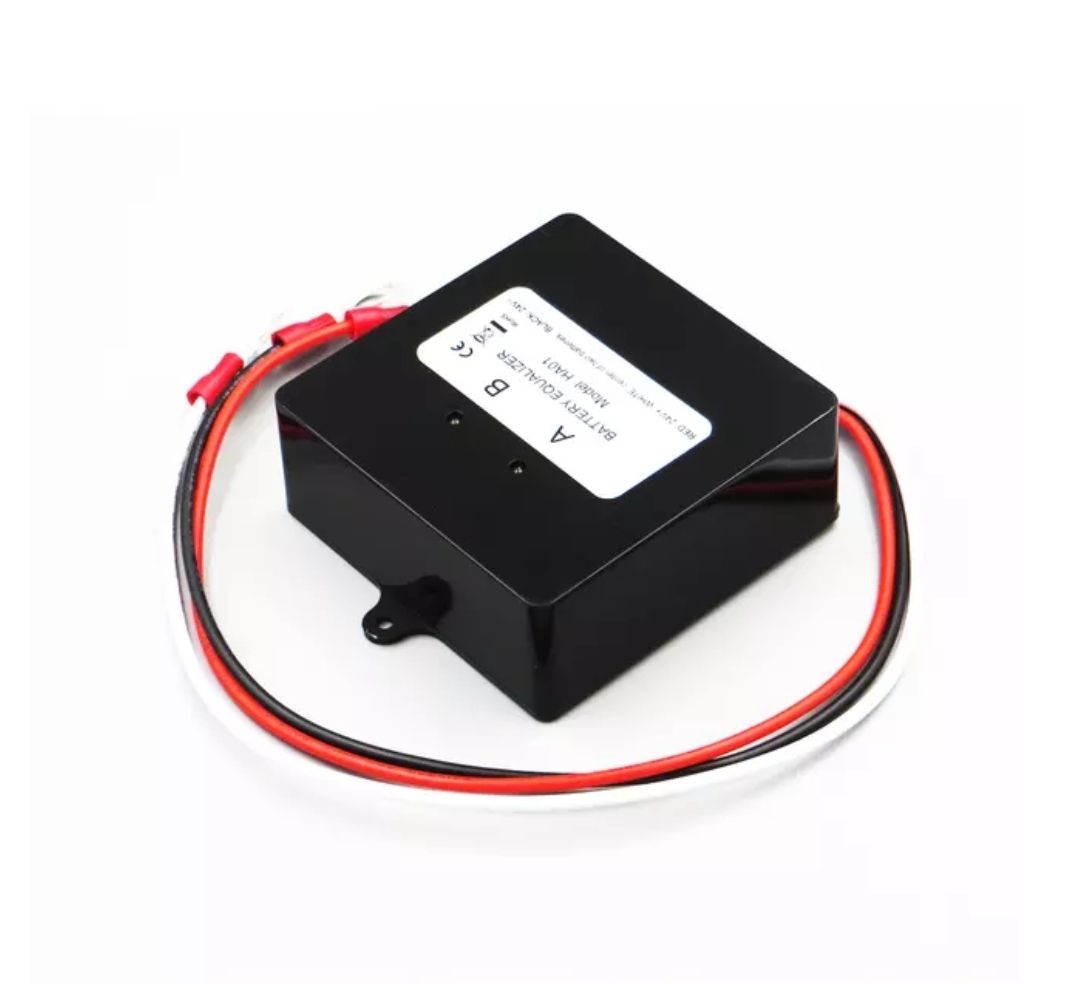

Battery Balancer Equalizer 24vA

24v battery equalizer
This is an active transfer battery Equalizer
When two or more batteries connected in series or parallel charge and discharge, voltage differences begin to occur.while some batteries are overcharged, others may be undercharged.battery equalizer will equalize/balance the battery voltage when it detect there are 20mv between two batteries.
It will shunt current from one battery(the higher voltage one) to the other battery(the lower voltage one) until their battery voltage almost becomes same.
Parameters Working Voltage -12v-24vWorking Current - 0-10AStandby Current - less than 5mAWorking Temperature -29 to 60⁰cReverse Voltage Protection
Recommended for 2v 6v 12v lead acid batteries, lithium Polymer packs, LifePo4 packs, solar batteries
This will improve battery's performance and extend battery's lifetime by at least additional 2 yrs
This battery Equalizer Balancer can be used for multiple batteries in series or parallel once it's voltage is 24V
Parameters Working Voltage -12v-24vWorking Current - 0-10AStandby Current - less than 5mAWorking Temperature -29 to 60⁰cReverse Voltage Protection

What's In the Box

1 X 24v Battery EqualizerManual
