Portable Digital Display Spots Welding Machine Control

The control panel of the spots welding machine is a controller which is independently developed for the DIY or the simple resistance welding. The principle of silicon controlled phase shifting triggering is adopted to adjust the time and the current to achieve the purpose of welding.



Features:

The use of STM8 industrial microcontroller control center.

Strong and weak electricity through optocoupler isolation, safer operation.

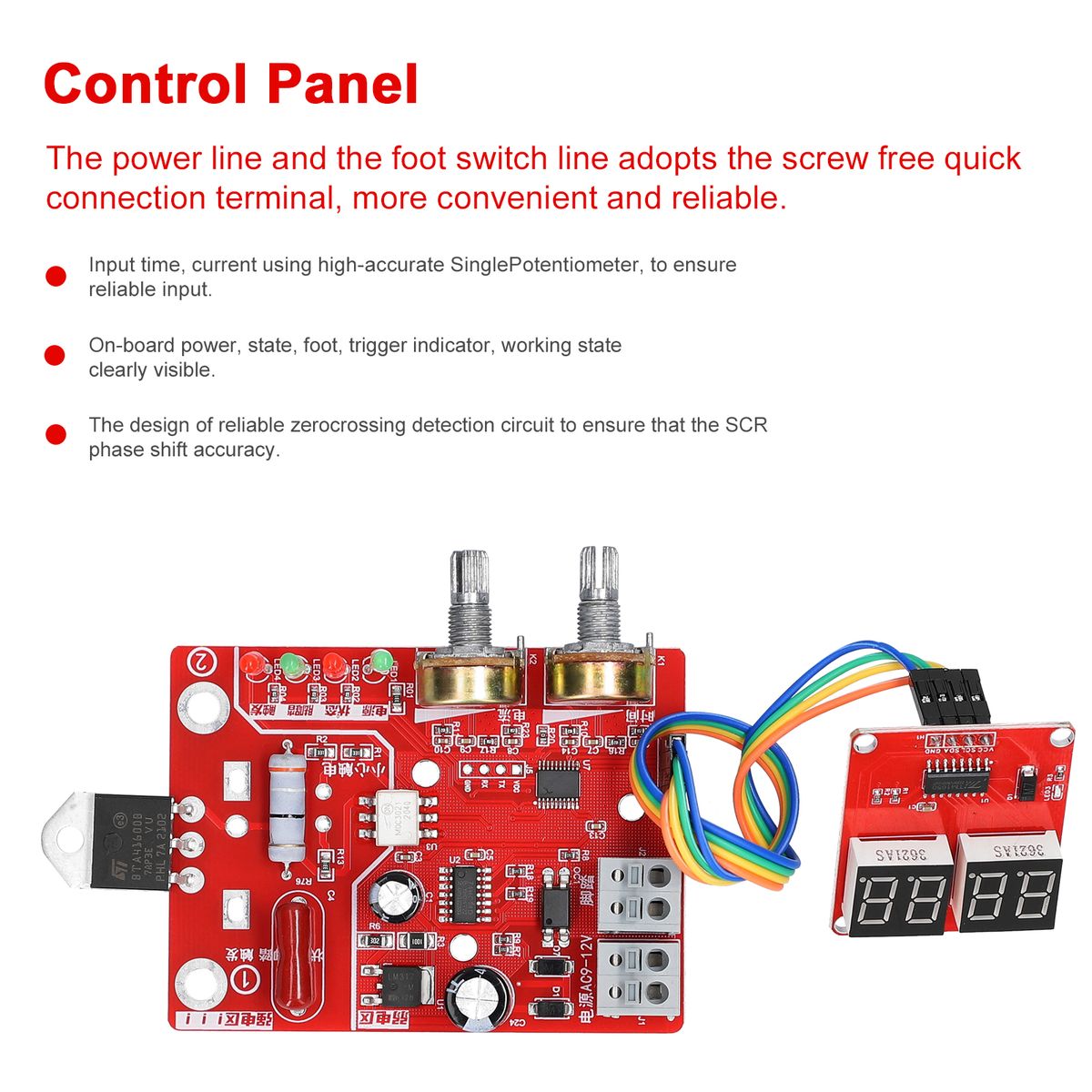

The line and the foot switch line adopts the screw free quick connection terminal, more convenient and reliable.

Input time, current using high-accurate SinglePotentiometer, to ensure reliable input.

On-board , state, foot, trigger indicator, working state clearly visible.

The design of reliable zerocrossing detection circuit to ensure that the SCR phase shift accuracy.

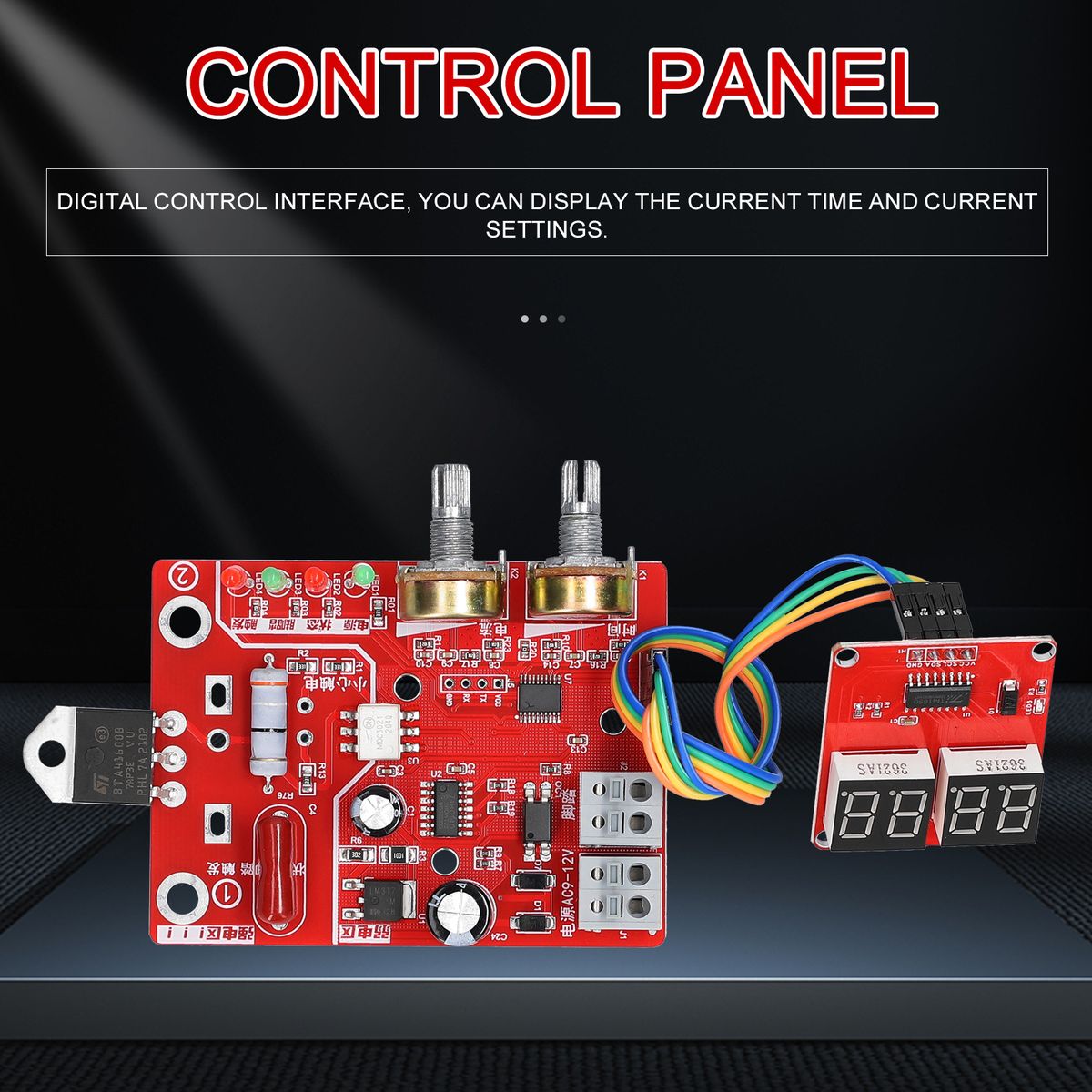

Digital control interface, you can display the current time and current settings.



Specifications:

Type: 40A, 100A (optional)

Main color: red+black

Output voltage: 12Volt

Time input: 1-50

Unit cycle: 1 cycles is 20ms

Current input: 30-99%

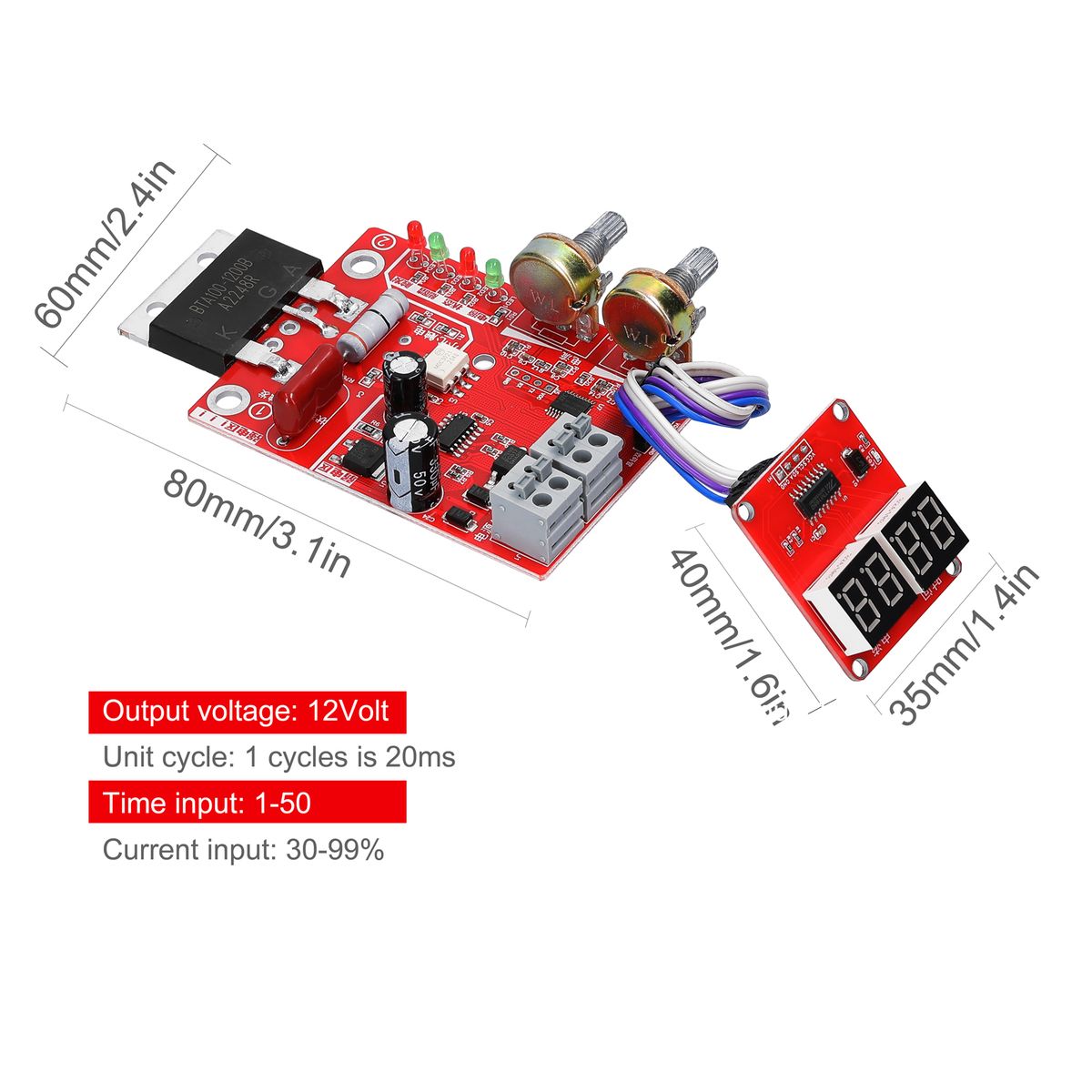

Control board size: 80 * 60mm / 3.1 * 2.4in

Display size: 40 * 35mm / 1.6 * 1.4in

Item weight: 69g / 2.4ounce

Package size: 1 0 5 * 60 * 28mm / 4.1 * 2.4 * 1.1in

Package weight: 80g / 2.8ounce



Packing List:

1 * Control Panel

Key Features

The use of STM8 industrial microcontroller control center.
Strong and weak electricity through optocoupler isolation, safer operation.
The line and the foot switch line adopts the screw free quick connection terminal, more convenient and reliable.
Input time, current using high-accurate SinglePotentiometer, to ensure reliable input.
On-board , state, foot, trigger indicator, working state clearly visible.
The design of reliable zerocrossing detection circuit to ensure that the SCR phase shift accuracy.

What's In the Box

1 x Control Panel
