DM8145 4 7/8 Bench Top Multimeter 1000V 20A 80000 Counts

Description:

The Professional Bench Top Multimeter is a unique multi-functional device that has 4 7/8 digits Dual Display with 80,000 counts and Analog Bar Graph with 23 segments. This precision LCR meter is a cost-effective solution for component and material measurement. Measure speed is about 3 per second and with more than 50 measuring functions including DC/AC Voltage, DC/AC Currents, Resistance ( Omega;), Capacitance, Frequency (Hz), Rotational Speed,Temperature (C/F), Duty Cycle, Diode and Continuity Check. Moreover, you can connect it to your computer through RS-232 Cable. The meter can provide functions including analog bar and unit symbol display, data holding, relative value measuring and maximal/minimal value measuring. This multimeter is most suitable for use on production lines, laboratories, factories, radio-technology, R amp; D, maintenance and repairing work. The meter can provide functions including analog bar and unit symbol display, data holding, relative value measuring and maximal/minimal value measuring.

Features:

High contrast and Wide visual angle LCD display with backlight

Dual Display:

Main Display: 80000

Secondary Display: 80000

Analog Bar Graph: 23 segments, update 40 time/sec

More than 50 measuring functions including DC/AC Voltage, DC/AC Currents, Resistance ( Omega;), Capacitance, Frequency (Hz), Temperature ( deg;C/ deg;F), Duty Cycle, Diode amp; Continuity Check

Single Analyzed:

(AC+DC) measuring synchronous

(AC+Hz) measuring synchronous

(DC+dBm) measuring synchronous

(dBm+Hz) measuring synchronous

(Hz+Duty) measuring synchronous

( deg;C+ deg;F) displaying synchronous

Frequency measurement : 0.5Hz -1000.000000MHz

Basic DC Accuracy : 0.05 %

mV Impedance : gt;1000M Omega;

16 Frequency points, 1% to 99% duty selectable rectangular wave output

Analyzing component of current or voltage signal

Resistance Measuring : 0.1 Omega; to 80M Omega;,10M Omega; to 8000M Omega;

Capacitance Measuring : 1nF to 100 mu;F

Temperature Measuring : -50 deg;C to 1372 deg;C, -58 deg;F to 2502 deg;F

dBm 20 types of reference impedance

Auto data hold/ peak hold

Relative measuring : REL, Relative percent : REL%

36 hours dynamic recording : MAX / MIN / average/ MAX-MIN

Communication : 9-pin isolated optical RS232 cable

Measure speed is about 3 per second

Timer for measurement

Safety/Compliance : IEC 61010 CAT II 1000V ; CAT III 600V

Auto power off

0.1 ~ 99.9% pulse duty cycle measuring

Set upper and lower limit area measuring

Photoelectricity insulation RS-232 computer interface

Timing measuring function

AC measuring adopt High accuracy RMS, Widely measuring and AC+DC function, can measure the accuracy virtual value of AC by any wave

Specifications:

Maximum voltage between any terminal and earth ground: 1000V RMS

Continuity Beeper: 3kHz Approx.

Operating Temperature: 0 deg;C to +50 deg;C Storage Temperature : -20 deg;C to +60 deg;C

Operating Altitude: under 2000m

Storage Altitude : under 10,000m

Relative Humidity : le;75% at 0 deg;C to +40 deg;C

Electromagnetic Compatibility : in a RF field or 1 V/m on all ranges and function except Capacitance

Total Accuracy : specified +5% of range Capacitance not specified in RF fields performance above 1 V/m is not specified

PC Interface : RS-232

Compatible with Windows 2000 amp; XP only

AC Power : 110~220 V ( EU Power adapter plug)

Size : approx. 242 x 212 x 98 mm

Weight : approx.1388g (accessories not included)

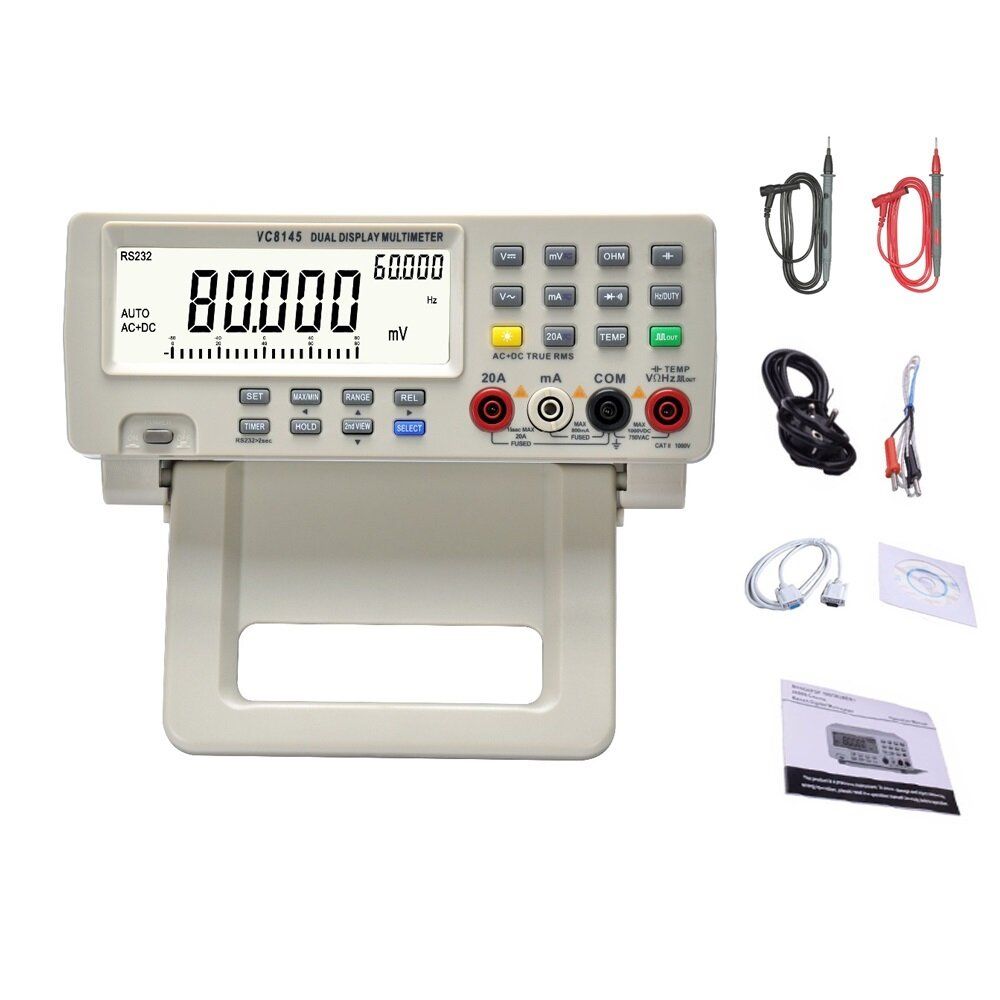

Package Includes:

1 x Digital Bench Top Multimeter

1 x Pair of Test Leads

1 x Type K Thermocouple

1 x RS-232 Software CD

1 x 9-pin Cable Adapter

1 x AC Power Cord (EU Plug)

1 x English Instruction Manual

1 x Standard Packaging Box

Note:

We will send you a plug adapter according to your country.

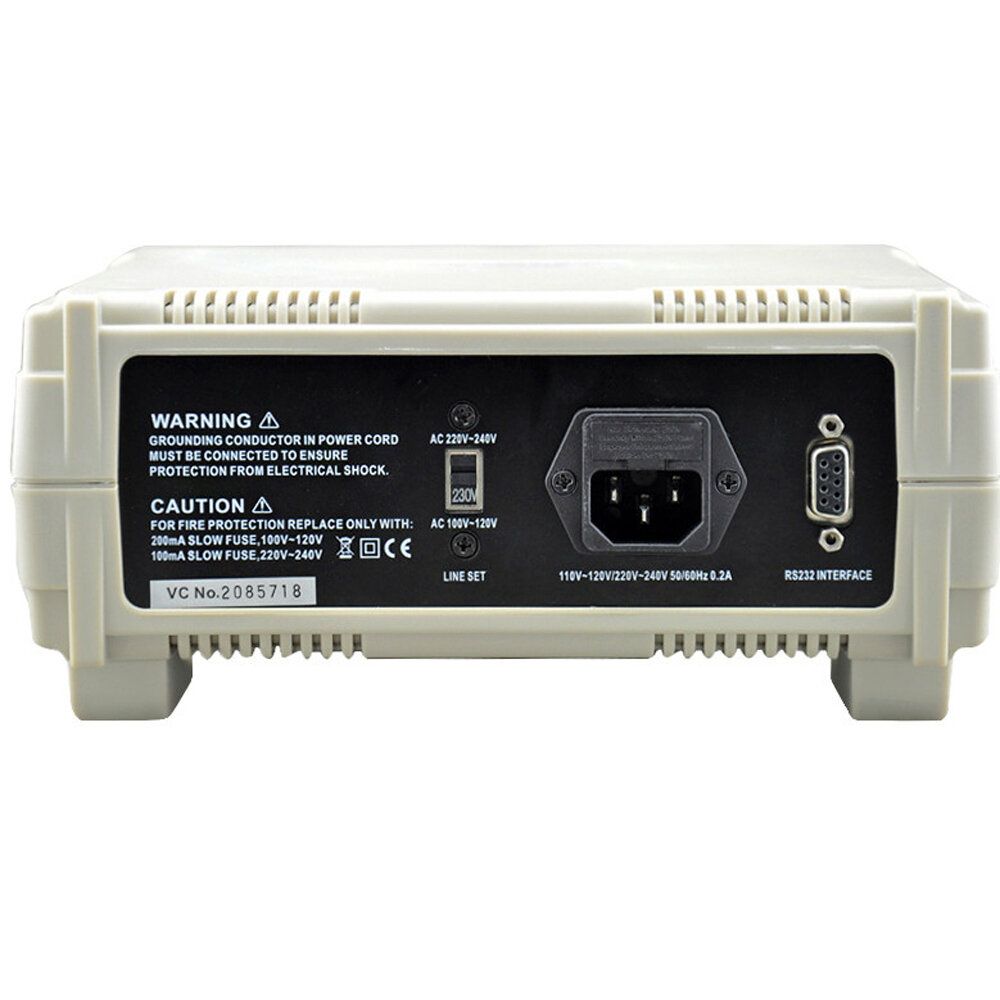

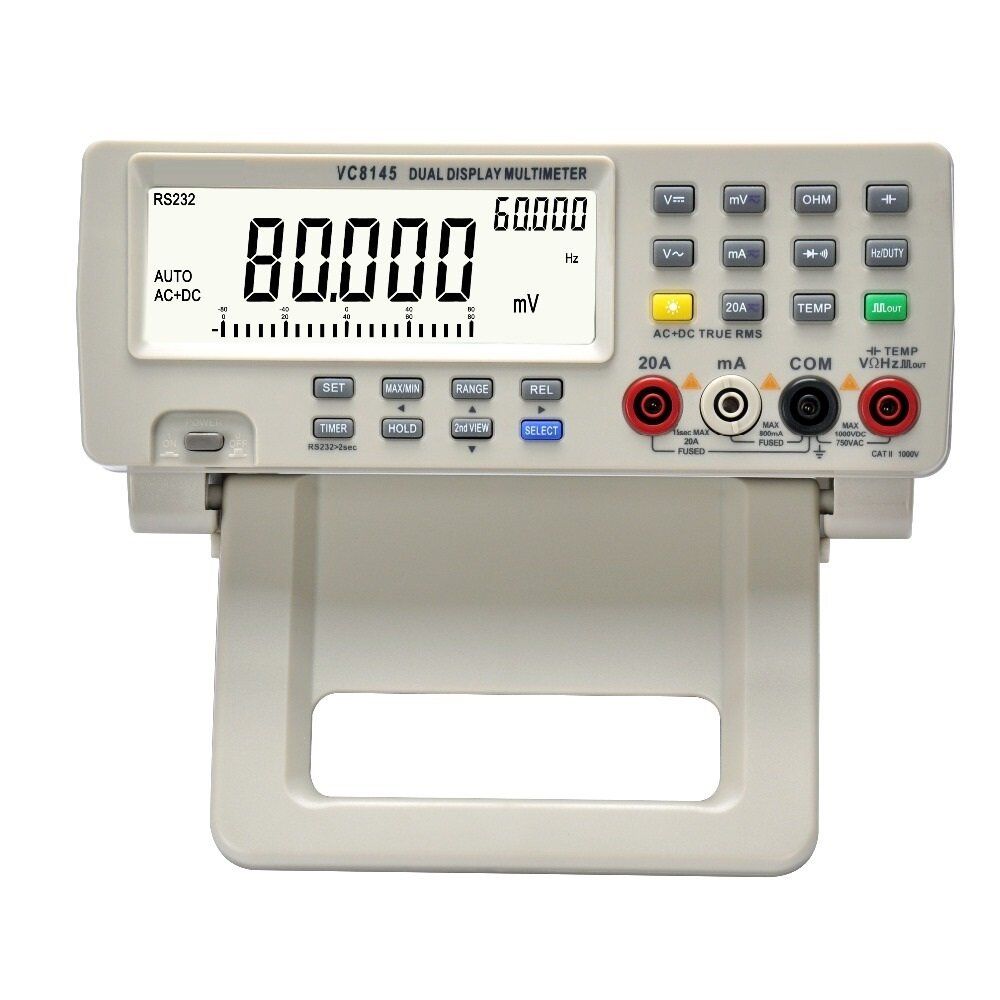

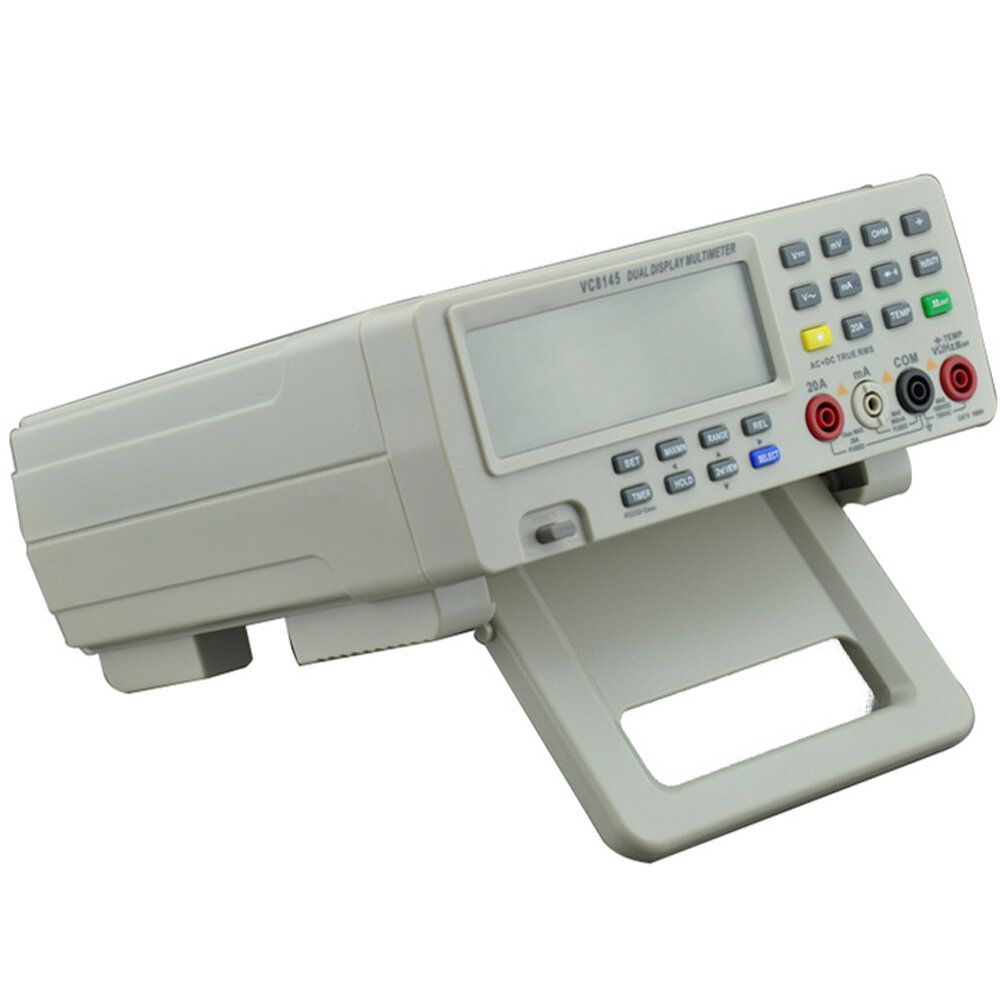

Details Pictures:
