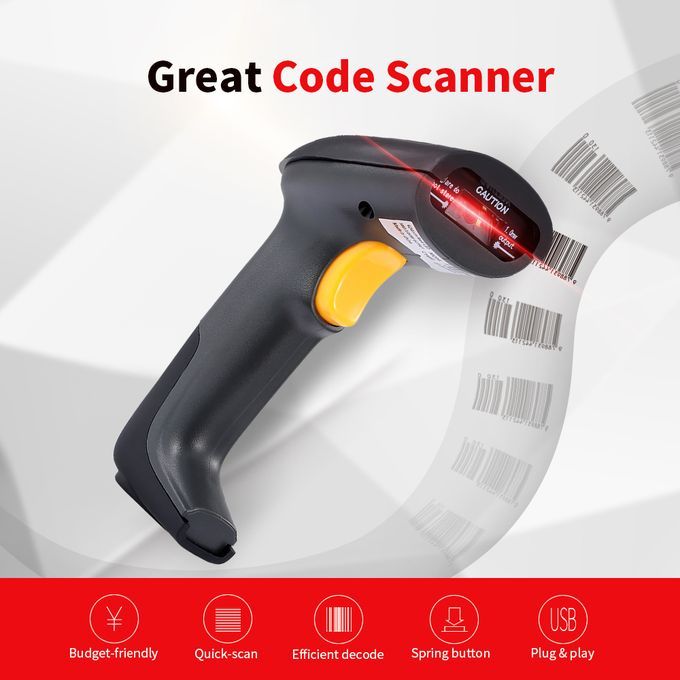

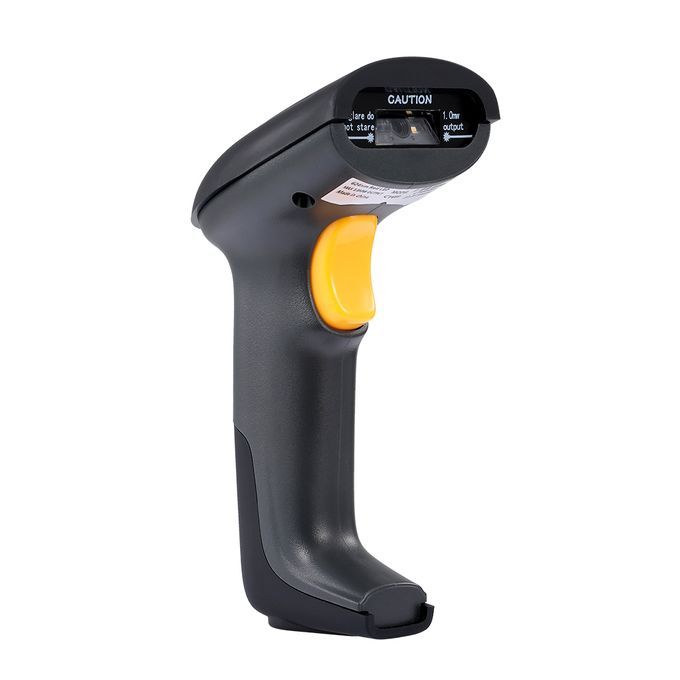

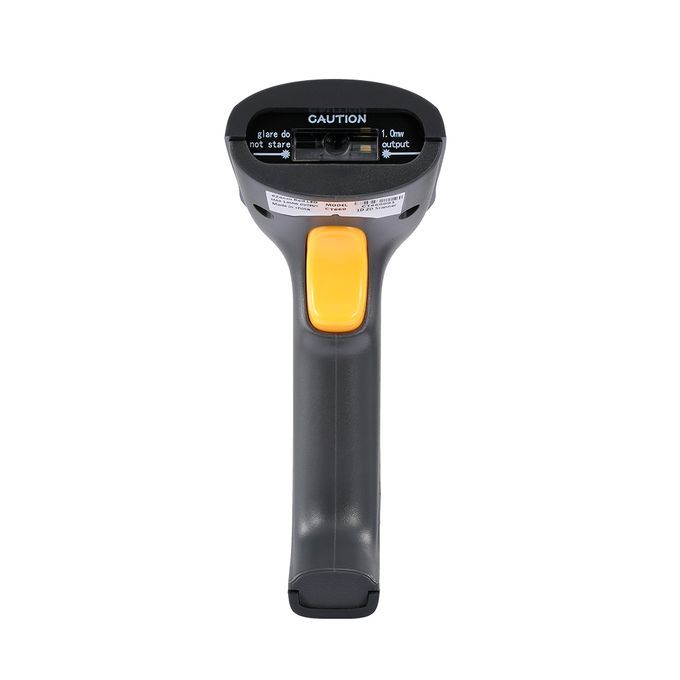

Wired Barcode Scanner USB Code Reader

The wired barcode scanner can read all international standard 1D and 2D code with advanced reading performance of the decoding chip. and easy one-button operation greatly increases work efficiency while avoiding a series of failures due to complex setup steps.



Features:

One Scanner Meets Different Needs

2D cashier scanning, warehouse cargo scanning, item barcode scanning, tracking number scanning are all supported.


High Recognition Rate

Easily recognize various phone screens, folded and vague codes.

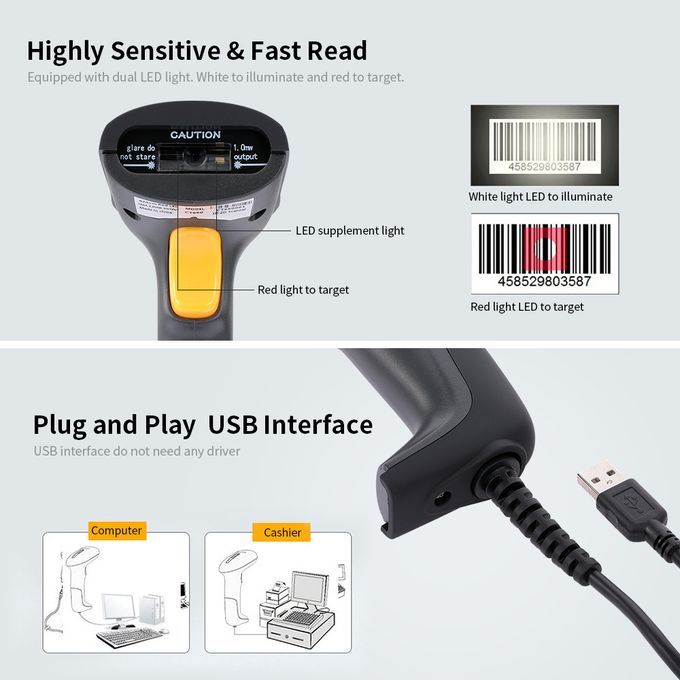

Highly Sensitive and Read

Dual LED. White LED illumination and red LED aiming. Great combination just for quick and convenient use.

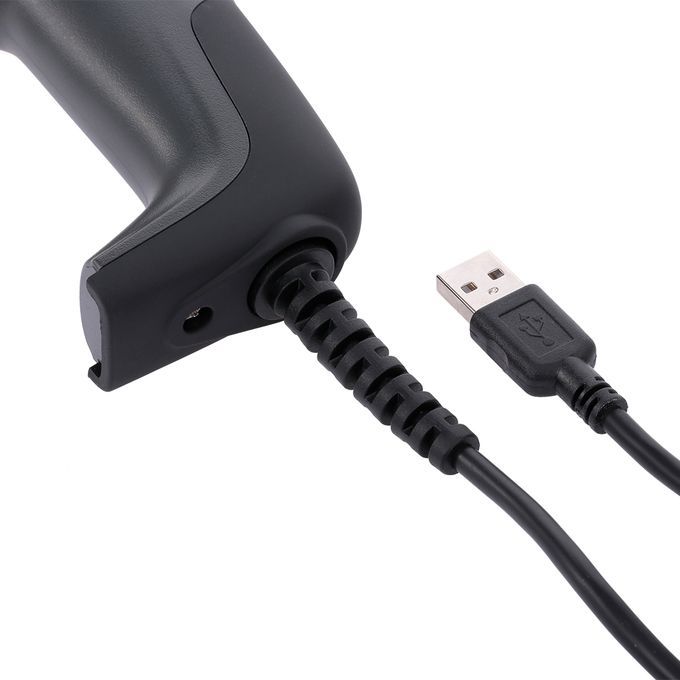

Plug and Play USB Interface

USB interface; plug and play; driver-free. Easy to install.


Exquisite Design

Buzzer design, anti-slip handle, indicator light and resilient button. All elements have made the scanner superior to use.



Specification:

Model: CT660

Type: Optical imaging

1D code: Support

2D code: Support

Phone screen: Support

Computer screen: Support

Transmission type: Wired transmission

Interface type: USB

Cable length: 1.8m

Sensor: CMOS sensor, pixel: 640*480, 30fps

Targeting:624nm red LED

Light source: 624nm white LED

Scan method: Manual trigger scan, inductive scan, continuous scan

Scan angle: horizontal: 40° Vertical: 30°

Dip angle/elevation/oblique angle: 360/±60/±61 degree

Working voltage: 5V DC±5%

Working current: 390mA(Max),300mA(Typical)

OS: Android/Apple/Mi crosoft

Scan speed: 200times/sec

Basic code system: 1D: Code 39 (Code 32), Code 128, UPC/EAN/JAN, Code 93, Interleaved 2 of 5, Codabar, Matrix 2 of 5, Industrial 25(Straight 2 of 5 Industrial)

2D: QR Code, Data Matrix, PDF417

Optimal code system: 1D: China Post(Hong Kong 2 of 5), NEC 2 of 5, Code 11, MSI Plessey, GS1 Databar(RSS), Korea Post, Trioptic code39, GS1 Composite Code, Telepen

2D: MicroPDF417, Aztec Code, Codablock, MaxiCode, 汉信(Chinese Sensible Code)

Item size: 16.5 * 9.2 * 6.5cm / 6.50 * 3.62 * 2.56in(L * W * H)

Item weight: Approx.123g / 4.34oz

Package size: 20 * 12 * 9.8cm / 7.87 * 4.72 * 3.86in(L * W * H)

Package weight: 262g / 9.24oz



Package list:

1 * Barcode scanner

1 * USB cable

1 * User manual (English&Chinese)

What's In the Box

1 x Barcode scanner,1 x USB cable,1 x User manual (English&Chinese)
