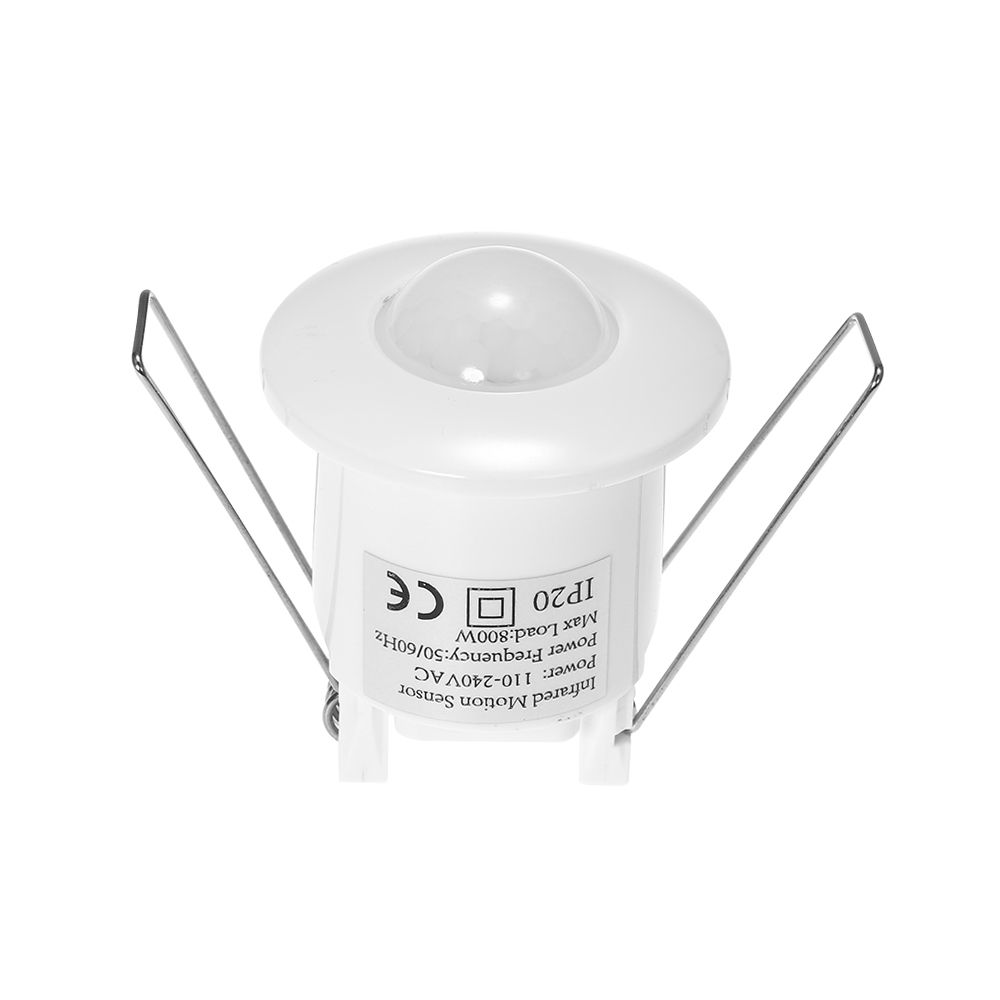

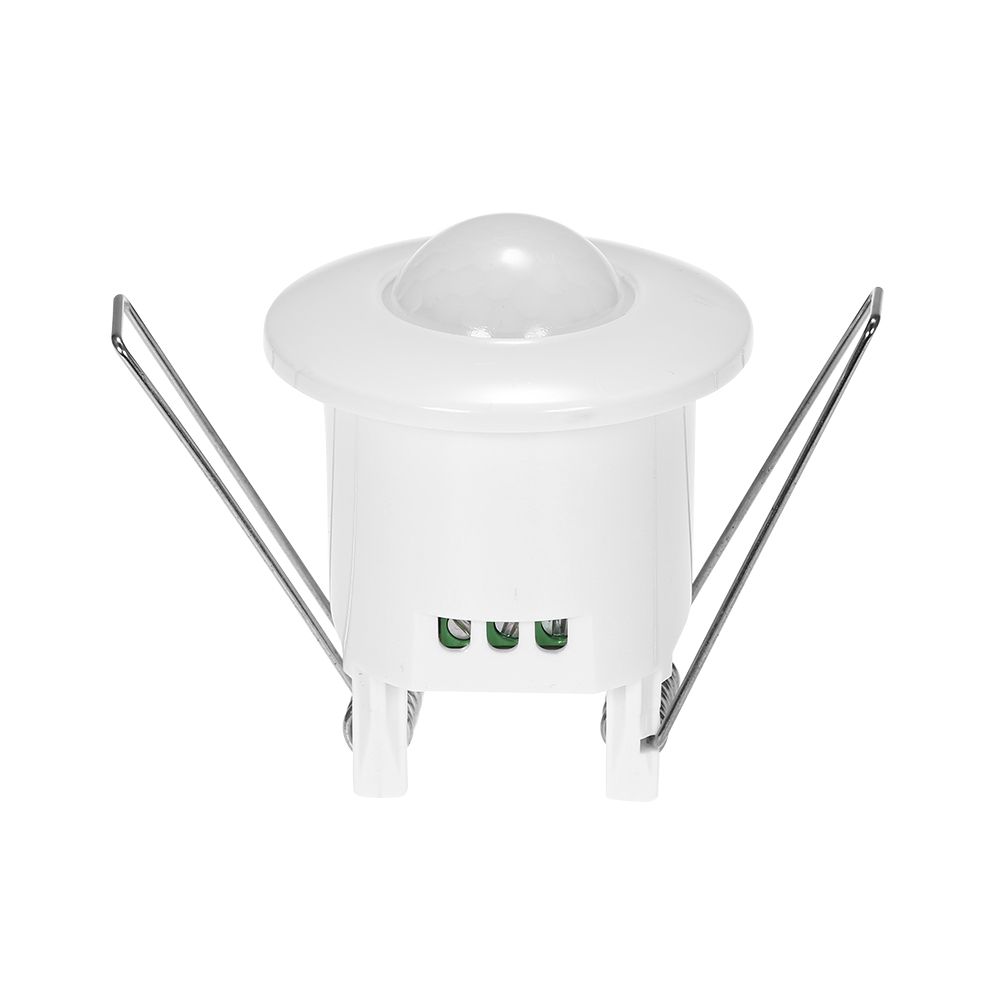

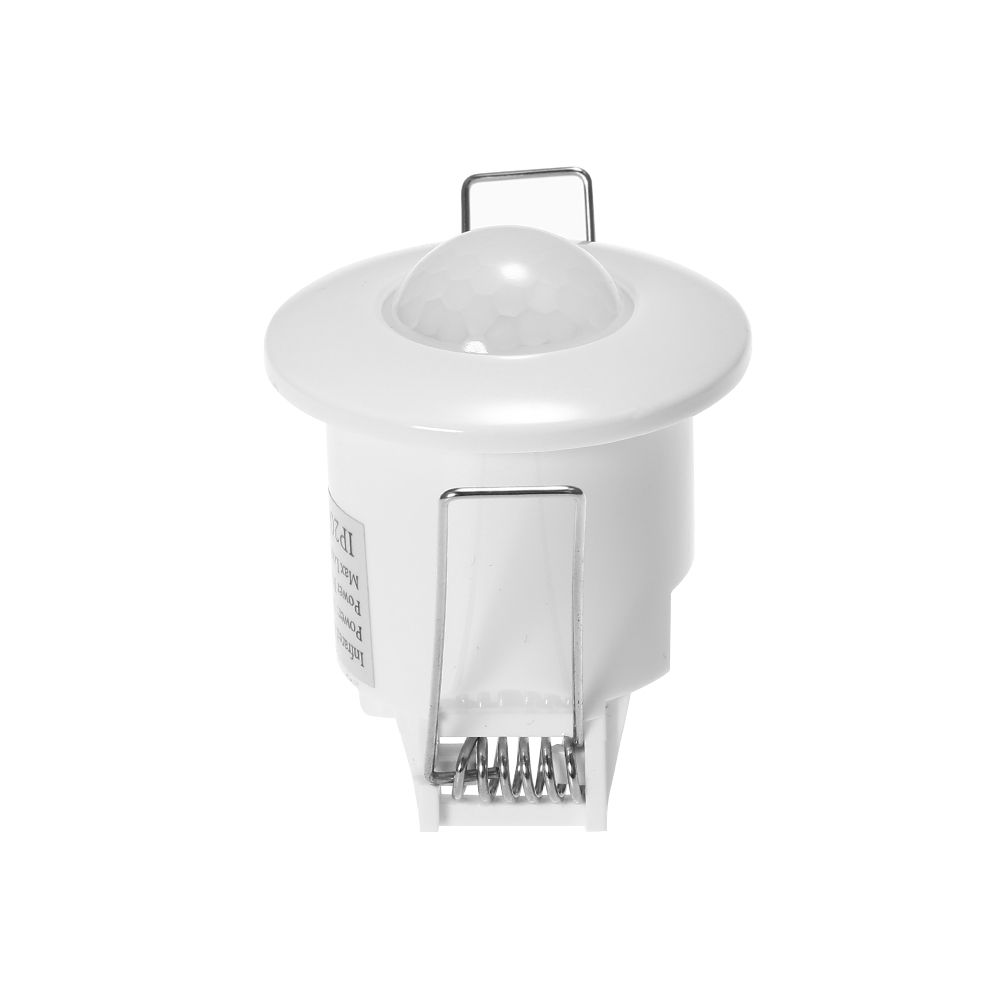

Mini Infrared Motion Sensor Switch 360 Degree PIR Detection

Features:

*Working Principle: The switch can detect human body\'s infrared, and use infrared to control the load. More energy saving. Easy to install and simple to use.

*Intelligent Brightness Sensor: It adopts photosensitive control, it will not turn on the lamp during daytime or strong light environment, or you can choose to turn on the lamp during any light environment.

*LED/Incandescent/Fluorescent Lamps Sensor Switch: Auto on when you get in of the induction range(Max. 6m), then it will automatically close after a delay(time range is adjustable) after the person leaves.

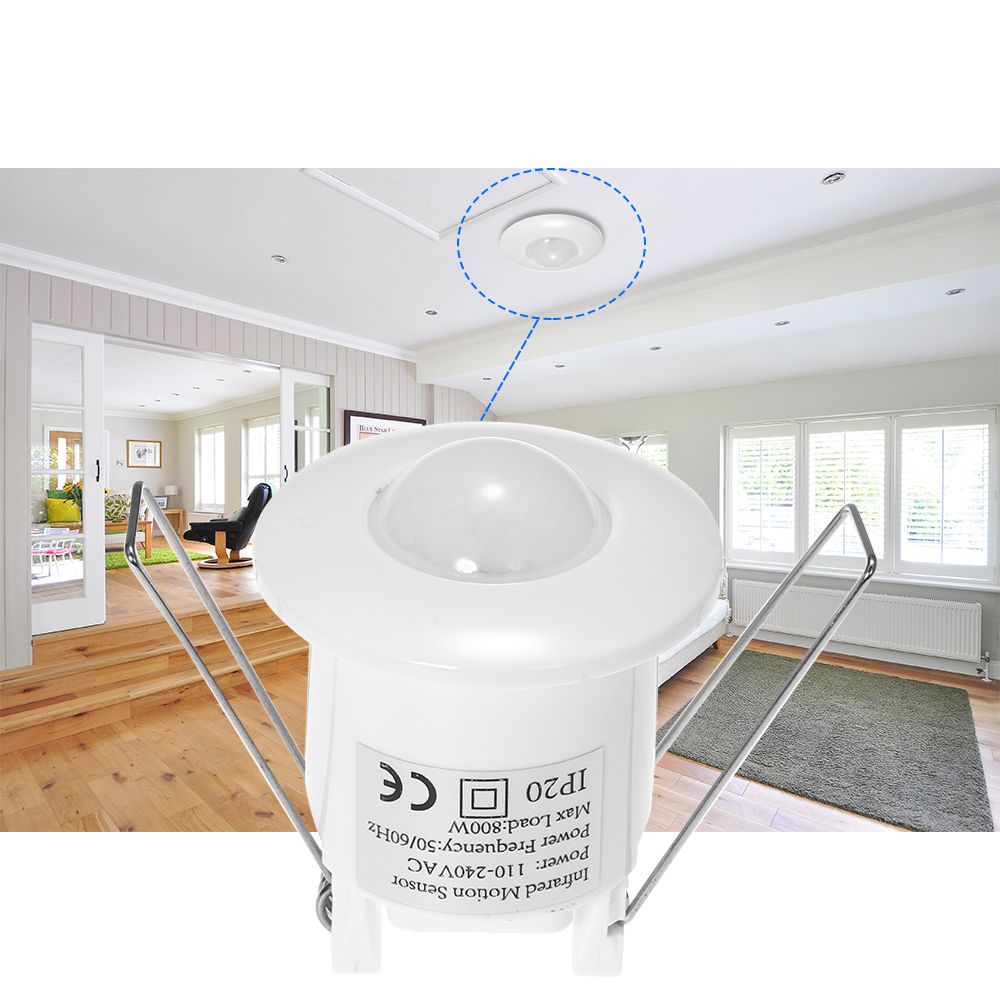

*Wide Applications: Widely used for motion-activated lighting in corridor, bathroom, basement, warehouse, garages, etc, electrical automatic control such as automatic ventilation exhaust fan, etc.

*Temperature Compensation: Built-in temperature compensation chip, reducing the impact sensing distance by the temperature.

Specifications:

Power Sourcing: 110V-240V AC

Power Frequency: 50/60Hz

Power Consumption: 0.45W (work), 0.1W (static)

Max. Load: 800W Incandescent / 300W Fluorescent

Detection Range: 360 deg;

Detection Distance: max. 6m ( lt;24 deg;C)

Detection Motion Speed: 0.6~1.5m/s

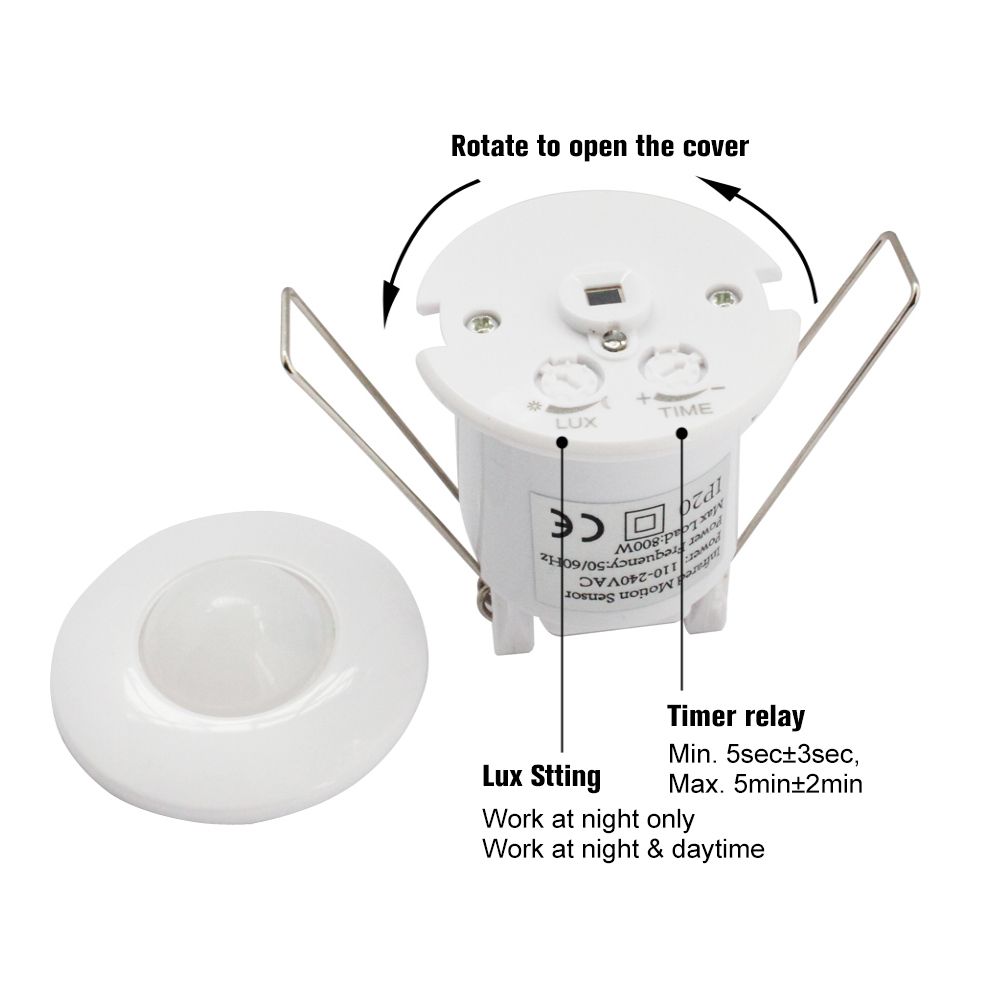

Time-Delay: min. 5sec plusmn;3sec, Max. 5min plusmn;2min

Ambient Light: 5-300LUX (Adjustable)

Install on Lantern: hole size 65mm

Working Temperature: -20~+40 deg;C

Working Humidity: lt;93%RH

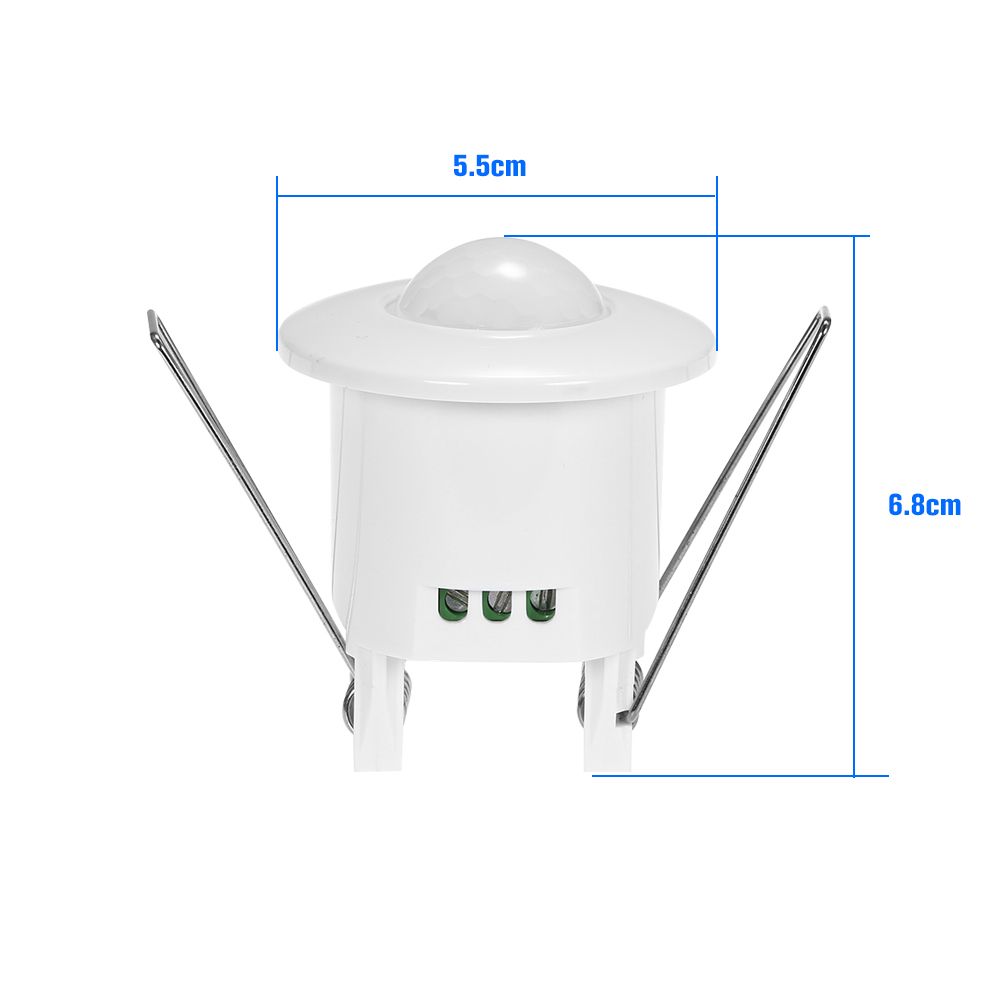

Size: Approx. 5.5 * 5.5 * 6.8cm(L*W*H)

Weight: Approx. 51g / 1.8oz

Package Information:

Package Size: Approach. 7.8 * 6.8 * 6.8cm / 3.1 * 2.7 * 2.7in

Package Weight: Approach. 73g / 2.6oz

Package List:

1 * PIR Ceiling Sensor Switch

1 * User Manual (English)
