Electricity Check Meter Kwh/Prepaid Meter Reader 100A

Electricity Energy Consumption Check Meter 100A 30kw

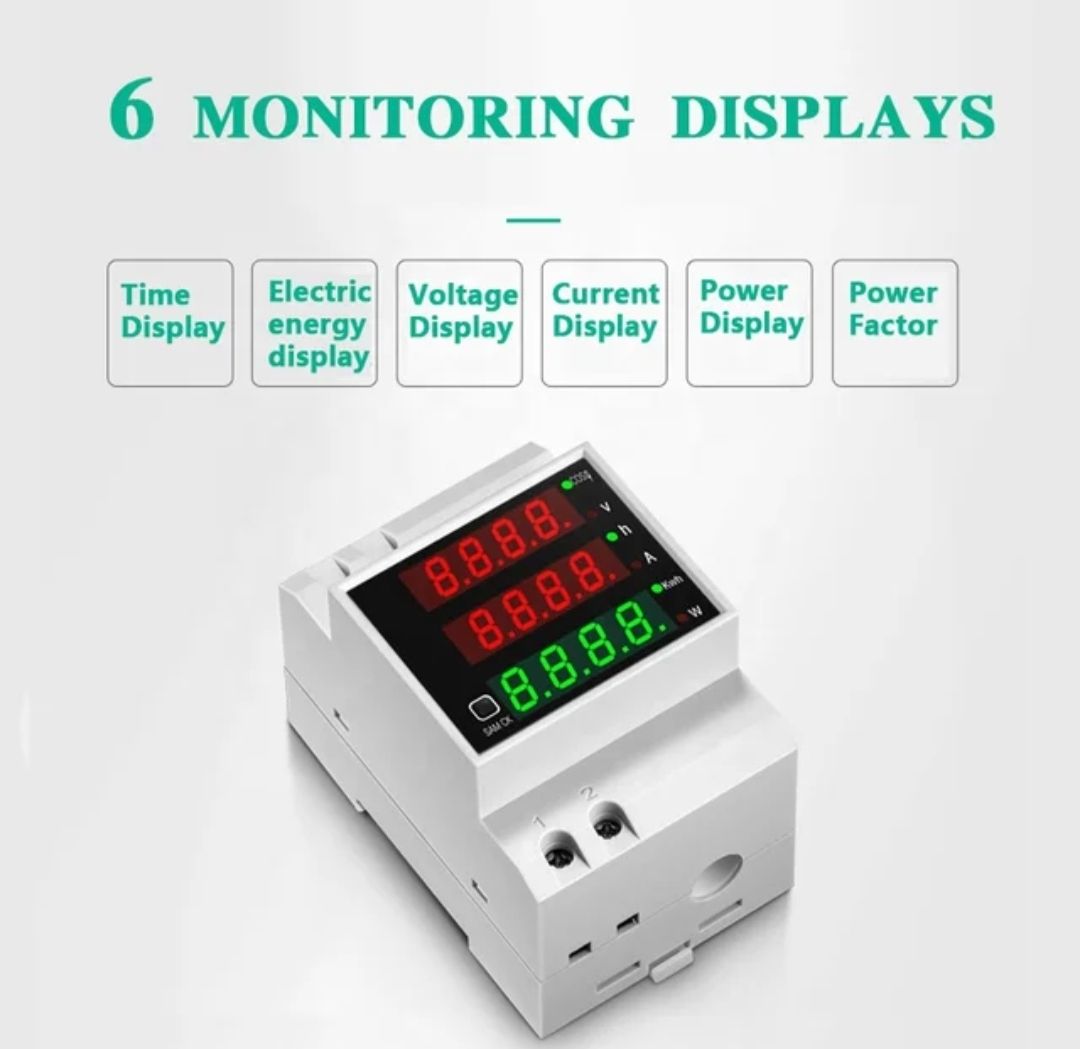

Do you share electricity prepaid meter in your compound? Do you want to know the actual consumption of each tenant? Do you need a meter to check the power consumption by shared appliances like pumping machine? This Digital Energy Consumption 100A energy meter / watts meter is designed to monitor the power usage of each apartment sharing one prepaid meter. This solves unnecessary arguments between tenants of what each person consumed. Also used used for Energy Audit if you doubt your NEPA installed Meter readings. Displays immediate power and accumulated consumption in Watts, Amps and KWh. It also displays Voltage

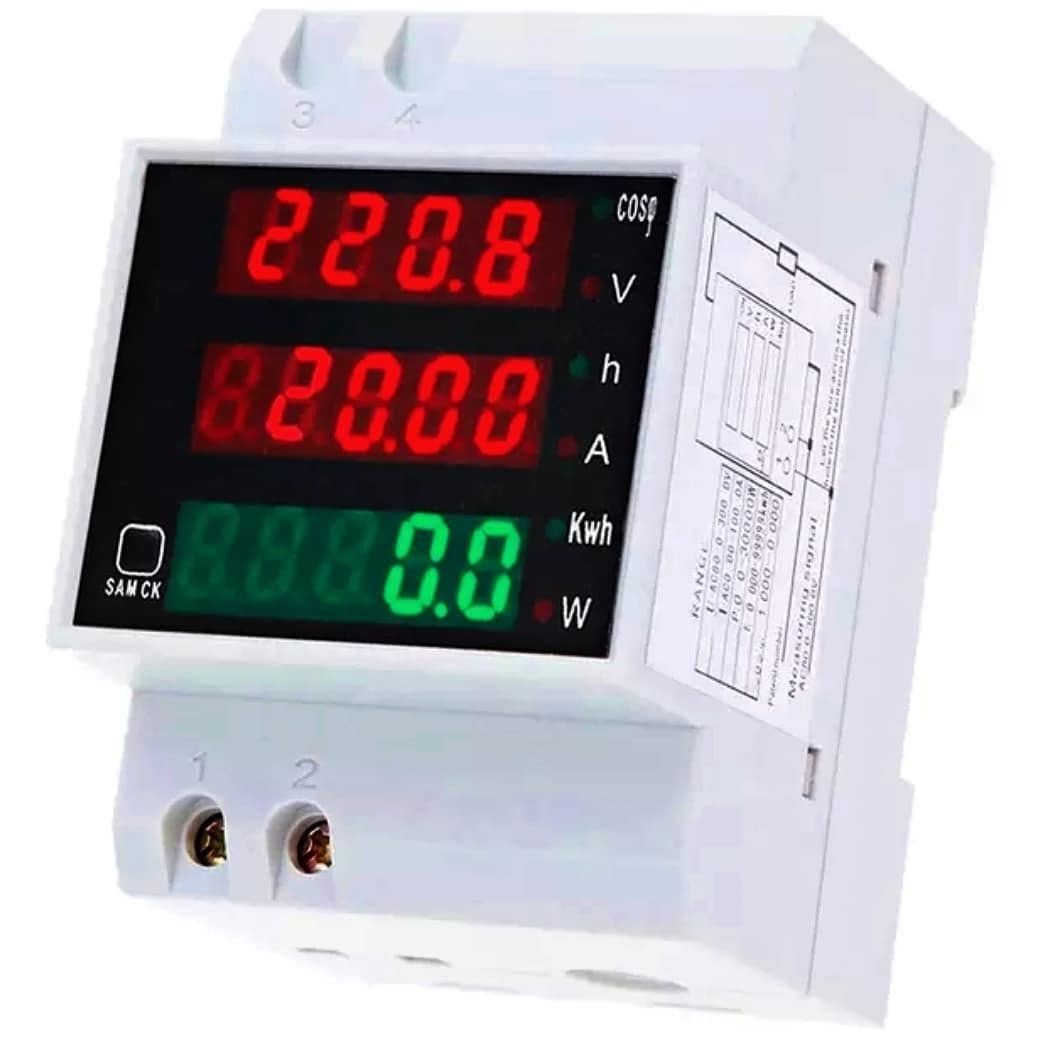

D52-2047DIN-Rail multi-function Digital meter can measure AC voltage, AC current, power factor, active power, electric energy and electric energy of cumulative time.SpecificationAccuracy: 1%±2 wordsDisplay Mode: AC voltage and power factor use four red led of 0.31-inch AC current and power frequency use five red led of 0.31-inch Active power and electric energy use five green led of 0.31-inchRange:1. AC voltage: AC 80.0-300.0V/ AC 200.0-450.0V AC 0.0-100.0A (when measure signal lower than 100A, the accuracy is 0.01A, when measure signal higher than 100A, the accuracy is 0.1A, the accuracy auto-change)2. Active Power: 0.0-30000W ( measure voltage AC 80.0 - 300.0V ) 0.0-45000W ( measure voltage AC 200.0 - 450.0V )3. Electric Energy: 0.000-99999kw4. Electric Energy of Cumulative Time: 0.00 - 999.59h5. Power Factor: 1.000-0.000Speed: 2 times per secondSize: 54*80*64mmInstallation: Din RailCT: 0.00-100A

What's In the Box

1* 100A Energy MeterManual
