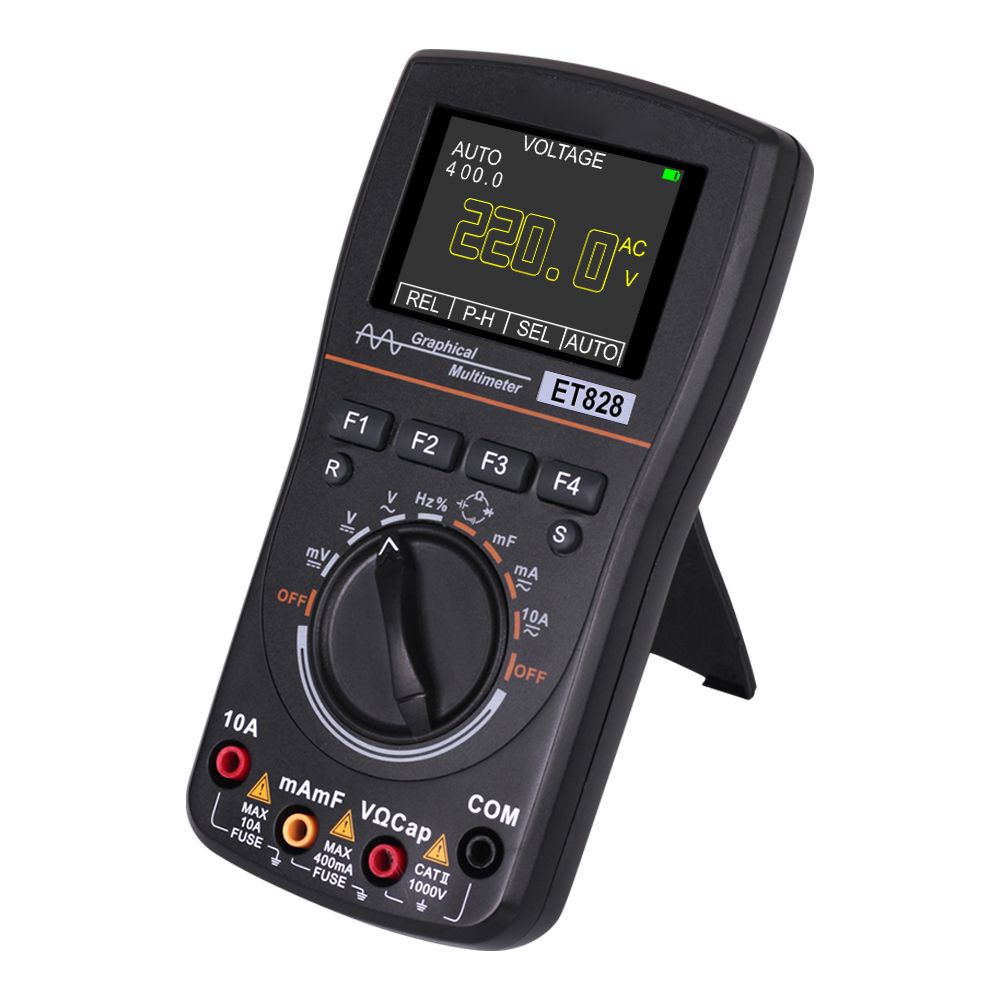

ET828 Intelligent Graphical Digital Oscilloscope Multimeter

Features:

Oscilloscope multimeter 2 in 1, improve your work efficiency.

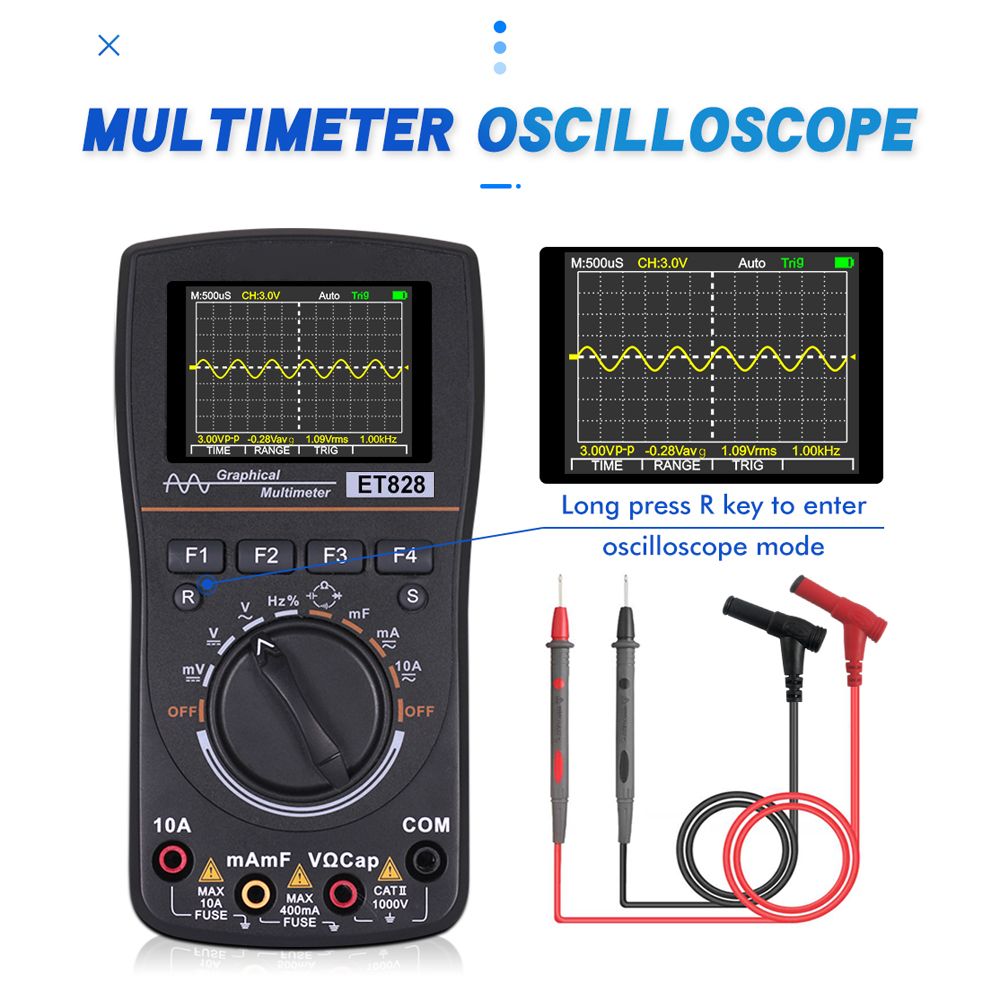

One-button oscilloscope: no need oscilloscope probe, measuring waveform directly. Fast and accurate measurement, clear waveform display.

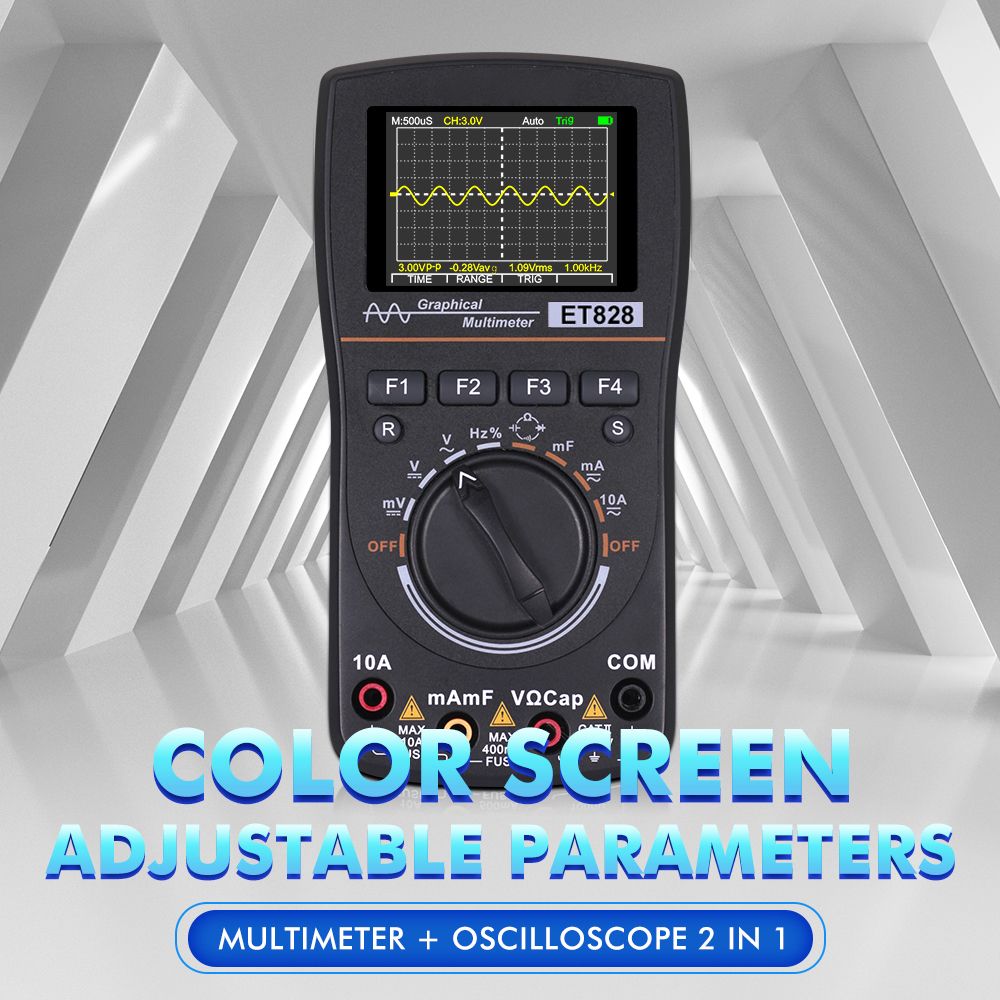

240*320 color screen: the color display is clearer, and the secondary display at the bottom provides more function menus.

Multimeter measurement functions: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode test, continuity test.

Storage: mass storage, 100 data/10 waveforms.

Triple safety: double insurance tube, 500mA/250V, 10A/250V. Input voltage is greater than 24V, beep warning once. Input over range, beep warning.

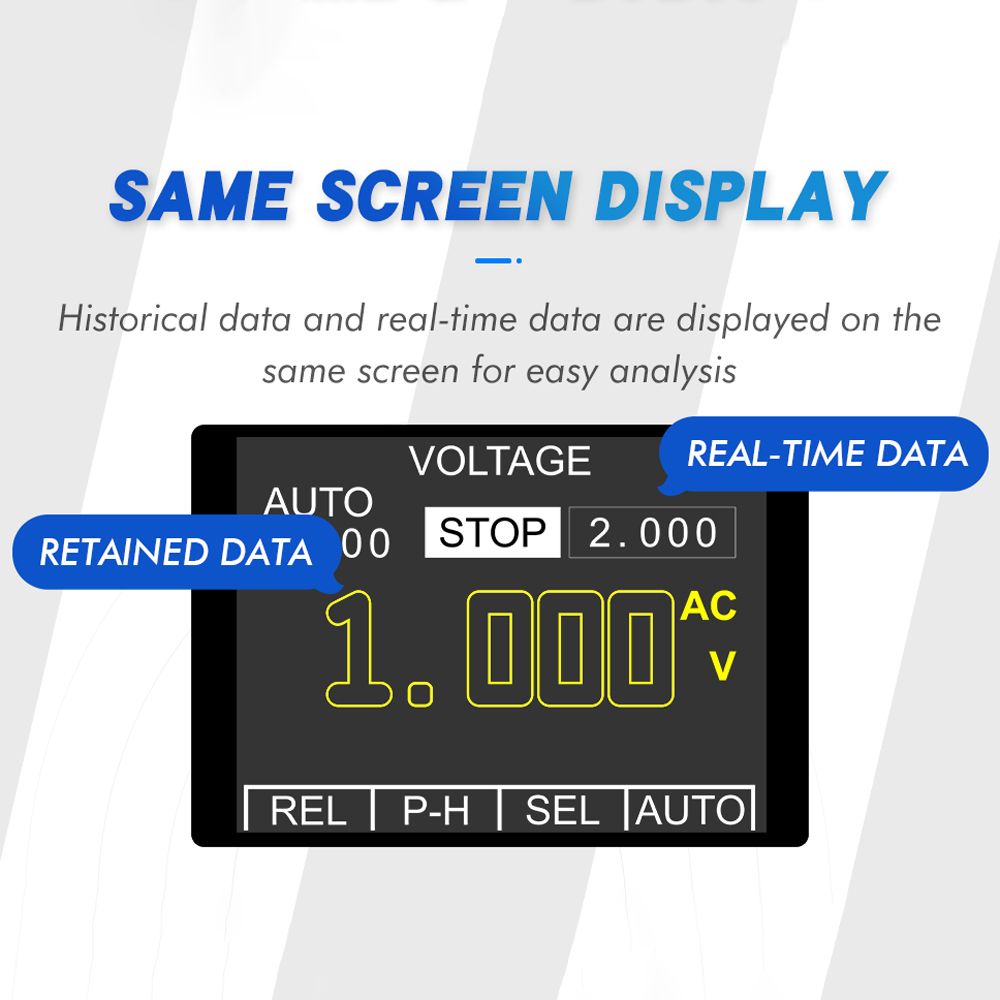

Same screen display: historical records and real-time data are displayed on the same screen for easy comparison and analysis of data.

Buttons and dial: silicone button, sensitive pressing function dial, accurate gear.

Back bracket: the back bracket is tilted at 60 deg; for easy viewing.

Specifications:

Material: ABS

Color: black

Display: 320*240 LCM

Display area: about 2.4 inches

Backlit: white

Input resistance: 10M Omega;

Battery: 3 * AA battery (not included)

Power consumption: about 80mA

Use time: low light about 5 hours

Storage: 100 data/10 waveforms

Use environment: 0~40℃, ＜75%RH

Storage environment: -10~60℃, ＜90%RH

Bandwidth: ACV/1MHz ACA/5KHz

Max. real-time sampling rate: 2.5Msps

Multimeter measurement: automatic range + manual range

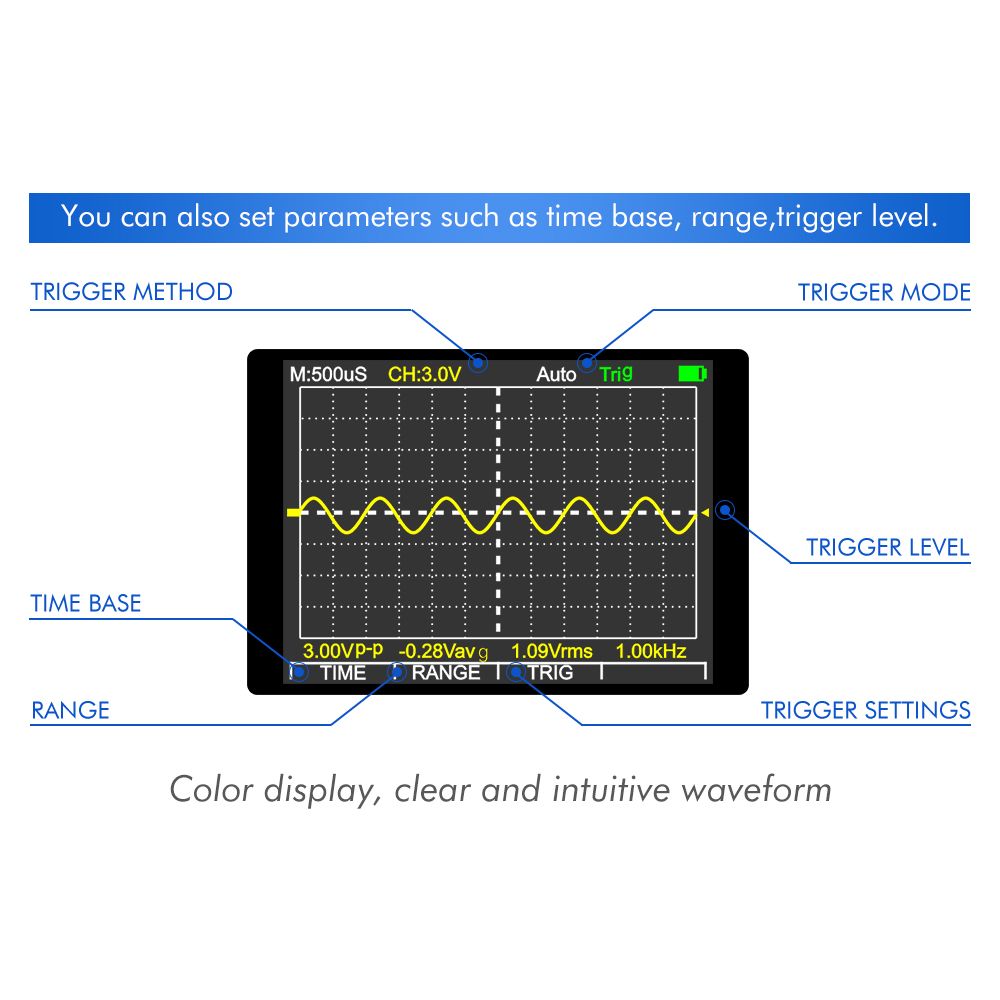

Oscilloscope function secondary display: VP-P, average value, effective value, frequency, time base, amplitude

Measurement mode: normal, automatic

size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in

weight: 195g / 6.9ounce

Package size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in

Package weight: 370g / 13.1ounce

Multimeter specification:

DC voltage:

Range: 400mV/4V/40V/400V/1000V

Uncertainty: 0.75% rdg+10dgt

AC voltage:

Range: 400mV/4V/40V/400V/750V

Uncertainty: 1.0% rdg+10dgt

DC current:

Range: 40mA/400mA/4A/10A

Uncertainty: 1.2% rdg+10dgt

AC current:

Range: 40mA/400mA/4A/10A

Uncertainty: 1.5% rdg+10dgt

Resistance:

Range: 400.0 Omega;~40.00M Omega;

Uncertainty: 1.0% rdg+5dgt

Capacitance:

Range: 0.1nF~100, 10.00mF

Uncertainty: 2.0% rdg+10dgt

Frequency:

Range: 5Hz~10MHz

Uncertainty: 1.0% rdg+5dgt

Duty cycle:

Range: 0.1%~99.9%

Uncertainty: 1.0% rdg+5dgt

Diode test: voltage is about 5V, test current is about 1.5mA

Continuity test: judgment resistance about:
