ST212 Clamp Meter Intelligent Digital Clamp

Features:

Multifunctional Clamp Meter: it has functions of testing voltage, current, resistance, capacitance, frequency, diode, line on-off, live line voltage identify,

Safety Level: it complies with the over-voltage standard of CAT II 600V, level II pollution, dual-insulation protection and over load protection throughout the range.

Smart AC/ Current Measurement: automatic and manual modes for the electric current measurement.

Data Hold Function: convenient for observing or recording data.

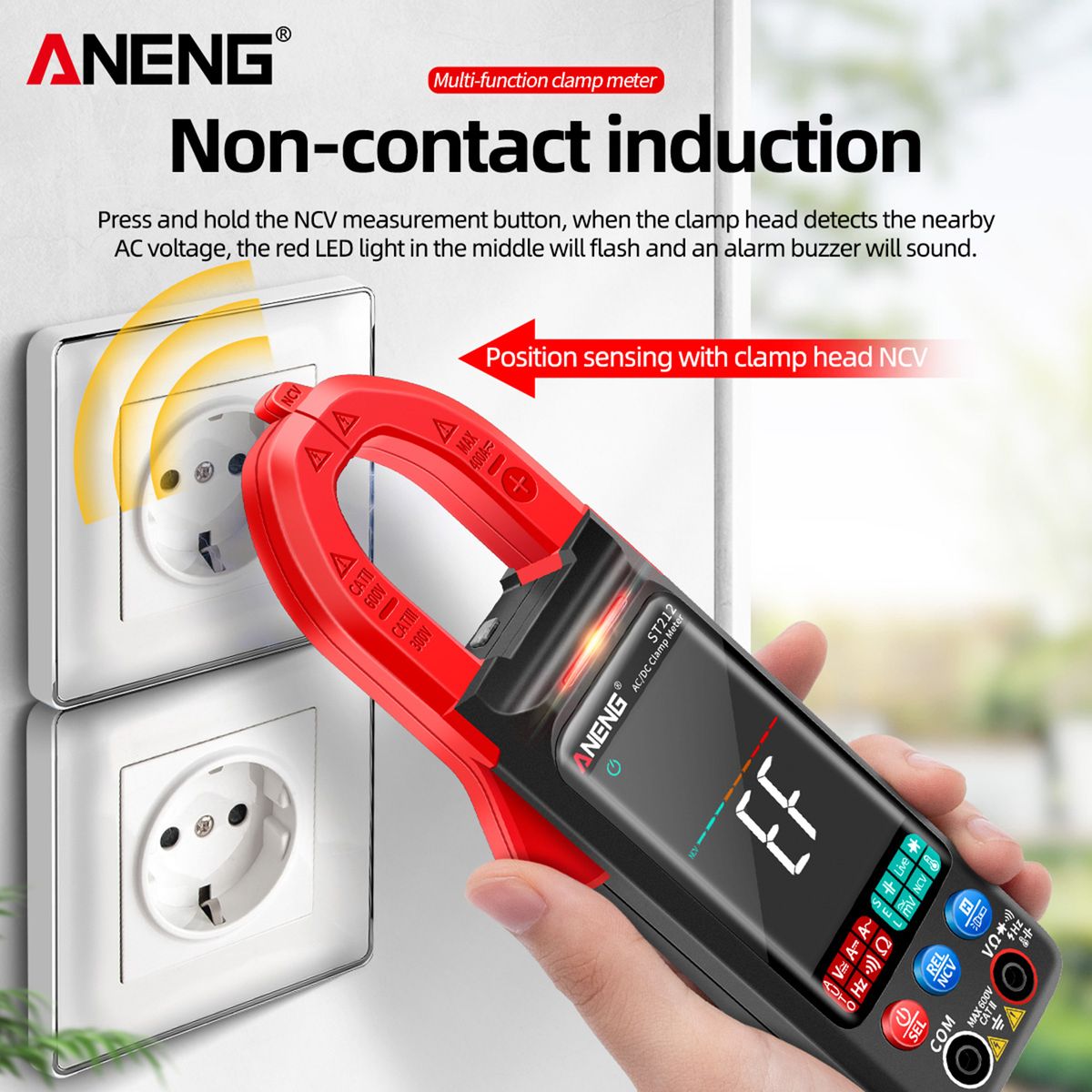

NCV Non-contact Voltage Detection: get the sensor near to the cable being detected, then the will alarm and NCV alarm light will flash when it detects AC voltage.

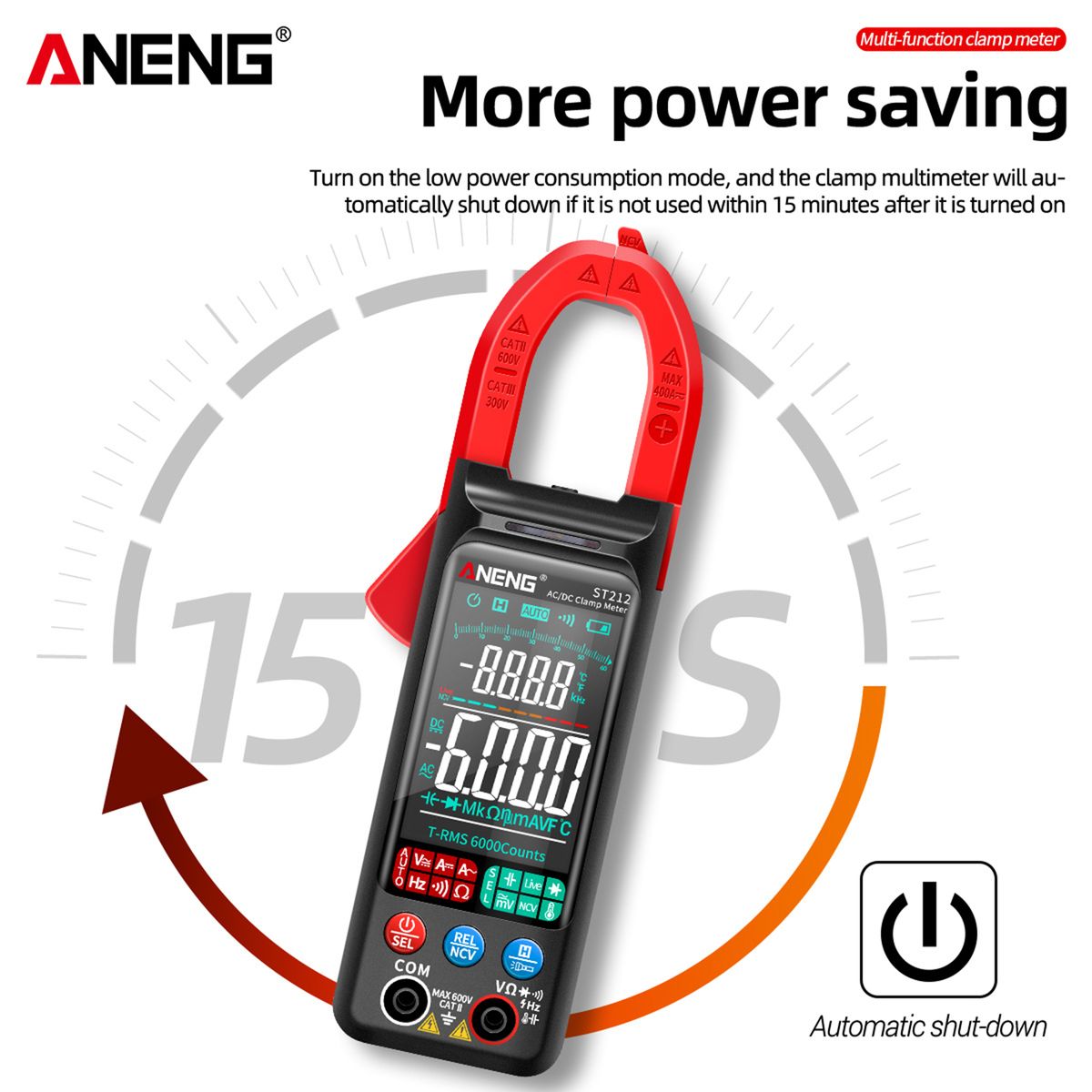

Auto -off: if there is no operation in 15 minutes, the instrument will shut down automatically to save battery energy.

More Features: 6000 counts LCD display, flashlight, low battery indication, etc.

Compact & Portable: convenient for one-handed operation when measuring, quicker and easier to use.

Wide Range of Applications: perfect for home and professional use, automotive, home and industrial electrical troubleshooting.



Specifications:

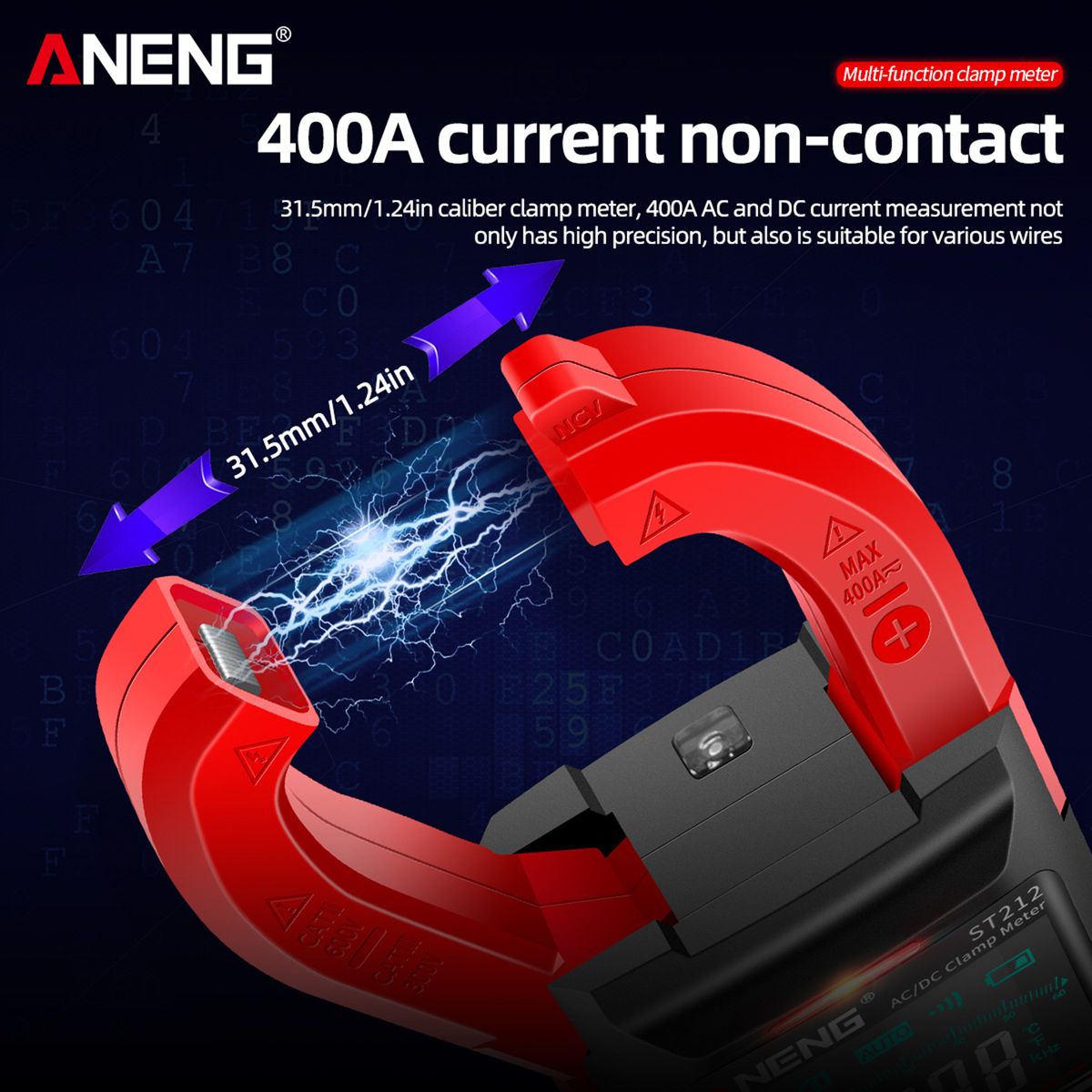

AC Current Range: 60A/400A

Current Range: 60A/400A

Voltage Range: 600V/600mV

AC Voltage Range: 600V/600mV

Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

Capacitance: 60nF/600nF/6uF/60uF/600uF/6mF/60mF

Temperature: -40~1000℃, -40~1832℉

Frequency: 60Hz/1000Hz



Color: Black / Red (Optional)

Material: ABS

Display: LCD

Max. Display Value: 6000 digit

Sampling Time: About 3 times/second, bargraph 10 times/second

Auto-off: 15 minutes

Operating Temperature: 18~28℃

Storage Temperature: -10~50℃

Operating Height: Max. 2000m

Supply: 2 * 1.5V AAA battery (NOT included)

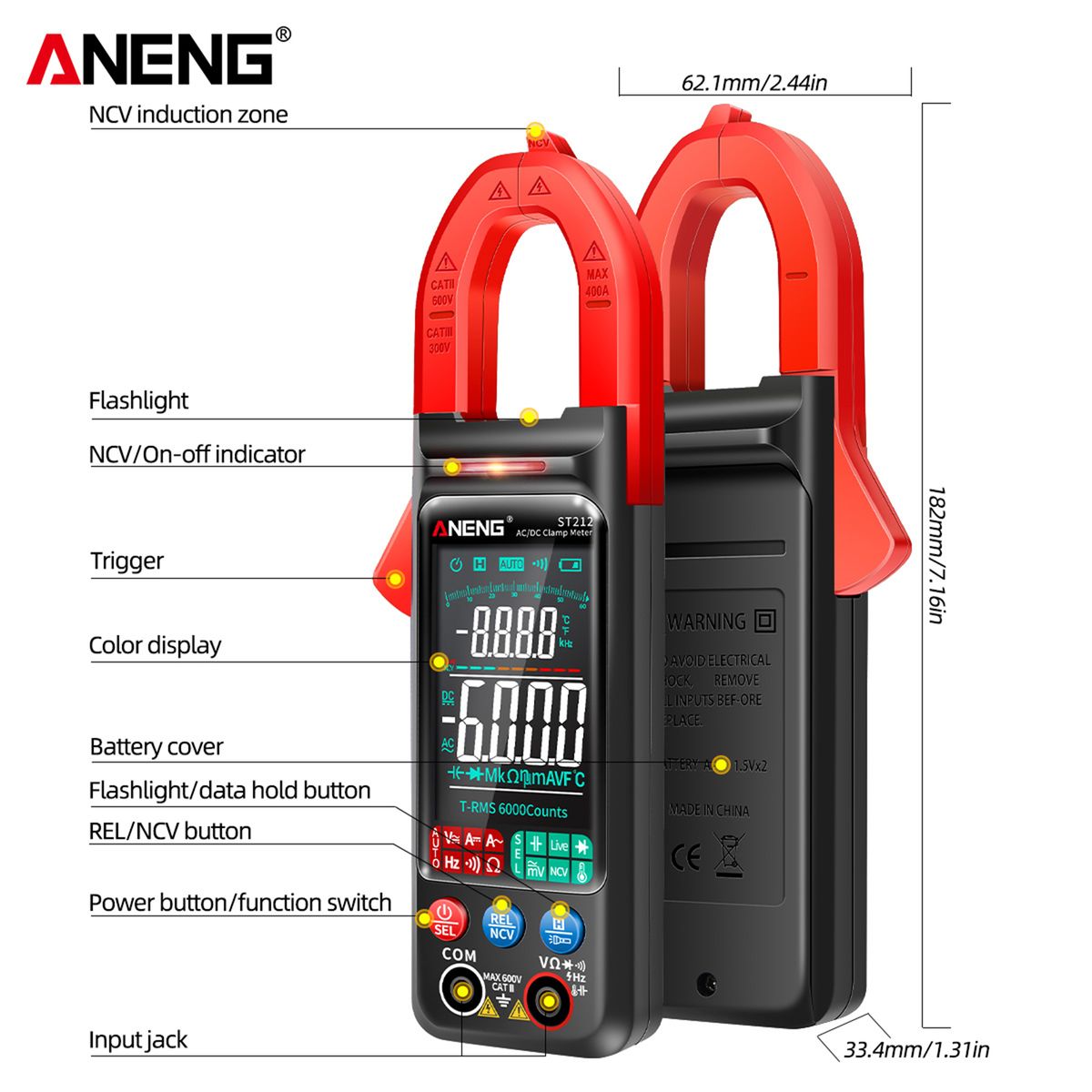

Item Size: 182 * 62.1 * 33.4mm / 7.17 * 2.44 * 1.31in

Item Weight: 150g / 5.29oz

Package Weight: 272g / 9.59oz

Package Size: 21.7 * 8.5 * 4.5cm / 8.54 * 3.35 * 1.77in



Packing List:

1 * Clamp Meter

1 * Test Lead

1 * K-type Thermocouple

1 * Manual (English)

Key Features

Multifunctional Clamp Meter: it has functions of testing voltage, current, resistance, capacitance, frequency, diode, line on-off, live line voltage identify,
Safety Level: it complies with the over-voltage standard of CAT II 600V, level II pollution, dual-insulation protection and over load protection throughout the range.
Smart AC/ Current Measurement: automatic and manual modes for the electric current measurement.
Data Hold Function: convenient for observing or recording data.
NCV Non-contact Voltage Detection: get the sensor near to the cable being detected, then the will alarm and NCV alarm light will flash when it detects AC voltage.
Auto -off: if there is no operation in 15 minutes, the instrument will shut down automatically to save battery energy.

What's In the Box

1 x Clamp Meter,1 x Test Lead,1 x K-type Thermocouple,1 x Manual (English)
