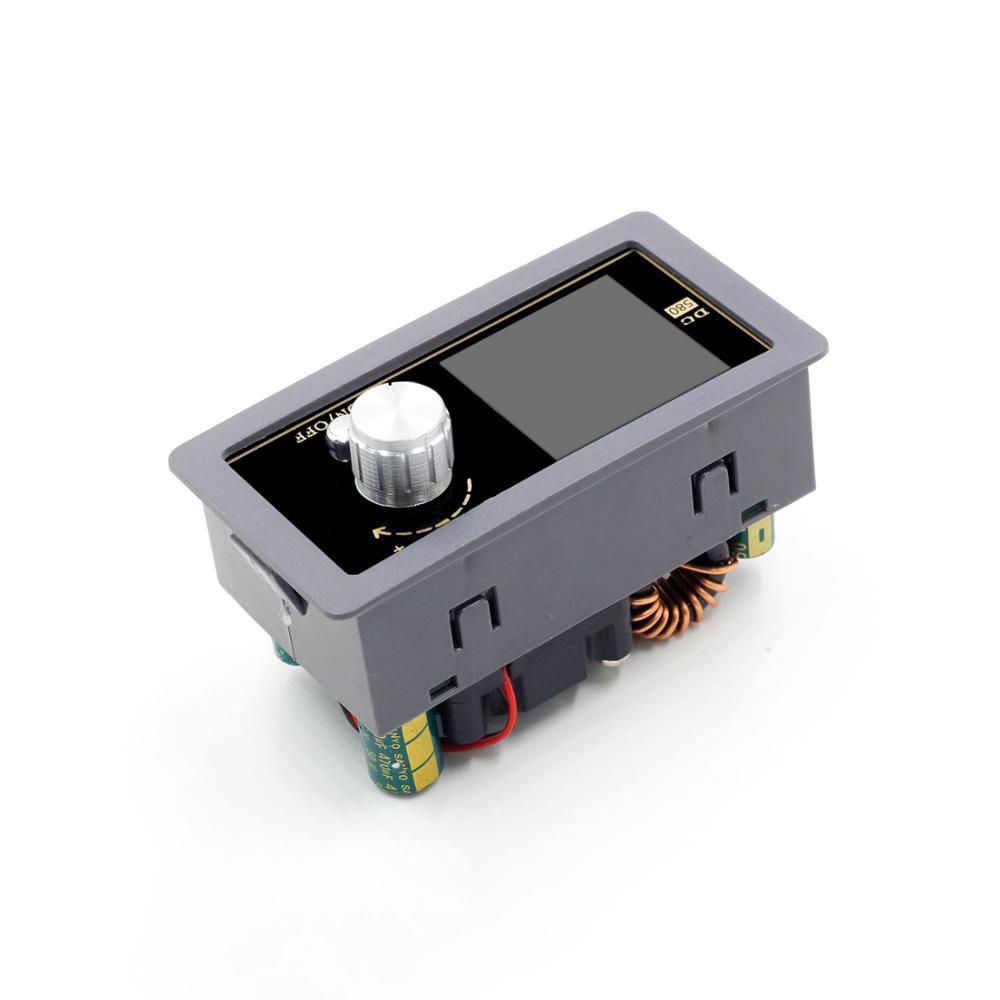

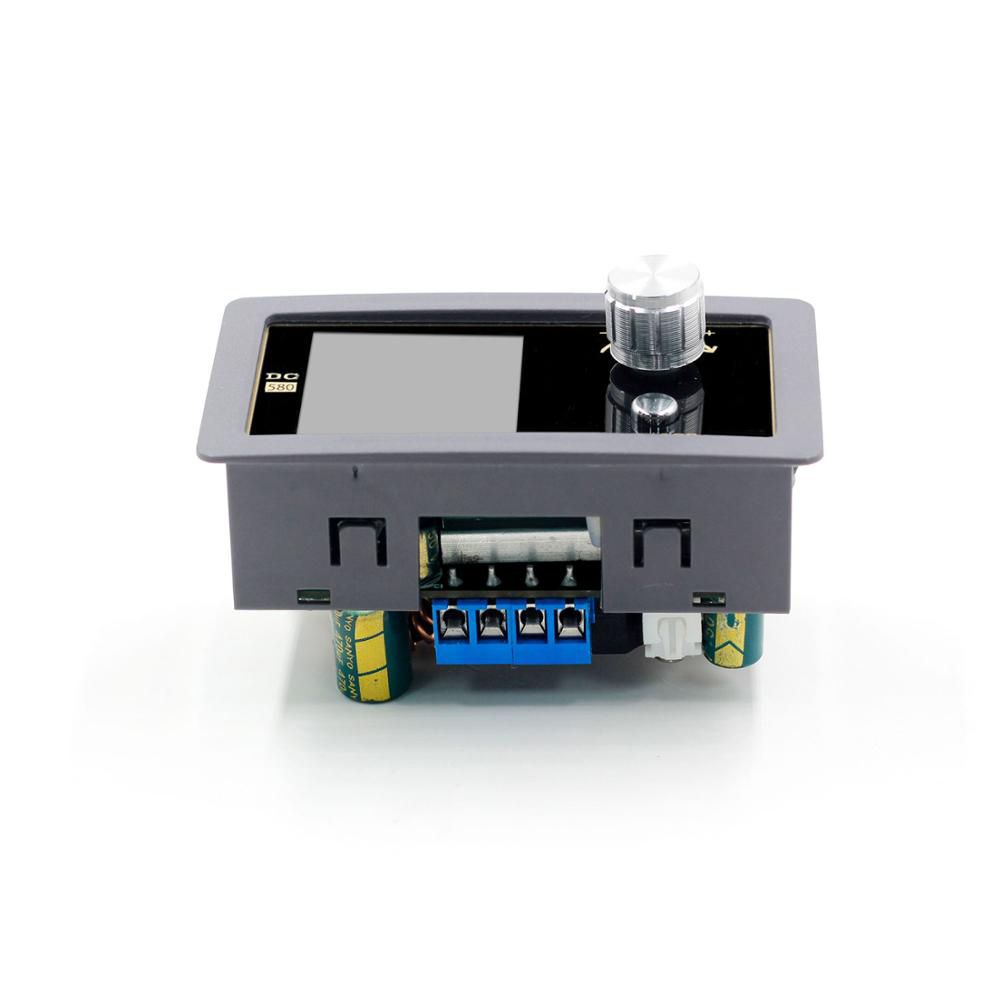

DC DC Buck Converter CC CV Power Module 0.6-30V 5A

Made of fine quality material, practical, easy to operate and use, has a long service life.

Features:

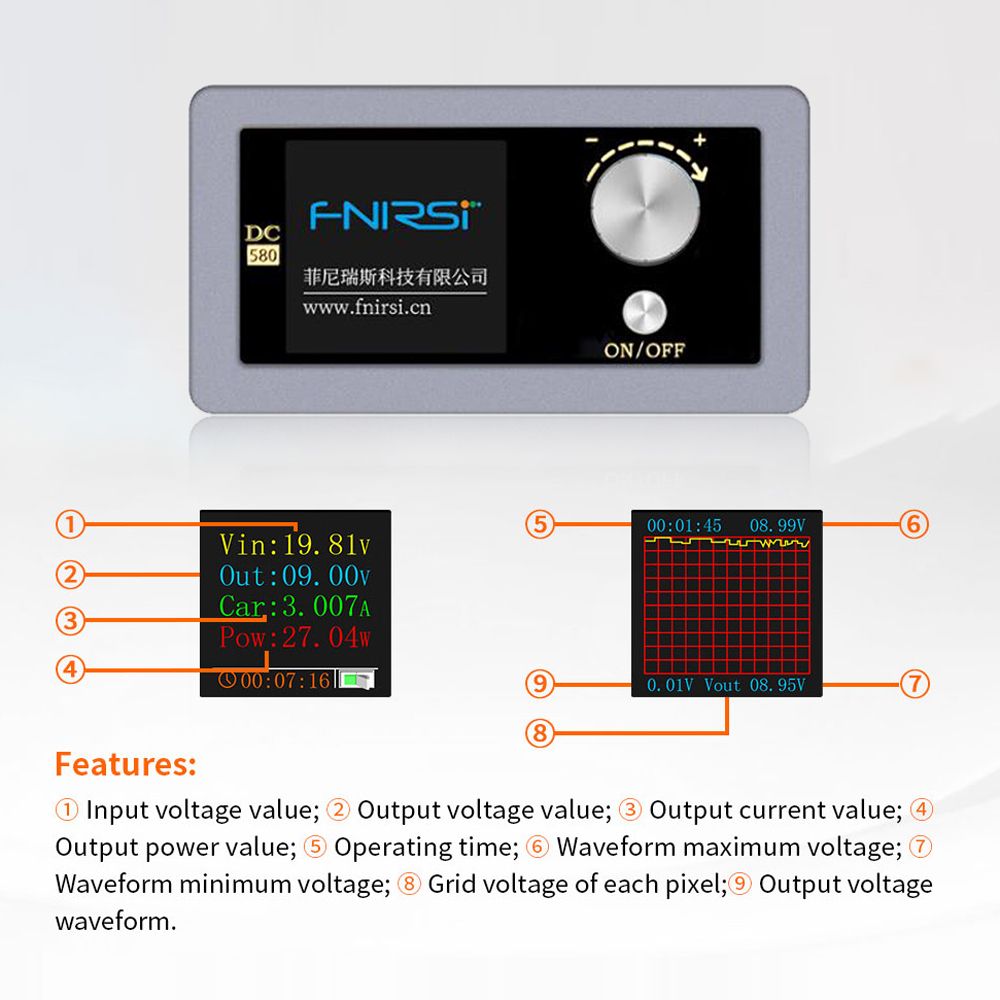

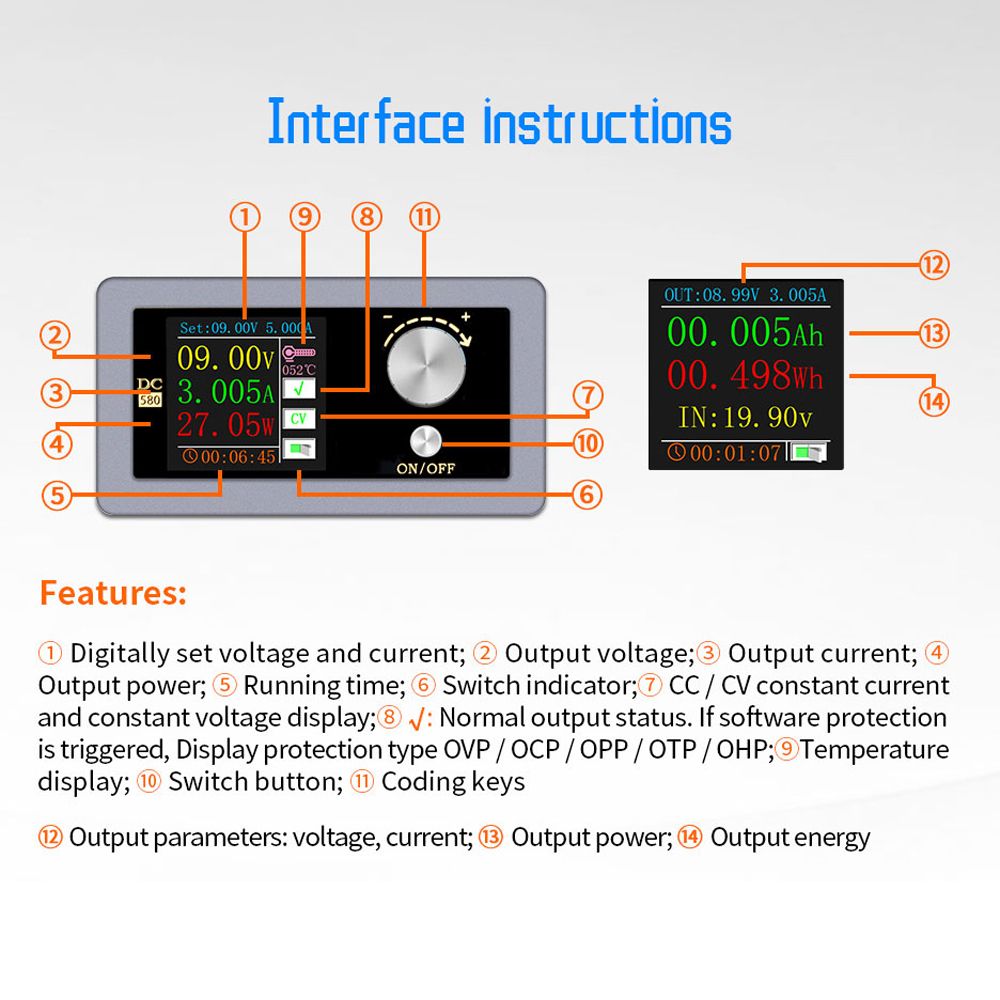

DC-580 NC step-up and step-down adjustable power supply is small in size, powerful in function, stable in performance, high in accuracy, and has various humanized system settings. Adopt 1.44 inch LCD display screen, display a variety of data on one screen, the page is concise and rich.

Intelligent temperature control system: when the product temperature is greater than 45℃ or the output current is greater than 1A, the fan will automatically start. The fan will automatically turn off when the conditions are not met.

Software protection system: when the parameter exceeds the software protection set value, the product will automatically stop working, and the working status indicator box on the main interface will show a code that stops working due to the corresponding software protection. After the startup state is met, just press the key to reset and restart.

Screen supports four-way rotation: meet the slotted installation in different orientations, you can get the perfect viewing angle.

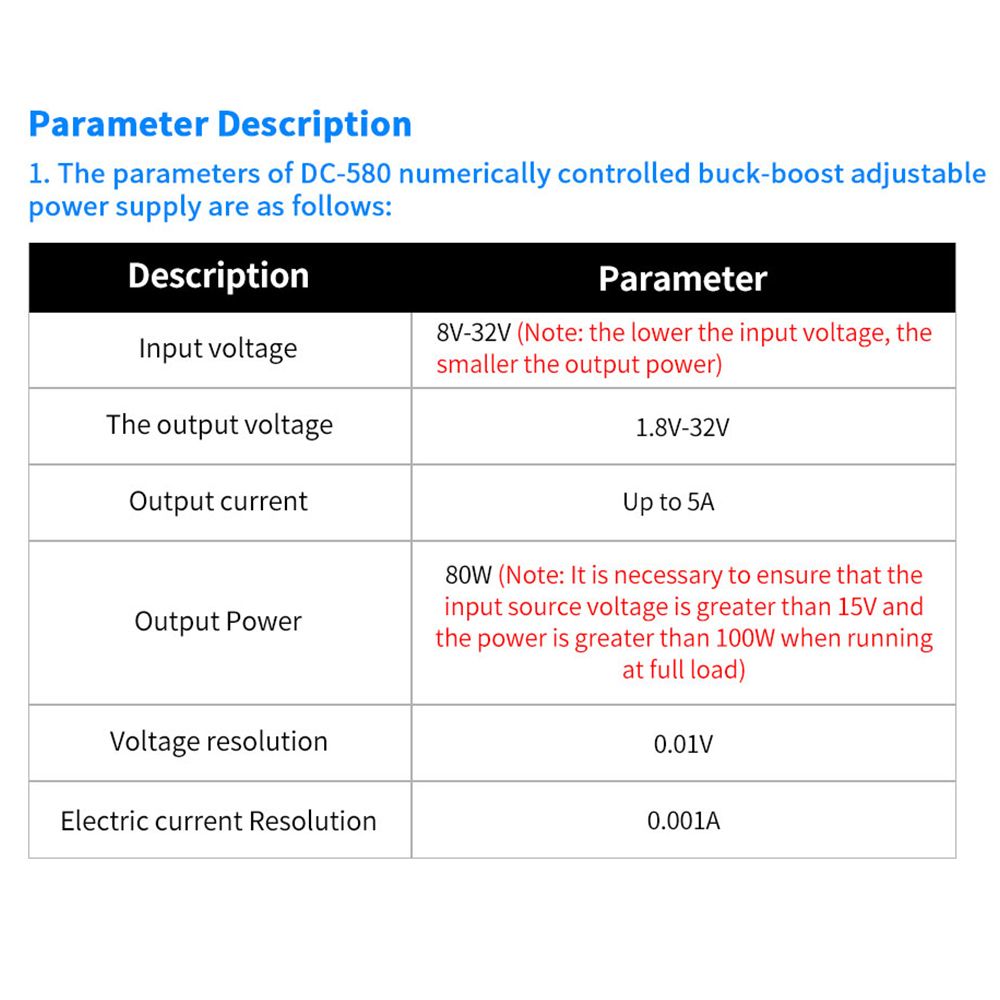

Specifications:

Material: ABS+metal

Color: black

Input voltage: 8V-32V (the lower the input voltage, the smaller the output power)

Output voltage: 1.8V-32V

Output current: up to 5A

Output power: 80W (it is necessary to ensure that the input source voltage is greater than 15V and the power is greater than 100W when running at full load)

Voltage resolution: 0.01V

Current resolution: 0.001A

Input anti-reverse: YES

Output anti-backflow: YES

Output overvoltage protection (OVP): 1.8-32V custom adjustment, default 35V

Output overcurrent protection (OCP): 0-5A custom adjustment, default 5A

Output over power protection (OPP): 0-80W custom adjustment, default 80W

Output over temperature protection (OTP): 45-120℃ custom adjustment, closed by default

Output timeout protection (OHP): 0-100h custom adjustment, closed by default

Power on default (ACQ): off by default

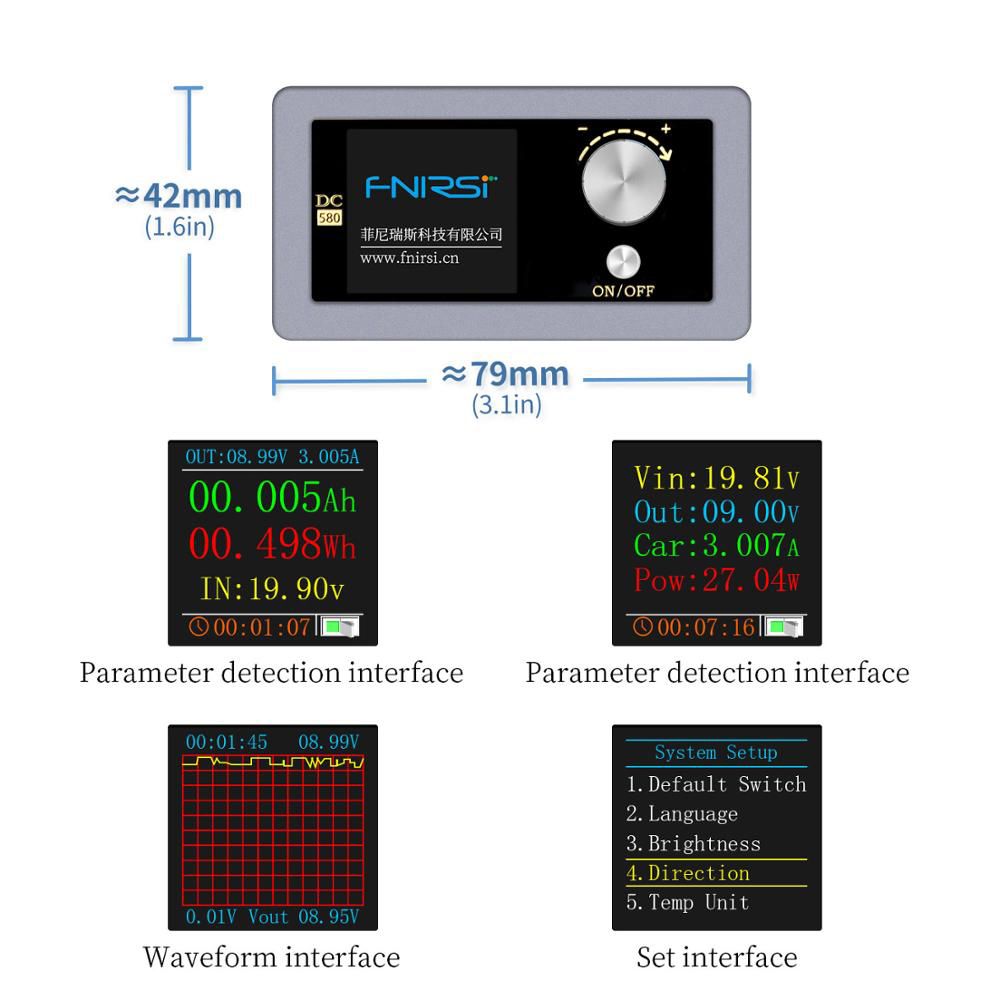

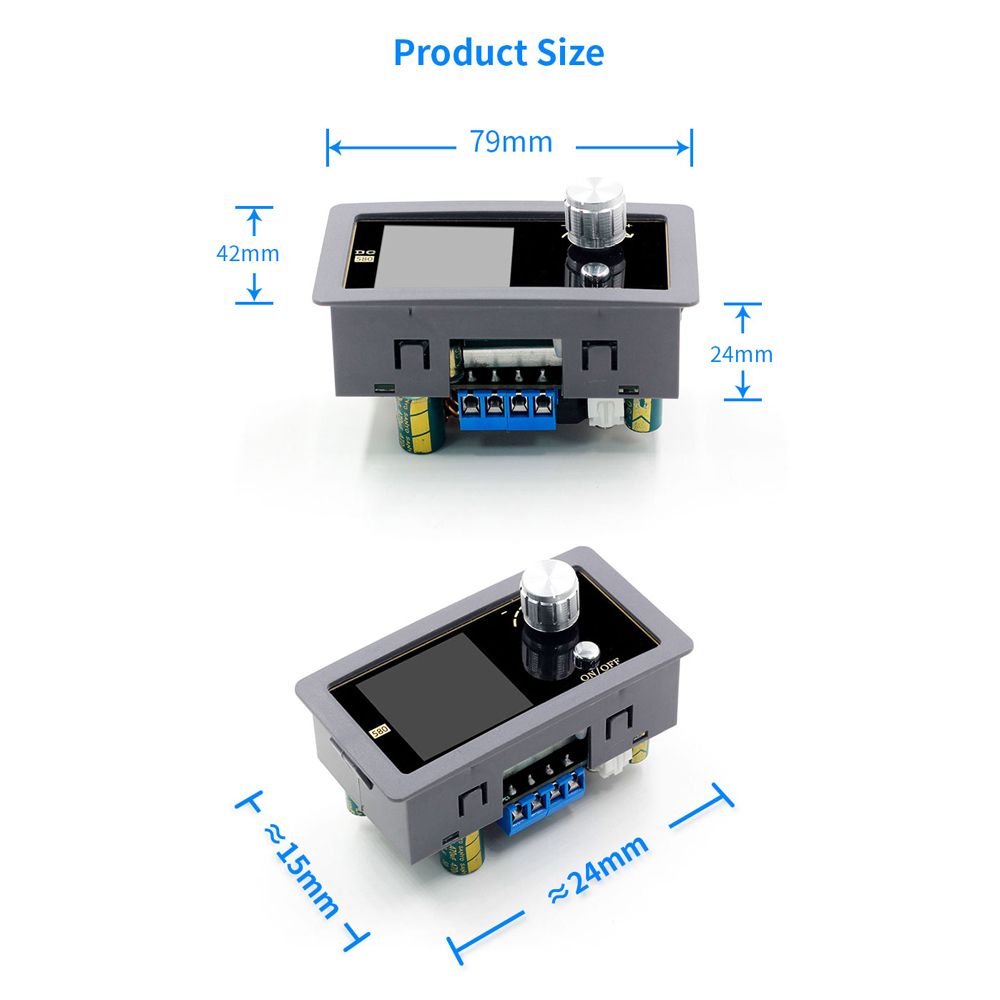

size: 79 * 42 * 24mm / 3.1 * 1.7 * 0.9in

Package size: 79 * 50 * 42mm / 3.1 * 2.0 * 1.7in

Package weight: 46g / 1.6ounce

Packing List:

1 * Power Supply
