Pneumatic Hand Valve Bottom Outlet Type K34R6-8D K34R6-8 K34R6-8L K34R6-6
Pneumatic Hand Valve Bottom Outlet Type K34R6-8D K34R6-8 K34R6-8L K34R6-6
Key Features
Order Number: K34r6
Customized Processing: No
Item No.: K34r6
Brand: Airfac
Model: K34R6-8D
Nominal Pressure: 1mpa
Nominal Diameter: 8mm
Product Alias: Hand Valve
Scope of Application: Pneumatic Line Reversing
Material: Aluminum Alloy
Connection Form: Thread
Pressure Environment: Low Pressure
Operating Temperature: Normal Temperature
Standard: National Standard
Type: Three Unit Four Passage
Appearance: Miniature
Flow Direction: BIDIRECTIONAL
Form: Hand Valve
Parts and Accessories: Handle
Purpose: Reversing

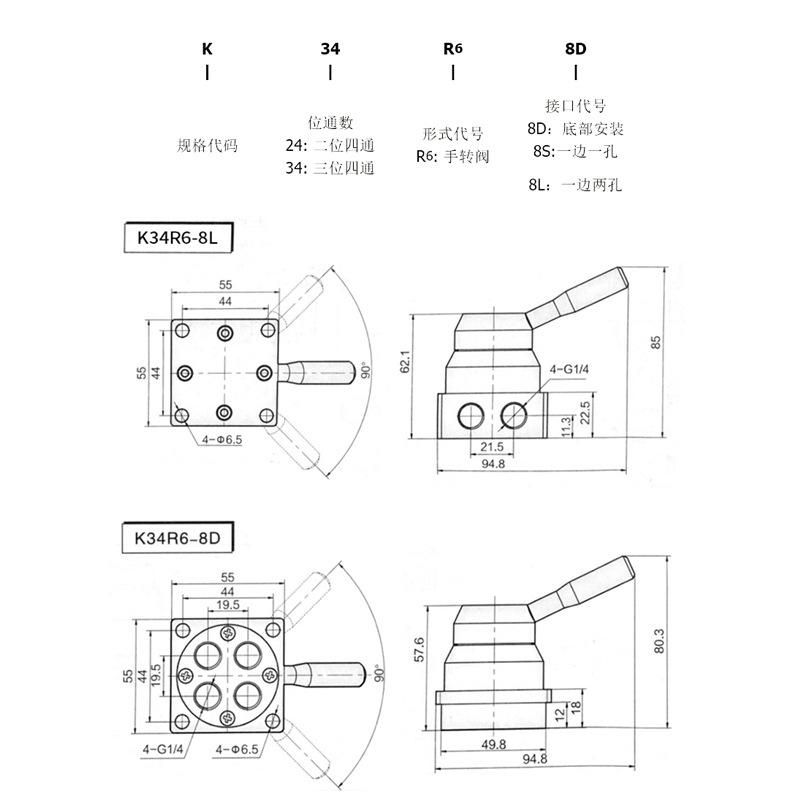

Specifications: K34R6-8 (2 Points for Four Sides and Four Ports),K34R6-8D (2 Points for the Bottom and Four Ports),K34R6-8L (2 Points for Two Sides and Two Ports),K34R6-6 (1 Point for Four Sides and Four Ports)
Whether Cross-Border Export Is Exclusively Available: No
| Weight (kg) | 0.8 |
|---|
