E100 Network Surge Arrester Surge Protection Device
˂
˃
E100 Network Surge Arrester Surge Protection Device
Price:
₦27,050
Brand: Generic
Share:
Product Description

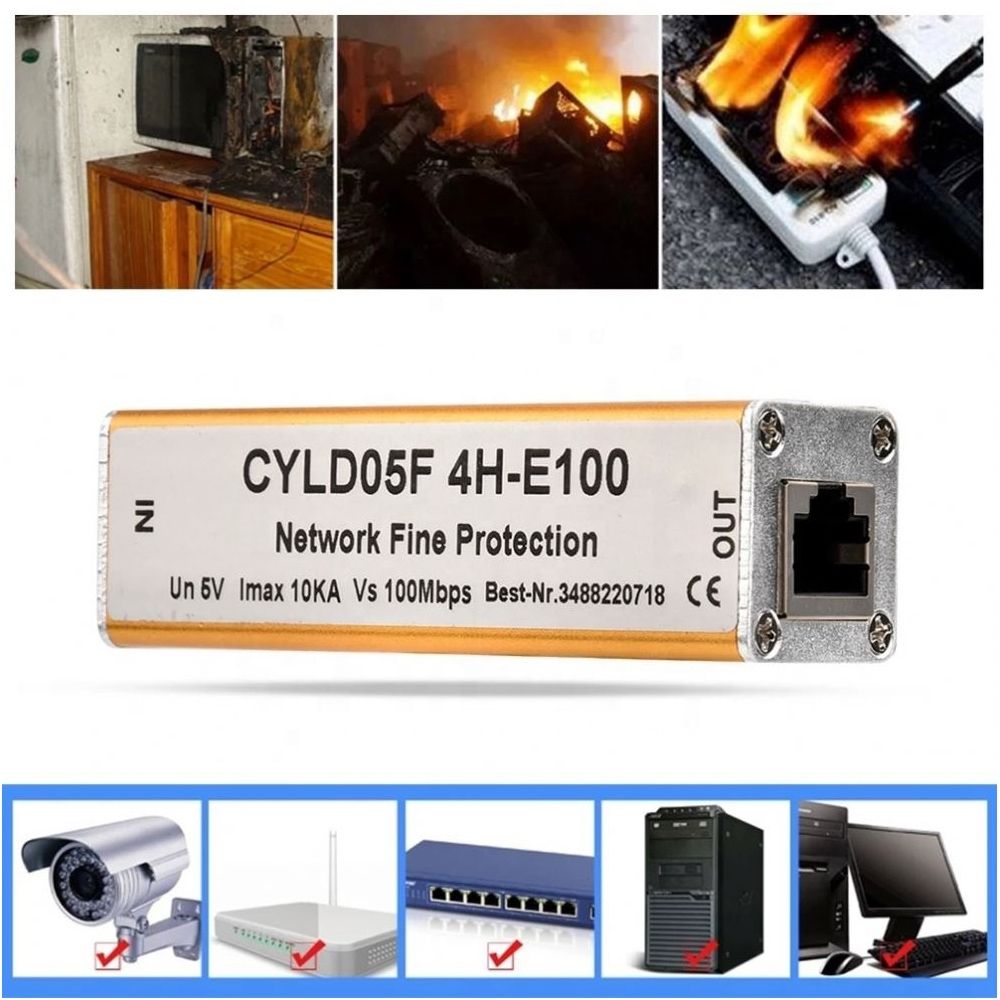

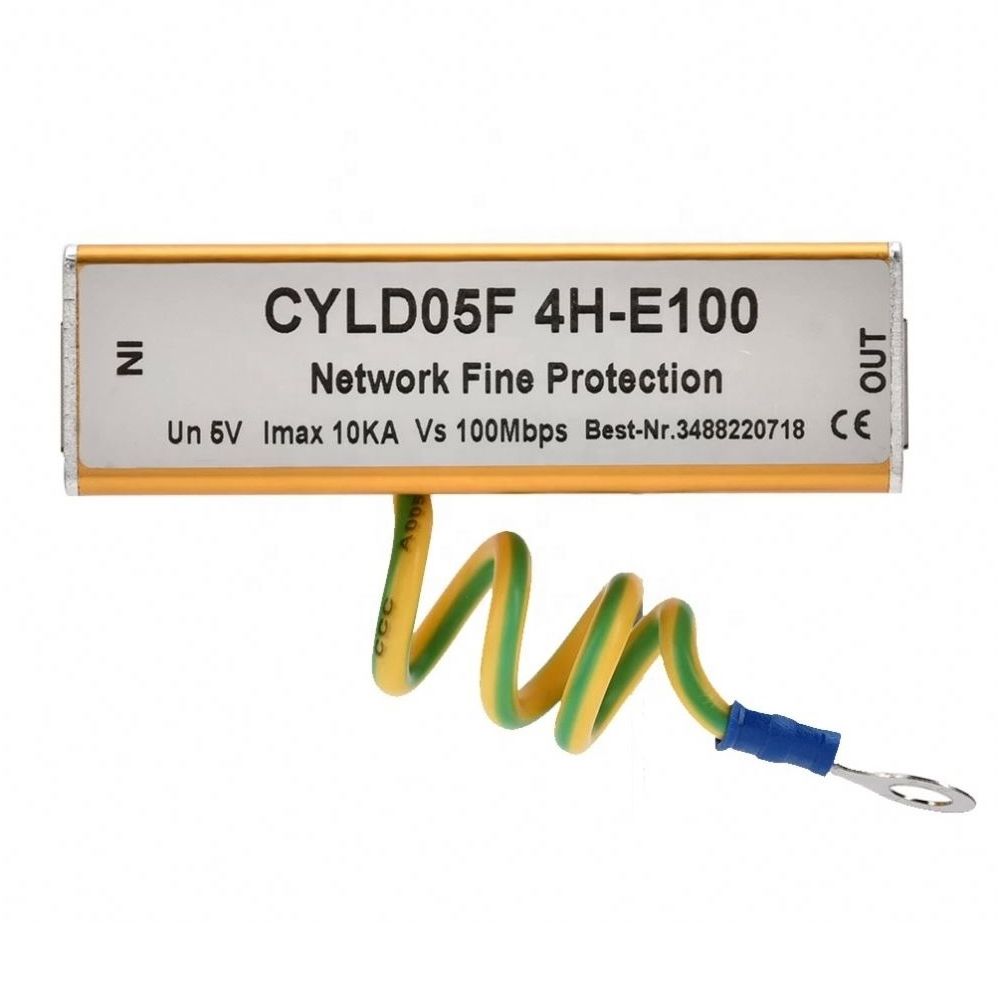

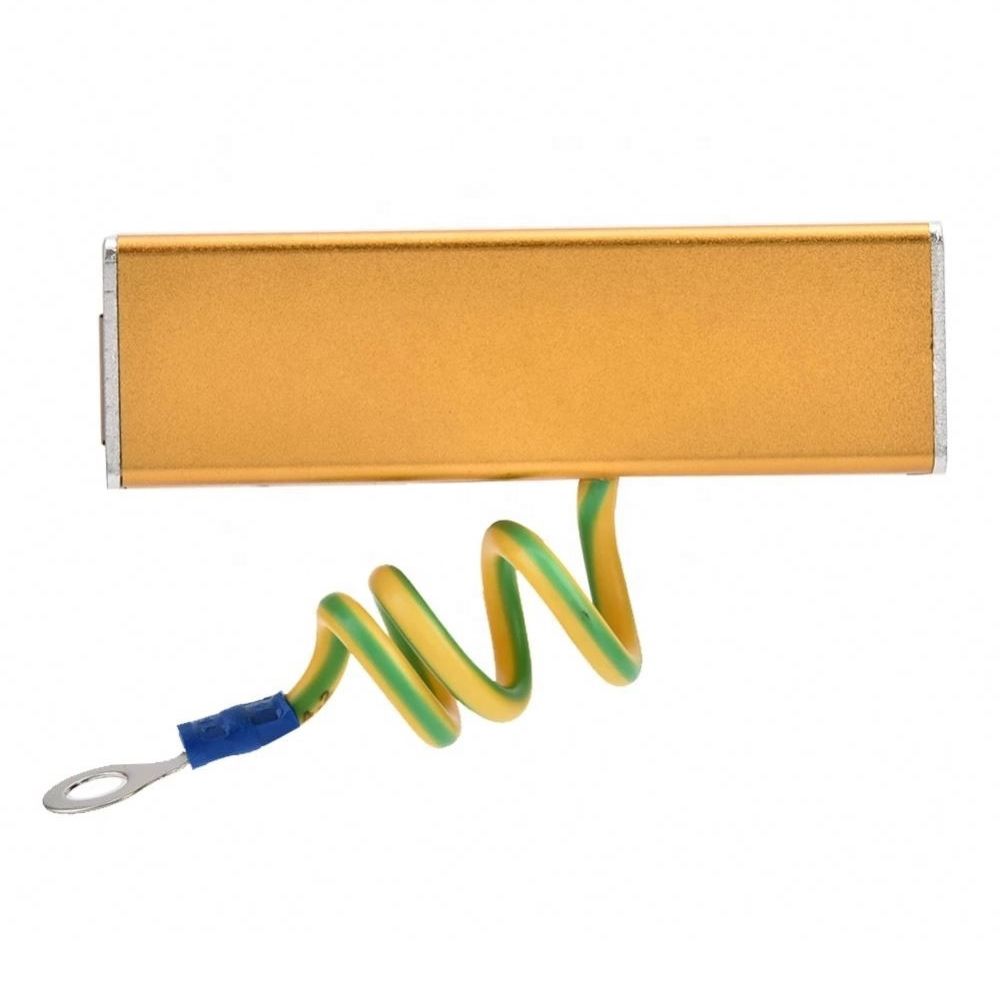

E100 Network Surge Arrester Surge Protection Device
Function:
Protect data transit in Ethernet from surge.Make sure system and equipment's safety when surge come from thunderbolt or static
Features:
Large elecric current support , multiple level protection, quickly response, minor wastage when join them.
Technical parameter:
1) Model: CYL D05F4H-E100
2) responsive time ≤1ns
3) Operating Temperature: -40°C to + 80°C; Humidity ≤95% (25-30°C)
4) Max discharge current: 10KA
5) Rated voltage: 5V
6) Protection voltage: 12-18V
8) Joint wastage: ≤0.5dB
9) Transmission speed: 100Mbps
10) Protect pin:1/2/3/6
11) Size: 80x26x26mm
12) Net weight: 100g
Function:
Protect data transit in Ethernet from surge.Make sure system and equipment's safety when surge come from thunderbolt or static
Features:
Large elecric current support , multiple level protection, quickly response, minor wastage when join them.
Technical parameter:
1) Model: CYL D05F4H-E100
2) responsive time ≤1ns
3) Operating Temperature: -40°C to + 80°C; Humidity ≤95% (25-30°C)
4) Max discharge current: 10KA
5) Rated voltage: 5V
6) Protection voltage: 12-18V
8) Joint wastage: ≤0.5dB
9) Transmission speed: 100Mbps
10) Protect pin:1/2/3/6
11) Size: 80x26x26mm
12) Net weight: 100g
Key Features
Protect data transit in Ethernet from surgeMake sure system and equipment's safety when surge come from thunderbolt or static
Features:
Large elecric current support , multiple level protection, quickly response, minor wastage when join them
Technical parameter:
Model: CYL D05F4H-E100
What's In the Box
1 x package
Product Specification
| Model | B179726LN=S-CVB-0122 |
|---|---|
| Production Country | China |
| Size (L x W x H cm) | 5 x 15 x 5cm |
| Weight (kg) | 0.01 |
| Color | Multicolor |
| Main Material | Multi-Material |
