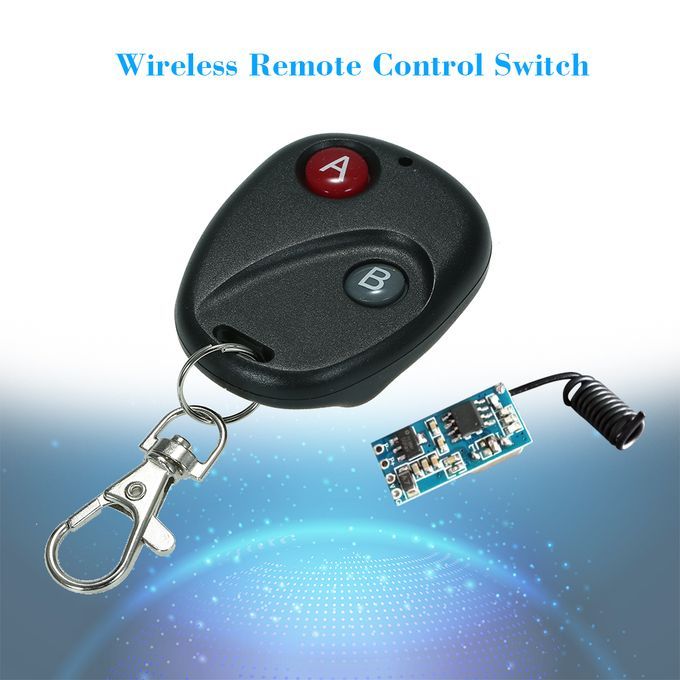

433Mhz DC 5-18V Universal Receiver Module RF Remote Control

Features:

*Very convenient to use,simple wiring, direct use of remote control.

*Widely used in our daily life. It can connect to the access control system, garage door, light, electric curtain, household appliances, motor control, security system, etc.

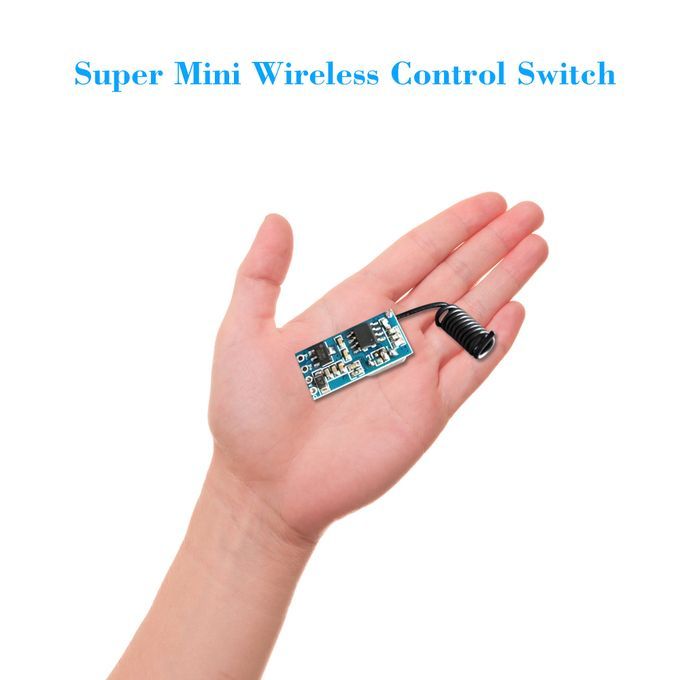

*Ultra low consumption, stable performance. Super small size, taking up very little space. The tiny receiver board size is only about 2.3*1*0.4cm.

*Learning pair code: it can work with any remote control with the same frequency, so you needn't worry about losing remote control any more. (If the remote control is lost, buy one and pair with the PCB board is OK.)

*Remote control distance: Open environment of about 50-100 meters,(can penetrate wall remote control).





Receiver Specifications:

Channels: 1

Supply: DC 5V to18V

Working Current: ≤30mA

RF Frequency: 433MHz

Output : DC/AC Optional

Coded System: Learning Code (1527 Chip) ; Fixed Code(2260)

Receive sensitivity: -106dBm

Working mode:Inching/self-locking/interlock function(adjustable)

Receiver Board Size: Approx. 2.3*1*0.4cm





Remote Control Specifications:

Frequency: 433MHz

Range: 50-100 meters(open area)

Battery: 1*12V 23A (included)

Quantity: 1PCS





Package Information:

Package Size: Approx.14.5*10*2cm/5.71*3.94*0.79in

Package Weight: Approx.26g/0.92oz





Package List:

1* Receiver Board

1* Remote Controller
a a a a a

Key Features

xVery convenient to use,simple wiring, direct use of remote control.
xWidely used in our daily life. It can connect to the access control system, garage door, light, electric curtain, household appliances, motor control, security system, etc.
xUltra low consumption, stable performance. Super small size, taking up very little space. The tiny receiver board size is only about 2.3x1x0.4cm.
xLearning pair code: it can work with any remote control with the same frequency, so you needn't worry about losing remote control any more. (If the remote control is lost, buy one and pair with the PCB board is OK.)
xRemote control distance: Open environment of about 50-100 meters,(can penetrate wall remote control).
xVery convenient to use,simple wiring, direct use of remote control.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

1x Receiver Board,1x Remote Controller
