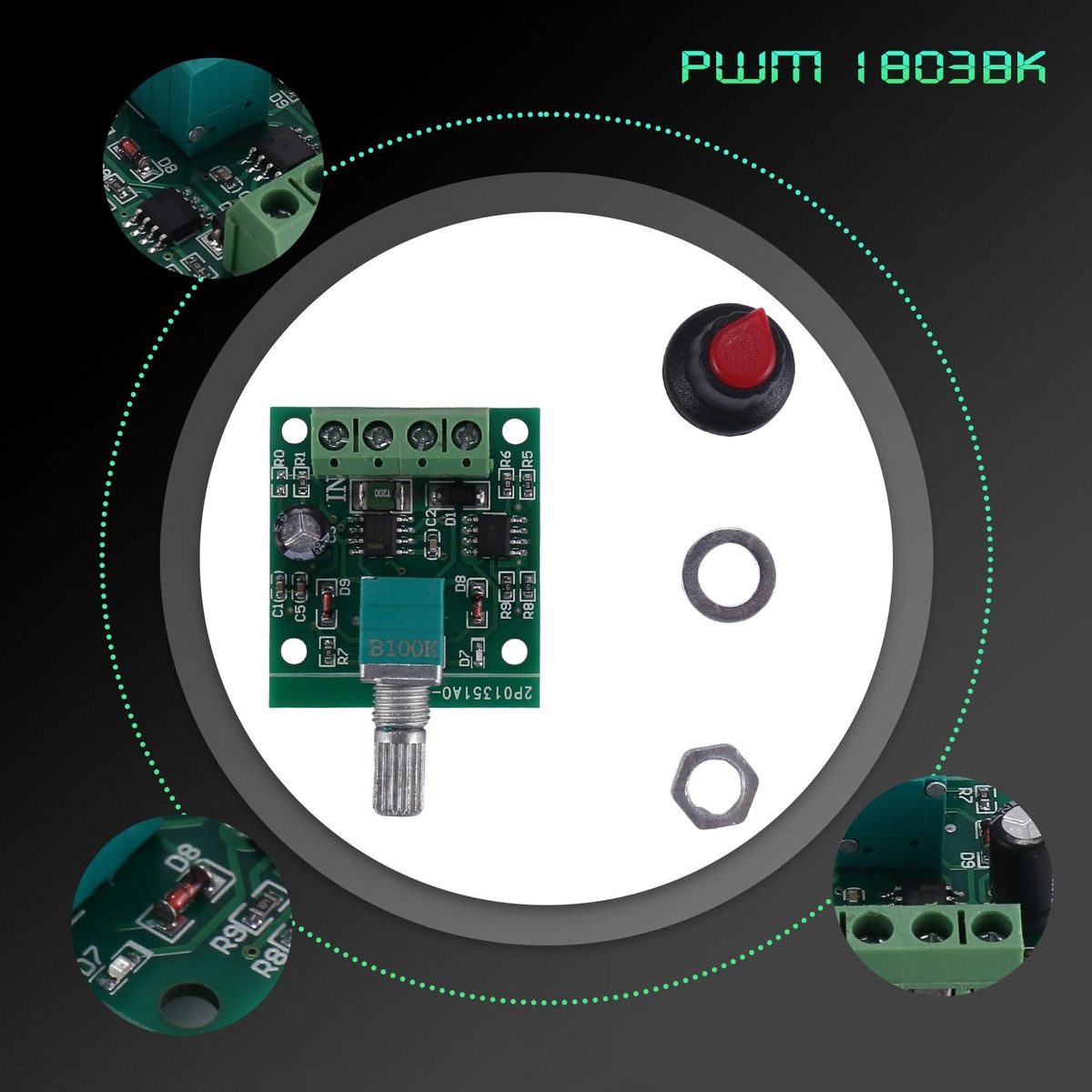

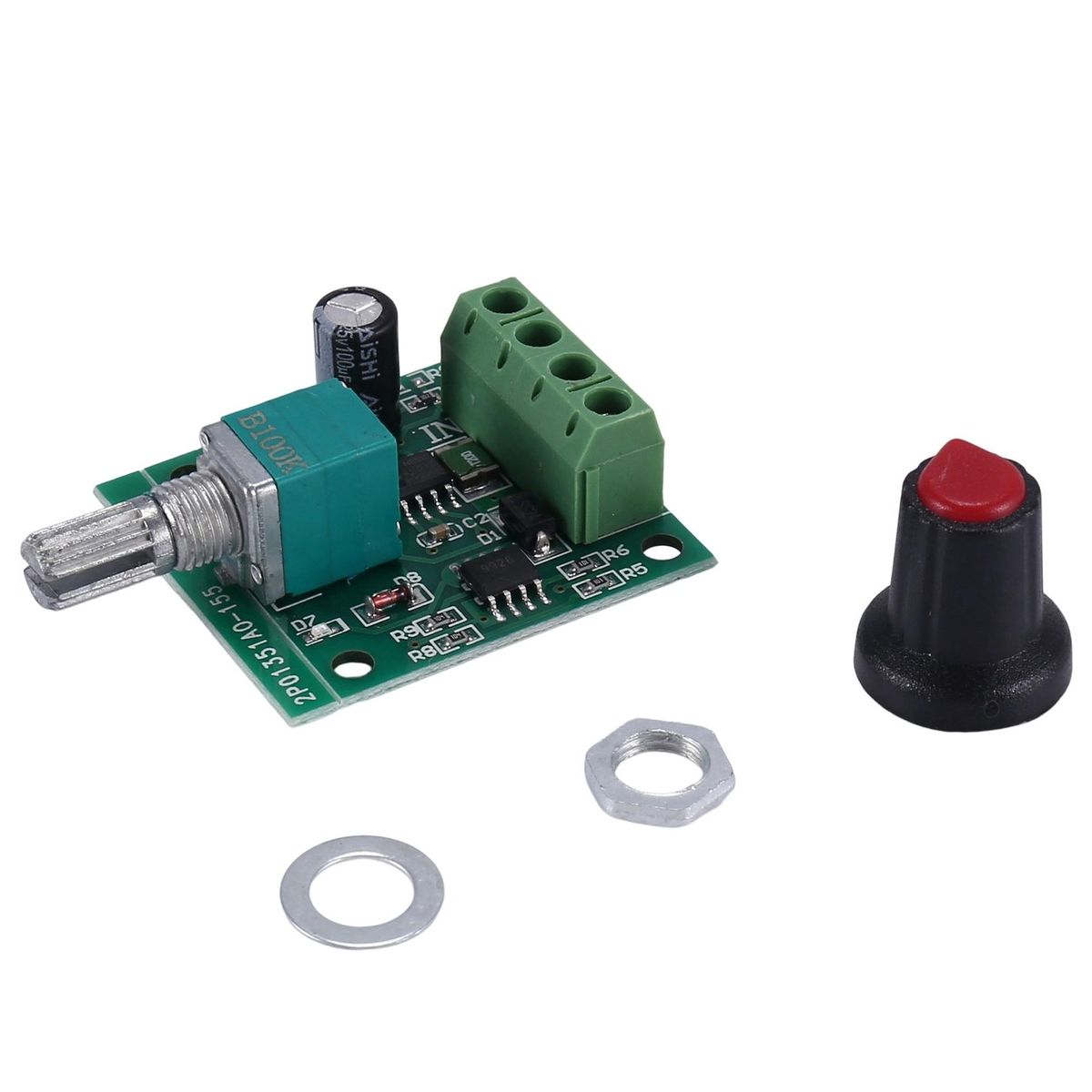

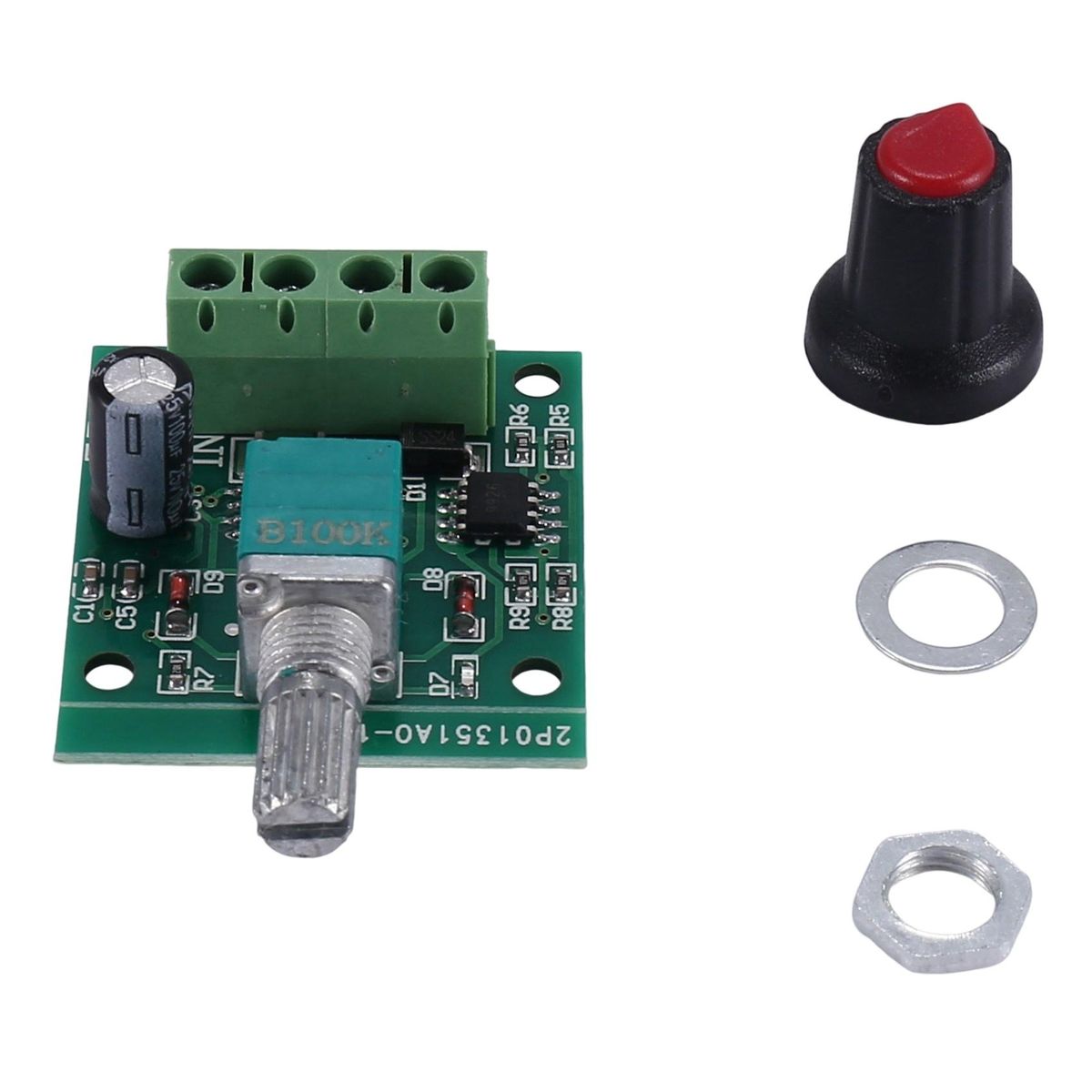

DC Motor Speed Controller (PWM) 1803BK Adjustable Driver Swi

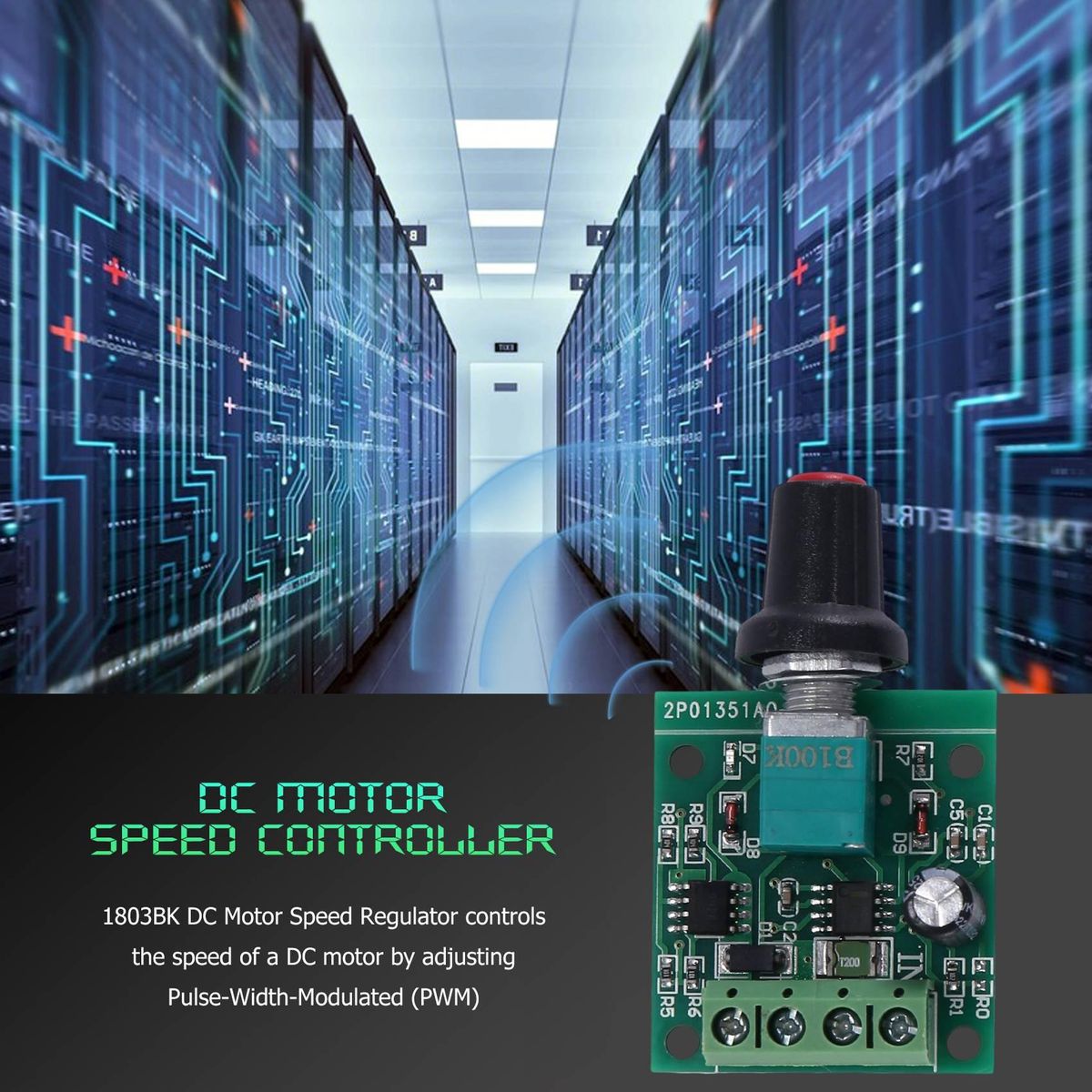

1803BK DC Motor Speed Regulator controls the speed of a DC motor by adjusting -Width-Modulated (PWM).
The input power range is DC 1.8-15V .
Use a 2A resettable fuse to the controller.
Potentiometer with switch function.

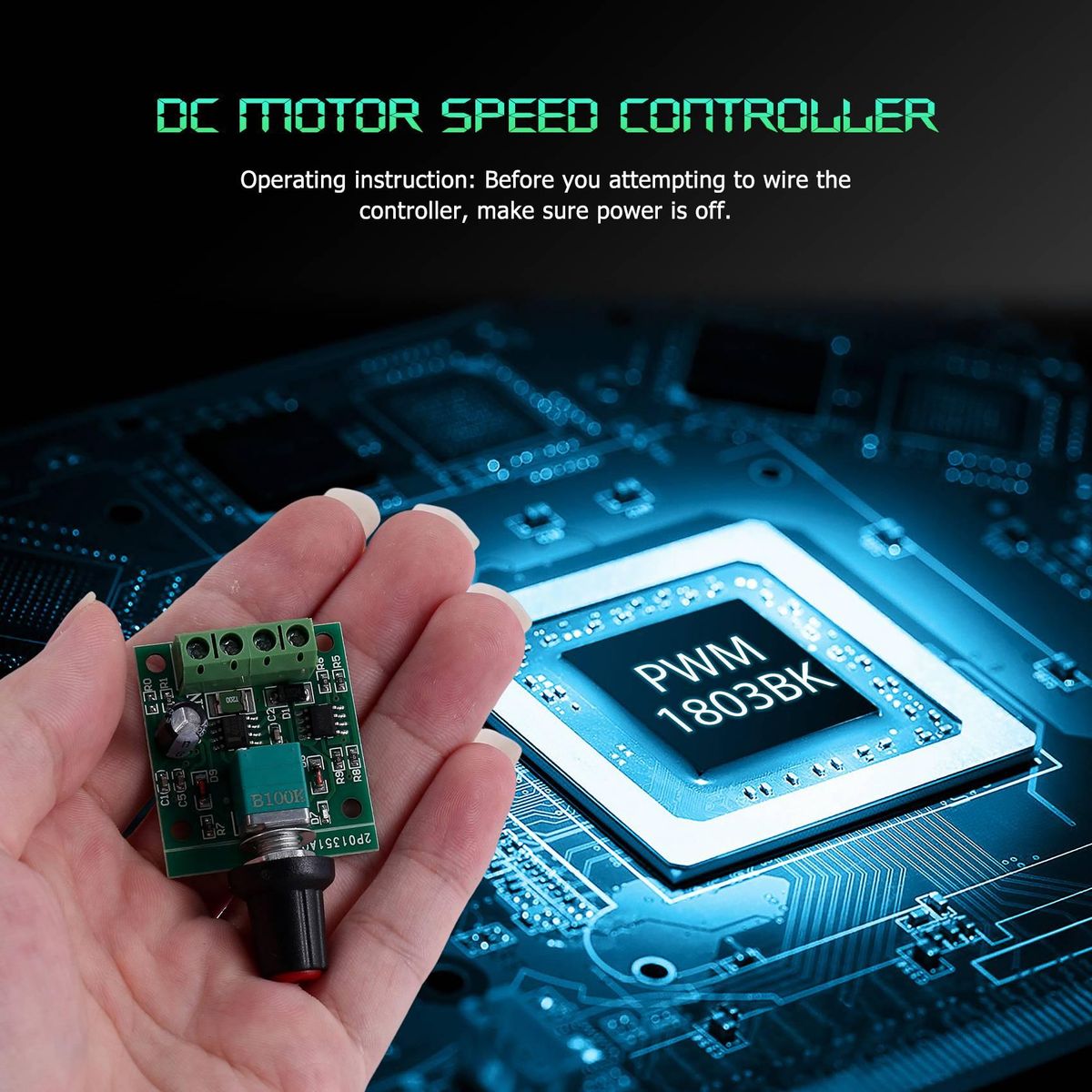

Operating instruction: you attempting to wire the controller, make power is off. WARNING: TO CHANGE MOTOR DIRECTION, INTERCHANGE THE AND NEGATIVE WIRES OF MOTOR.
Connect wires refer to the "wiring " (NO.5 ).
Turn on the power, and adjust the potentiometer.
The LED indicates the power up and the speed of motor.

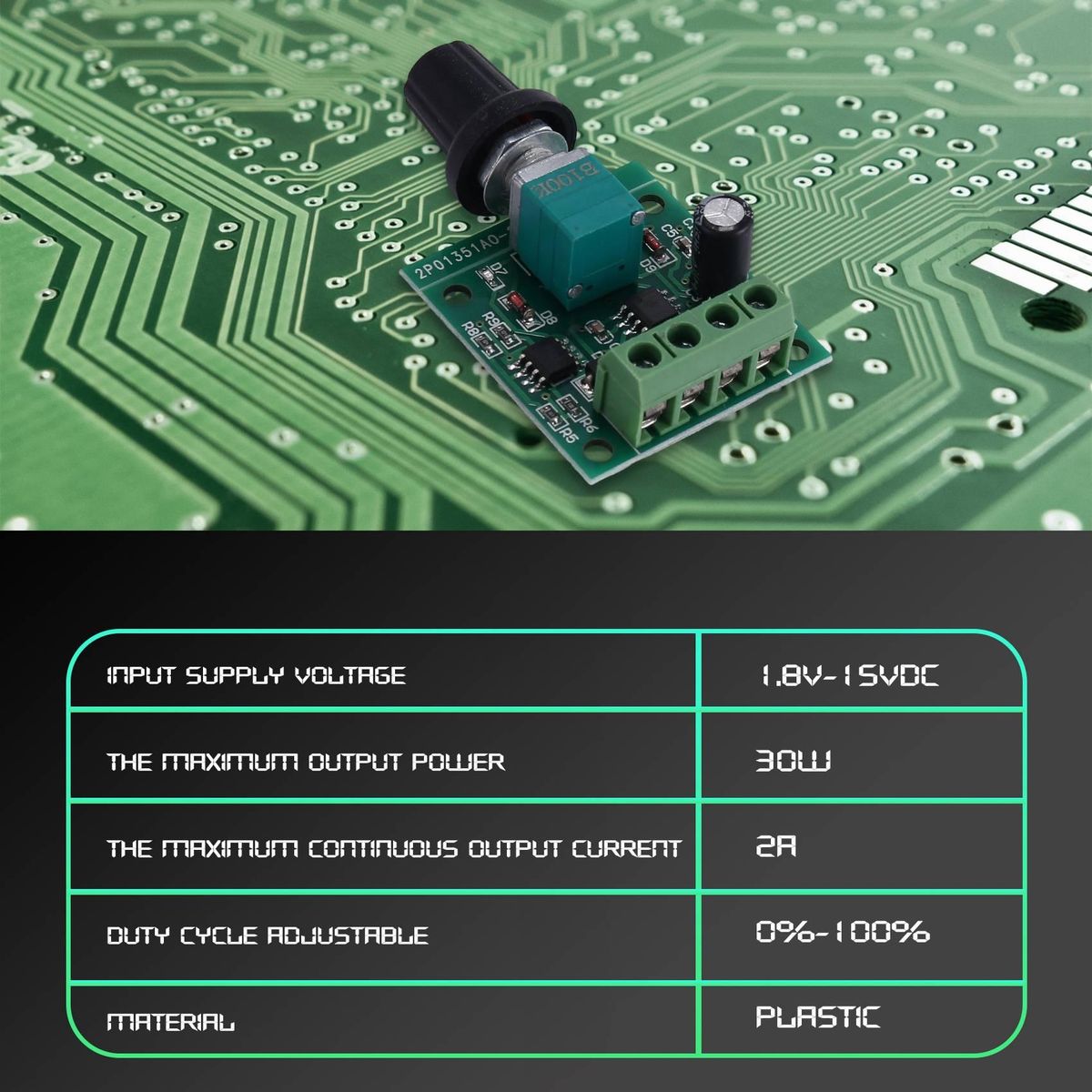

Input supply voltage: 1.8V-15VDC;
The maximum output power: 30W
The maximum continuous output current: 2A
Duty adjustable: 0%-100%
Material: Plastic
Colour: Green

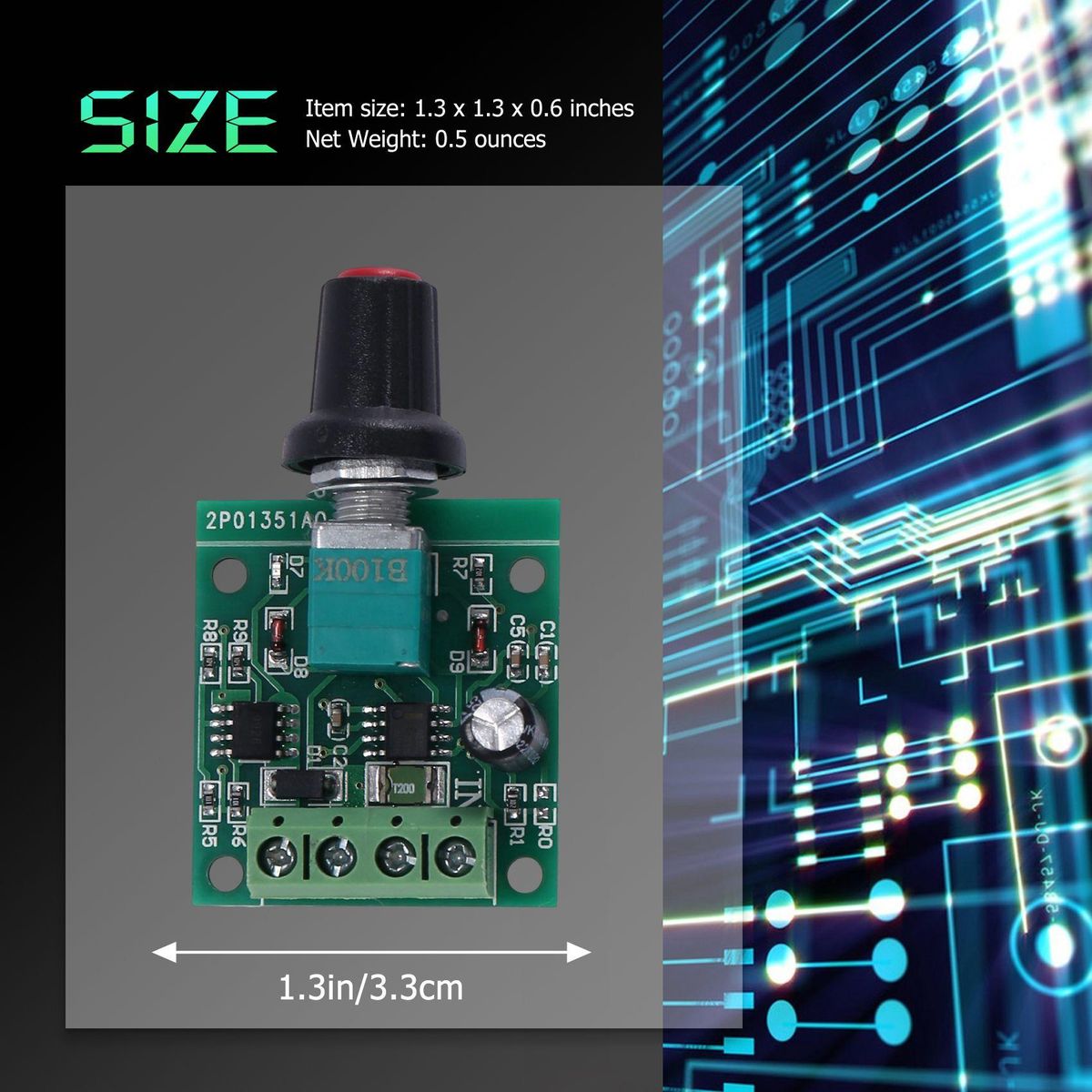

Item size: 1.3 x 1.3 x 0.6 inches; Net Weight: 0.5 ounces Package Contents:
1 x DC Motor Speed Controller Only the above package content, other are not included.
Note: Light and different displays may cause the color of the item in the a little different from the real . The measurement allowed error is +/- 1-3cm.

Key Features

Durable and good quality
DC Motor Speed Controller
PWM 1803BK
Adjustable Driver Switch
Motor Speed Controller PWM
PWM Adjustable Driver Switch
The details are as described above

What's In the Box

1 x DC Motor Speed Controller
