Small Thermal Imaging Camera Portable Mobilephone Thermal

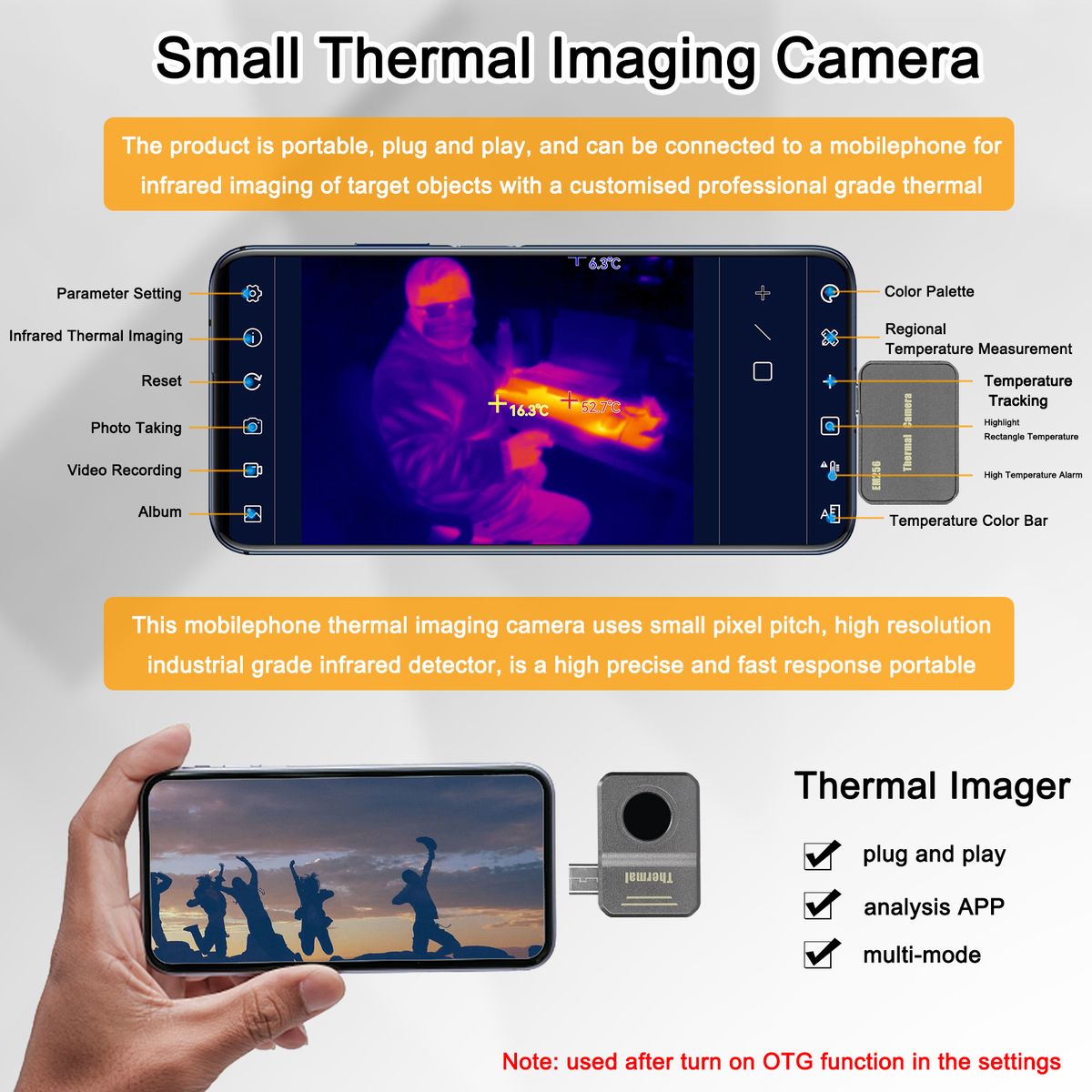

This mobilephone thermal imaging camera uses small pixel pitch, high resolution industrial grade infrared detector, is a high precise and response portable infrared thermal imaging analyzer. The product is portable, plug and play, and can be connected to a mobilephone for infrared imaging of target objects with a customised professional grade thermal analysis APP, and can be used whenever and wherever for multi-mode professional thermal analysis. Note: used after turn on OTG function in the settings.



Features:

Setting: Provide App interface and parameter setting of infrared thermal imaging camera.

Reset: Reset all kinds of information in the screen and restore it to the state at startup.

Photo Taking: Take photos and store them in an album.

Video Recording: Make a video recording and store it in an album.

Album: Store photos and videos.

Infrared Thermal Imaging: Display infrared thermal imaging.

Temperature Color Bar: Display the maximum temperature and minimum temperature in the current screen with different color block bars.

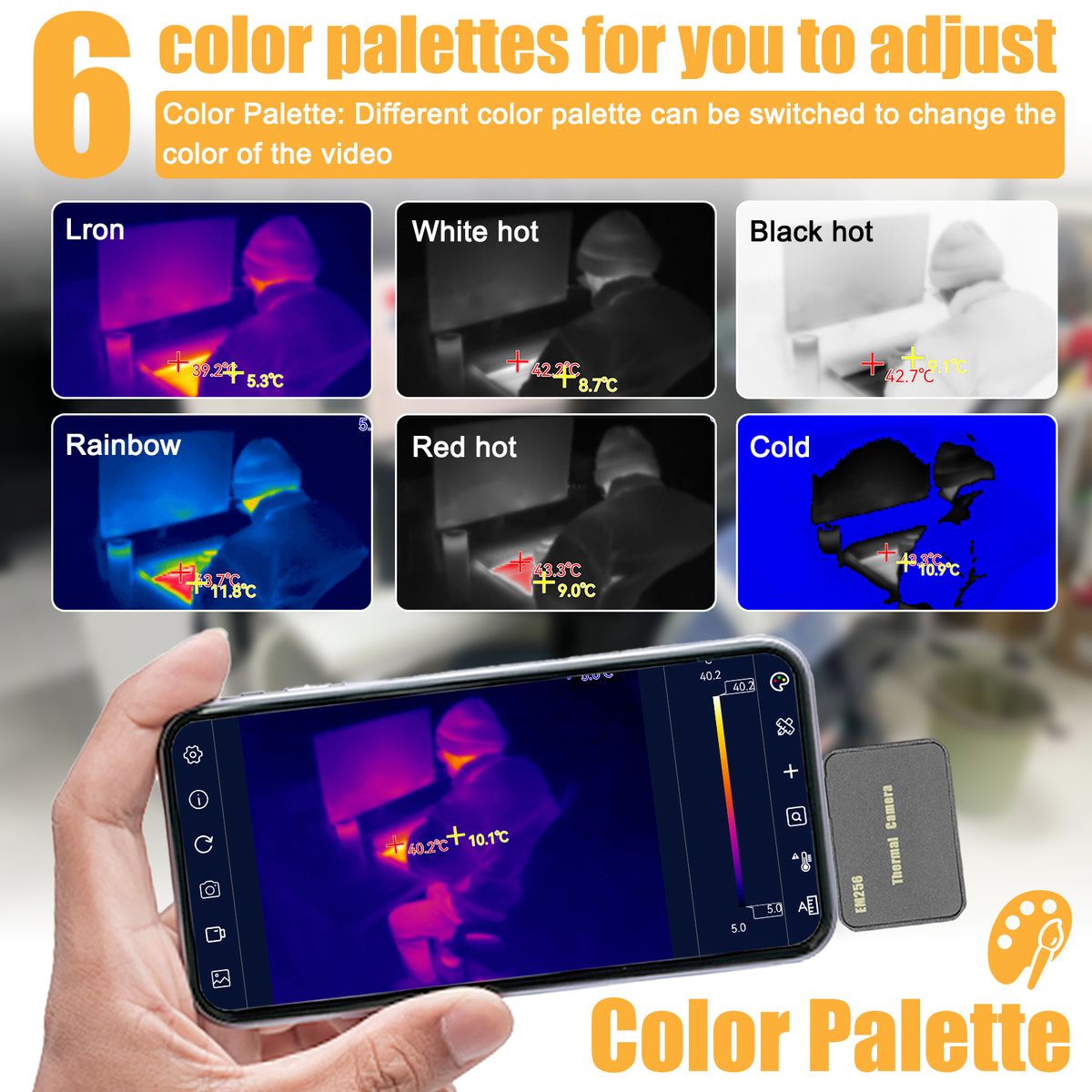

Color Palette: Different color palette can be switched to change the color of the video, with totally 6 color palettes for you to adjust.

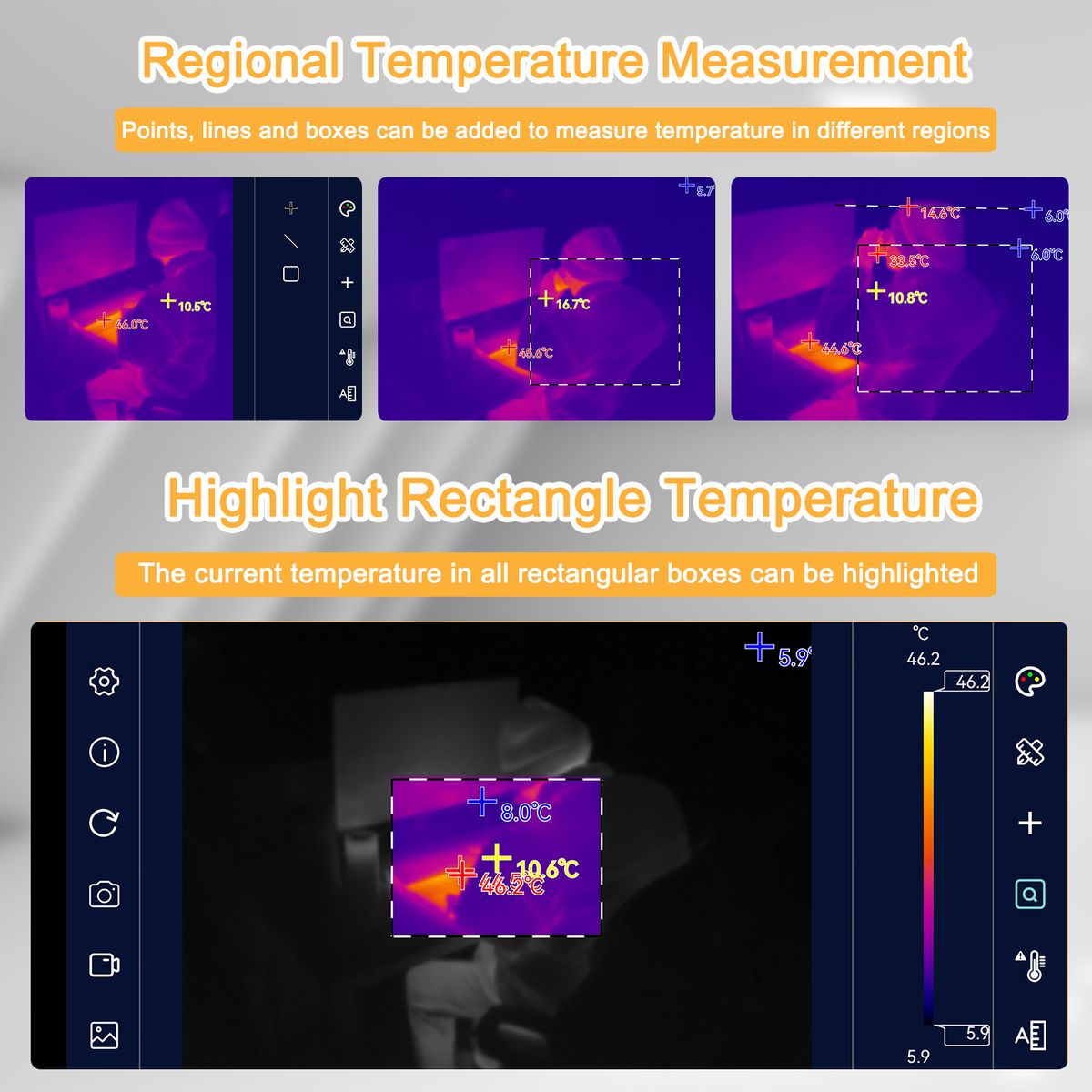

Regional Temperature Measurement: Points, lines and boxes can be added to measure temperature in different regions.

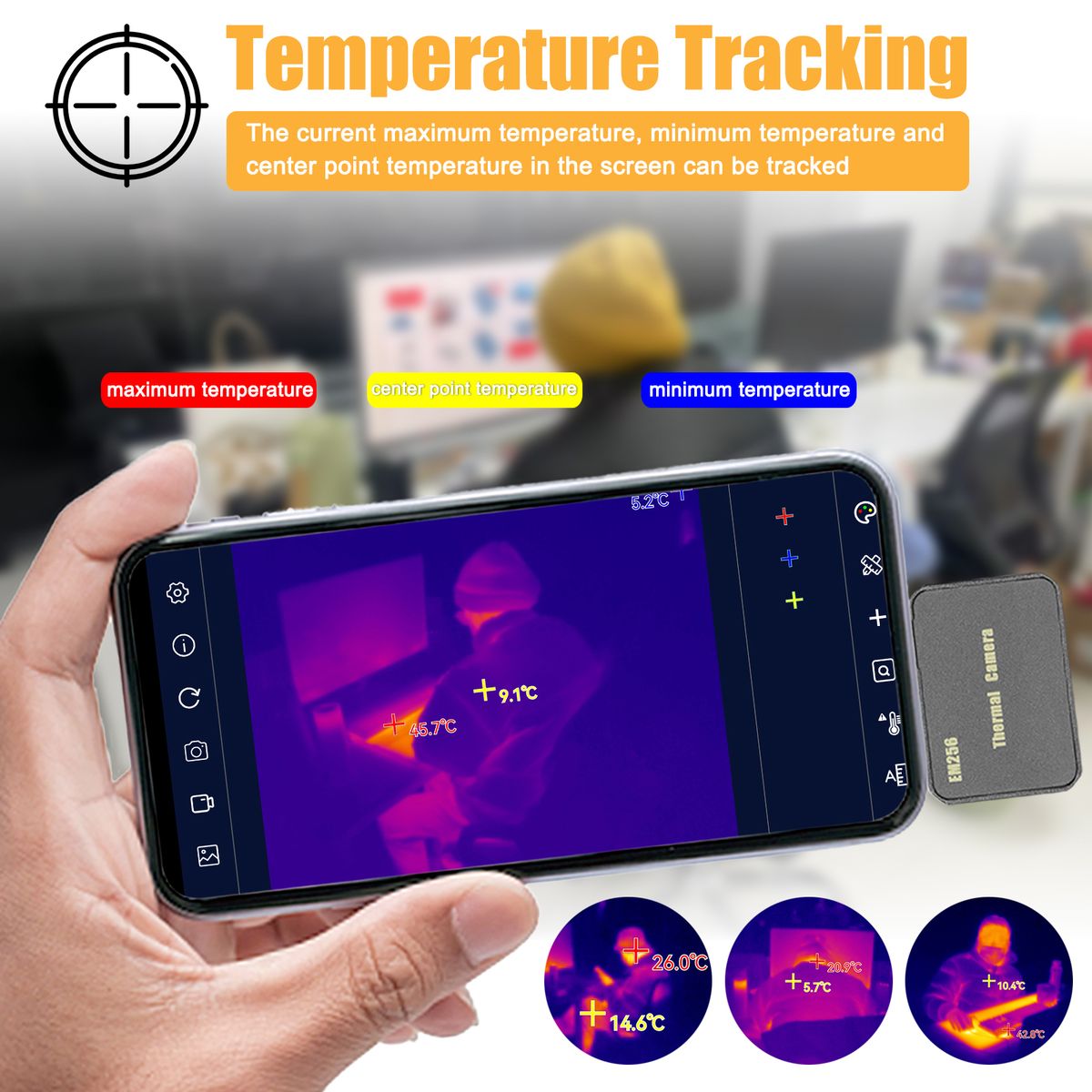

Temperature Tracking: The current maximum temperature, minimum temperature and center point temperature in the screen can be tracked.

Highlight Rectangle Temperature: The current temperature in all rectangular boxes can be highlighted. If the current screen does not have a rectangle, one will be added automatically.

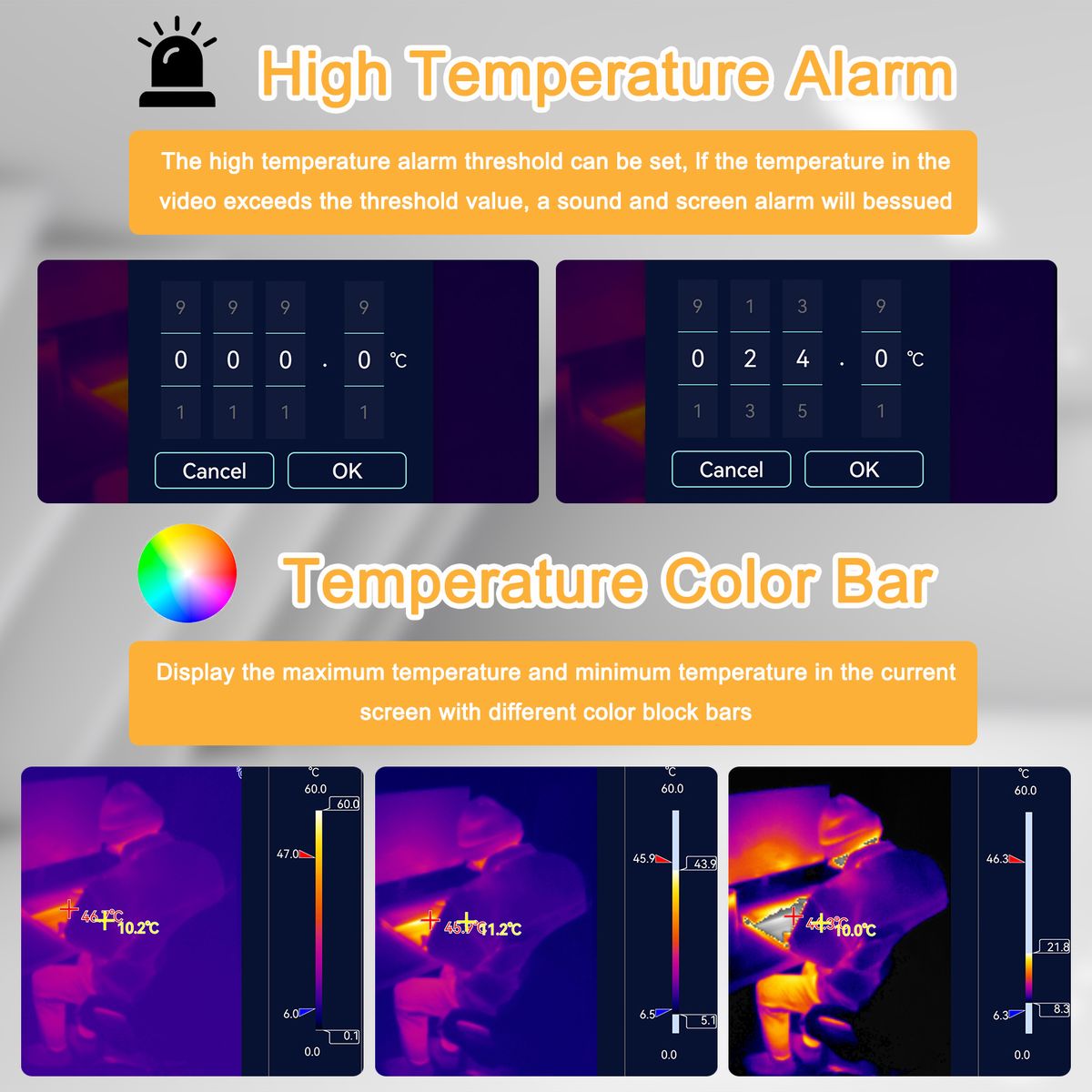

High Temperature Alarm: The high temperature alarm threshold can be set, lf the temperature in the video exceeds the threshold value, a sound and screen alarm will bessued.

Highlight High-temperature Regions: The maximum-temperature region in the screencan be displayed.

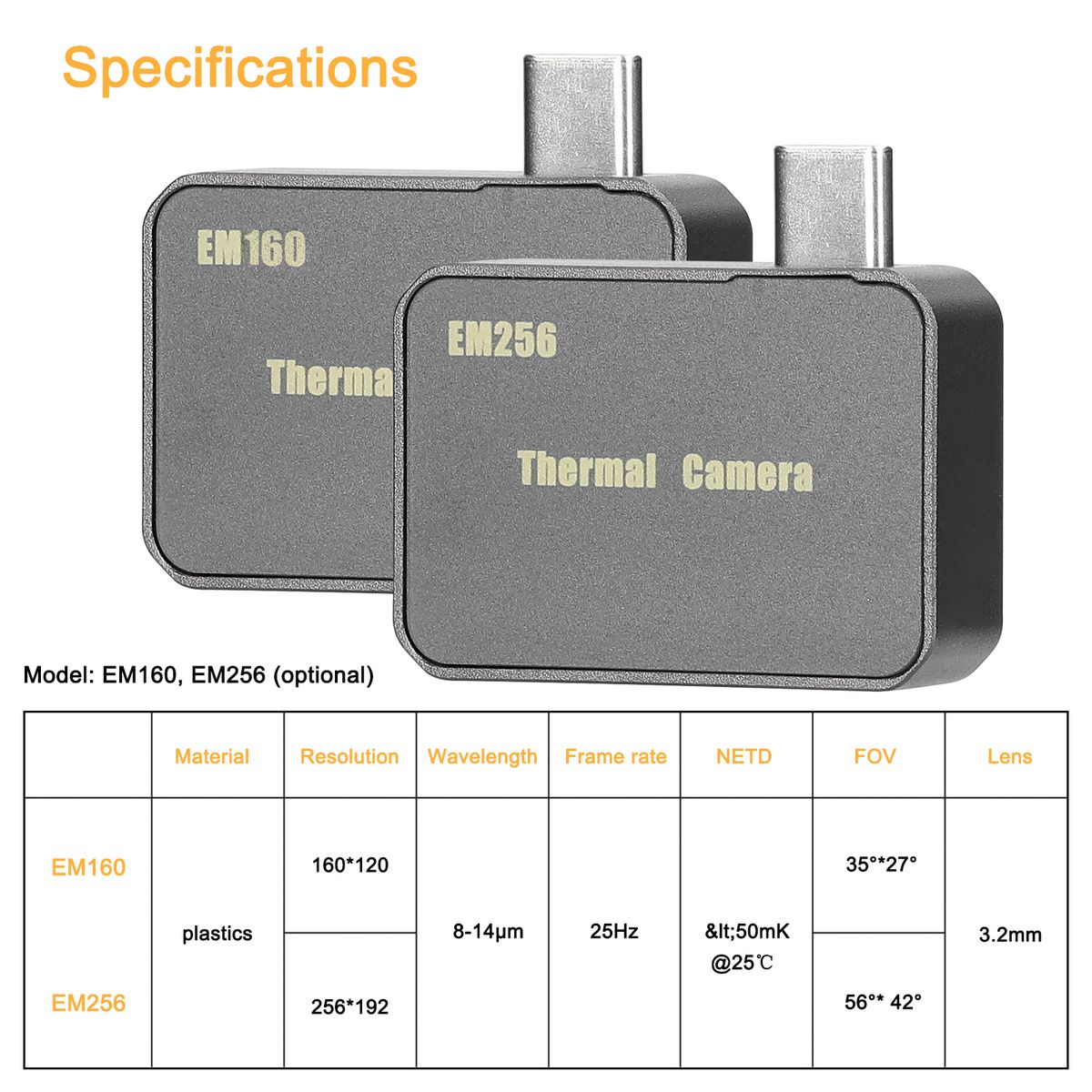

Specifications:

Name: Thermal Imager

Material: plastics

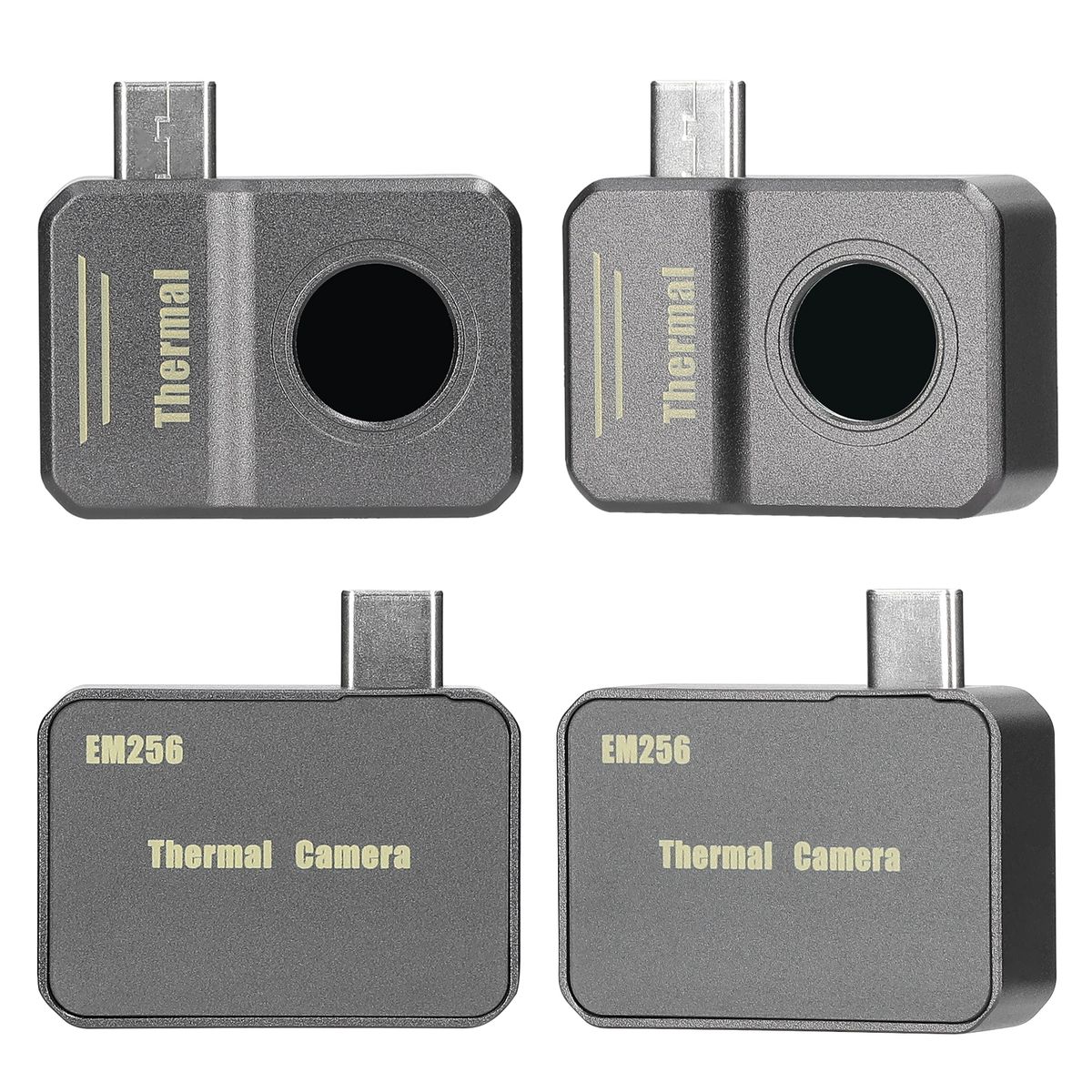

Model: EM160, EM256 (optional)

Resolution: 160*120 (EM160), 256*192 (EM256)

Wavelength: 8-14μm

Frame rate: 25Hz

NETD: less than 50mK @25℃

FOV: 35°*27°; 56°*42°

Lens: 3.2mm

Temperature measurement ranges: -15℃ to 600℃ Temperature measurement accuracy: ±2℃ or +2% of reading

Temperature measurement: Highest, lowest, central point an area temperature measurement are supported

Color palette: 6

Language: English and Chinese

Working temperature: -10℃ to 75℃

Storage temperature: -45℃ to 85℃ IP rating: IP54

Item size: 34 * 26.5 * 15mm / 1.34 * 1.04 * 0.59in

Item weight: 19g / 0.67ounce

Package size: 95 * 95 * 50mm / 3.95 * 3.94 * 1.97in

Package weight: 149g / 5.26ounce



Packing List:

1 * Thermal Imager

1 * Lens Cleaner

1 * Storage Bag

Key Features

Temperature Color Bar: Display the maximum temperature and minimum temperature in the current screen with different color block bars.
Color Palette: Different color palette can be switched to change the color of the video, with totally 6 color palettes for you to adjust.
Regional Temperature Measurement: Points, lines and boxes can be added to measure temperature in different regions.
Temperature Tracking: The current maximum temperature, minimum temperature and center point temperature in the screen can be tracked.
Highlight Rectangle Temperature: The current temperature in all rectangular boxes can be highlighted. If the current screen does not have a rectangle, one will be added automatically.
High Temperature Alarm: The high temperature alarm threshold can be set, lf the temperature in the video exceeds the threshold value, a sound and screen alarm will bessued.
Highlight High-temperature Regions: The maximum-temperature region in the screencan be displayed.

What's In the Box

1 x Thermal Imager,1 x Lens Cleaner,1 x Storage Bag
