AC200MAX 2048Wh/2200W LiFePO4 Solar Generator

All-round Upgraded Expandable Power Station

The first modular, expandable BLUETTI power station. Packed with an astonishing 2048Wh ultra-durable LiFePO4 cells and a 2,200W full power pure sine wave inverter, the AC200MAX can be your mobile recharge center off-the-grid or on the way.

Capacity or Flexibility?

We've got you covered! AC200MAX supports up to two B230(2,048Wh each) or B300 (3,072Wh each) battery modules for a staggering 8,192Wh! (B230 and B300 battery pack are sold separately)

LESS TO SPEND, MORE TO LOVE

Struggling between power and flexibility? We got you covered! With two expansion ports, The AC200MAX welcomes up to two BLUETTI B230's(2048Wh each) or B300(3072Wh each) battery modules, connecting of which can boost the total capacity to a staggering 8192Wh!

Charge the Way You Prefer

AC200MAX allows 900W solar and 400W adapter input to get a 1,300W total charging rate, charging up this power beast in less than two hours!

Stay Connected in Real-time

With smart BLUETTI App, you can monitor, optimize your power consumption and update firmware over-the-air (OTA) from a distance.

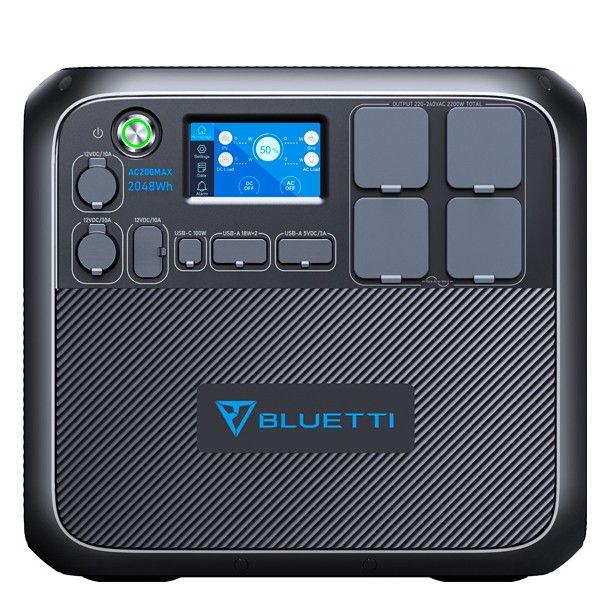

Incomparable Outlet Versatility

With AC200MAX's 15 outlets, you get to run all your needs simultaneously without breaking a sweat.

General Introduction

AC200MAX is an expandable power station/solar generator with LiFePO4 battery to support the running of medium-large appliances during load shedding. The expansion battery can be B230/B300 (sold separately). It can also be the best companion of your road trip or workshop.

Output

AC Output: 230V, 50Hz, 2200W In Total

USB Output:

2*5V/3A USA-A

2*18W USB-A 18W

1*100W USB-C

DC Output:

1*12V/30A Super DC

1*12V Cigarette Port

2*12V DC 5521 (5.5mm Outlet)

Wireless Charging:

2*15W Wireless Charging Pad

Working Time for Reference:

60Wh Laptop: 29 Times

80W TV: 20 Hours
800W Refrigerator: 2 Hours

1000W Electric Grill: 1.7 Hours

1400W Grinder: 1.2 Hours

1800W Welding Machine: 56 Minutes

Input

AC Adapter (500W): ≈5.5~6 Hours

Solar (900W): recharge time depends on weather and environment

12V/24V Car Outlet (100W/200W): ≈10 or 20 Hours

AC Adapter + Solar (1400W): ≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature)

Dual AC Adapters (800W): ≈3~3.5 Hours (Extra adapter D050S is required)

Expandability

Connect with up to 2*B230/B300 to expand the battery capacity and make the running time longer. But the total output power 2200W cannot be expanded.

Q&A

1. Can I control my AC200MAX remotely?

Yes. AC200MAX supports APP control via Bluetooth.

2. Can I use my own solar panel to charge the power station?

Yes, please refer to PV input requirements:

• Open circuit voltage: 10-145V
• Input power: 900W max
• MC4 connectors.
• How long can the power station run my devices?

Runtime = Battery Capacity × DoD × η ÷ Device Rating
DoD=90% η=90%.
*The above data is ONLY for reference.
3. Any tips for long term storage when I don't use the solar generator?

• Charge it to 80% SOC every 3-6 months.
• Do not stack items on top of it during storage and use
• Please store it in a dry and cool place with a temperature of -10-45°C

If you have any questions before making the decision, please don't hesitate to contact [email protected]

Key Features

2,200W AC Pure Sine Wave Inverter (4,800W Surge)
2,048Wh Capacity
LiFePO4 Battery with 3,500+ Life Cycles to 80%
Expandable Up To 6,144Wh with 2×B230, or 8,192Wh with 2×B300
7 Ways to Recharge (AC/Solar/Car/Generator/Lead Battery/Dual AC/AC+Solar)
900W Max. Solar Input
1400W Max. Fast Dual Charging (Solar + AC Adapter)
Smart Control & Monitor in BLUETTI App

What's In the Box

• 1 * BLUETTI AC200MAX Portable Power Station
• 1 * AC Adapter
• 1 * Solar/Car Charging Cable
• 1 * XT90-Aviation Cable
• 1 * User Manual
