ATS-25 Max Si4732 All Band Radio Receiver FM AM LW MW SW SSB

ATS25 Max Si4732 All Band Radio Receiver FM AM LW MW SW SSB DSP Receiver w/ 2.4\\\' Touch Screen

Description:

Si4732 FM LW (MW and SW) and SSB full band radio receiver is designed with a 2.4\\\' color screen. It is added with these functions:

1. Spectral scanning

2. Backlight adjustment

3. Backlight off

4. Battery voltage

5. Battery percentage

Features:

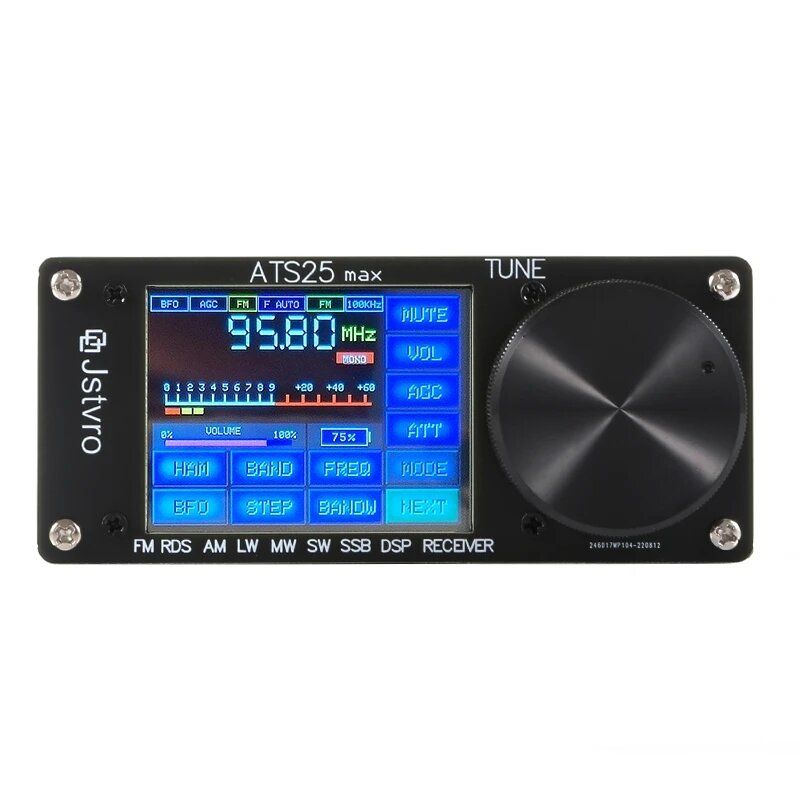

- A 2.4-inch color screen allows you to read data more smoothly and to have a better user experience

- Thanks to its built-in high-capacity lithium battery, there is no need to worry about sudden power failure affecting use

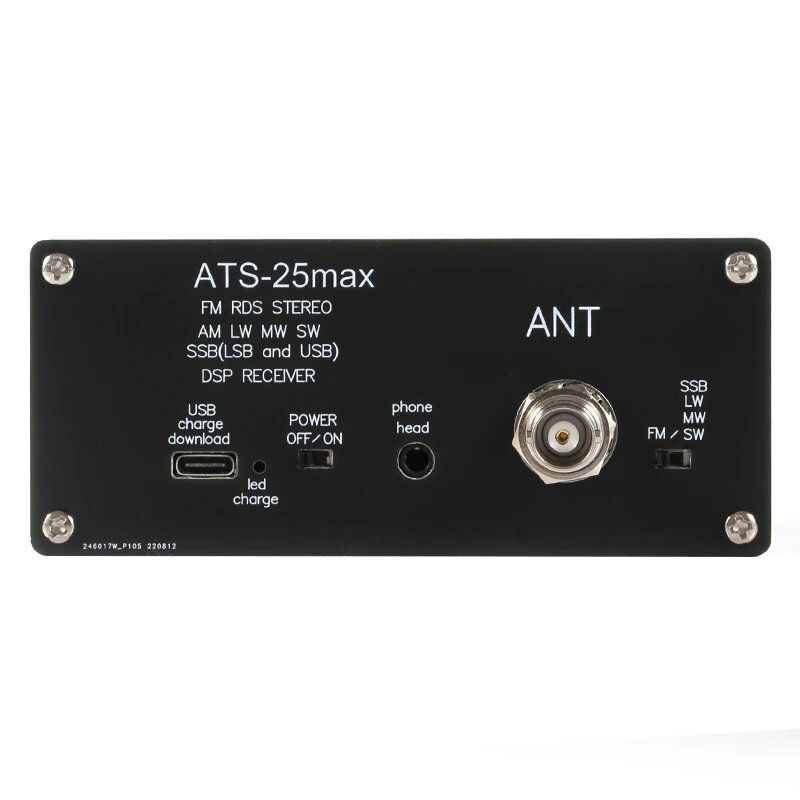

- Can upgrade program via TYPE-C interface; 3.5mm stereo audio output; also support 3.5mm audio FM antenna interface, with a maximum charging current of 1.5A

- Support AM band wide bandwidth: 1 6 6k; support SSB bandwidth band: 0.5 4 4k, audio output power 1.5w; support HAM band fast channel

- Features radio search and direct frequency entry on the number pad; also has a quick ham bar channel

- Small and portable: you can take it with you or share it with family and friends

Frequency:

- FM: 64 functions 108mhz/RDS functions

- LW: 153khz 500khz

- MW: 520khz 1710khz

- SW: 1730khz 30000khz

- SSB: 1730khz 30000khz

- Antenna Interface: BNC

Specifications:

- Shell material: aluminum alloy

- Built-in lithium battery: 3.7V/2000MA

- Shell size: 11.1 x 10.2 x 4.7cm/4.4 x 4 x 1.9\\\' (without the size of protrusions)

- Product weight: 500G/LB

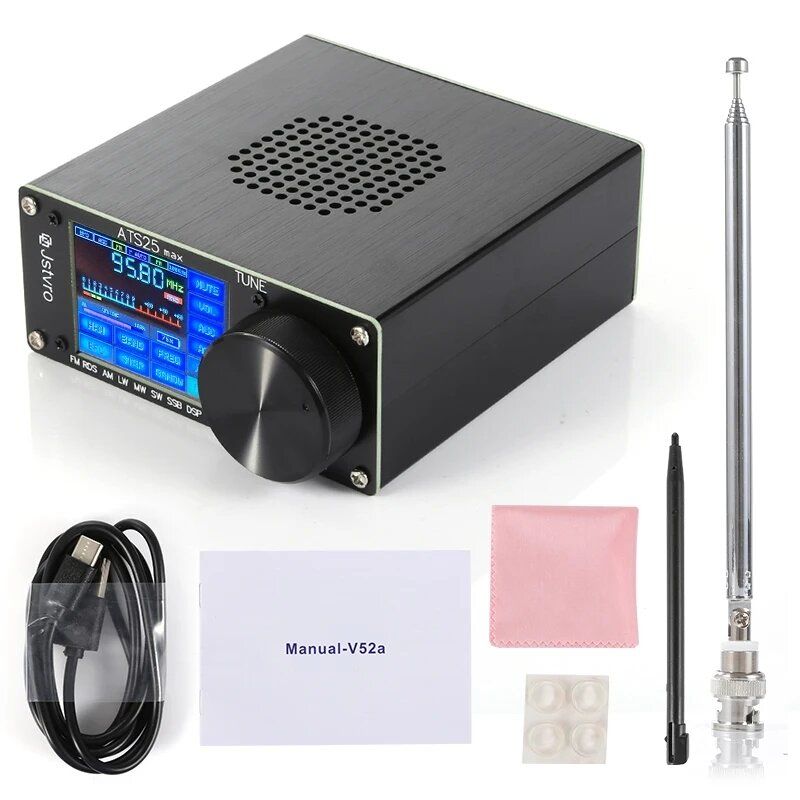

Package Included:

1 x Main Unit

1 x Telescopic Antenna

1 x Type-C Charging Data Cable

1 x Touch pen

Frequency Range:

Band band[] = {

{ \\\'FM\\\', FM_BAND_TYPE, FM, 6400, 10800, 9920, 10, 0, 0}, / FM 0

{ \\\'LW\\\', LW_BAND_TYPE, AM, 100, 514, 198, 9, 0, 0}, / LW 1

{ \\\'MW\\\', MW_BAND_TYPE, AM, 514, 1800, 1395, 9, 0, 0}, / MW 2

{\\\'BACON\\\', LW_BAND_TYPE, AM, 280, 470, 284, 1, 0, 0}, / Ham 800M 3

{ \\\'630M\\\', SW_BAND_TYPE, LSB, 470, 480, 475, 1, 0, 0}, / Ham 630M 4

{ \\\'160M\\\', SW_BAND_TYPE, LSB, 1800, 2000, 1850, 1, 0, 0}, / Ham 160M 5

{ \\\'120M\\\', SW_BAND_TYPE, AM, 2000, 3200, 2400, 5, 0, 0}, / 120M 6

{ \\\'90M\\\', SW_BAND_TYPE, AM, 3200, 3500, 3300, 5, 0, 0}, / 90M 7

{ \\\'80M\\\', SW_BAND_TYPE, LSB, 3500, 3900, 3630, 1, 0, 0}, / Ham 80M 8

{ \\\'75M\\\', SW_BAND_TYPE, AM, 3900, 5300, 3950, 5, 0, 0}, / 75M 9

{ \\\'60M\\\', SW_BAND_TYPE, USB, 5300, 5900, 5375, 1, 0, 0}, / Ham 60M 10

{ \\\'49M\\\', SW_BAND_TYPE, AM, 5900, 7000, 6000, 5, 0, 0}, / 49M 11

{ \\\'40M\\\', SW_BAND_TYPE, LSB, 7000, 7500, 7074, 1, 0, 0}, / Ham 40M 12

{ \\\'41M\\\', SW_BAND_TYPE, AM, 7200, 9000, 7210, 5, 0, 0}, / 41M 13

{ \\\'31M\\\', SW_BAND_TYPE, AM, 9000, 10000, 9600, 5, 0, 0}, / 31M 14

{ \\\'30M\\\', SW_BAND_TYPE, USB, 10000, 10200, 10099, 1, 0, 0}, / Ham 30M 15

{ \\\'25M\\\', SW_BAND_TYPE, AM, 10200, 13500, 11
