DC12V 3amp 4ways cctv backup power supply switch

Individual power supply can be used for a single camera, we provide central power supply for multiple cameras.

You can have from 4 to 16 power outputs for cameras. Installation with central power supply looks nicer.

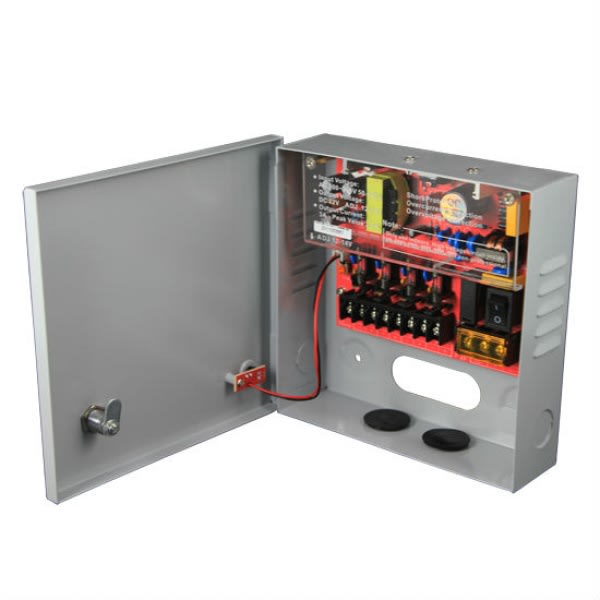

The SIHD1210-08CBR is a CCTV power center engineered to manage remote camera and accessory power requirements.
This distribution module is designed with 8 individually fused outputs for powering up to 4 CCTV cameras and accessories.
It will provide 12volt DC via distribution to 8 fused outputs with a total of 3 Amps continuous supply current.
The SIHD1210-08CBR power center is housed in the premium lockable heavy gauge metal enclosure.

It has battery backup function when power off. (12V 12AH Battery MAX)

Details :

Use of efficient, environmental protection switching power supply circuit frame
Optimization of the shape and structure to facilitate the construction systems
Small ripple & noise -- video output signal more stable, clearly images
Splitter output -- by-pass failure to protect other equipment to work
Power protection -- Output over-voltage protection, over-current protection, short circuit protection

Battery over-charging protection,over-discharging protection,anode&cathode wrong connect protection

Battery low-voltage alarm,AC failure alarm,Overload buzzer

Overcurrent Protection:6A±5%

Ripple&Noise:≤240mV

Efficiency:≥85%

Charge voltage:28.8v

Charge current:1A

Battery undervoltage protection:20v
