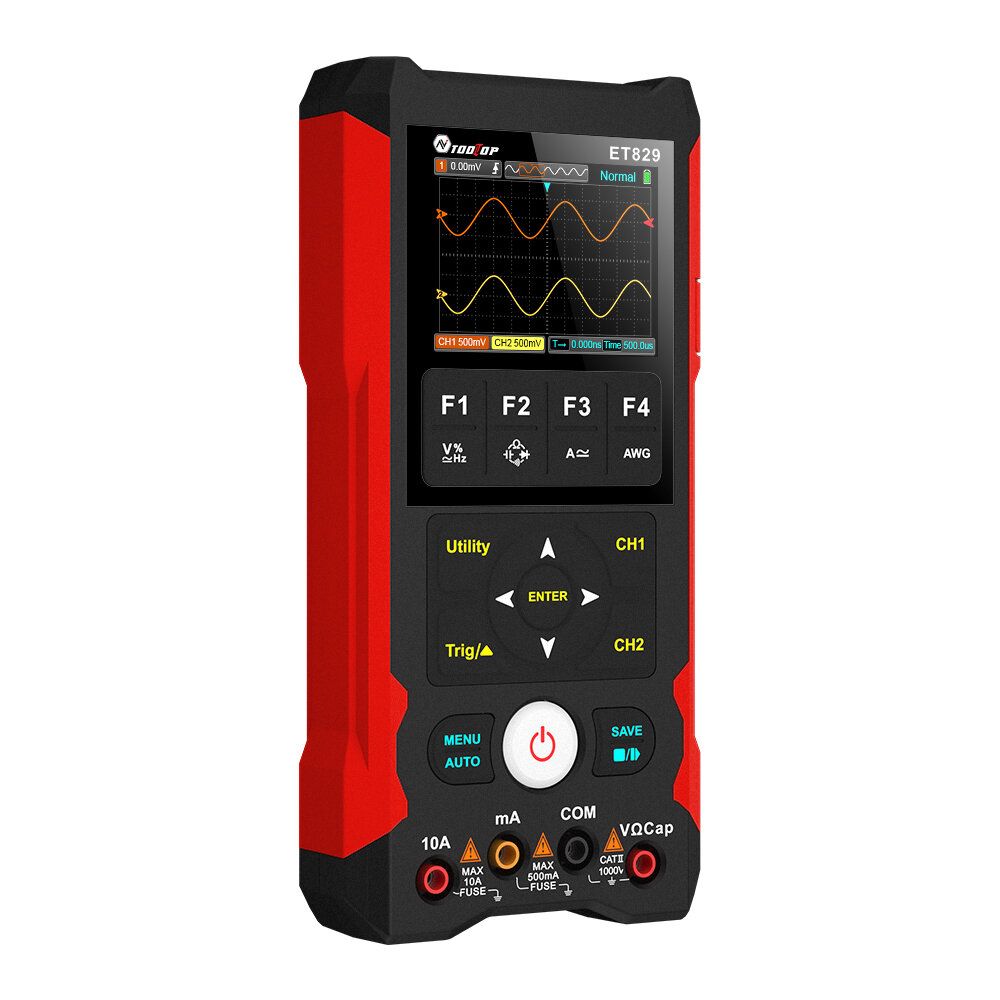

TOOLTOP ET829 OSC + DMM + Waveform Generator 3 In 1 80MHz

gt; gt;Please click here to download the software lt; lt;

Features:

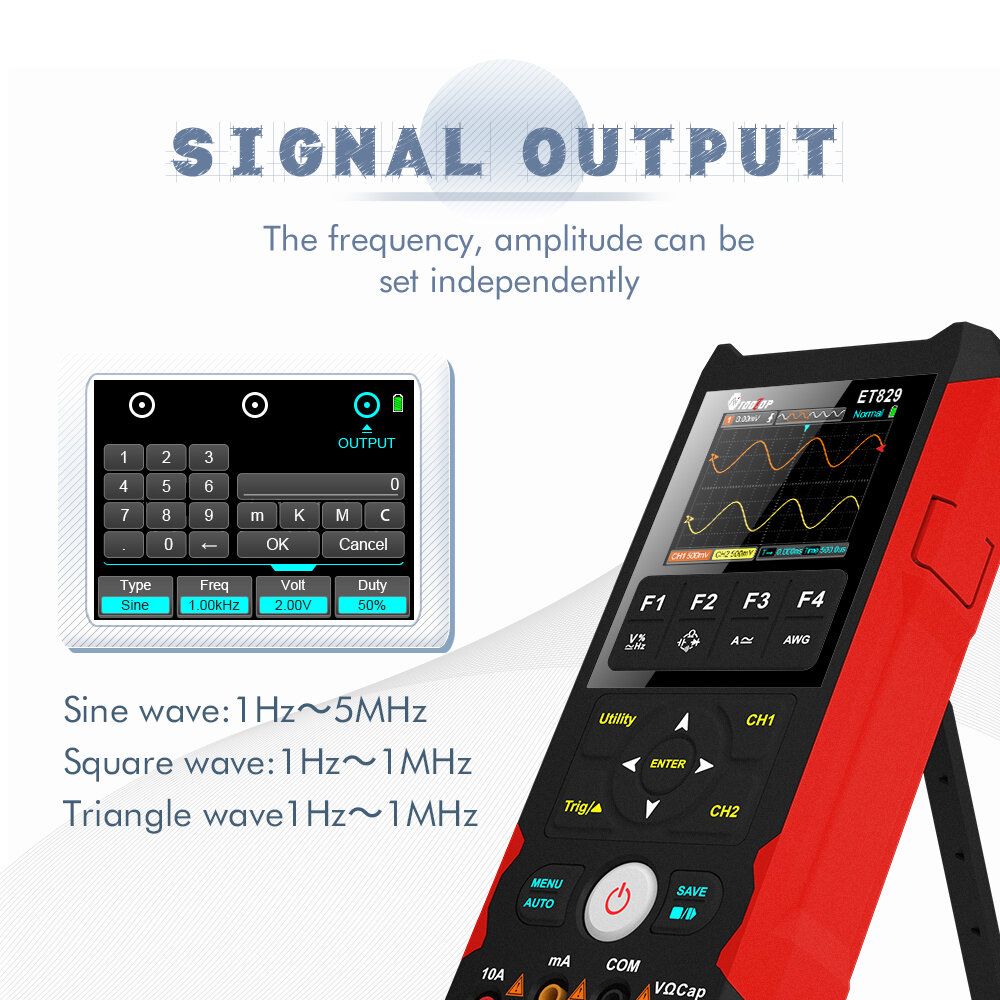

- Oscilloscope + multimeter + waveform generator 3 in 1

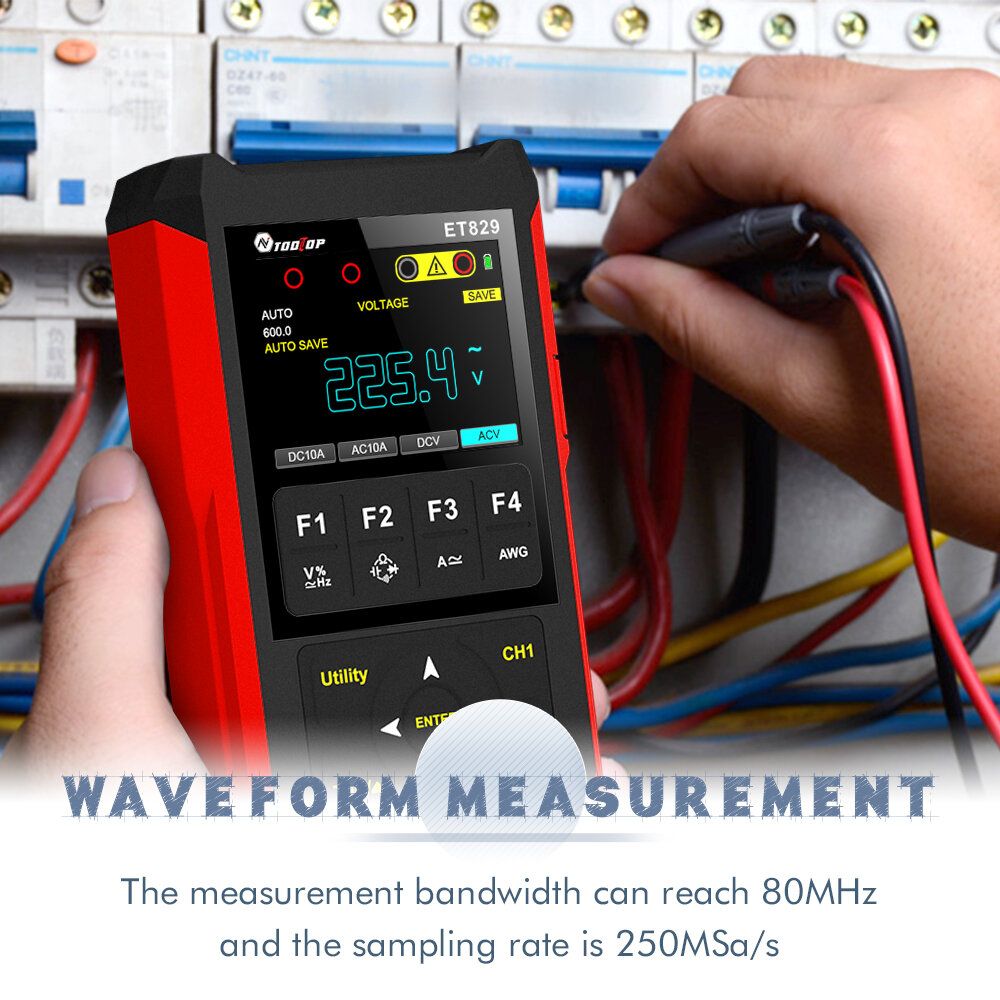

- 80MHz analog bandwidth 250MSa/s sampling rate

- Afterglow selection

- AI waveform preview

- Self-calibration function

- Support DC 15W fast charge

- Support PC software analysis

- 2.8-inch 320*240 TFT color LCD display

- 6000 counts true RMS large capacitance multimeter

- 3 trigger modes: auto mode, normal mode, single mode

Specification:

Oscilloscope

Number of channels

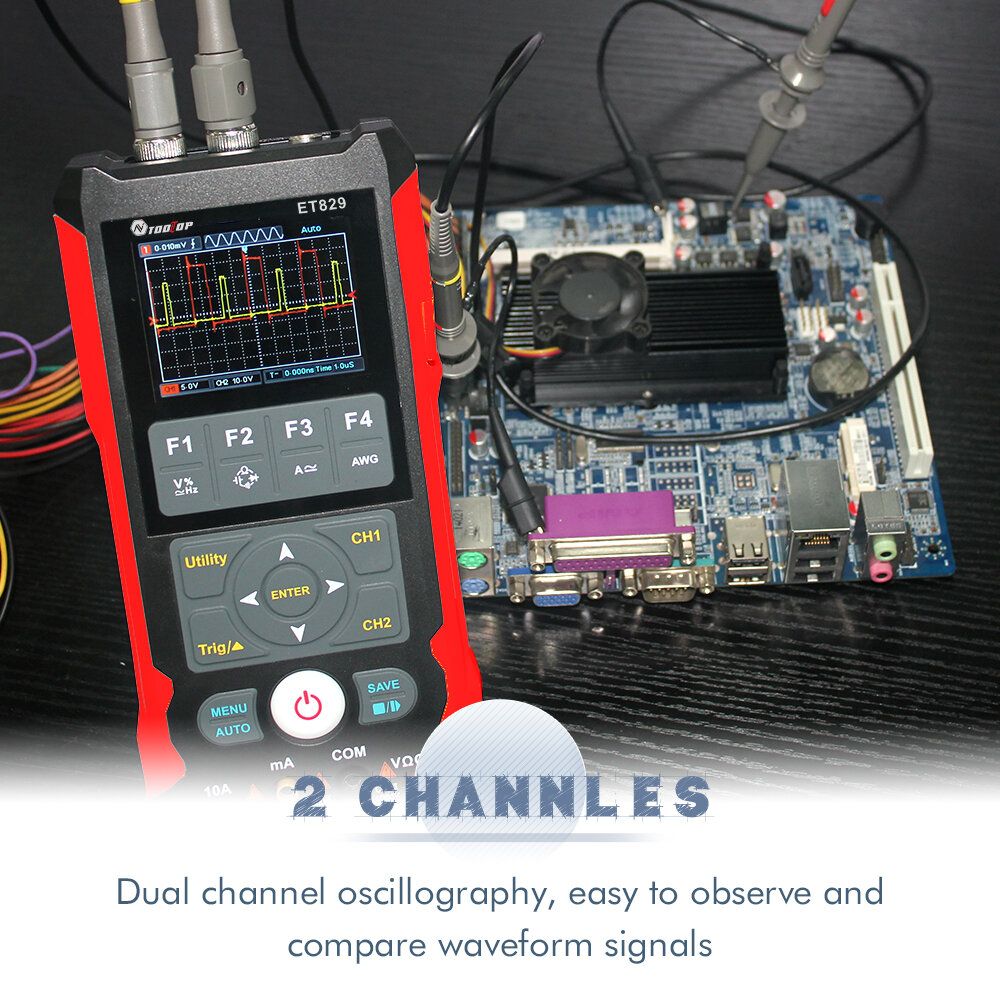

Channel CH1, Channel CH2

Analog bandwidth

80MHz (single channel), 50MHz (dual channel)

Maximum real-time sampling rate

250MSa/s (single channel)）,125MSa/s (dual channel)

Waveform interpolation

(Sin x) /x

Record length

When single channel, the maximum is 6K; when dual channel, the maximum is 3K

Horizontal scale range

5nS/div?50S/div, 1 gt; 2、5steps

AD converter

8-bit resolution, simultaneous sampling of each channel

Vertical scale range

1 X: 10mV/div-10V/div; 10X: 100mV/div-100V/div

Vertical measurement range

plusmn;4 grid

Optional analog bandwidth limit

20MHz

Low Frequency Response (-3db)

le;10Hz at BNC

Vertical Gain Accuracy

plusmn;3% in \\\'Normal\\\' or \\\'Average\\\' acquisition mode

Input resistance

1M Omega;/15

Input Coupling

DC, AC, GND

Probe attenuation

1X, 10X

Suppor
