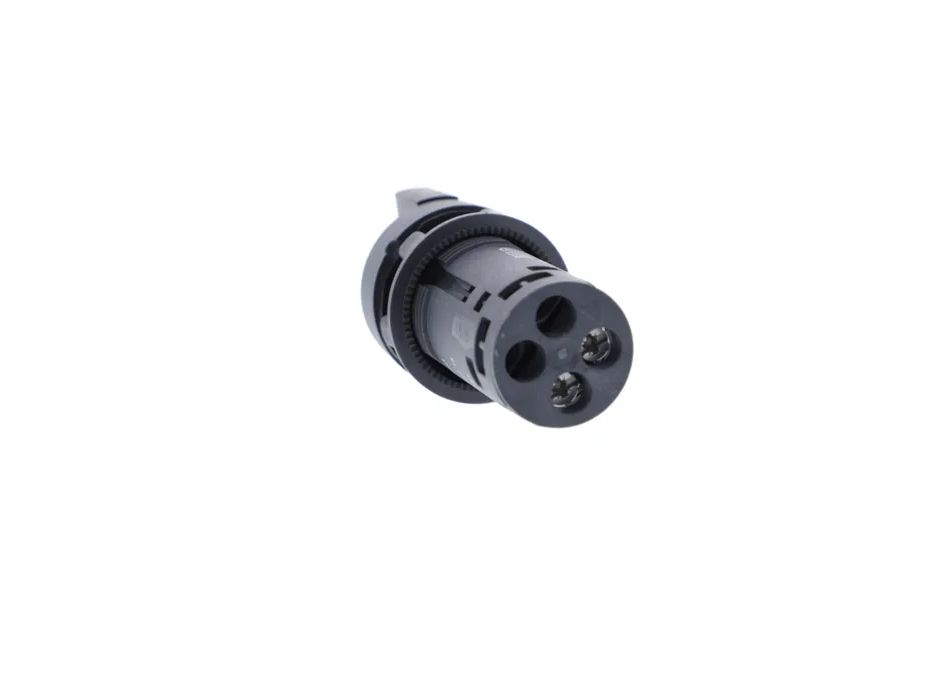

Selector Switch - O 22 - Black - Standard Handle - 3 Positions - 2 NO

Harmony XB7

O 22 mm monolithic plastic pushbuttons, switches, and pilot lights

Part of Harmony

The Harmony XB7 range of O 22 mm plastic pushbuttons and pilot lights offers a monolithic, optimized design that provides complete functions in a single part number, simplifying ordering and installation in electrical distribution and machine applications.

Features

The range includes:

• Spring-return pushbutton switches
• Illuminated pushbuttons and pilot lights with LEDs
• Mushroom-head emergency stop buttons with snap-action locking
• Selector switches
• A wide range of accessories to fit your needs

FEATURES

• Conformity with IEC, UL, and CSA standards, as well as CE marking
• IP65, type 3 protection rating
• Finger-safe screw clamp terminals
• High chemical resistance
• Large set of accessories to customize your panels

Benefits

• Modern design, reinforced with flush mounting kit
• High brightness of the LED illuminated functions, available in 6 colors
• Simple to choose: single reference for a complete device
• Simple to use: basic functions and performance

Applications

• Electrical distribution panel builders
• Simple machines: packaging, textile, etc.
• HVAC systems

Key Features

Range of product - Harmony XB7
Product or component type - Selector switch
Device short name - XB7
Mounting diameter - 22 mm
Sale per indivisible quantity - 10
IP degree of protection - IP20 (rear face) conforming to IEC 60529, IP65 (front face) conforming to IEC 60529
Shape of signaling unit head - Round
Type of operator - Stay put
Operator profile - Black standard handle
Operator position information - 3 positions +/- 45°
Contacts type and composition - 2 NO
Device presentation - Without
Device mounting - Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-1

What's In the Box

1 Selector Switch - O 22 - Black - Standard Handle - 3 Positions - 2 NO
