Desktop Single-Arm Universal Engraver Accessory Portable

This is a kind of fine quality carving machine accessory, suitable for both single-arm engraver and desktop engraver. The focus-distance of 5.5W, 10W, 20W is adjustable, 30W fixed-focus, you can choose according to your demands. Recommended distance between carvinghead and carving item is 30-50mm. For protecting carvinghead and prolong the service time, we recommended 5 min rest after 2 hours use. You can have a try.



Features:

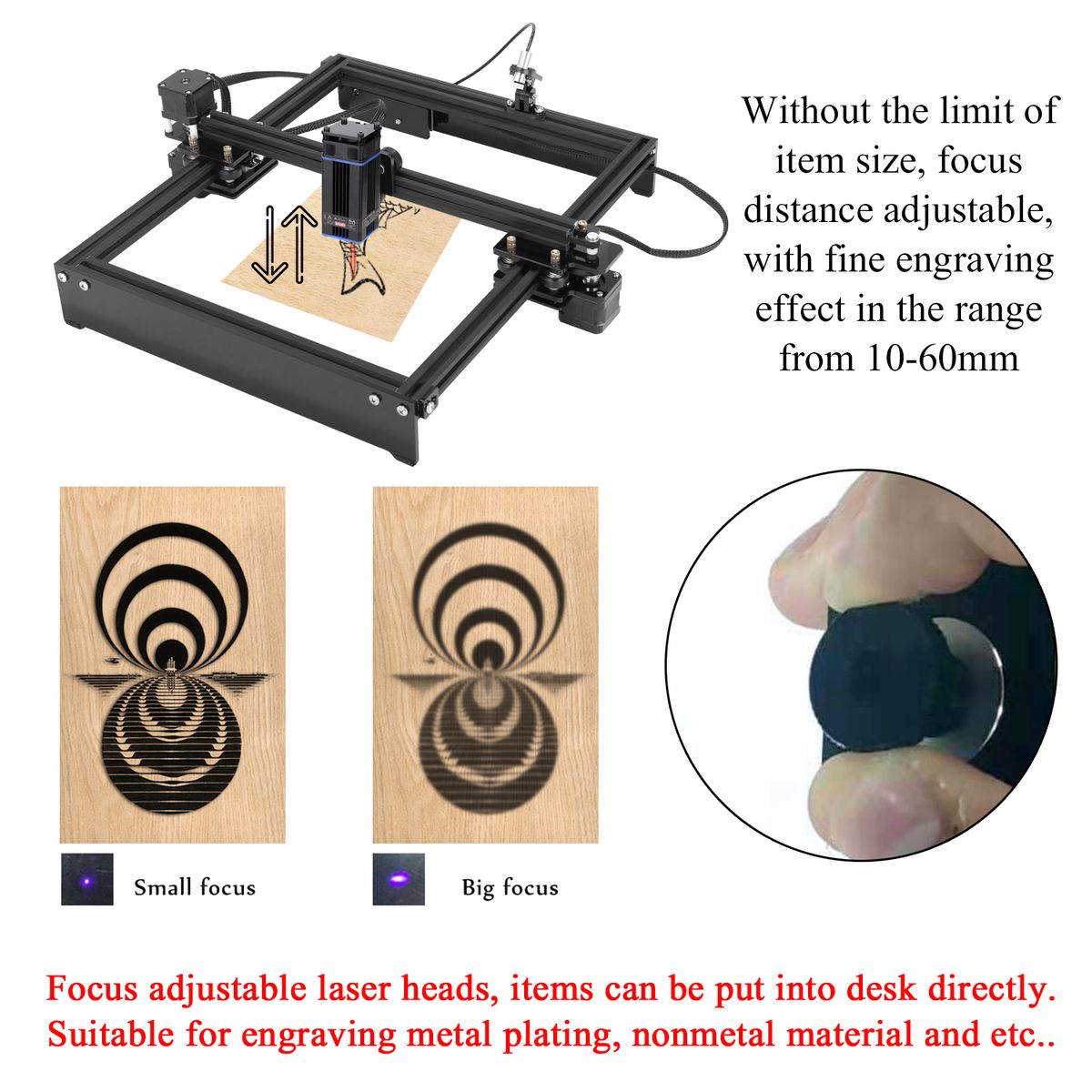

Recommended distance between carvinghead and carving item is 30-50mm.

The focus-distance of 5.5W, 10W, 20W is adjustable, 30W fixed-focus, you can choose according to your demands.

Screw installtion, simple and can fixed tightly on the arm, help ensure smooth carving effect.

Strong and powerful, with fine engraving effect and low failure rate.

It can be sculpted very quickly, taking only a few minutes to complete a sculpture.

With strong compatibility, suitable for most engraving machine in the market.



Note:

Prohibit shoots directly on eyes, no matter human or animals.

Please wear protective glasses.



5.5W:

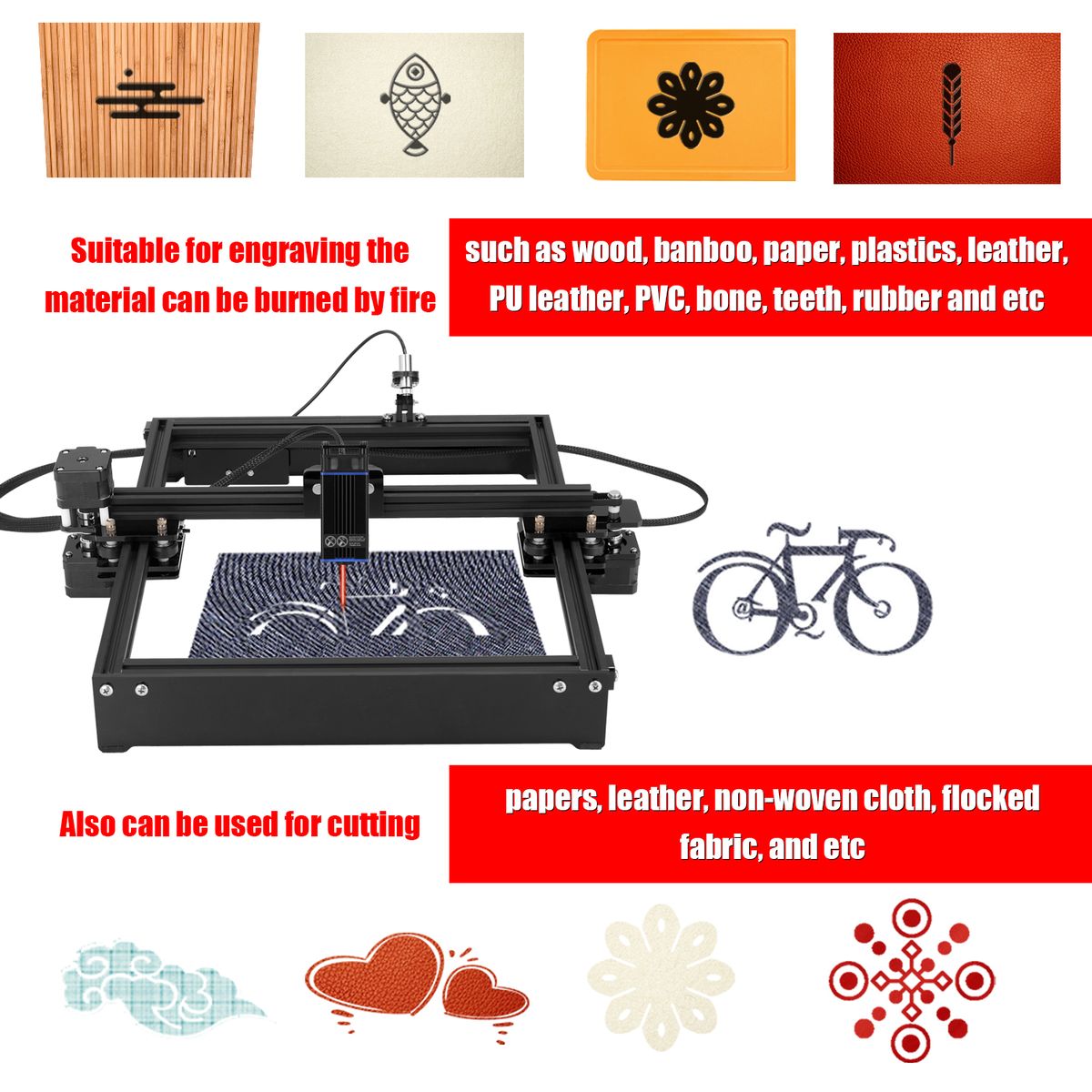

Suitable for engraving the material can be burned by fire, such as wood, bamboo, paper, plastics, leather, PU leather, PVC, rubber and etc..

Also can be used for cutting papers,leather, non-woven cloth, flocked fabric, and etc. which is no thicker than 1.5mm.



10W:

Suitable for engraving the material can be burned by fire, such as wood, bamboo, paper, plastics, leather, PU leather, PVC, rubber, colorful ceramics, colorful aluminum, cobblestone and etc..

Also can be used for cutting paper, leather, non-woven cloth, flocked fabric, and etc. which is no thick than 2mm.



20W:

Suitable for engraving the material can be burned by fire, such as wood, bamboo, paper, plastics, leather, PU leather, PVC, rubber, cobblestone, colorful ceramics, colorful aluminum, some stainless steel, phoneshell, baking varnish, electrophoretic-coated and etc..

Also can be used for cutting paper, leather, non-woven cloth, flocked fabric, and etc. which is no thicker than 3mm.

Light-tight plastics and black acrylic material is no thicker than 2mm.



30W:

Suitable for engraving the material can be burned by fire, such as wood, bamboo, paper, plastics, leather, PU leather, PVC, rubber, colorful ceramics, colorful aluminum, cobblestone, some stainless steel, phoneshell, baking varnish, electrophoretic-coated and etc..

Also can be used for cutting paper, leather, non-woven cloth, flocked fabric, and etc.. which is no thicker than 3mm.

Light-tight plastics and black acrylic material is no thicker than 2mm.



Specifications:

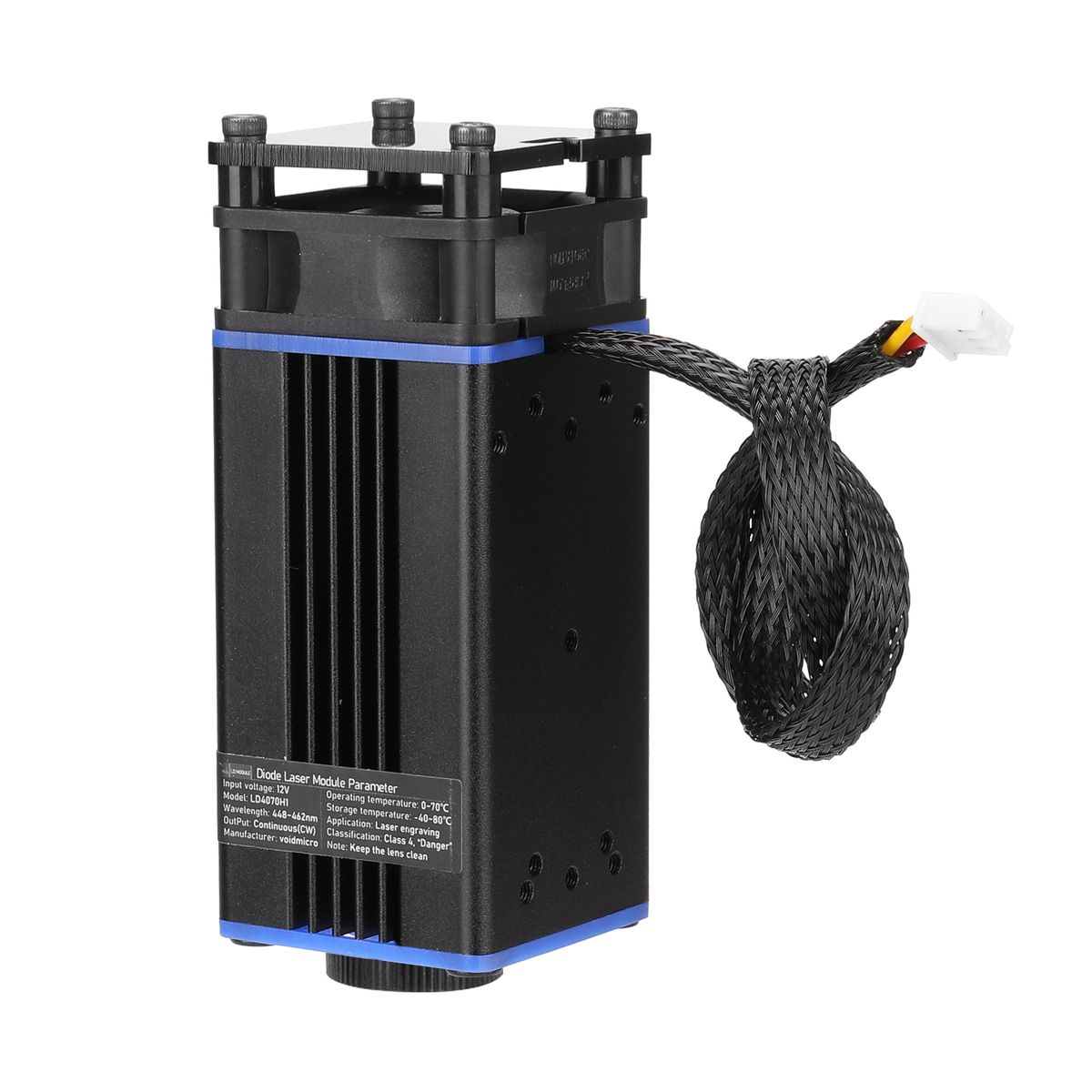

Name: Engravinghead

Input voltage: 12 V

Operation temperature: 0-70℃

Storage temperature: -40℃ to 80℃

Wavelength: 448-462nm

OutPut: continuous(CW)

Classification: class 4

: 5.5W, 10W, 20W, 30W (optional)

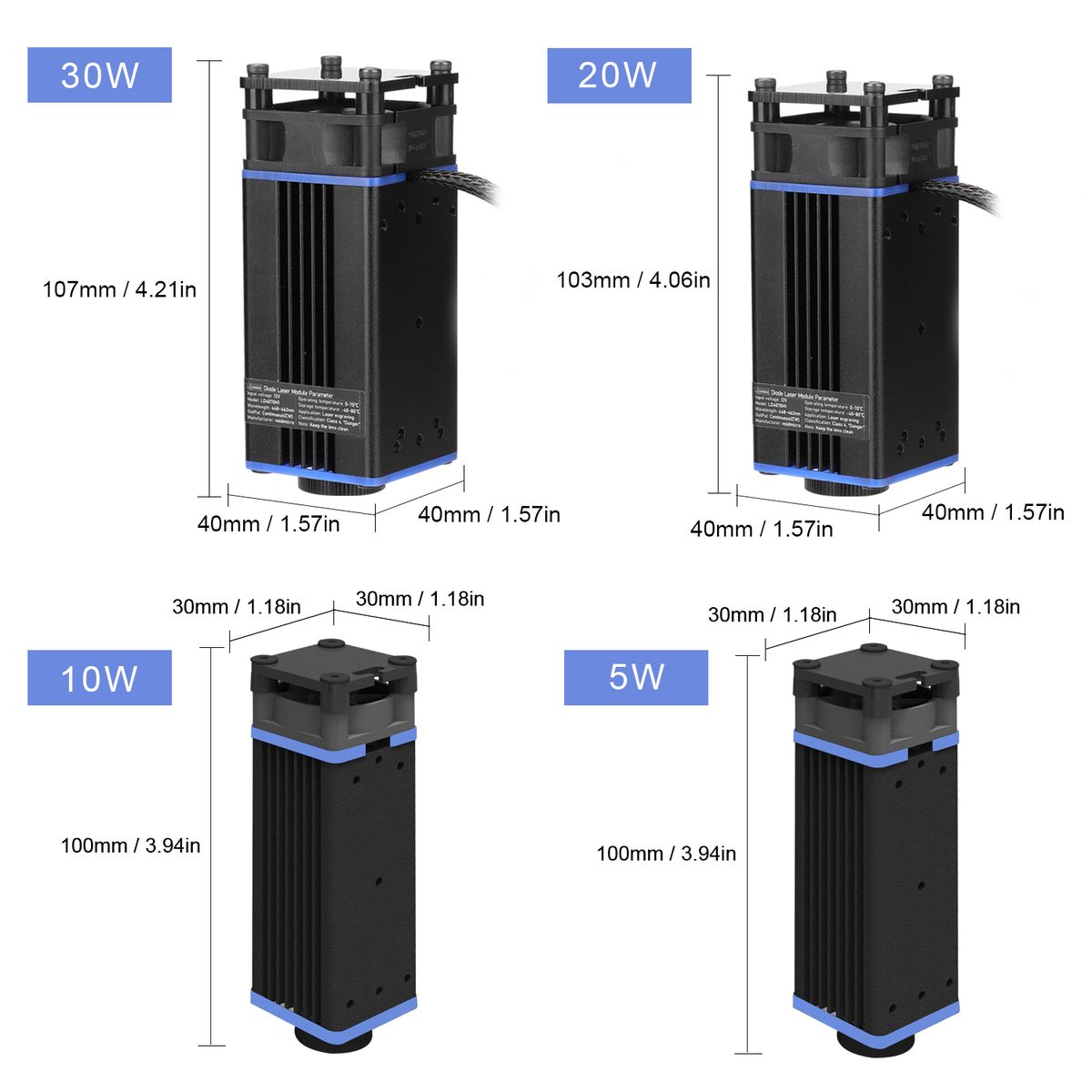

Item size:

5.5W: 30 * 30 * 100mm / 1.18 * 1.18 * 3.94in

10W: 30 * 30 * 100mm / 1.18 * 1.18 * 3.94in

20W: 40 * 40 * 103mm / 1.57 * 1.57 * 4.06in

30W: 40 * 40 * 107mm / 1.57 * 1.57 * 4.21in

Engravinghead weight:

5.5W: 165g / 5.82ounce

10W: 170g / 6.00ounce

20W: 182g / 6.42ounce

30W: 222g / 7.83ounce

Package size: 175 * 120 * 60mm / 6.89 * 4.72 * 2.36in

Package weight:

5.5W: 230g / 8.11ounce

10W: 245g / 8.64ounce

20W: 310g / 10.93ounce

30W: 315g / 11.11ounce



Packing List(5.5W, 10W, 20W):

1 * Engravinghead

1 * Protective

1 * Screwdriver

7 * Kraft Paper

2 * Screw

2 * Gasket

OR

Packing List(30W):

1 * Engravinghead

1 * Protective

1 * Screwdriver

7 * Kraft Paper

2 * Screw

2 * Gasket

1 * 13mm Fixed Focus-Pillar

Key Features

Recommended distance between carvinghead and carving item is 30-50mm.
The focus-distance of 5.5W, 10W, 20W is adjustable, 30W fixed-focus, you can choose according to your demands.
Screw installtion, simple and can fixed tightly on the arm, help ensure smooth carving effect.
Strong and powerful, with fine engraving effect and low failure rate.
It can be sculpted very quickly, taking only a few minutes to complete a sculpture.
With strong compatibility, suitable for most engraving machine in the market.

What's In the Box

(5.5W, 10W, 20W):,1 x Engravinghead,1 x Protective,1 x Screwdriver,7 x Kraft Paper,2 x Screw,2 x Gasket,
