Brushless Motor Driver Kits 69W Nema23 24V DC BLDC 57mm 0.22Nm 31.5Oz-in Hall Drive 8A 57

Package list:

1X Driver

1X Motor

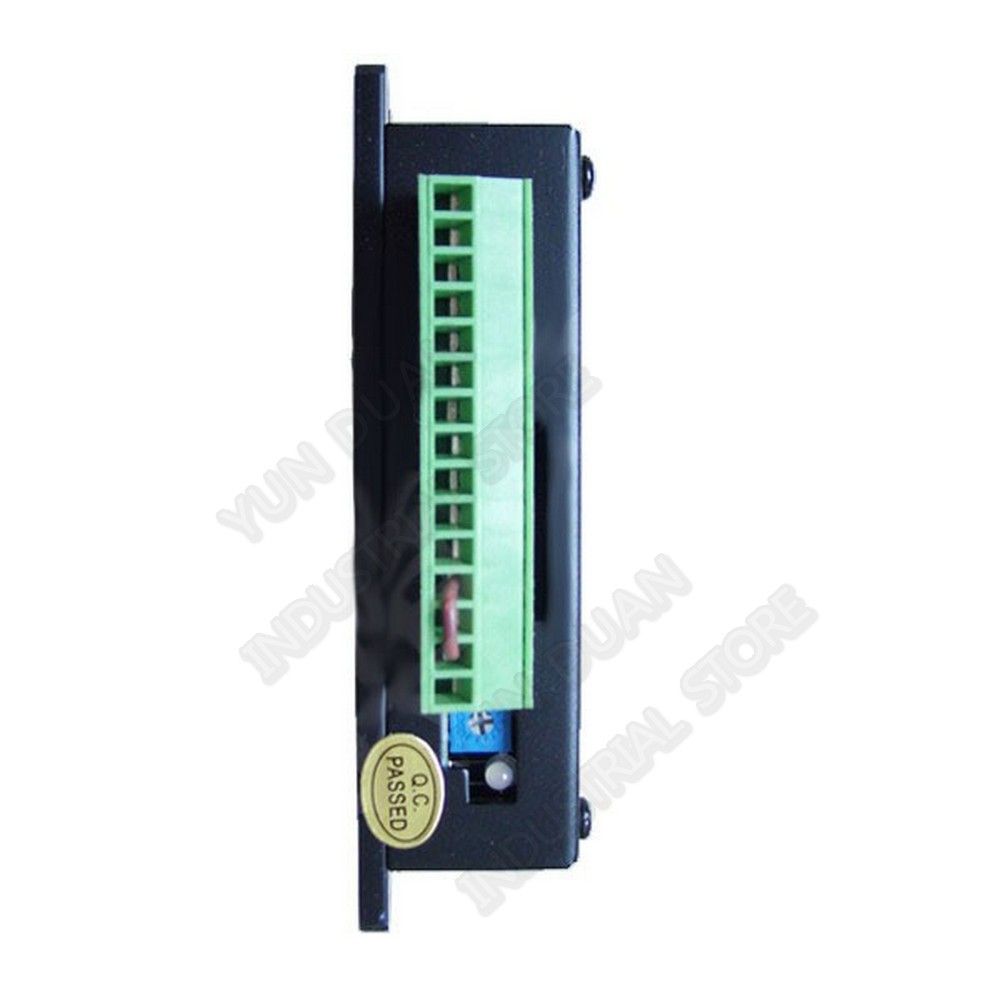

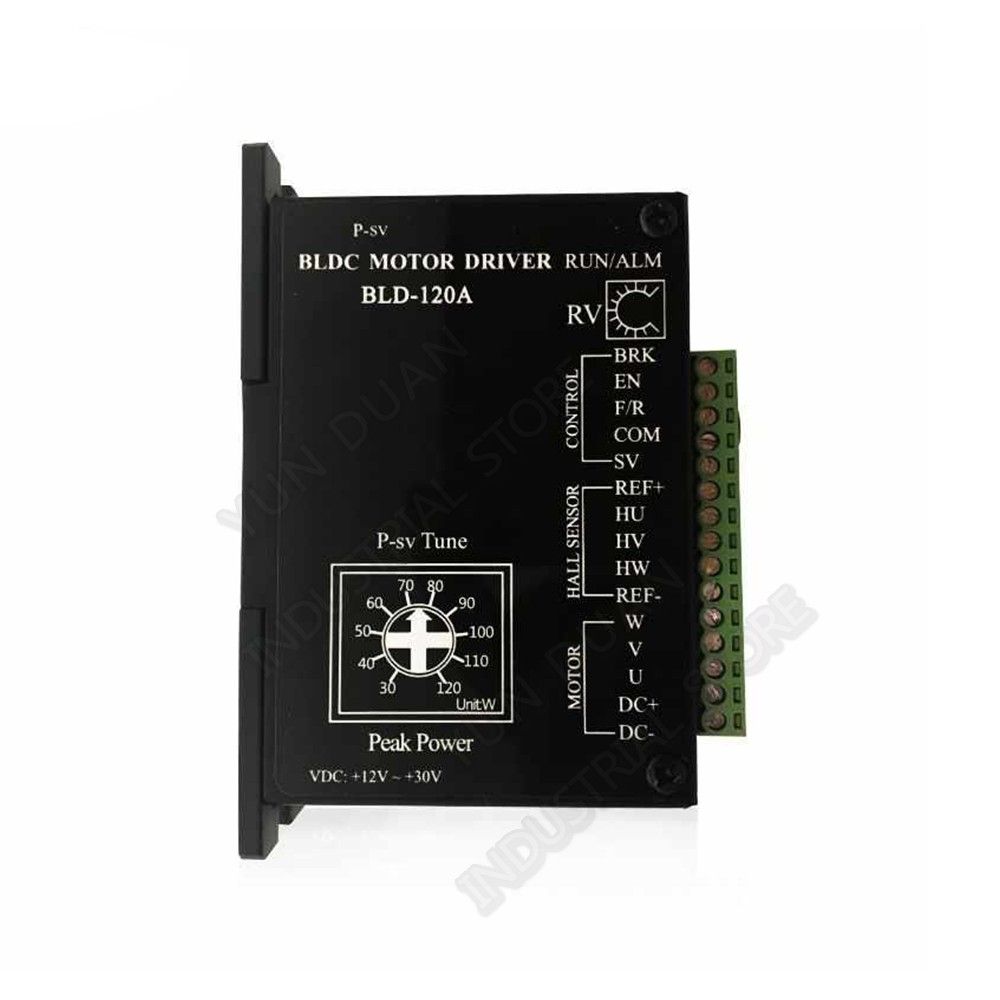

Driver Features:

* Perfectly matched to brushle motors below 120W .

*Acceleration/Deceleration time setting.

* Built-in thermal protection , Over current protection, Hall error protection.

*Built-in potentiometer speed control(Allow external potentiometer).

*Can use external analog speed control,PWM speed control.

* Brake function,Change motor direction function.

* Built-in thermal protection , Over current protection, Hall error protection.

Driver Parameters:

Input Voltage: 12-30VDC (Typical:24VDC)

Current output: 8A

Motor speed range: 0-20000RPM

Hall signal voltage: 5V

Hall driver current: 20mA

External potentiometer: 10K

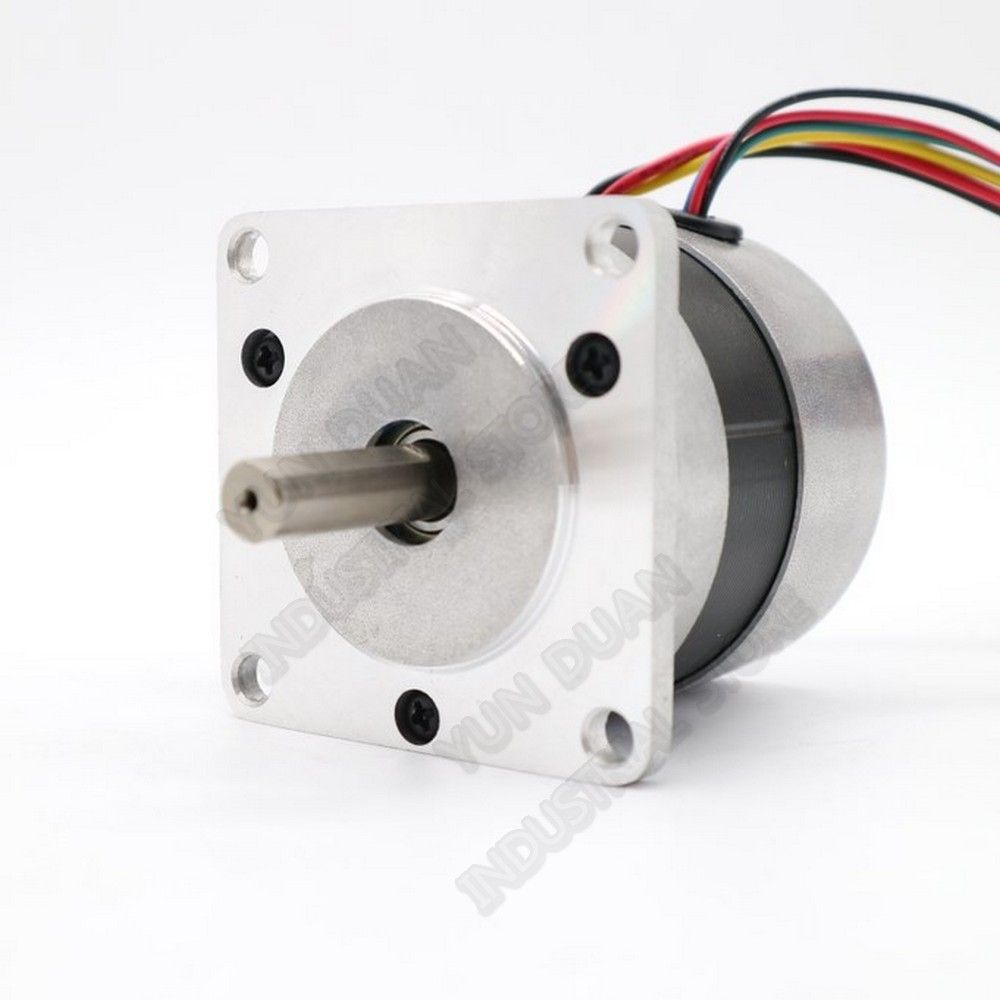

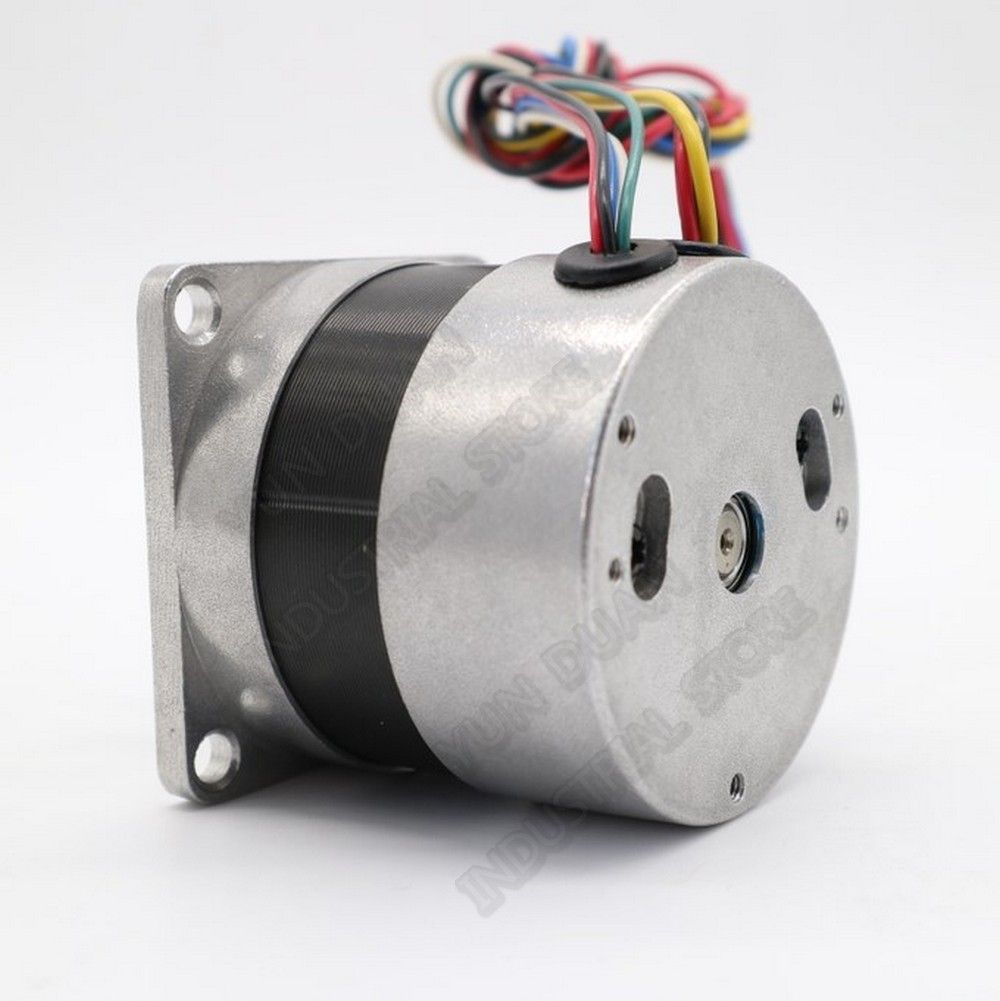

Motor Parameters:

Model: 57BLY-0730NBB

Rated Power: 69W

Input Voltage: 24VDC

Rated Speed: 3000RPM

Holding Torque: 0.22Nm

Flange: 57mm

Output shaft Dia.: 8MM

Number of Poles: 4

Resistance: 0.89Ohm

Inductance: 0.62mH

About shipping
Shipping and Packaging All items will be double checked and well packed before sending.Items will be dispatched within 2 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).

Special Announcement:
Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties or taxes. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .

Your 100% satisfaction is very important to us
If the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.

Key Features

Origin:CN(Origin)
Certification:ce
Continuous Current(A):8A
Commutation:Brushless
Model Number:57BLY-0730NBB+BLD-120A
Type:Micro Motor
Protect Feature:Drip-proof
Construction:Series Wound
Efficiency:IE 1

What's In the Box

1X Brushless Motor Driver Kits 69W Nema23 24V DC BLDC 57mm 0.22Nm 31.5Oz-in Hall Drive 8A 57 Adjustable Speed 3000RPM PWM 3PH
