6V-90V DC Speed Controller PWM Module 15A 1000W
6V-90V DC Speed Controller PWM Module 15A 1000W
Description:
Operating Voltage: DC 6V-90VThis engine speed control switch can control the engine speed from 0%-100%. It is widely used in industrial production. Comes with a button to control the speed of the motor, Easy to handle.Controlled Power: 0.01-1000W ; Max. Current: 15AQuiescent Current: 0.005 A (Standby) PWM Duty Cycle: 0% -100%PWM Frequency: 16 kHzControl Voltage: 0-5V
Specification:

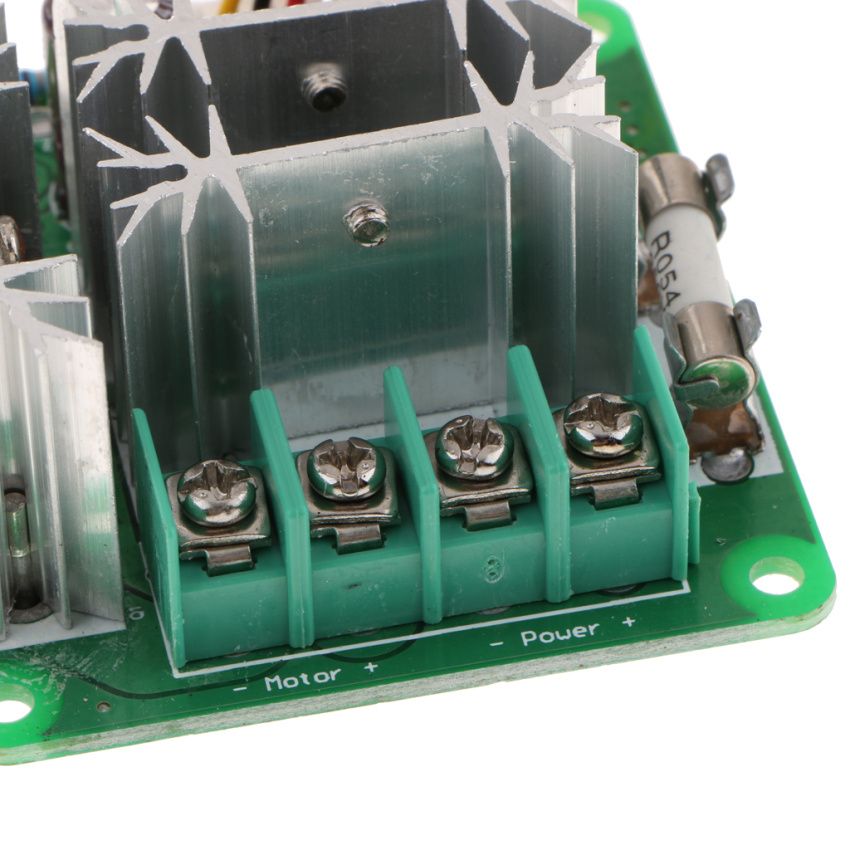

Module Size: approx. 64 x 59 x 28mmMounting Hole Diameter: 3.2mmOnboard 20A quick blow fuse; Fuse size: 5 x 20mm
Package Includes:

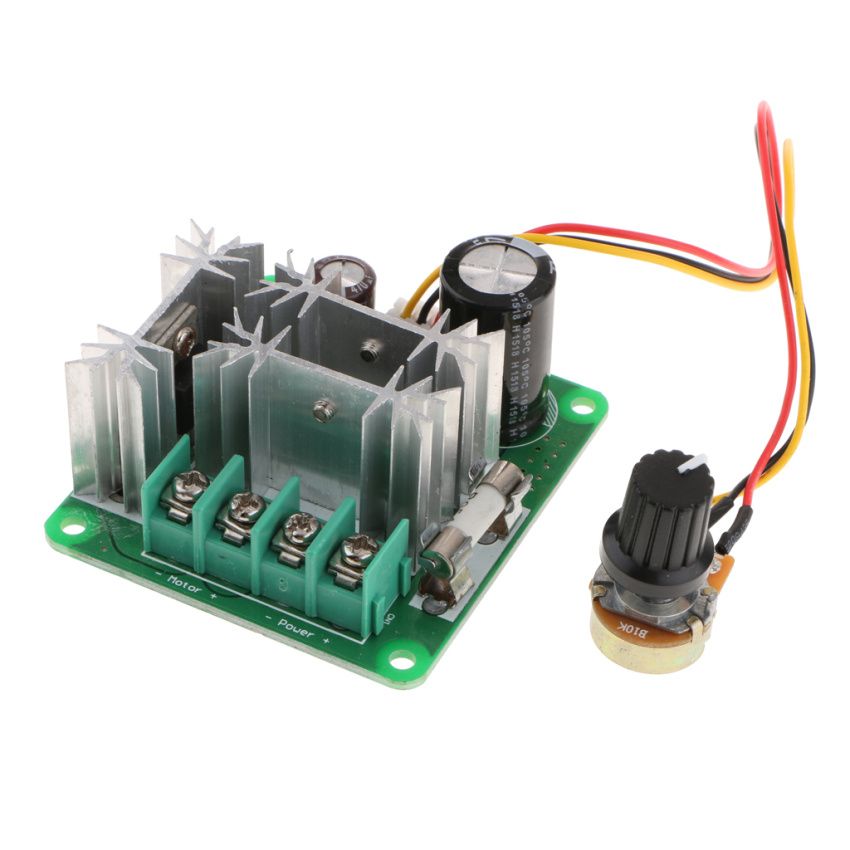

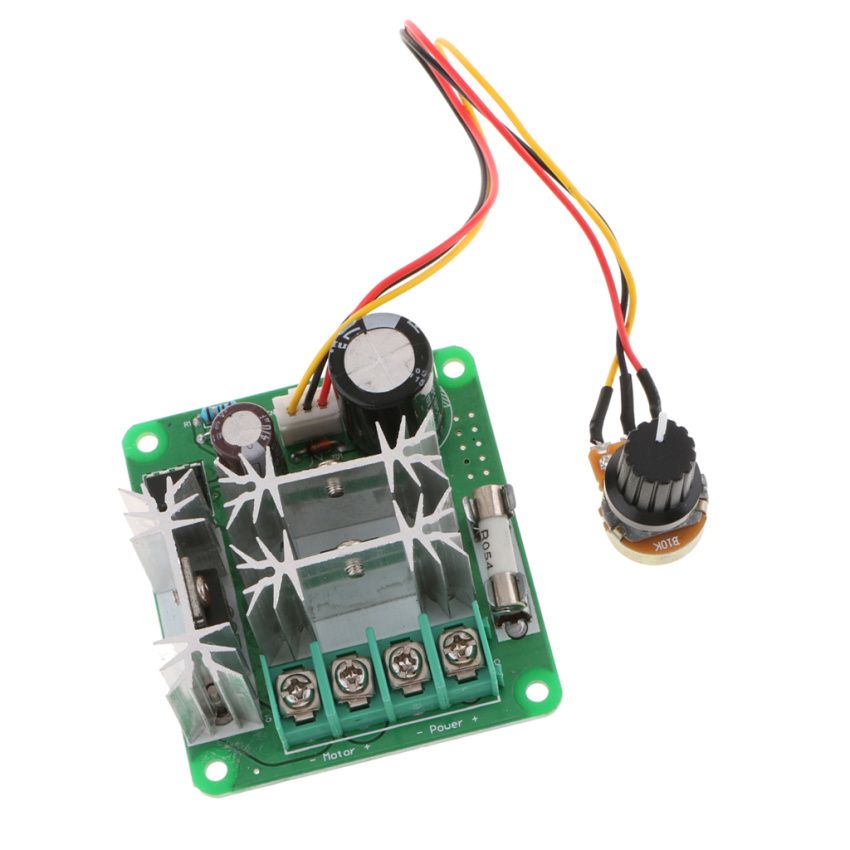

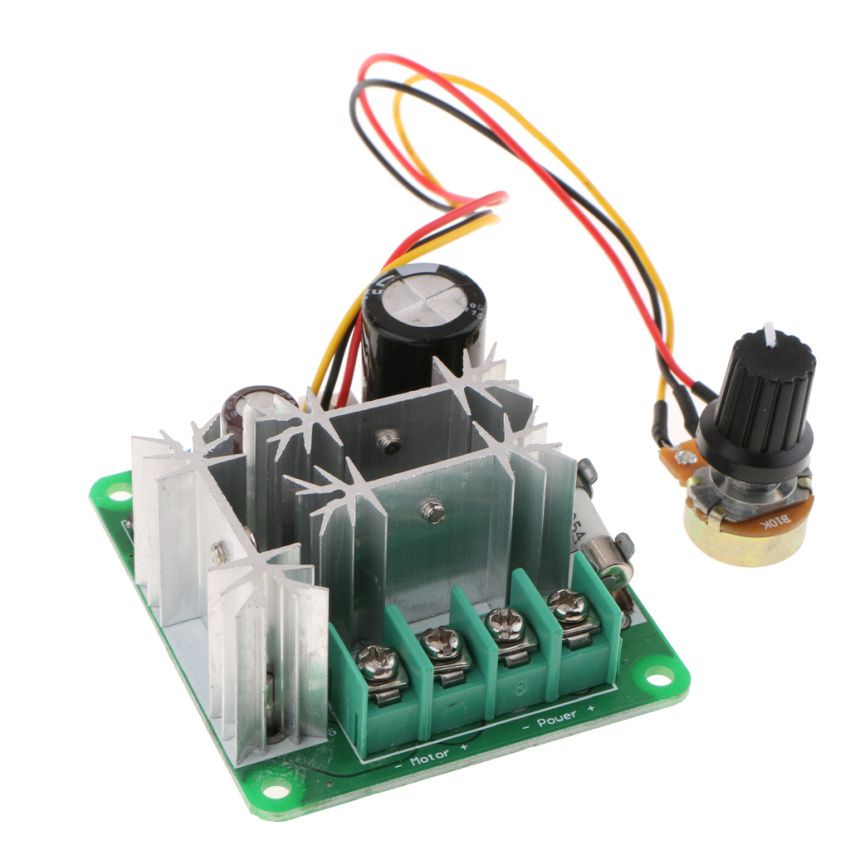

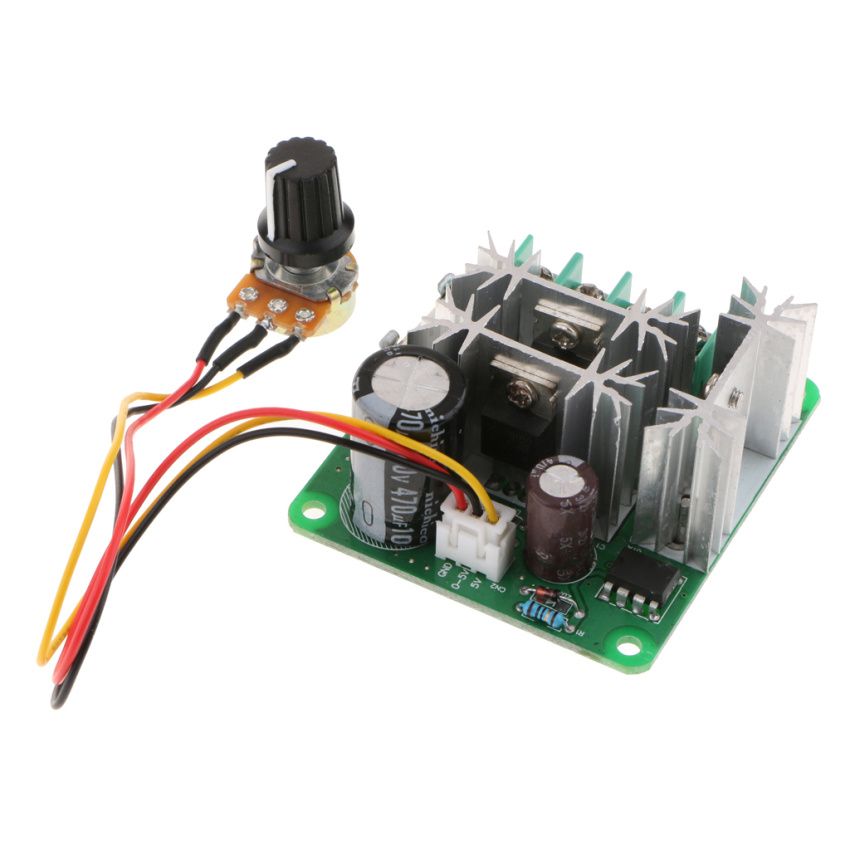

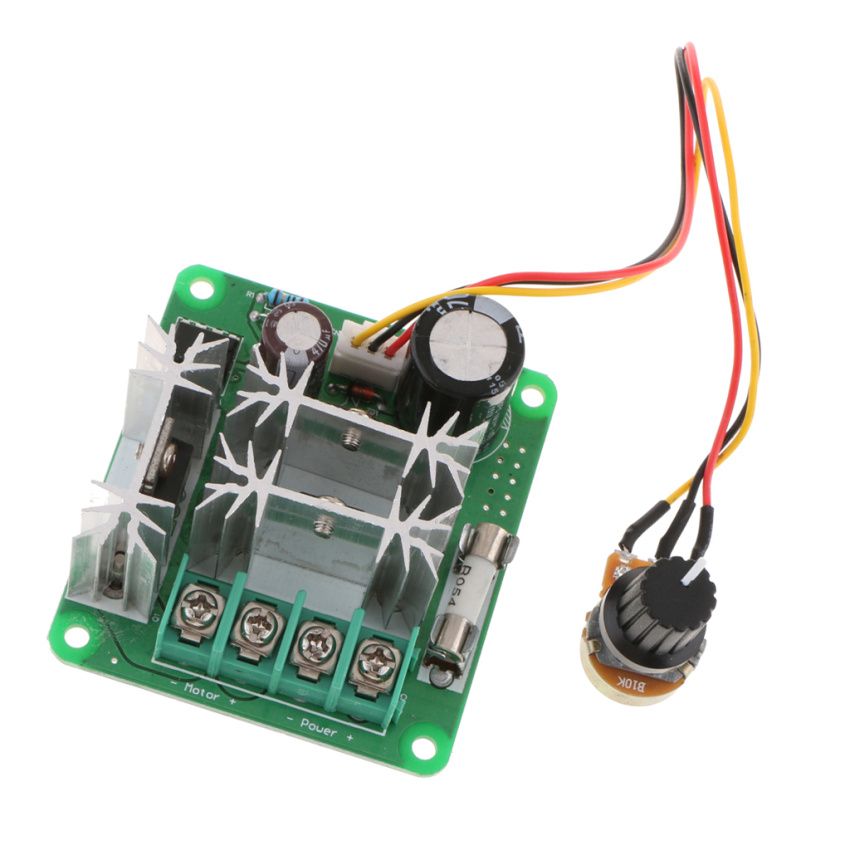

1 Piece PWM DC Motor Speed Controller
Note:

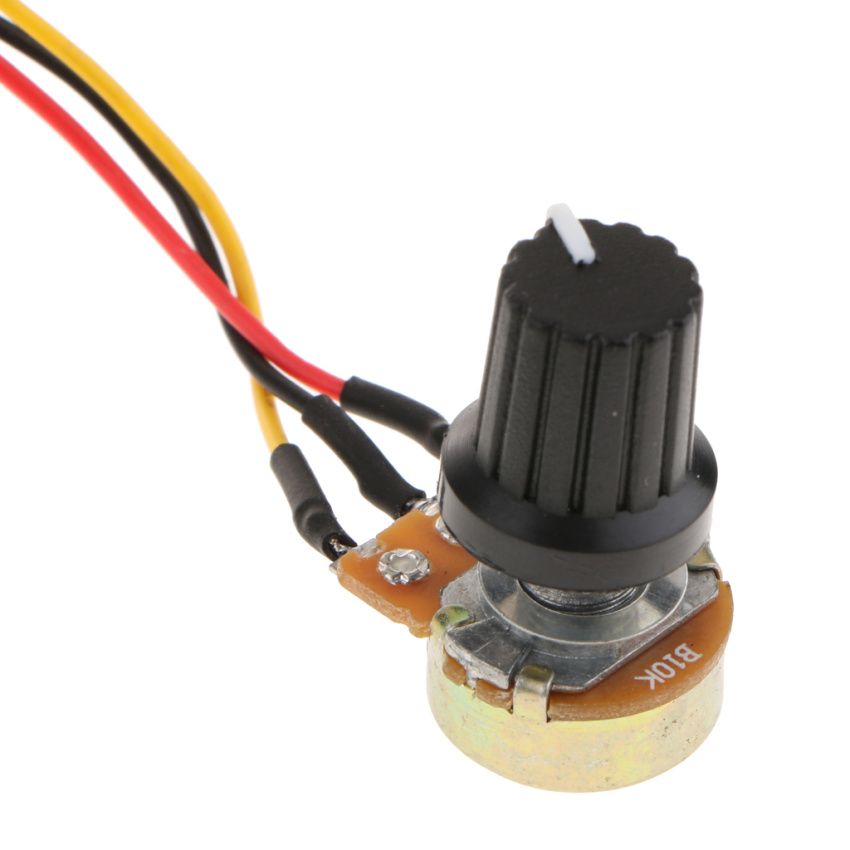

1.The input of the DC motor governor is DC power, and it is not directly connected to AC power, otherwise it will out! ! ! 2.Do not the positive and negative terminals of the DC power supply, otherwise the governor may be damaged.3.The motor can be positive or negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the line sequence. 4.Adjusting the potentiometer knob changes the governor output duty cycle and the motor speed changes.
Key Features
Operating Voltage: DC 6V-90V
This engine control switch can control the engine from 0%-100%.
It is widely used in industrial production.
Comes with a button to control the of the motor, Easy to handle.
Controlled Power: 0.01-1000W ; Max. Current: 15A
What's In the Box
1 Piece PWM DC Motor Speed Controller
| Model | N/A |
|---|---|
| Production Country | China |
| Size (L x W x H cm) | 23.25 x 18.00 x 4.00 |
| Weight (kg) | 0.448 |
| Color | Green |
| Main Material | N/A |
| Care Label | 1.The input of the DC motor governor is DC power, and it is not directly connected to AC power, otherwise it will burn out! ! ! |
