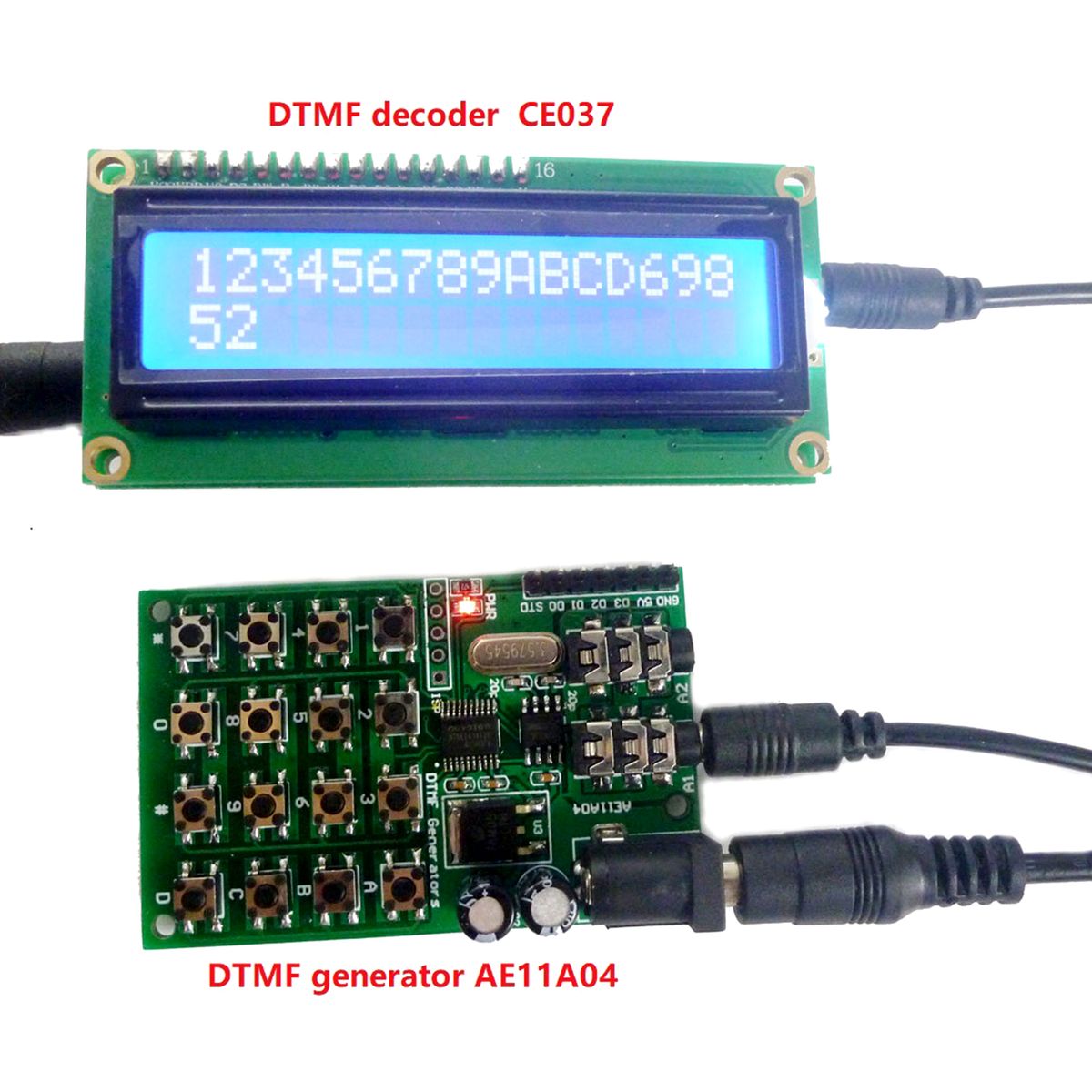

DTMF Module 5-24VDC Audio Generator Module Voice Dual

Features:

The module is designed for dialing keyboard and MCU interface.

Can instruct MCU(or keyboard) to generate 16 dual tones from Audio 1/2.

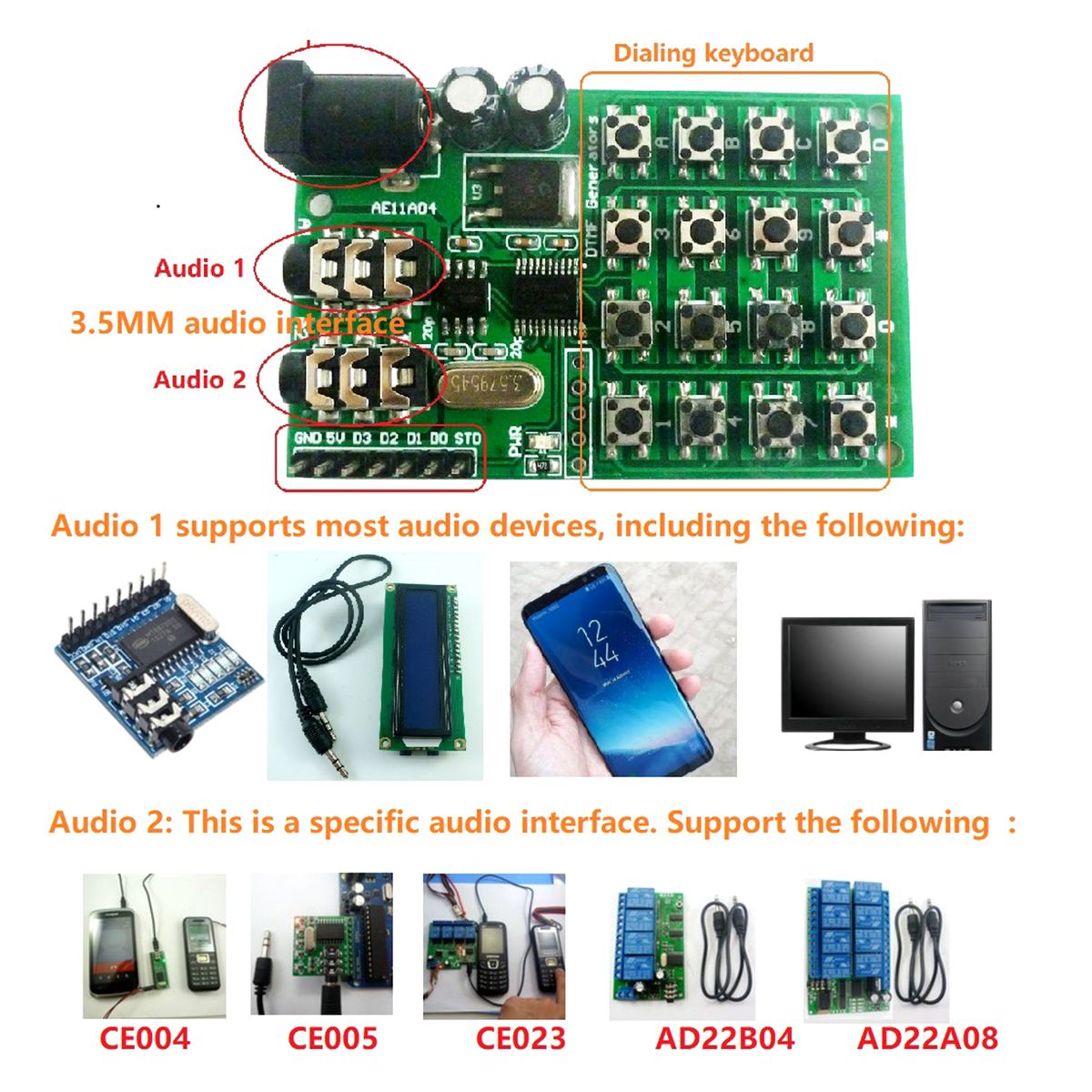

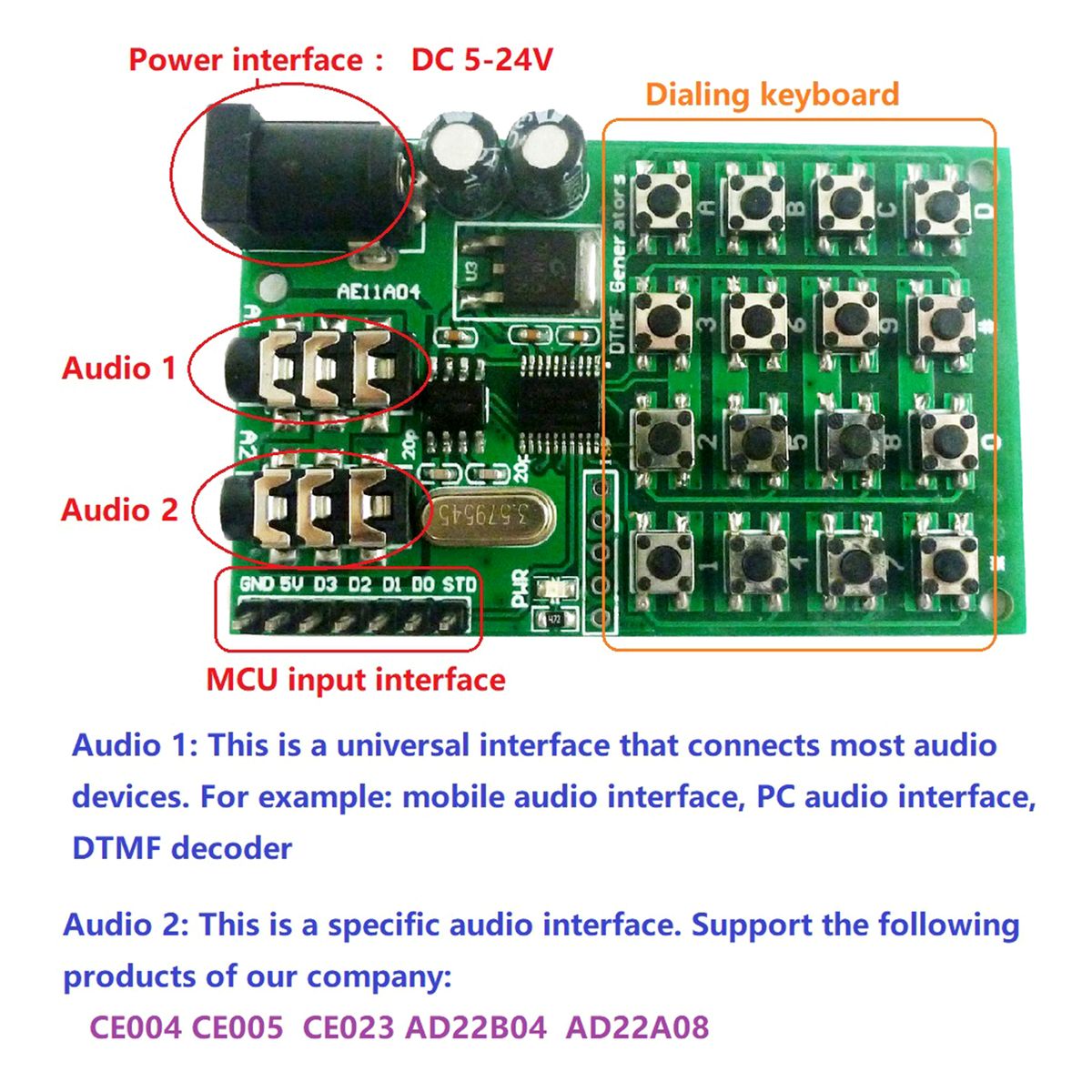

The DTMF module equipped with two 3.5mm audio plug for same times using.

Wide voltage range,you can connect it with voltage from 5~24VDC.

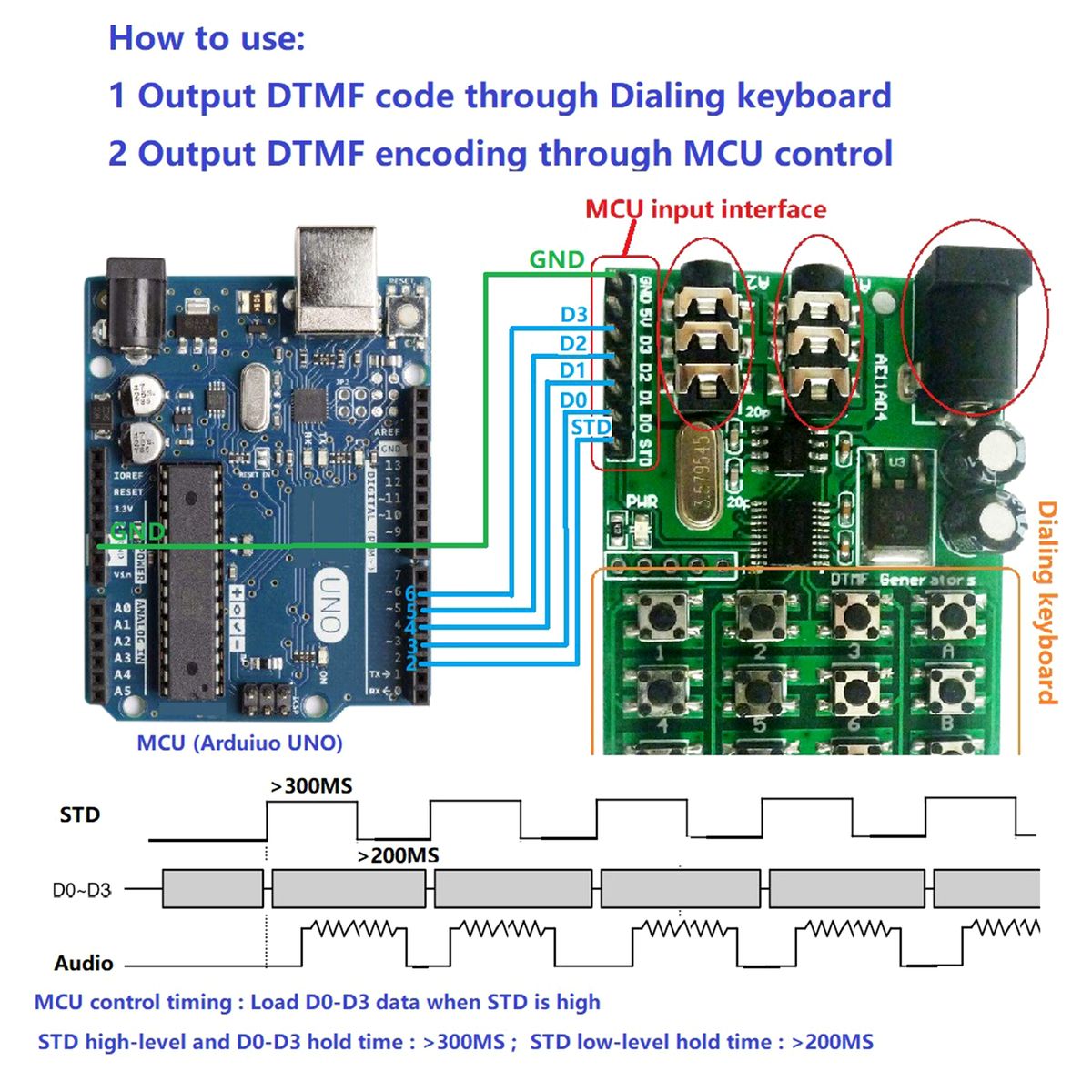

There are 7 MCU input interface on the module.

Specifications:

Material: PCB

Working voltage: DC5-24V

Working current : 6-8mA

weight: 16g / 0.56ounce

Package weight: 20g / 0.71ounce

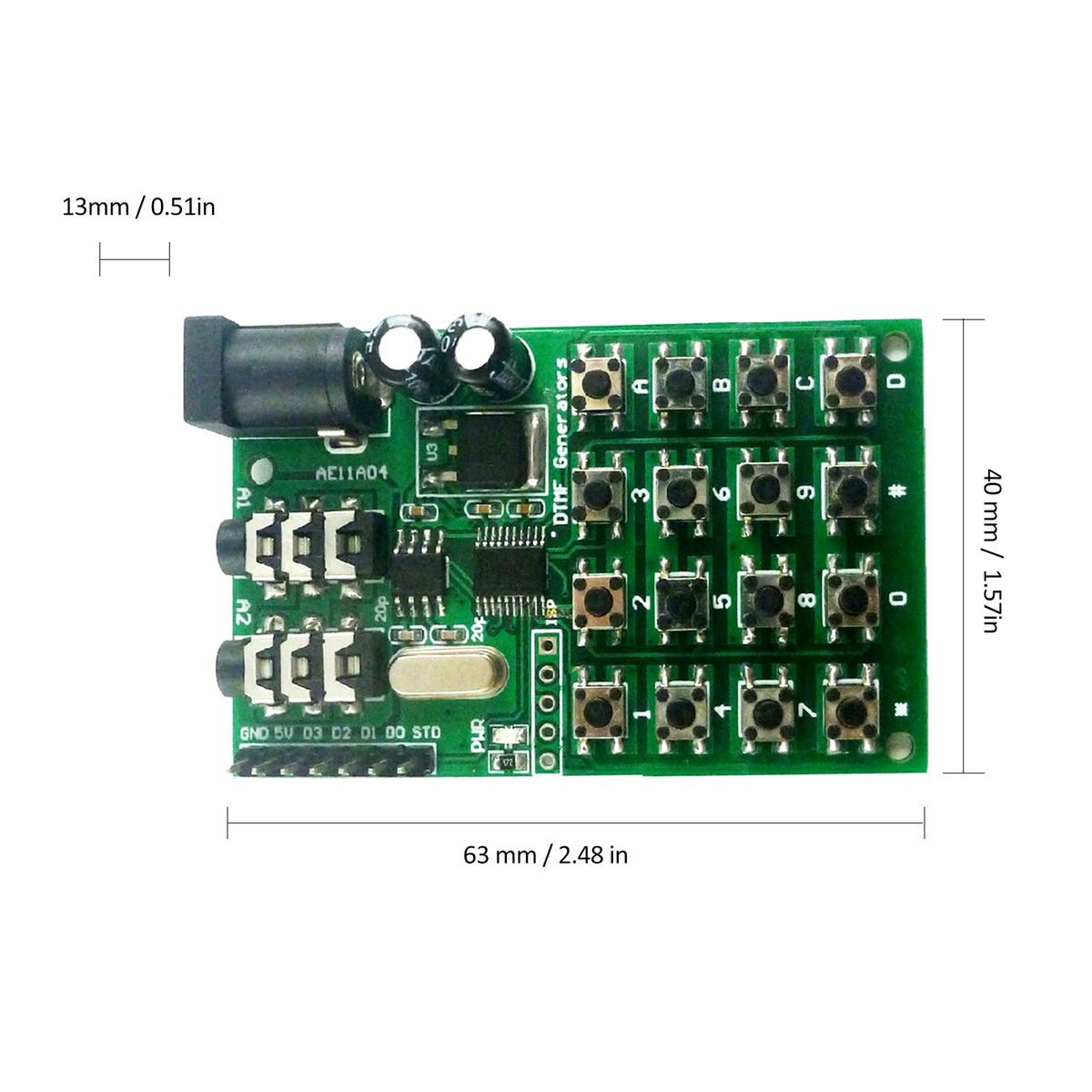

Package size: 63 * 40 * 13mm / 2.48 * 1.57 * 0.51in

Packing List:

1 * DTMF Module

We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.

*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.

*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.

Key Features

The module is designed for dialing keyboard and MCU interface.
Can instruct MCU(or keyboard) to generate 16 dual tones from Audio 1/2.
The DTMF module equipped with two 3.5mm audio plug for same times using.
Wide voltage range,you can connect it with voltage from 5~24VDC.
There are 7 MCU input interface on the module.
