Ancel X7 Full Systems Automobile Diagnostic Tool
Ancel X7 Full Systems Automobile Diagnostic Tool
Ancel X7 Full Systems Automobile Diagnostic Tool
Ancel X7 10.1-inch tablet obd2 scanner is capable of reading and clearing trouble codes of all major systems , including Engine, Airbag/SRS, Transmission, ABS, SAS, Air Conditioning, ACC, Audio, Headlight ,Center Lock, ESP,Suspension failures, ect.
1.Android System version
2.10.1-inch LED Touch Screen
3.Pre-install Diagnose APP
5.Bluetooth Automatic Connection
6.Life-time Free Upgrade
Full OBD Scanner Service Modes
Read and Erase Codes
Retrieves VIN Information
Read Data Stream
I/M Readiness
EVAP Testing
View Freeze Frame
O2 Sensor Test
On-Board Monitoring Test
10 Special Functions:
1. Oil Reset Service:
Allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate.
2.EPB Service:
Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
3.ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion.
4.BMS service:
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
5.TPMS service
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
6.DPF Service:
Allows you to carry out numerous functions to the Diesel Particulate Filter system.
TPMS Service: Allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.
7.IMMO Service:
Programs a new anti-theft key, and performs key matching when the ignition switch, the combined instrument panel, ECU, BCM, or the remote control battery is replaced.
8.SAS steering angle sensor service:
helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
9.Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Otherproblems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off
10.TPS Throttle Adaptation
The throttle body is a tube containing a pivoting flat(butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car , a throttle position sensor and air flow sensor communicate with the computer , which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair
How to use ANCEL X7 scanner for car.
1.Start engine, make key in “on” position
2.Make engine start and dashboard runs
3.Connect with WIFI,Run Ancel X7 Software
4.Click “Diagnose” to Test
ANCEL X7 Diagnostic scanner language selection
English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch.
How to switch language ?
1.Click Setting and find “Language”, change the language u want.
2.Click “Upgrade” button, enter into SN and password
3.Select car brand and download all
4.When all car brands download, it finished
Support More Than Car Models
ASIA Area:
ACURA, ASIAGM, DAEWOO, DAIHATSU, FUSO, HONDA, HYUNDAI, INFINITI, ISUZU, KIA, LEXUS, MAZDA, LUXGEN, MITSUBISHI, NISSAN, PERODUA, PROTON, Renault Samsung Motors, SSANGYONG, SUBARU, SUZUKI, TOYOTA,
EUROPEAN Area:
ABARTH, ALFA, ASTON MARTIN, AUDI, BENTLEY, BENZ, BMW, BUGATTI, CITROEN, DACIA, FERRARI, FIAT, FORDEU, JAGUAR, LAMBORGHINI, LANDROVER, MASERTI, MINI, OPEL, PEUGEOT, PORSCHE, RENAULT, Rolls Royce, SAAB, SEAT, SKODA, SPRINTER, SMART, VAUXHALL, VOLVO, VW, VWCW
AUSTRALIA Area:
HOLDEN, AU FORD .
CHINA Area:
BYD, CHANGAN, CHANGHE, CHERY, EMGRAND, ENGLON, FOTON, GEELY, GLEAGLE, GWM, HBSH, HUACHEN, LIFAN, WULING, YUAN , RICH, ZOTYE
AMERICAN Area:
BUICK, CHEVROLET, FORD, JEEP, CADILLAC, CHRYSLER, GM, SCION, DODGE.

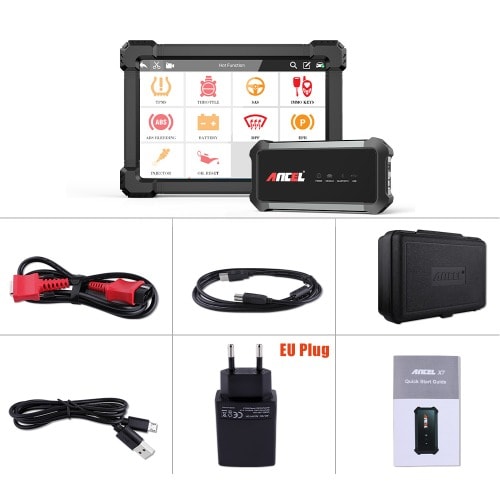

ANCEL X7 Pacakage list
X7 VCI Box *1
10.1 inch Tablet *1
Plastic Box *1
OBD2 Cable *1
Connection Cable*1
USB Cable *1
Charger *1
Manual *1
