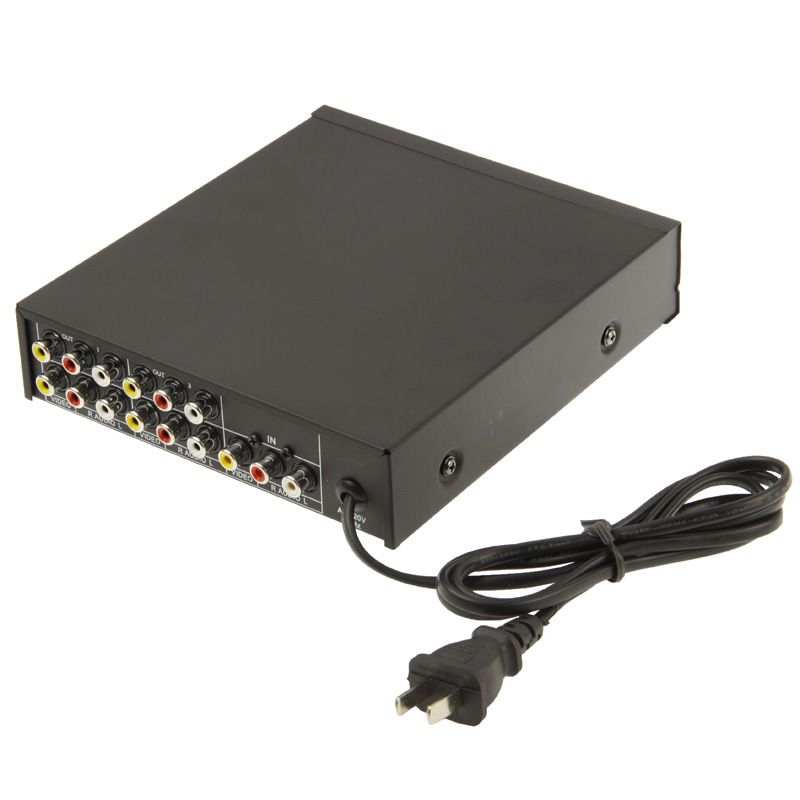

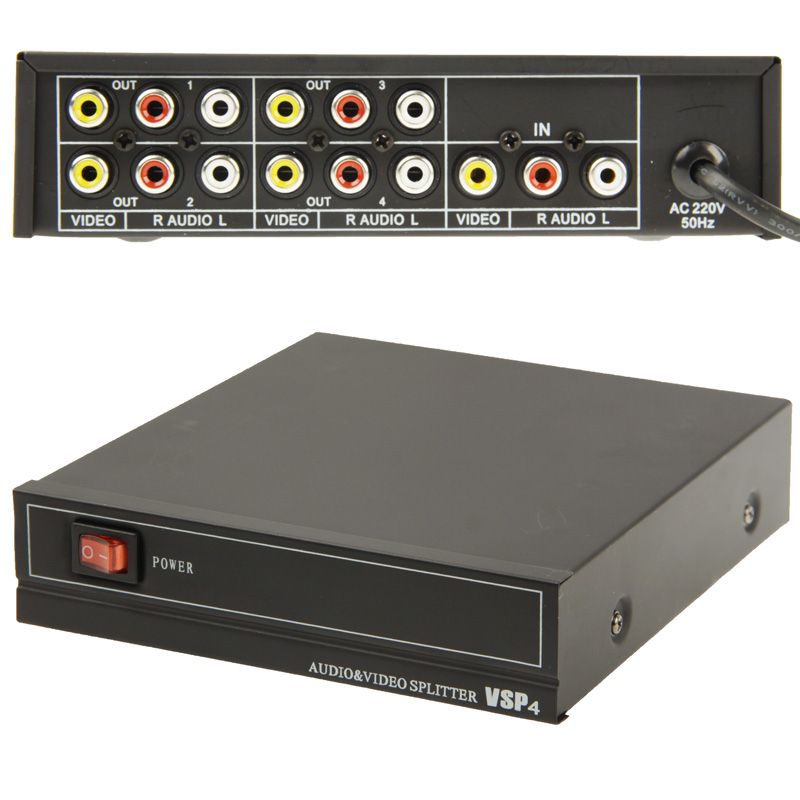

4-Way Video & Audio AMP Splitter
˂
˃
4-Way Video & Audio AMP Splitter
Price:
₦45,850
Brand: Generic
Share:
Product Description
4-Way Video & Audio AMP Splitter
1) Adopting high-quality components and advanced circuit design technology
2) Independent amplified outputs, high isolation, excellent interference resistance ability
3) Suitable for family, hotel, shopping mall, school, factory, singing hall, etc.
**Video:
1) Rated input signal level and impedance: VS0.8-1.0Vp-p/75Ω
2) Rated output signal level and impedance: VS0.8-1.0Vp-p/75Ω
3) : 50Hz-5.5MHz
4) 1 input, 4 outputs
**Audio:
1) Rated input signal level and impedance: 2V (RMS) / 47KΩ
2) Rated output signal level and impedance: 2V (RMS) / 1KΩ
3) Frequency: 10HZ-20KHz, 0dB
4) Input 1 input (left and right channels), output 4 (left and right channels)
5) Power supply voltage: AC 220V ± 10%
6) Power consumption: 3W
7) Dimensions: 168mm x 160 x 42mm
1) Adopting high-quality components and advanced circuit design technology
2) Independent amplified outputs, high isolation, excellent interference resistance ability
3) Suitable for family, hotel, shopping mall, school, factory, singing hall, etc.
**Video:
1) Rated input signal level and impedance: VS0.8-1.0Vp-p/75Ω
2) Rated output signal level and impedance: VS0.8-1.0Vp-p/75Ω
3) : 50Hz-5.5MHz
4) 1 input, 4 outputs
**Audio:
1) Rated input signal level and impedance: 2V (RMS) / 47KΩ
2) Rated output signal level and impedance: 2V (RMS) / 1KΩ
3) Frequency: 10HZ-20KHz, 0dB
4) Input 1 input (left and right channels), output 4 (left and right channels)
5) Power supply voltage: AC 220V ± 10%
6) Power consumption: 3W
7) Dimensions: 168mm x 160 x 42mm
Key Features
4-Way Video & Audio AMP Splitter
4-Way Video & Audio AMP Splitter
4-Way Video & Audio AMP Splitter
4-Way Video & Audio AMP Splitter
4-Way Video & Audio AMP Splitter
What's In the Box
1 x package
Product Specification
| Model | B15841DZH=S-PC-1971 |
|---|---|
| Production Country | China |
| Size (L x W x H cm) | 18 x 17 x 4cm |
| Weight (kg) | 0.74 |
| Color | Black |
| Main Material | Multi-Material |
