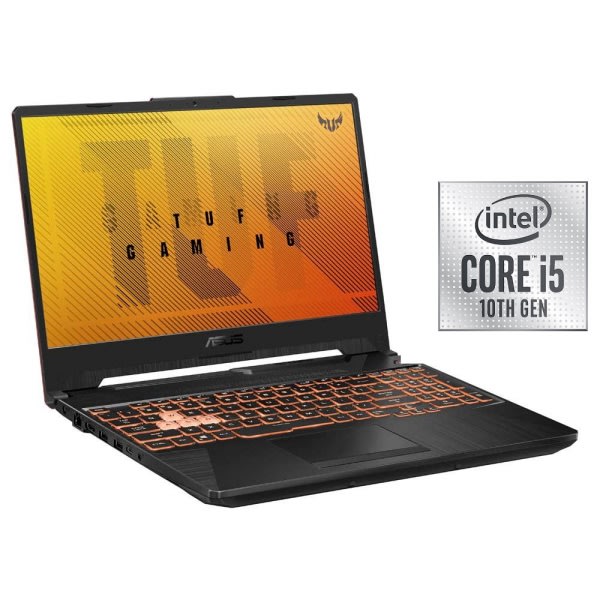

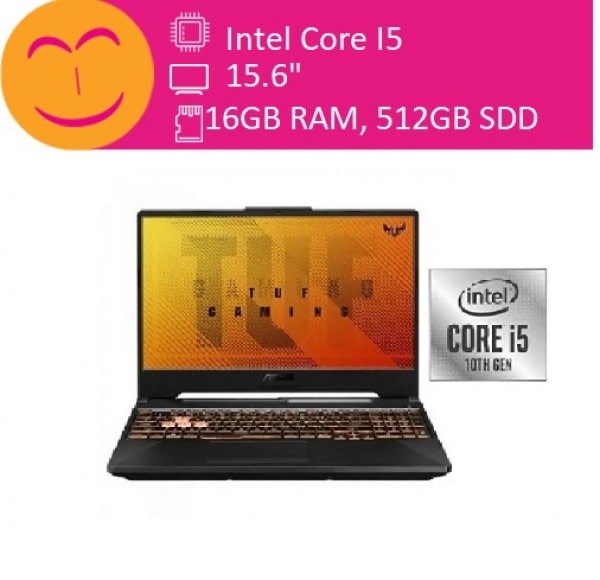

FX506LH-BQ034 Intel Core I5-10300H 16GB RAM 512GB SSD Win10 - Black

Main specs
Processor
Intel Core i5-10xxx i5-10300H 2,5GHz

Screen
15.6" 1920x1080 IPS
Hard drive
512GB SSD
RAM
16GB DDR4-SDRAM
Operating system
N
Graphics card
NVIDIA GeForce GTX 1650
Full specifications
Reference
90NR03U2-M00650
Release date
02-2021, 7 months ago
Design
Product type
Notebook

Product color
Black

Form factor
Clamshell

Color name
Bonfire Black

Market positioning
Gaming

Model year
2021

Display
Display diagonal
15.6 " (39,6 cm)

Display resolution
1920 x 1080 pixels

Touchscreen
No

Panel type
IPS

HD type
Full HD

Native aspect ratio
16:9

Anti-glare screen
Yes

RGB color space
NTSC

Color gamut
45 %

Maximum refresh rate
60 Hz

Processor
Processor family
10th gen Intel® Core™ i5

Processor manufacturer
Intel

Processor model
i5-10300H

Processor frequency
2,5 GHz

Processor boost frequency
4,5 GHz

Processor cores
4

Processor cache
8 MB

Motherboard chipset
Intel HM470 Express

Configurable TDP-down
35 W

Memory
Internal memory
16 GB

Maximum internal memory
32 GB

Internal memory type
DDR4-SDRAM

Memory clock speed
2933 MHz

Memory form factor
SO-DIMM

Memory layout (slots x size)
2 x 8 GB

Memory slots
2x SO-DIMM

Storage
Total storage capacity
512 GB

Storage media
SSD

Optical drive type
No

Total SSDs capacity
512 GB

Number of SSDs installed
1

SSD capacity
512 GB

SSD interface
NVMe,PCI Express 3.0

SSD form factor
M.2

Card reader integrated
No

Graphics
On-board graphics adapter
Yes

Discrete graphics adapter
Yes

Discrete graphics adapter model
NVIDIA® GeForce® GTX 1650

On-board graphics adapter model
Intel® UHD Graphics

Discrete GPU manufacturer
NVIDIA

Discrete graphics adapter memory
4 GB

Discrete graphics memory type
GDDR6

Audio
Built-in microphone
Yes

Camera
Front camera
Yes

Front camera HD type
HD

Network
Mobile network connection
No

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Bluetooth
Yes

Wi-Fi standards
802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)

Antenna type
2x2

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Ports & interfaces
USB 2.0 ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

HDMI ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

Ethernet LAN (RJ-45) ports
1

HDMI version
2.0b

Combo headphone/mic port
Yes

Keyboard
Numeric keypad
Yes

Pointing device
Touchpad

Keyboard backlit
Yes

Software
Operating system installed
No

Processor special features
Enhanced Intel SpeedStep Technology
Yes

Intel Flex Memory Access
Yes

Intel Trusted Execution Technology
No

Intel VT-x with Extended Page Tables (EPT)
Yes

Intel Stable Image Platform Program (SIPP)
No

Intel Software Guard Extensions (Intel SGX)
Yes

Intel 64
Yes

Execute Disable Bit
Yes

Idle States
Yes

CPU configuration (max)
1

Embedded options available
No

Intel Virtualization Technology for Directed I/O (VT-d)
Yes

Intel Virtualization Technology (VT-x)
Yes

Battery
Battery capacity (Watt-hours)
48 Wh

Battery technology
Lithium-Ion (Li-Ion)

Number of battery cells
3

Power
AC adapter power
150 W

AC adapter frequency
50/60 Hz

AC adapter input voltage
100 - 240 V

AC adapter output current
7,5 A

AC adapter output voltage
20 V

Security
Cable lock slot
Yes

Cable lock slot type
Kensington

Password protection
Yes

Password protection type
BIOS,User

Weight & dimensions
Weight
5.1 lbs (2,3 kg)

Width
14.1 " (359 mm)

Depth
10.1 " (256 mm)

Height (front)
1 " (2,47 cm)

Height (rear)
1 " (2,49 cm)
