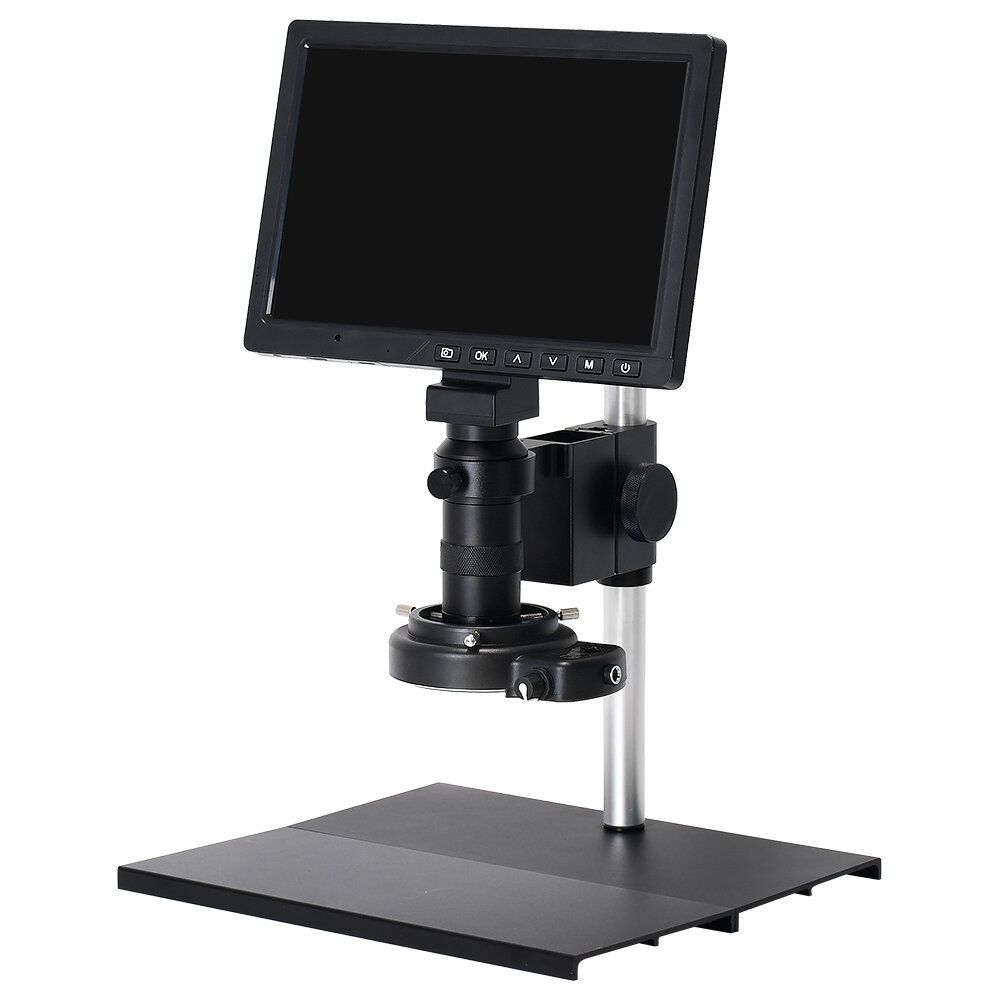

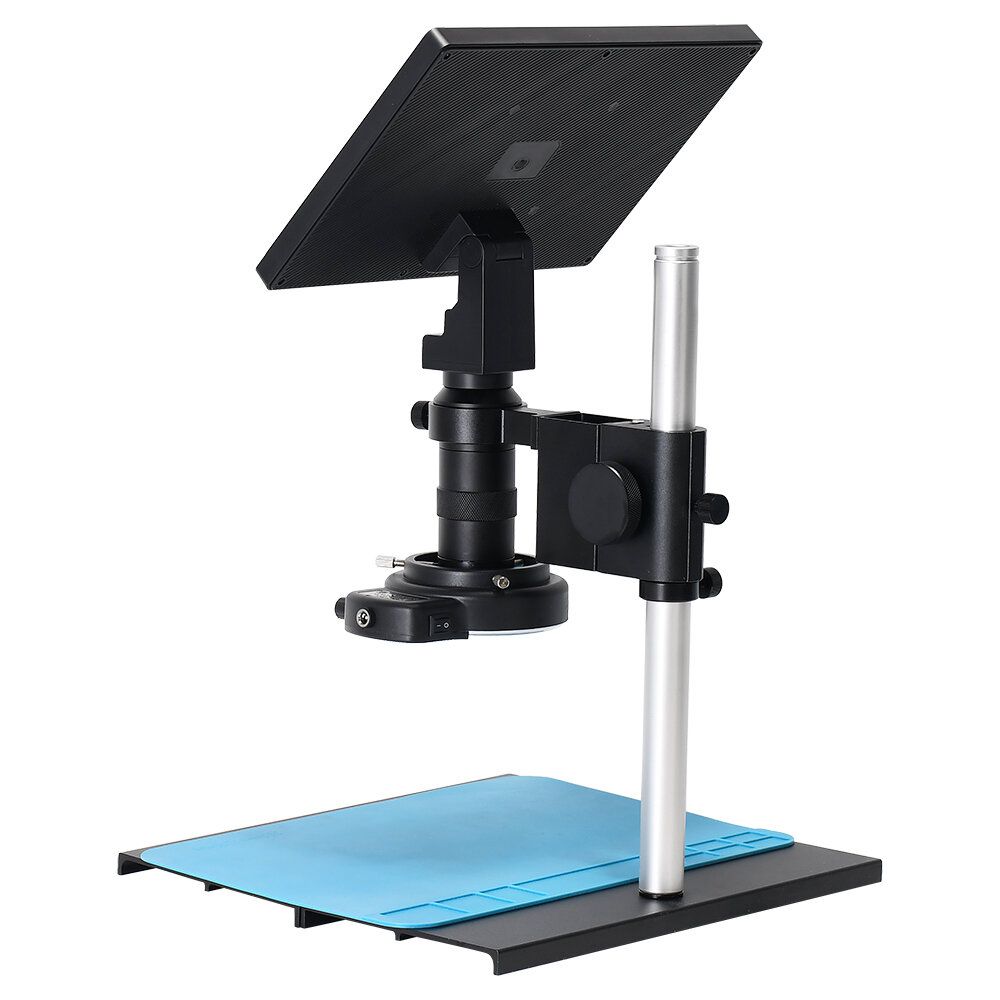

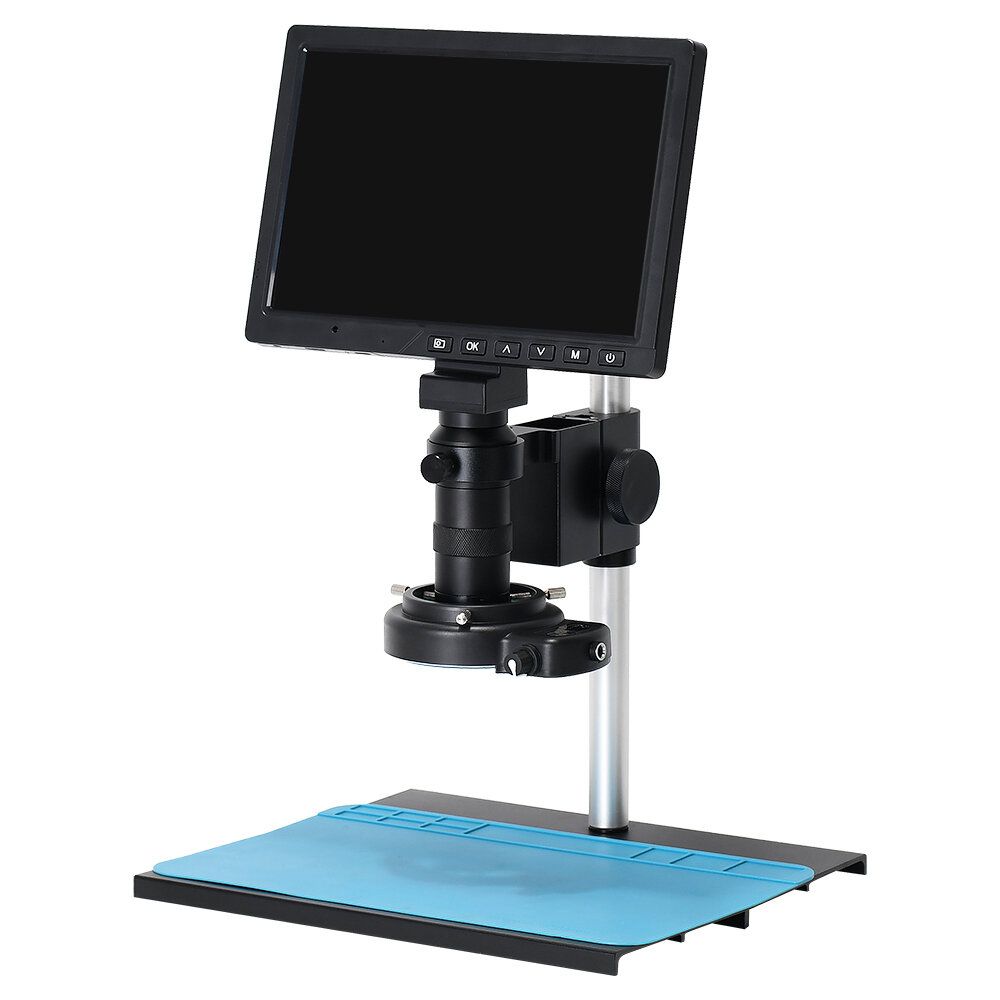

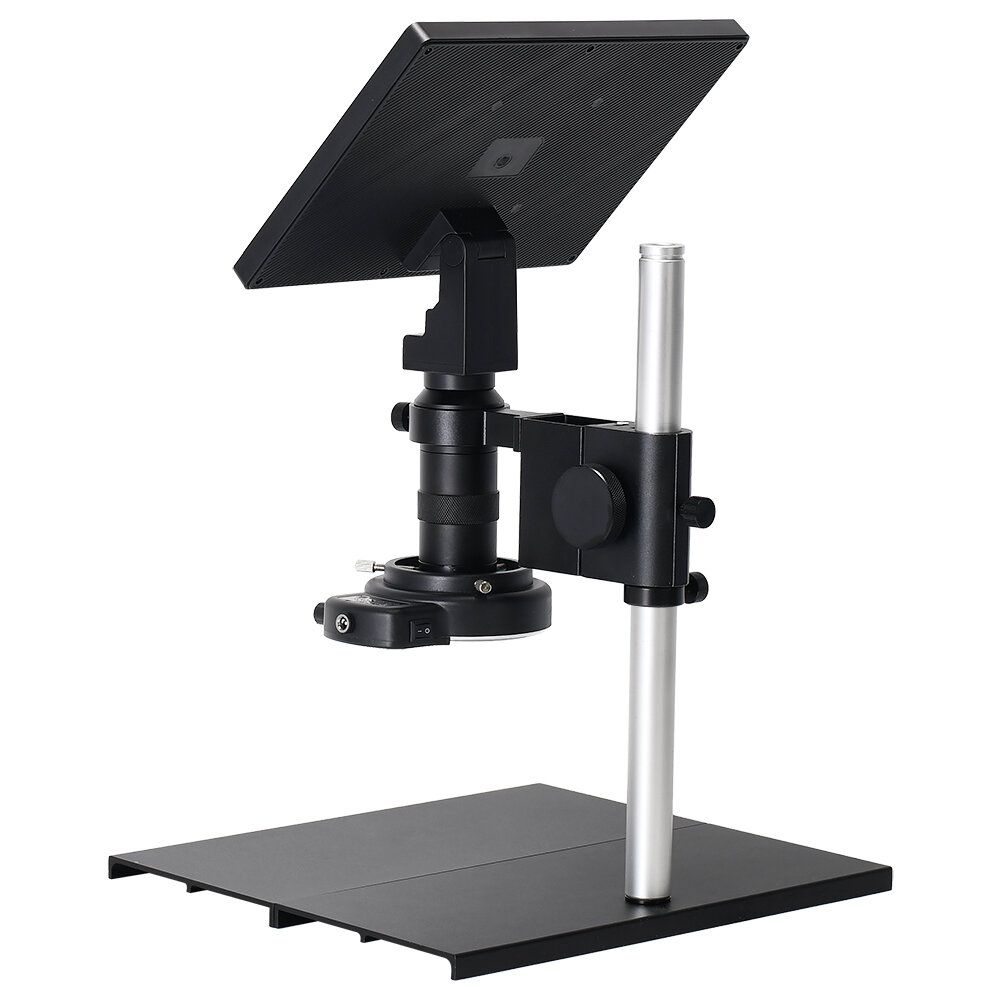

10.1 Inch LCD HD Video Microscope With 150X C Mount Lens

Feature:

1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.

2. Especially suitable for observing the surface microstructure of large objects.

3. Using high-quality materials, strong and durable, has a long service life.

4. HD camera with 16 megapixel CMOS sensor 1/2.8 inch, with HDMI USB port.

5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind.

Specifications:

Sensor：16 Megapixel IMX sensor

Pixel Size：2.0 times; 2.0 mu;m

Sensor Size ：1/2.8 inch

Video Output Interface ：HDMI / USB (HD Interface)

Resolution：1920x1080@60FPS（HDMI）

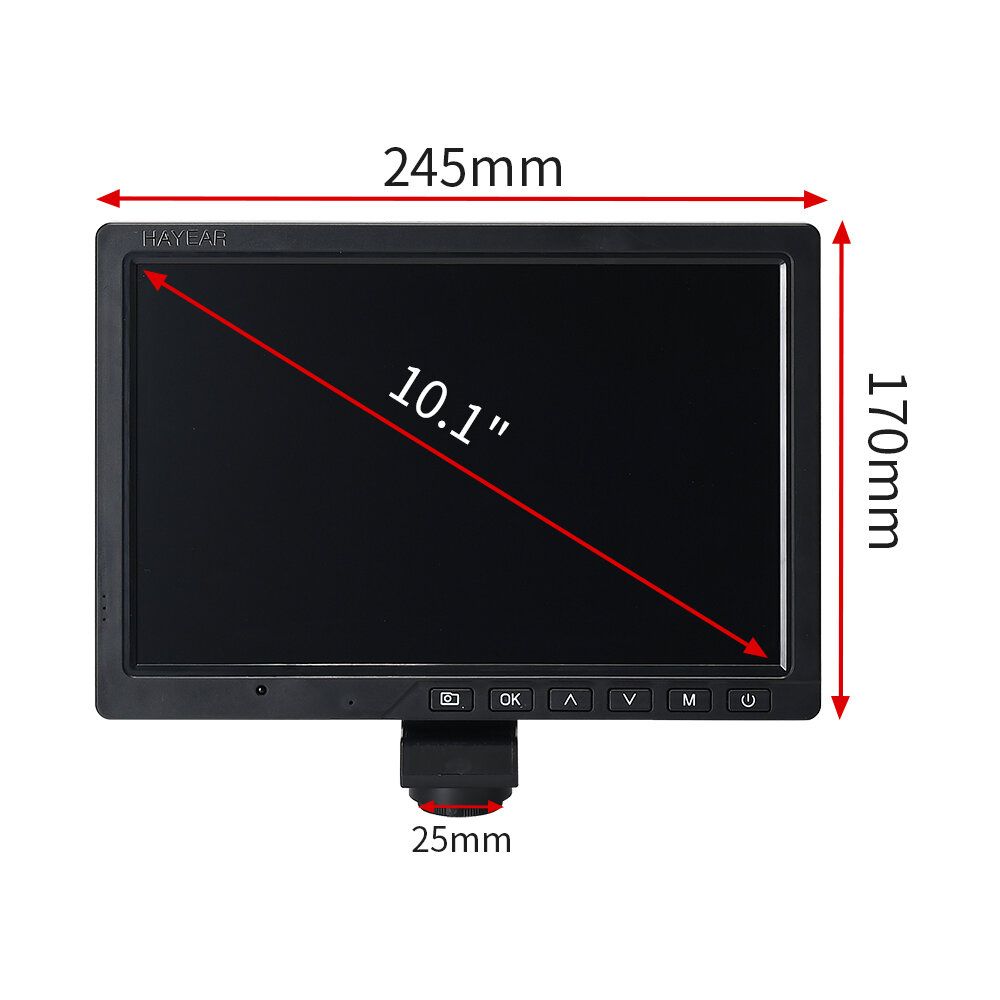

Monitor size ：10.1 inches

USB Output：1920x1080@30FPS(USB)

Video Ratio：Support 16:9, 4:3 Mode

Picture Resolution ：4608 x 3456

Frame Rate ：30@FPS

Color R/G/B：support manual adjustment

Cross line ：5 horizontal/vertical line, Color amp; size of line can be adjust, cross line with scale

Zoom：7X digital zoom

Magnifier Function ：Support magnifying in same screen

Sensitivity Level：Middle(can be used with extra light source)

Interface for Lens ：Standard C/CS Interface

Dynamic Range ：40dB

PC Systems ：Support Windows XP/7/8/10, with measurement software(gift)

Picture Format ：JPEG

Language：CN, EN, JP, FR, DE, RU, IT, KR, TUR

Working Voltage ：12V/1A

Spectral Response (Wavelength) ：400nm~700nm (Strong)

White Balance：Manual/Auto

SNR：45dB

Black amp; White Mode ：Support

Storage ：TF Card, Maximum support 256GB

Working Temperature ：-40 deg;C~70 deg;C

8X-150X Zoom C-mount Lens:

Working distance: 50mm-350mm

Field of view: 3.1mm-66mm

zoom c-mount Lens

zoom ratios:15:1
