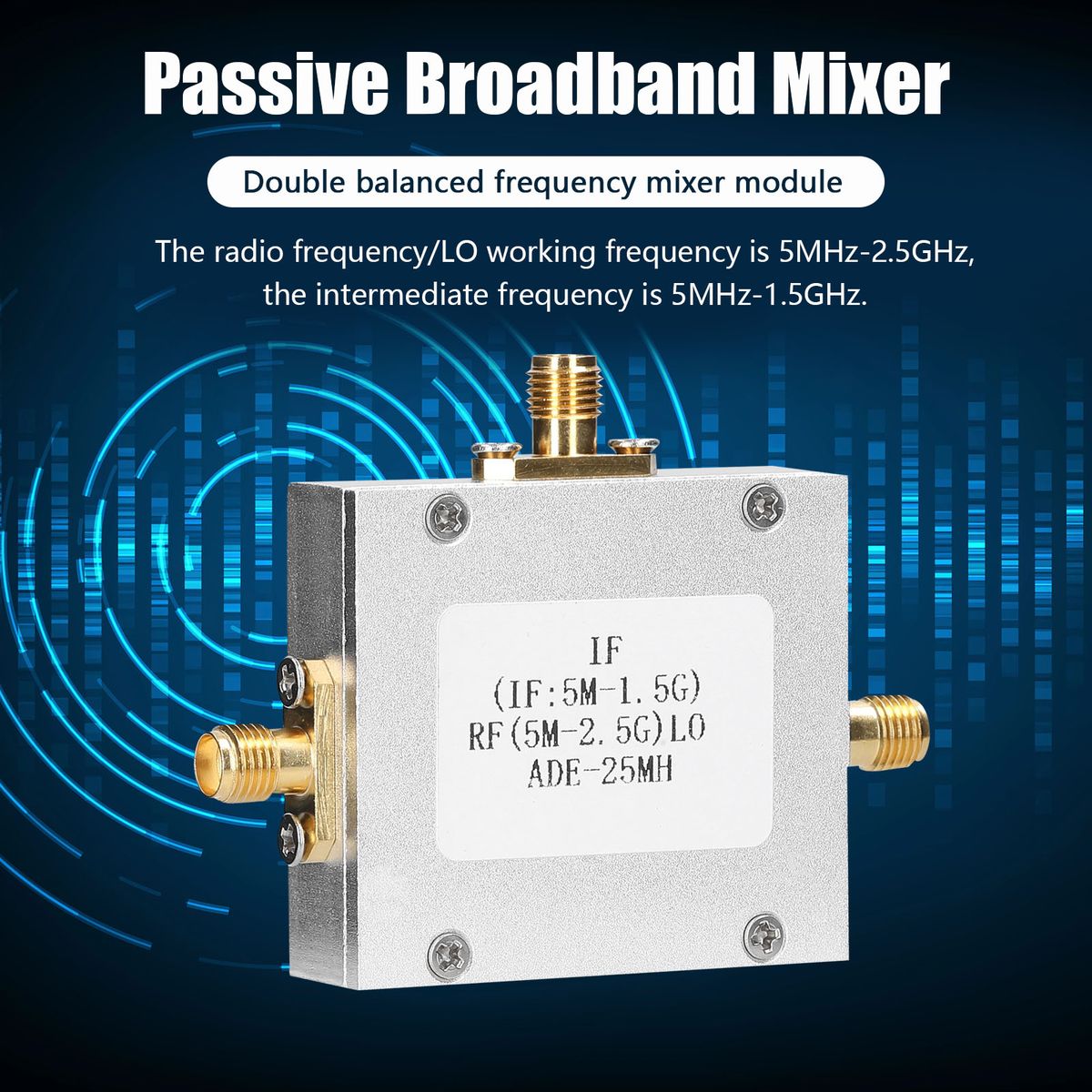

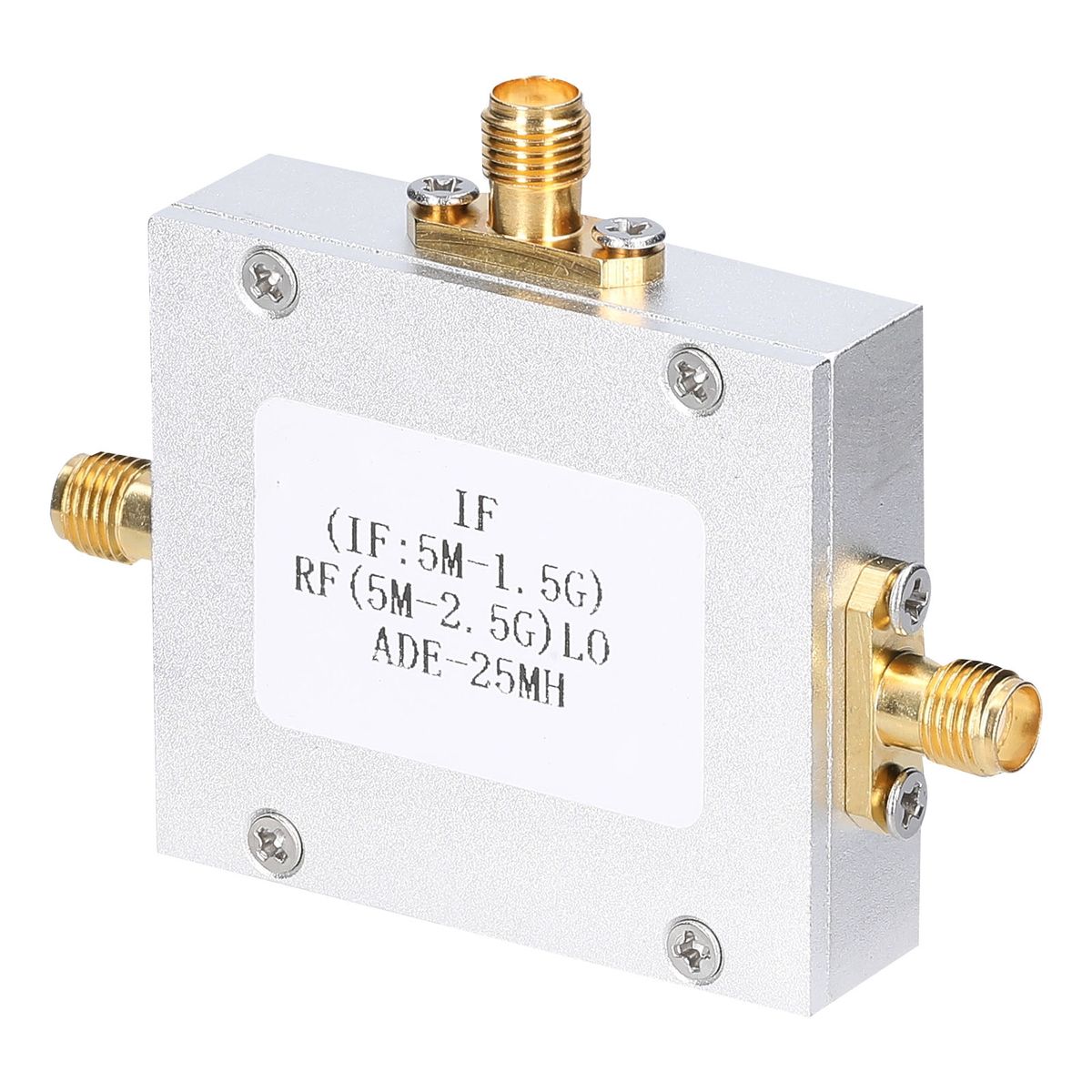

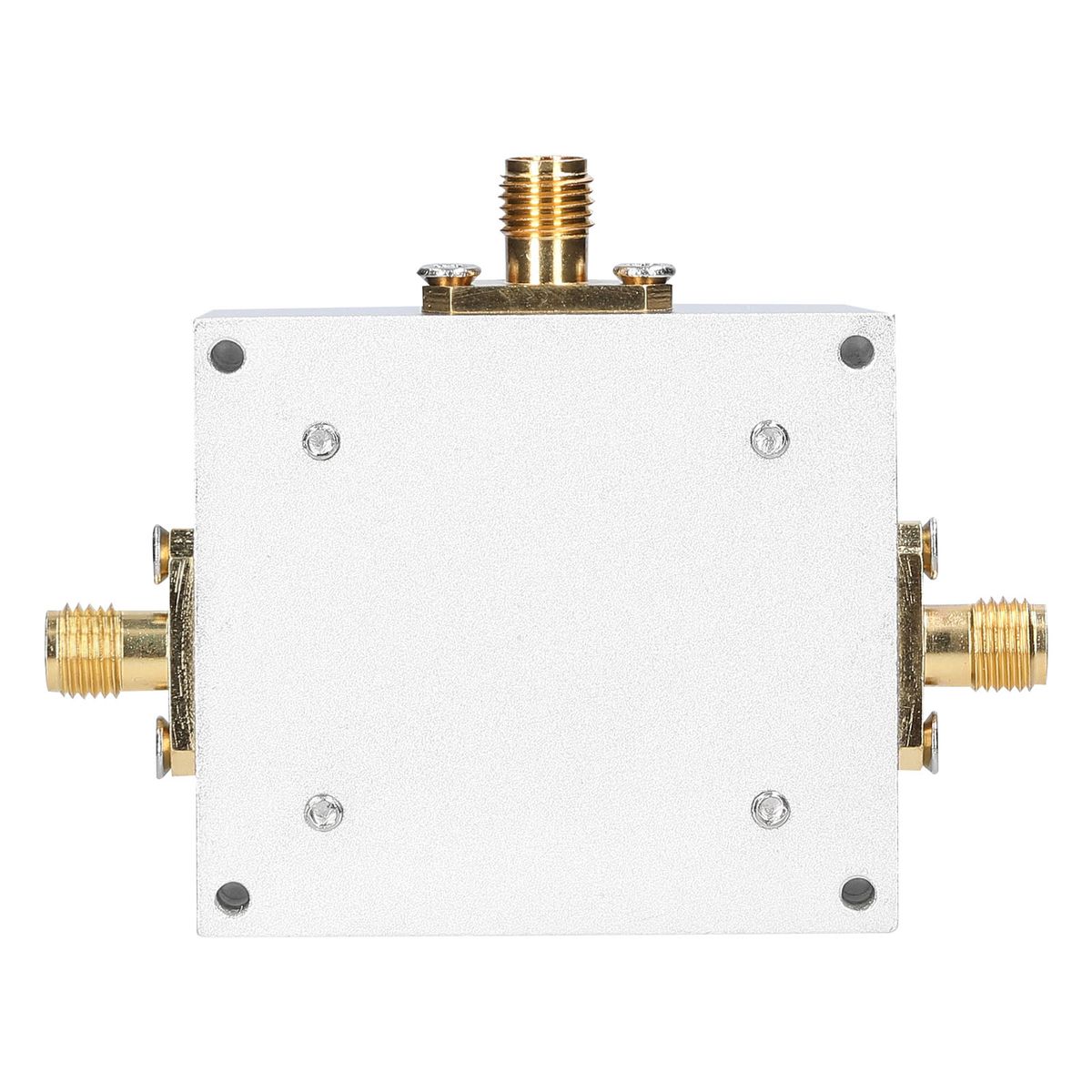

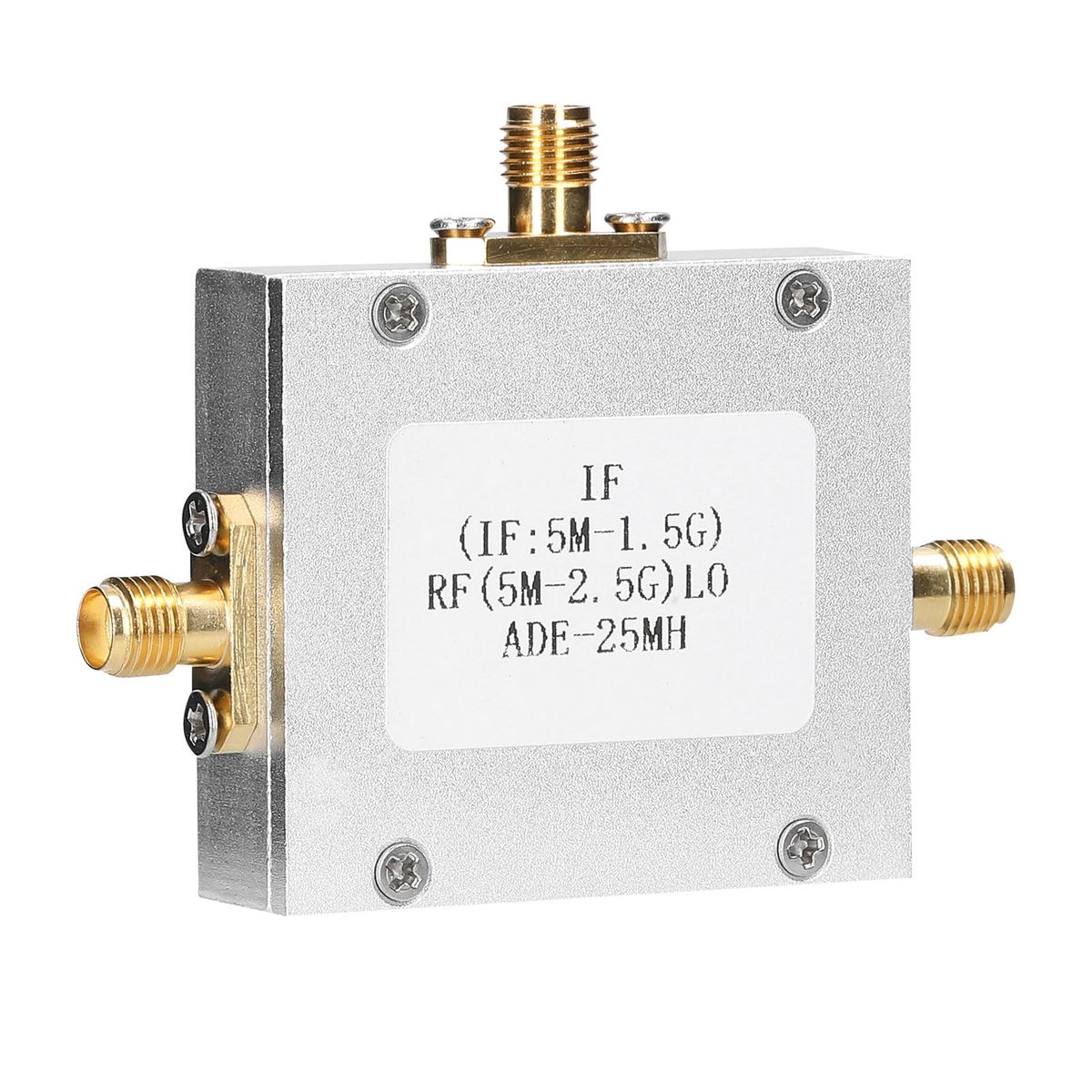

ADE-25MH Passive Broadband Mixer High Frequency Mixer

ADE-25MH is a passive broadband double balanced frequency mixer module, the radio frequency/LO working frequency is 5MHz-2.5GHz, the intermediate frequency is 5MHz-1.5GHz. And the insertion loss of frequency mixing is 7dB. The LO input is 13dBm. The characteristic impedance is 50 ohms. SMA female input and output interface, easy to connect.

Features:

It is a passive broadband double balanced frequency mixer module, the radio frequency/LO working frequency is 5MHz-2.5GHz, the intermediate frequency is 5MHz-1.5GHz.

The radio frequency input and output standing waves is superior than 1.2.

And the insertion loss of frequency mixing is 7dB.

The LO input is 13dBm.

L-R isolation is 34dB, L-I isolation is 32dB.

The characteristic impedance is 50 ohms.

SMA female input and output interface, easy to connect.

Application: suitable for up-conversion and down-conversion.

Specifications:

Name: Passive Broadband Mixer

Model: ADE-25

Material: metal+printed circuit board

Radio frequency/LO working frequency: 5MHz-2.5GHz

Intermediate frequency: 5MHz-1.5GHz

LO parameter: 13dBm

Insertion loss: 7dB

Interface: SMA

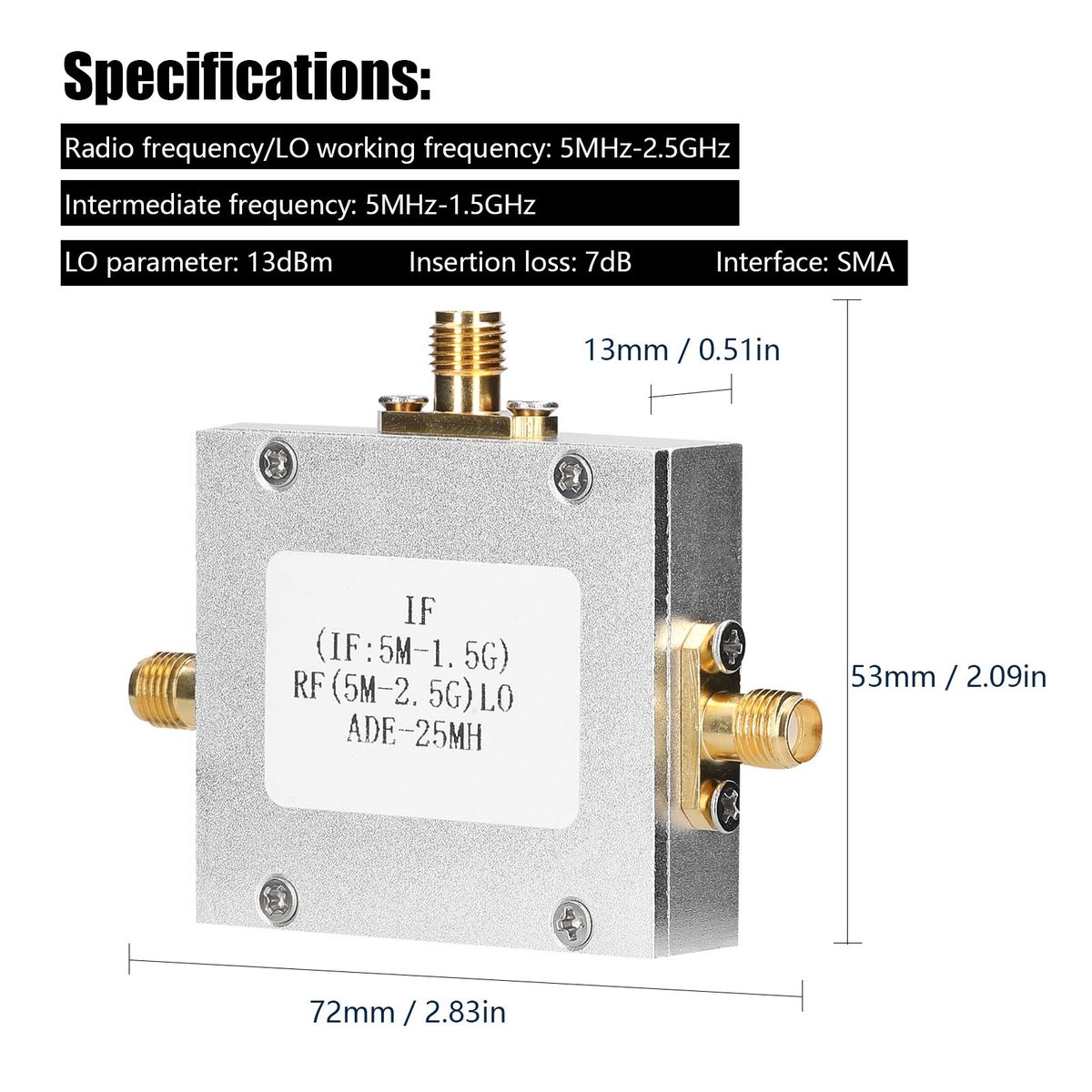

size: 72 * 53 * 13mm / 2.83 * 2.09 * 0.51in

weight: 45g / 1.59ounce

Package size: 120 * 78 * 20mm / 4.72 * 3.07 * 0.79in

Package weight: 47g / 1.66ounce

Packing List:

1 * Passive Broadband Mixer
