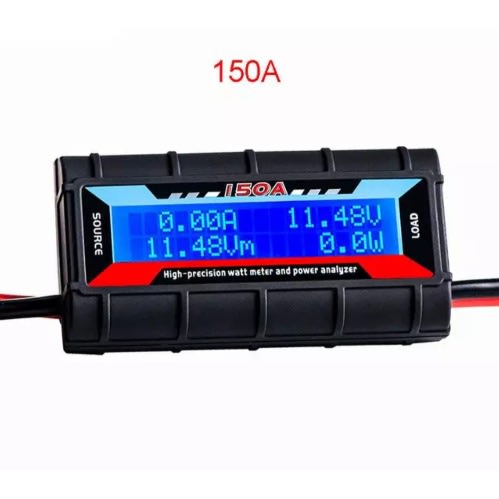

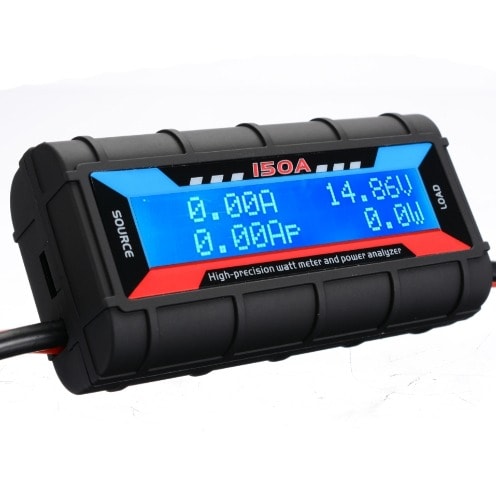

Digital Dc Wattmeter/dc Power Meter

Features
Measures DC Amps, Amp-hours, Watthours, Volts and Watts
Captures peak current, peak power, and minimum voltage (voltage sag) lasting a fraction of a second.
Easily reset accumulated readings using external pushbutton switch.
Rare combination of Voltmeter, DC Amp meter & Amp hour counting, Watthour and power analyzer features. Measures wide range of values not normally found on multimeters or low cost test equipment
Powered by the measured circuit or connect an auxiliary battery or DC power source to provided 3-pin socket
Reverse connection protection
Powerful, 8 MIPS micro-controller
Uses very low resistance (0.001 Ohm) shunt in negative (black wires) leads
Small size and lightweight

Full user’s manual includes electrical tutorial
Example applications
RV battery monitor and battery chargers
Marine battery monitor and battery chargers
Golf cart batteries and chargers
Digital panel meter Ammeter
Wheelchair batteries and chargers
Solar Power batteries and chargers
Wind Power generators, batteries and chargers
Electroplating and metal plating Amp Hour measurement
Ham Radio & Amateur Radio base station equipment, battery monitoring and chargers
Electric bike batteries and chargersOperate from 6-60V
♦ Measure 0-150a.resolution 0.01A
0-60V.resolution 0.01V
0-6554W.resolution 0.1W
0-65AH.resolution 0.001Ah
0-6554WH.resolution 0.1Wh
