Digital STC-1000 Temperature Controller 100- 220V

Digital STC-1000 220V All-Purpose Temperature Controller Thermostat With Sensor Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value
Temperature calibration; Refrigerating control output delay protection;
Alarm when temperature exceeds temperature limit or when sensor error.
Specification and size :Front panel size : 75(L) x 34.5(W)(mm) Mounting size : 71(L) x 29(W)mm; sensor length : 1m (include the probe). Product size75(L) x 34.5(W) x 85(D)mm; Technical Parameters : Temperature measuring range : -50 - 99?C; Resolution : 0.1?C; Accuracy : ?1?C (-50 - 70?C); Sensor error delay : 1 minute Power supply : 220VAC?10%, 50/60Hz; Power consumption : ?3W; Sensor : NTC sensor (1PC); Relay contact capacity : Cool 10A/250VAC;Heat 10A/250VAC; mbient temperature : 0 - 60?C; Storage temperature : -30 - 75?C; Relative humidity : 20% - 85% (No condensate).
Temperature calibration; Refrigerating control output delay protection;
Alarm when temperature exceeds temperature limit or when sensor error.

• Mini and light weight design

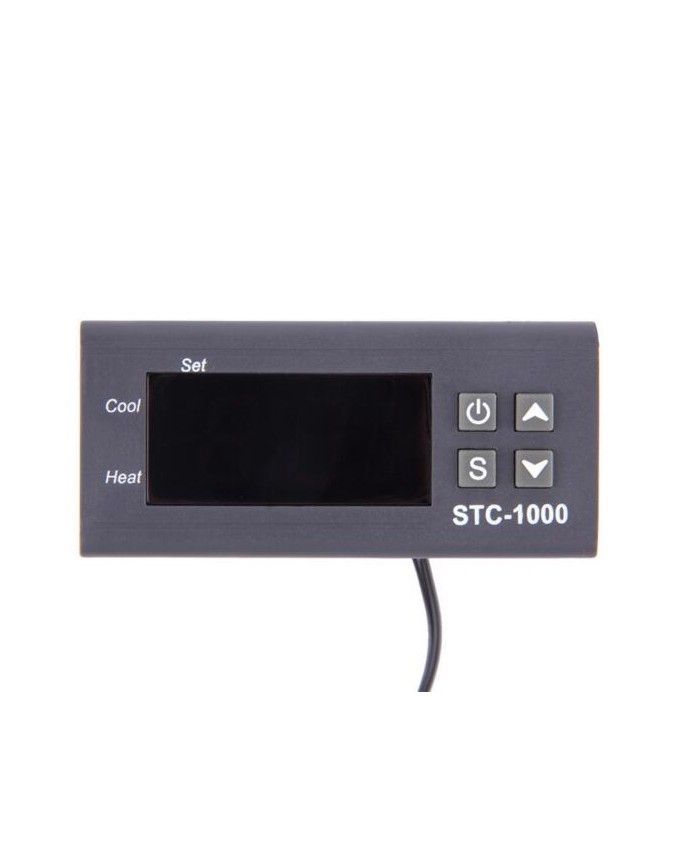

• Large and clear LCD display
• Wide Temperature Range (-50 ~ 99 °C)
• Dual heating and cooling function
• Automatic over temperature alarm
• Control temperature by setting the temperature set value and the different value
• Temperature Calibration
• Refrigerating control output delay protection

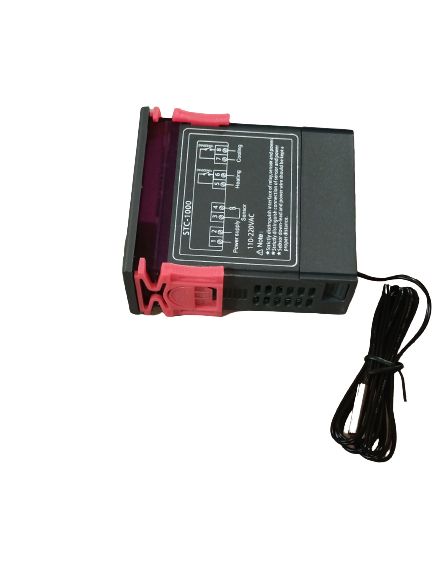

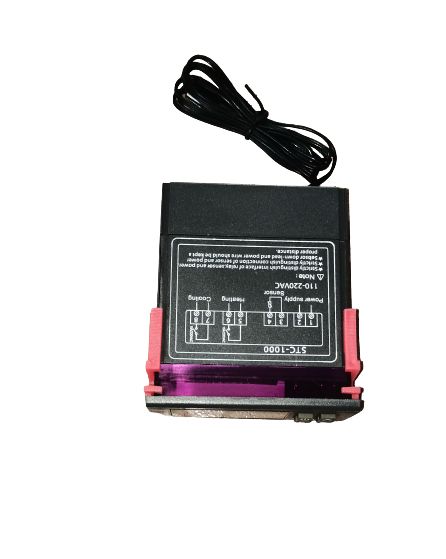

• Wiring diagram for installation included

Key Features

Mini and light weight design
Large and clear LCD display
Wide Temperature Range (-50 ~ 99 °C)
Dual heating and cooling function
Automatic over temperature alarm
Control temperature by setting the temperature set value and the different value
Temperature Calibration
Refrigerating control output delay protection
Wiring diagram for installation included

What's In the Box

1 x 100-220V Mini Digital Temperature Controller Thermostat 1 x Temperature sensor probe with 1M cable 1 x Instruction Manual
