Tesys Deca Contactor

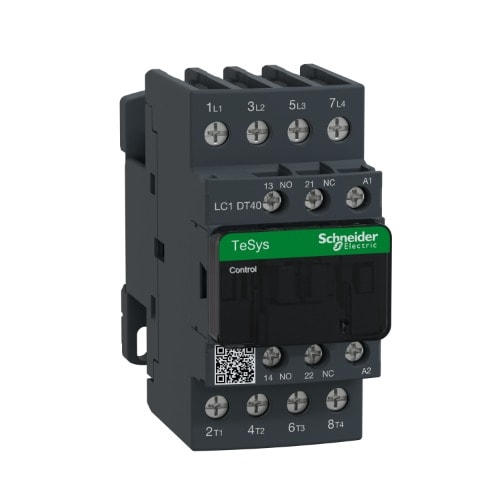

TeSys D contactor, 4 poles (4NO) - Ac-1 - <= 440 V 40 A - 220 V Ac 50/60 Hz Coil||LC1DT40M7, for non-inductive load applications up to 40A/440V AC-1. It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

SPECIFICATION

Main

• Range TeSys

TeSys Deca

• Product name TeSys D

TeSys Deca

• product or component type Contactor
• device short name LC1D
• contactor application Resistive load
• utilisation category AC-1
• poles description 4P
• power pole contact composition 4 NO
• [Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz

Power circuit: <= 300 V DC

• [Ie] rated operational current 40 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
• control circuit type AC at 50/60 Hz
• [Uc] control circuit voltage 220 V AC 50/60 Hz
• auxiliary contact composition 1 NO + 1 NC
• Rated impulse withstand voltage 6 kV conforming to IEC 60947
• overvoltage category III
• conventional free air thermal current 10 A (at 60 °C) for signalling circuit

40 A (at 60 °C) for power circuit

• Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1

250 A DC for signalling circuit conforming to IEC 60947-5-1

450 A at 440 V for power circuit conforming to IEC 60947

• rated breaking capacity 450 A at 440 V for power circuit conforming to IEC 60947
• rated short-time withstand current 50 A 40 °C - 10 min for power circuit

120 A 40 °C - 1 min for power circuit

240 A 40 °C - 10 sec for power circuit

380 A 40 °C - 1 sec for power circuit

100 A - 1 sec for signalling circuit

120 A - 500 ms for signalling circuit

140 A - 100 ms for signalling circuit

• associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1

63 A gG at <= 690 V coordination type 1 for power circuit

40 A gG at <= 690 V coordination type 2 for power circuit

• average impedance 2 mOhm - Ith 80 A 50 Hz for power circuit
• electrical durability 1.4 Mcycles 40 A AC-1 at Ue <= 440 V
• power dissipation per pole 3.2 W AC-1
• mounting support Plate, Rail
• operating time 4...19 ms opening

12...22 ms closing

• mechanical durability 15 Mcycles
• maximum operating rate 3600 cyc/h 60 °C

Complementary

• coil technology Without built-in suppressor module
• inrush power in VA 70 VA 60 Hz cos phi 0.75 (at 20 °C)

70 VA 50 Hz cos phi 0.75 (at 20 °C)

• hold-in power consumption in VA 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)

7 VA 50 Hz cos phi 0.3 (at 20 °C)

• heat dissipation 2…3 W at 50/60 Hz
• signalling circuit frequency 25...400 Hz
• minimum switching current 5 mA for signalling circuit
• minimum switching voltage 17 V for signalling circuit
• non-overlap time 1.5 ms on de-energisation between NC and NO contact

1.5 ms on energisation between NC and NO contact

• insulation resistance > 10 MOhm for signalling circuit

Environment

• IP degree of protection IP20 front face conforming to IEC 60529
• climatic withstand Conforming to IACS E10

conforming to IEC 60947-1 Annex Q category D

• protective treatment TH conforming to IEC 60068-2-30
• pollution degree 3
• ambient air temperature for operation -40…60 °C

60…70 °C with derating

• ambient air temperature for storage -60…80 °C
• operating altitude 0...3000 m
• fire resistance 850 °C conforming to IEC 60695-2-1
• height 91 mm
• width 45 mm
• depth 99 mm
