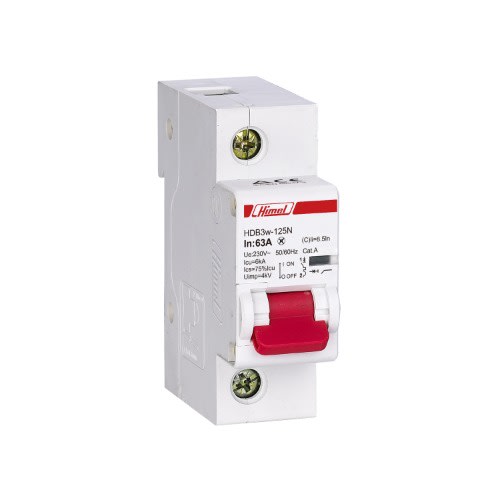

Himel -Miniature Circuit Breaker -Hdb3w-125, 27 Mm, Ac - 10Ka - 1p - C Curve - 100A|| HDB3W125H1C100

Main

• Range of product HDB3w-125
• Product or component type Miniature circuit-breaker
• Device application Isolation
• Trip unit technology Thermal-magnetic
• Suitability for isolation Yes
• Mechanical durability 8500.0 cycles
• Electrical durability 1500.0 cycles

Complementary

• Poles description 1P
• [In] rated current 100 A
• [Ue] rated operational voltage 230 V AC 50/60 Hz
• Curve code C
• Magnetic tripping limit 8.5 x In
• Breaking capacity 10 kA
• [Ui] rated insulation voltage 250.0 V between phase and ground
• [Uimp] rated impulse withstand voltage 4.0 kV
• Cable entry Top, Bottom
• Mounting support 35 mm DIN rail
• Protection type Overload protection, Short-circuit protection
• Connections – terminals Forked type tag connectors
• Clamping connection capacity <= 50 mm²
• Tightening torque 3.5 N.m
• Height 86.4 mm
• Width 27.0 mm
• Depth 74.5 mm
• Embedding depth 44.0 mm

Environment

• Dielectric test voltage 2.0 kV 50/60 Hz 1 min
• Shock resistance 30 gn (duration = 11.0 ms) for 3 shocks
• Standards IEC 60947-2
• IP degree of protection IP20
• Pollution degree 2
• Ambient air temperature for operation -20…60 °C
• Ambient air temperature for storage -40…70 °C
