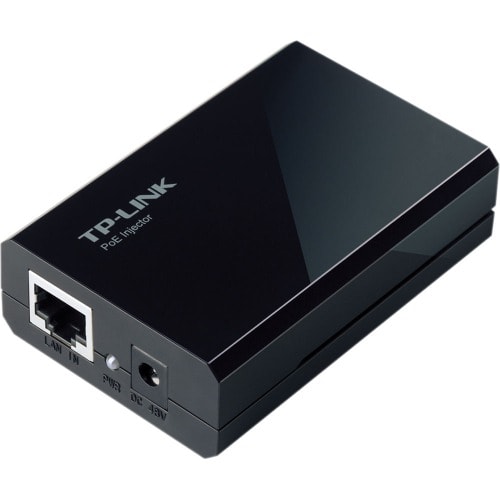

Tl-poe150s - Poe Injector

TP-Link Tl-poe150s - Poe Injector

IEEE 802.3af compliant
Auto-determine the necessary power requirements
Gigabit speed support
Plug-and-Play, requires no configuration

What This Product Does

The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

IEEE 802.3af compliant
Auto-determine the necessary power requirements
Gigabit speed support
Plug-and-Play, requires no configuration

What This Product Does

The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

What This Product Does

The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

IEEE 802.3af compliant
Auto-determine the necessary power requirements
Gigabit speed support
Plug-and-Play, requires no configuration

Interface
2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 48VDC POWER INPUT PORT
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply 15.4W (Max. 48VDC)
LED Indicator PWR
Dimensions ( W x D x H )
3.2*2.1*0.9 in.(80.8*54*24 mm)

Basic Function
Compatible With IEEE 802.3af Compliant PDs
Delivers Power Up To 100 Meters
Auto-Determine The Necessary Power Requirements

Certification FCC, CE, RoHS

System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment
