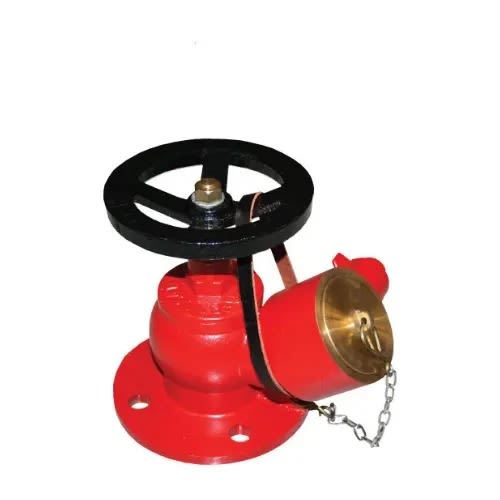

Oblique Landing Valve - Flanged Inlet - 2.5"

landing valves are suitable for installation on wet risers in a building for fire fighting purposes with permanently charged water from a pressurized supply.

The landing valves are the oblique type with flanged inlet and are manufactured to comply to BS 5041 Part 1 standard with delivery hose connection and blank cap complying with BS 336:2010 standard.

The landing valves are classified under low pressure and are suitable for use at nominal inlet pressure up to 15 bar.

• BSI Kitemark and LPCB certified
• Body material made of copper alloy to EN 1982
• Hand wheel material made of grey cast iron to BS EN 1561
• Blank cap material made of copper alloy to EN 1982
• Possible to replace the gland seal when under pressure with the valve fully closed
• Disc facing rubber is of replaceable type
• Valves are provided with a strap and pad lock so that the hand wheel can be secured to counter unauthorized use
• The hand wheel is BLACK painted and body to RED
