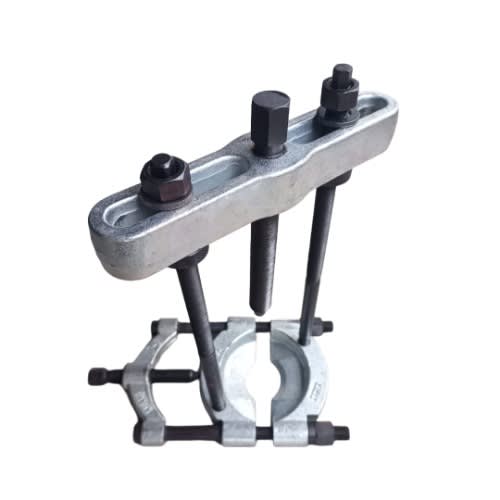

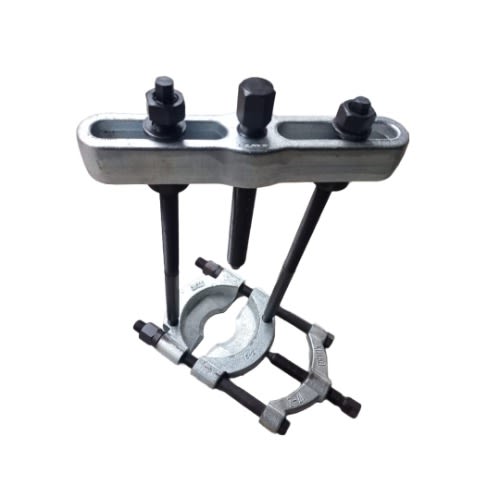

17-2 Bearing Separator - 7/8" To 4 1/2" Diameter
17-2 Bearing Separator - 7/8" To 4 1/2" Diameter
KUKKO 17-2 SEPARATOR TYPE, 7-1/2" TONS CAPACITY, 4-1/2" MAXIMUM SPREAD MECHANICAL PULLER
For removing ball bearings, roller bearings, inner races and other tight parts if there is not enough space to use pulling hooks.
Description
Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
With quick-clamping pressure spindle.
The sharp blades enable flush parts to be removed where pulling jaws cannot be used.
Can pull outer diameters between 7/8" and 4 1/2"
Advantage
Easy to use, as the separator jaws are quickly and centrally tensioned with just one pressure spindle.
Ultimate stability when removing, as the separator and pulling device are screwed firmly together.
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
How it works
The wedge-shaped separator jaws are secured underneath the component to be removed.
Separate the part by tightening the quick clamping pressure spindle.
The flat surfaces of the separator blades are used to remove sensitive parts without damaging them. The separator blades provide a larger supporting surface to prevent the parts from twisting.
For removal, the tension bolts on the pulling device series 18 have to be screwed into the separator.
The part is removed by tightening the spindle against the end of the shaft.
Can be used with jaw pullers or 18-2 pulling device or 18-2-B hydraulic pulling device. This unit does not include a pulling device, only the separator.
BENEFITS
Easy to use, as the separator jaws are quickly and centrally tensioned with just one pressure spindle.
Ultimate stability when removing, as the separator and pulling device are screwed firmly together.
APPLICATIONS
Removal of Ball Bearings, Roller Bearings, Inner Races and Other Tight Parts When There's Not Enough Space To Use Standard Puller
FEATURES
With quick-clamping pressure spindle.
The sharp blades enable flush parts to be removed where pulling jaws cannot be used.
The wedge-shaped separator jaws are secured underneath the component to be removed.
The large supporting surfaces protect the parts to be pulled.
Quality made in Germany.
Strong design, high performance and long service life.
TECHNICAL SPECIFICATIONS
BRAND: KUKKO
MODEL:. 17-2 INCHES
CAPACITY:. 7-1/2 INCHES
MAXIMUM SPREAD:. 4-1/2 INCHES
TYPE:. SEPARATOR
APPLICATIONS:. REMOVAL OF BALL BEARINGS, ROLLER BEARINGS, INNER RACES, AND OTHER RIGHT PARTS WHEN THERE IS NOT ENOUGH SPACE TO USE STANDARD PULLERS
APPROXIMATE POWER: 7.5 TONS
JAW OPENING: 41/2 INCHES
LOAD CAPACITY: 7.5 TONS
PROP.65:. YES
TOP MATERIAL: CAST STEEL
WEIGHT:. 7.36 LBS
COUNTRY OF ORIGIN:. GERMANY
