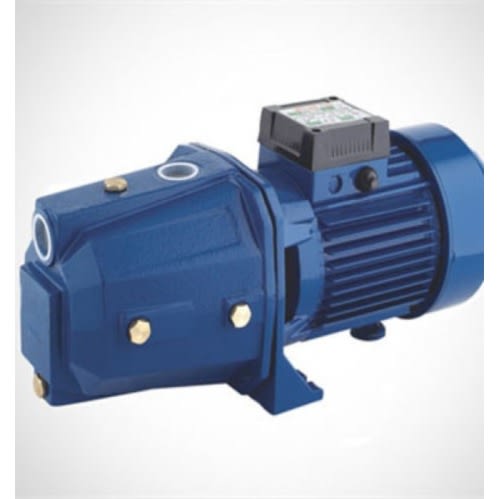

Surface Pump -1HP -750w
Surface Pump -1HP -750w
Application
Self-priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity. Able to pump up to 9mt. depth and work perfectly even in soda-water. Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.
Material
Operating conditions
*Pump body:Cast iron
"Motor support:Cast iron "Motor housing: Aluminum
*Liquid temperature up to 60°C
"Ambient temperature up to 40°C
*Total suction lift up to 9m.
*Impeller:Brass
*Continuous duty
*Diffuser:Noryl
"Shaft:45#Steel, AISI 416 stainless steel if request
*Mechanical seal:Carbon/Ceramic
Motor
Single phase 220V-240V/50Hz
"Two-pole induction motor
Single phase 110V-127V/60Hz if request
"Insulation Class B *Protection IP44
Single/three phase 220V/60Hz if request
