433Mhz DC 12V 4CH Universal 10A Relay Wireless Remote

​Features:

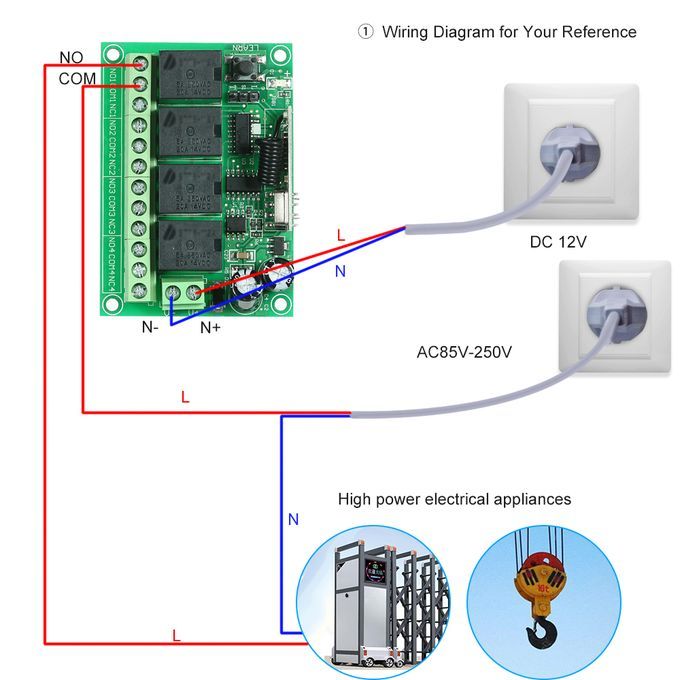

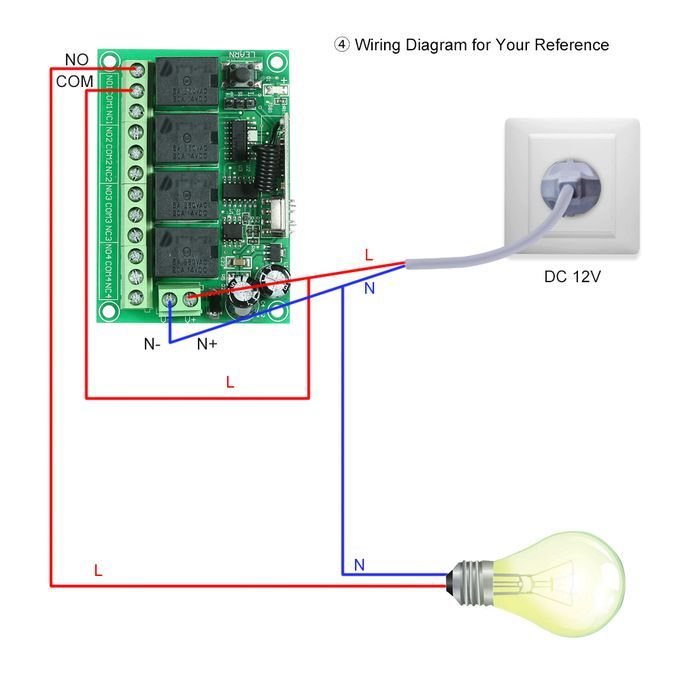

*Very convenient to use, simple wiring diagram connection way.

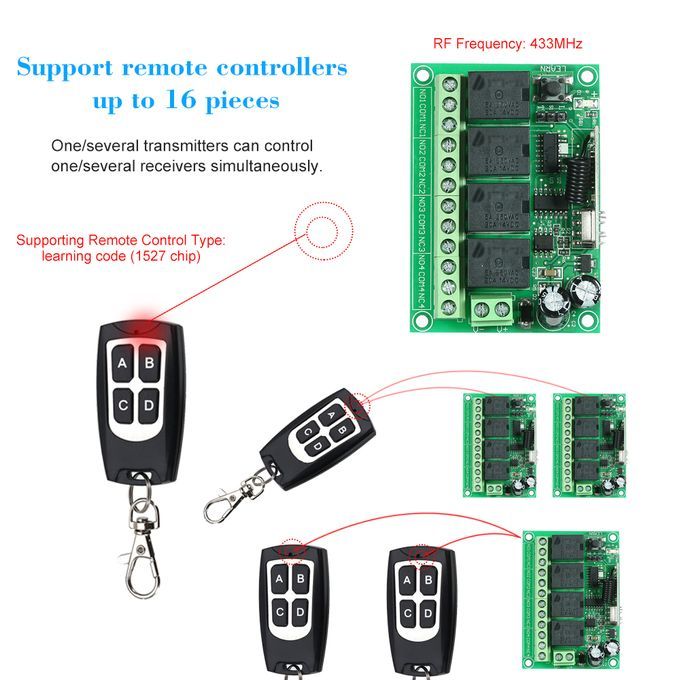

*Support remote control up to 16 pieces. It can connect to the electronic control lock, intercom doorbell, garage door, light, electric curtain, household appliances, motor control, etc. So that it can remote unlock the door, close the light, open or close the curtain,etc.

*The Remote Control four buttons could respectively copy four different types of chips, that is a remote control can operate four different types of facilities.

*The working mode can be changed by yourself: you can switch to momentary, toggle, latching three modes as you need.

*Learning pair code: it can work with any remote control with the same frequency, so you needn't worry about losing remote control any more. (If the remote control is lost, buy one and pair with the PCB board is OK.)





Specifications:

Receiver:

Channels: 4

Input : DC12V

Standby Current: ≤6mA

Output Current: ≤10A

RF Frequency: 433MHz

Output : DC/AC Optional

RF working mode: superheterodyne reception

Coded System: Learning Code (1527 Chip) ; Fixed Code

Receive sensitivity: ≥ -105dbm

Decoding mode: MCU software decoding

Remote control storage: up to 16 PCS

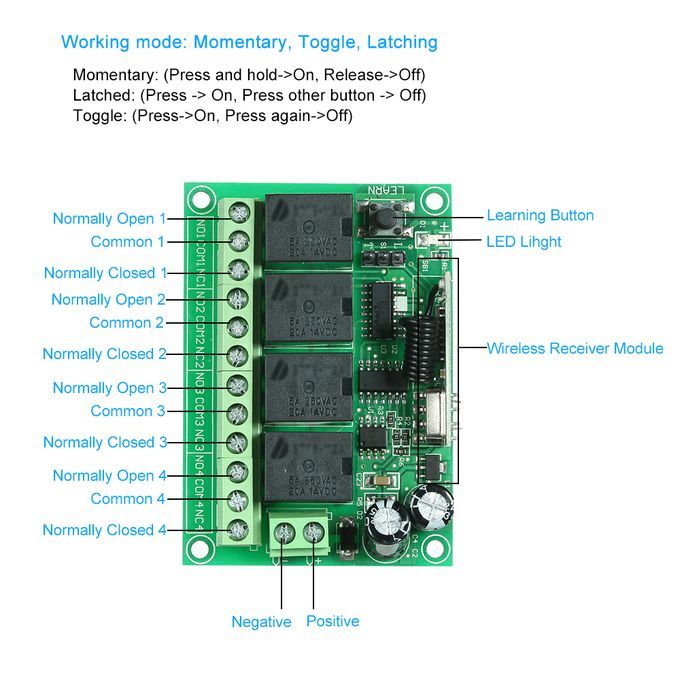

Working mode: Momentary, Toggle, Latching

Wiring type: fixed terminal

Output Terminal: NO , NC , COM

Receiver Board Size: Approx. 7 x 4.9 x 1.8cm / (2.7 x 1.9 x 0.7”)

Fuse Box Size: Approx. 8.7 x 6.2 x 2.8cm / (3.4 x 2.4 x 1.1”)

Remote Control:

Frequency: 433MHz

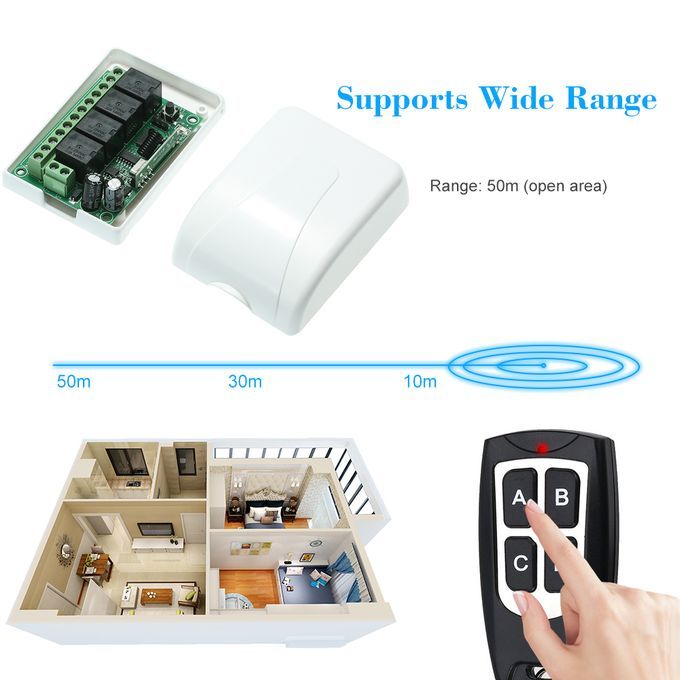

Range: 50m (open area)

Battery: 2*CR2016 3V (included)

Working Current: 10mA

Shock Resistance: 270K/330K

Quantity: 2PCS

Remote Control Size(Each): 5.8*3.2*1.2cm





Package Information:

Package Size: Approx. 17 * 11 * 5cm / 6.7 * 4.3 * 2in

Package Weight: Approx. 117g / 4.1oz

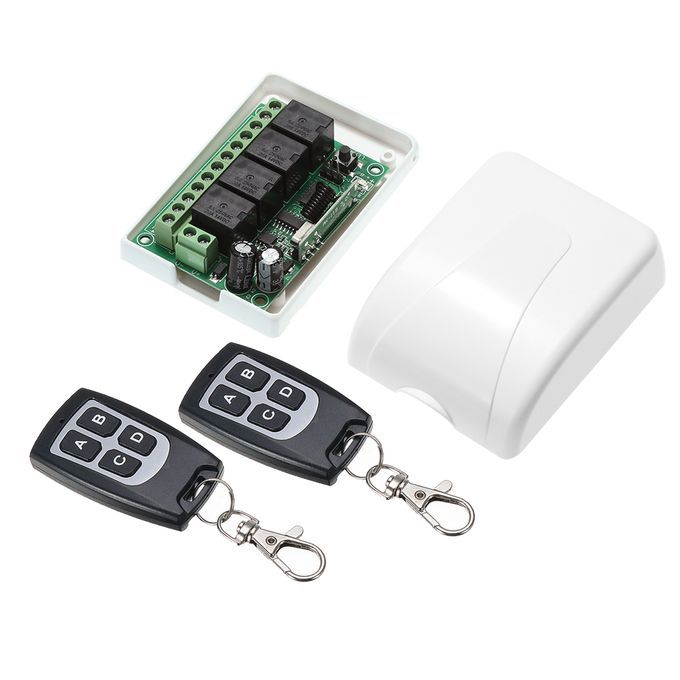

Package List:

1* Receiver Board

1* Fuse Box

2* Remote Control
a a a a a

Key Features

xVery convenient to use, simple wiring diagram connection way.
xSupport remote control up to 16 pieces. It can connect to the electronic control lock, intercom doorbell, garage door, light, electric curtain, household appliances, motor control, etc. So that it can remote unlock the door, close the light, open or close the curtain,etc.
xThe Remote Control four buttons could respectively copy four different types of chips, that is a remote control can operate four different types of facilities.
xThe working mode can be changed by yourself: you can switch to momentary, toggle, latching three modes as you need.
xLearning pair code: it can work with any remote control with the same frequency, so you needn't worry about losing remote control any more. (If the remote control is lost, buy one and pair with the PCB board is OK.)
xVery convenient to use, simple wiring diagram connection way.
Easy to use
Exquisite Workmanship
Well Made
Best Choice and best discounts
Customer Care is Our Top Priority
Offer is Subject to Availability
Big Sale

What's In the Box

1x Receiver Board,1x Fuse Box ,2x Remote Control
