MP3 Player Auxiliary Amplification Infrared Remote Control Digital Tube Display

I. Features

1. Jianrong program, single decoding, support music in MP3 format;

2. With digital tube display;

3. Support MMC/SD/MMA and other cards, support USB interface (U disk);

4. Support radio FM, search frequency band (87.5MHZ-108.0MHZ);

5. Power-off memory function 24C02;

6. Support infrared remote control operation at a distance of 5-10 meters;

7. Support external audio input LINE IN;

8. Buttons: Four-button multi-directional control VOL-/AUTO/VOL+/MODE;

II. Key Operation

1. VOL-button (previous song/volume down): in MP3 state, short press VOL-press to the previous song, long press to decrease the volume; in FM state, short press to increase a station number.

2. AUTO button (play/pause): in MP3 state, short press AUTO to play/pause; in FM state, short press to play/pause, long press to automatically close and save the station.

3. VOL+ button (next song/volume up): In MP3 state, short press VOL+ for the next song, long press to increase the volume; in FM state, short press to lower a station number.

4. MODE button: switch between USB / TF / FM /LINE IN in turn.

III. Specifications

Main control IC: Jianrong A1076

Music format: MP3 format music

Radio IC: RTC6222

Radio FM frequency: 87.5 mdash;107.5 MHZ

Support function introduction: support MP3 / USB / TF / LINE IN / FM / remote control connection / DC12V

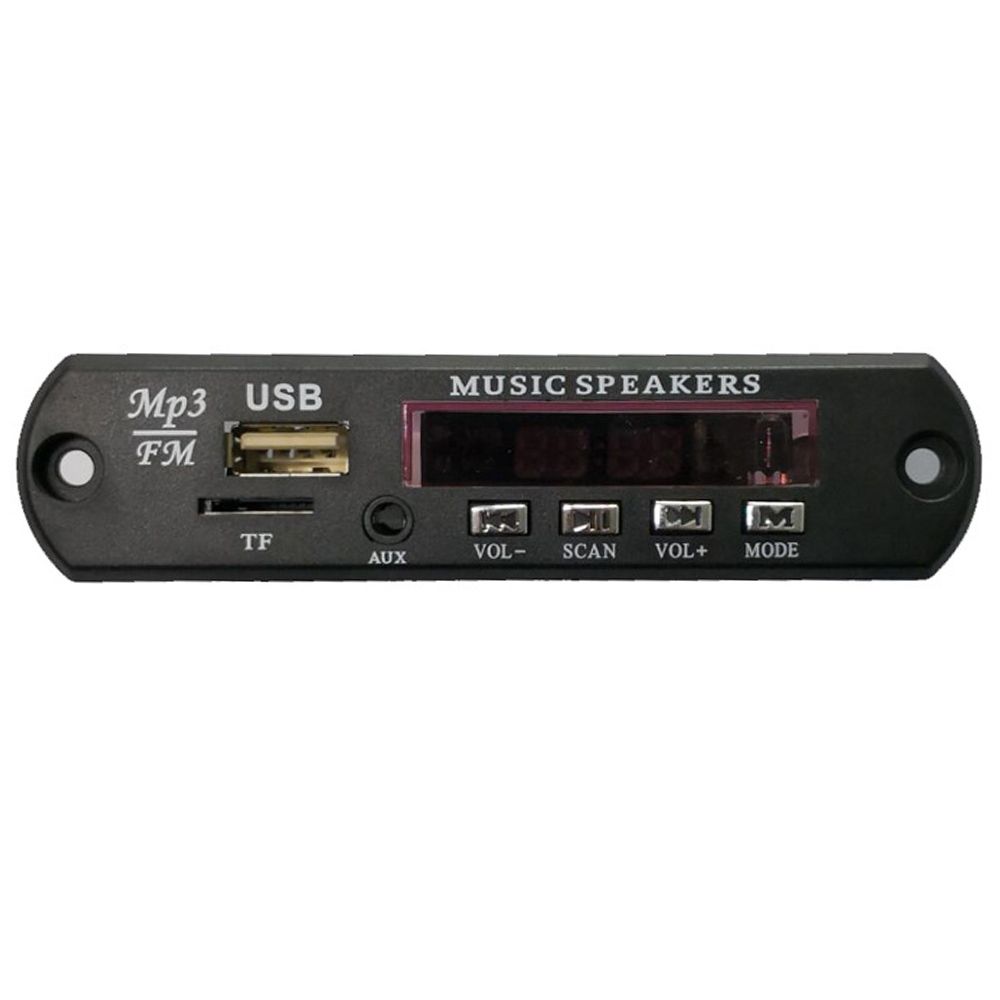

About the structure: Panel size: 107 * 25 MM, the two corners of the panel and the screw hole positions, then the cover cover the surface, the depth of the board is 27 MM

Note: The product is not bluetooth-compatible, has no call, no recording function.

We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.

*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.

*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.

Key Features

1. Jianrong program, single decoding, support music in MP3 format;
2. With digital tube display;
3. Support MMC/SD/MMA and other cards, support USB interface (U disk);
4. Support radio FM, search frequency band (87.5MHZ-108.0MHZ);
5. Power-off memory function 24C02;

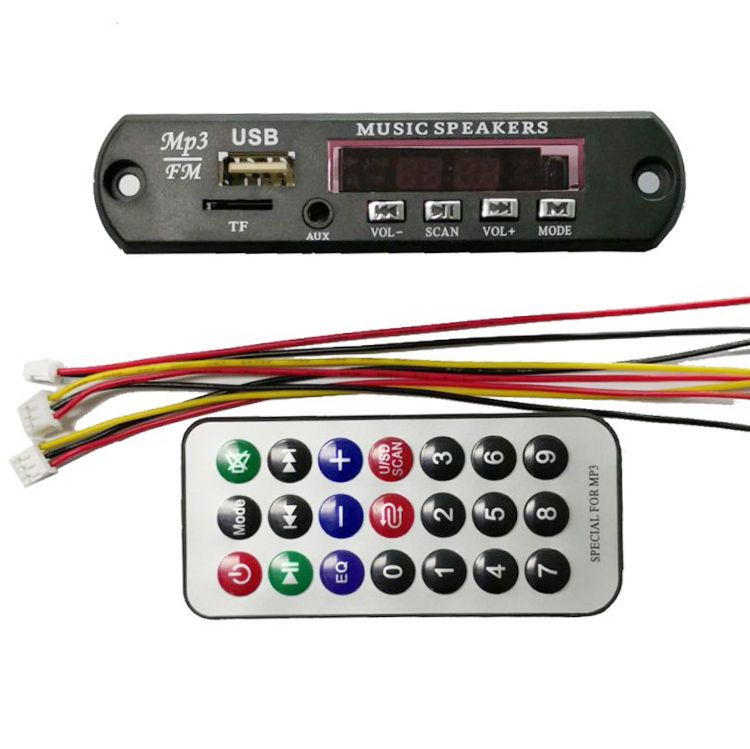

What's In the Box

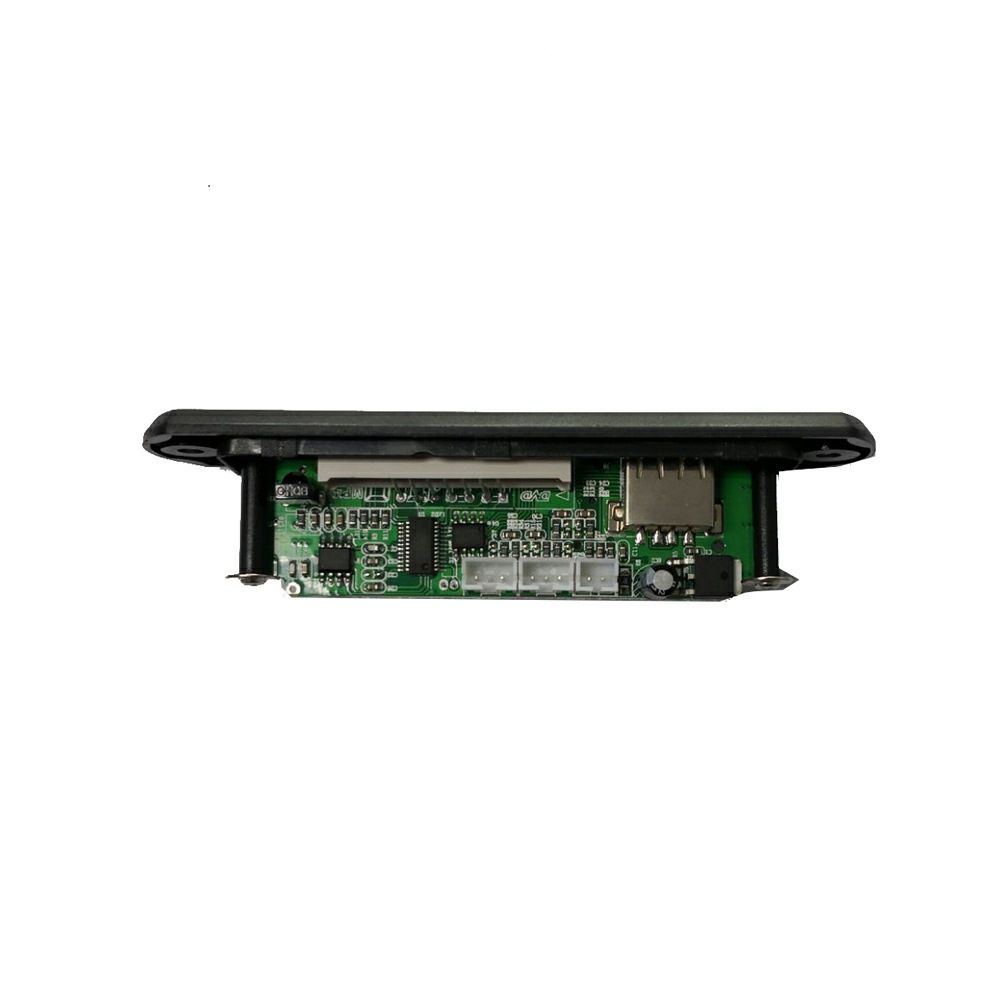

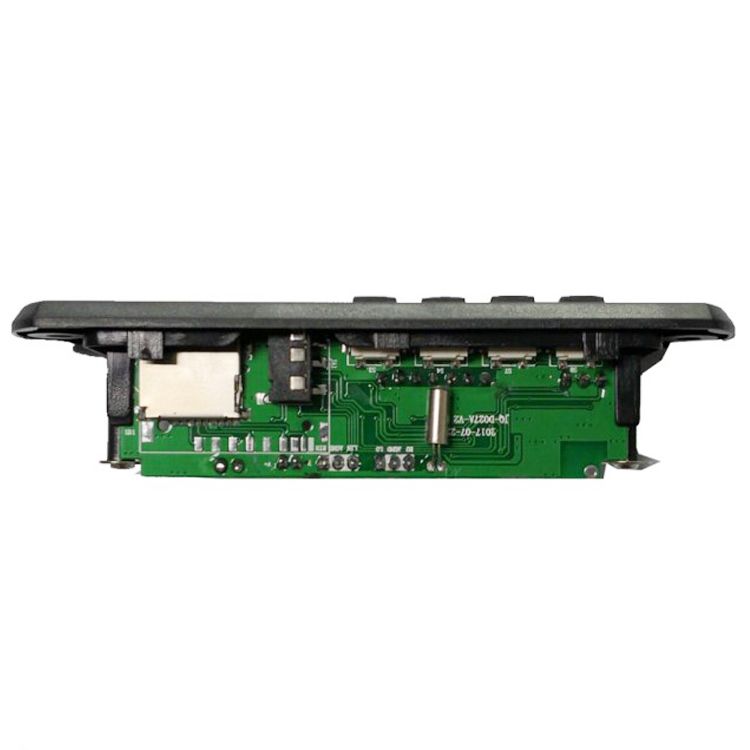

1 * Decoder Board

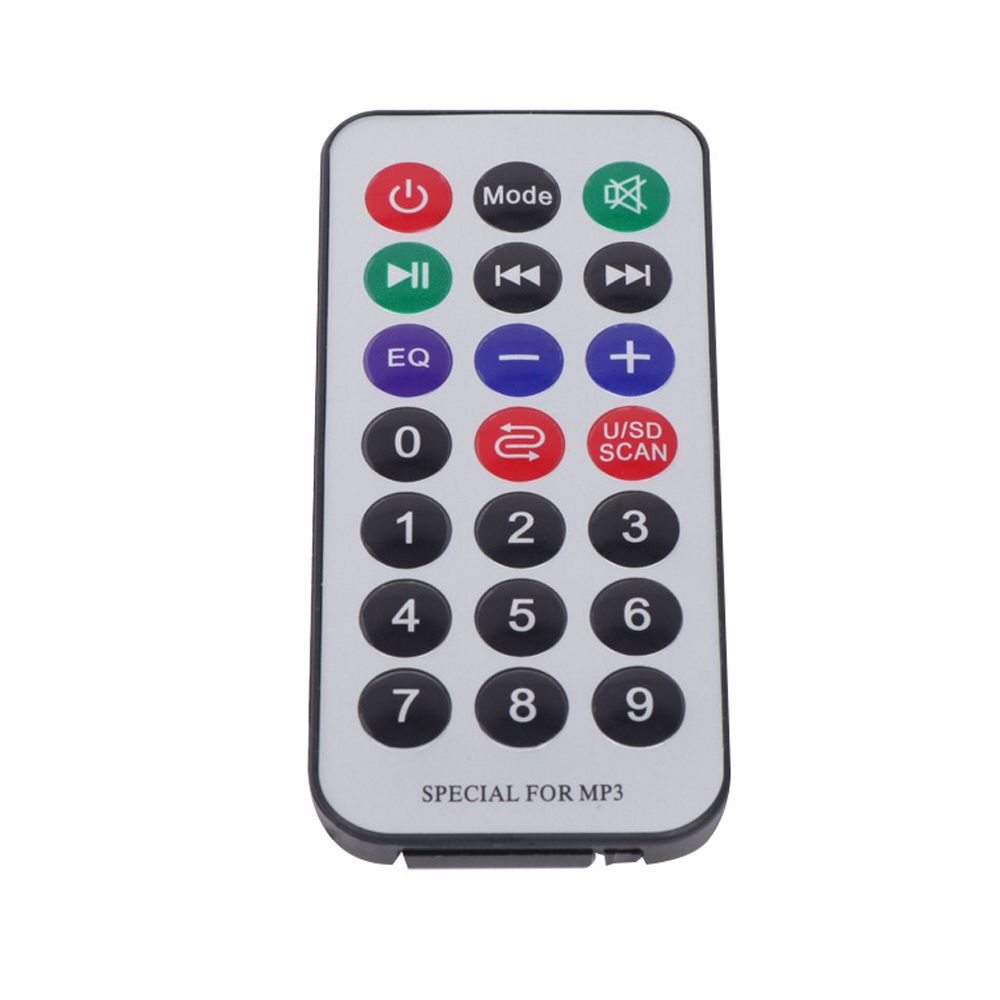

1 * Remote Control (without battery)

1 * Set of Cables
