Multi-Function Single Phase Digital Meter LCD Display AC

Features:

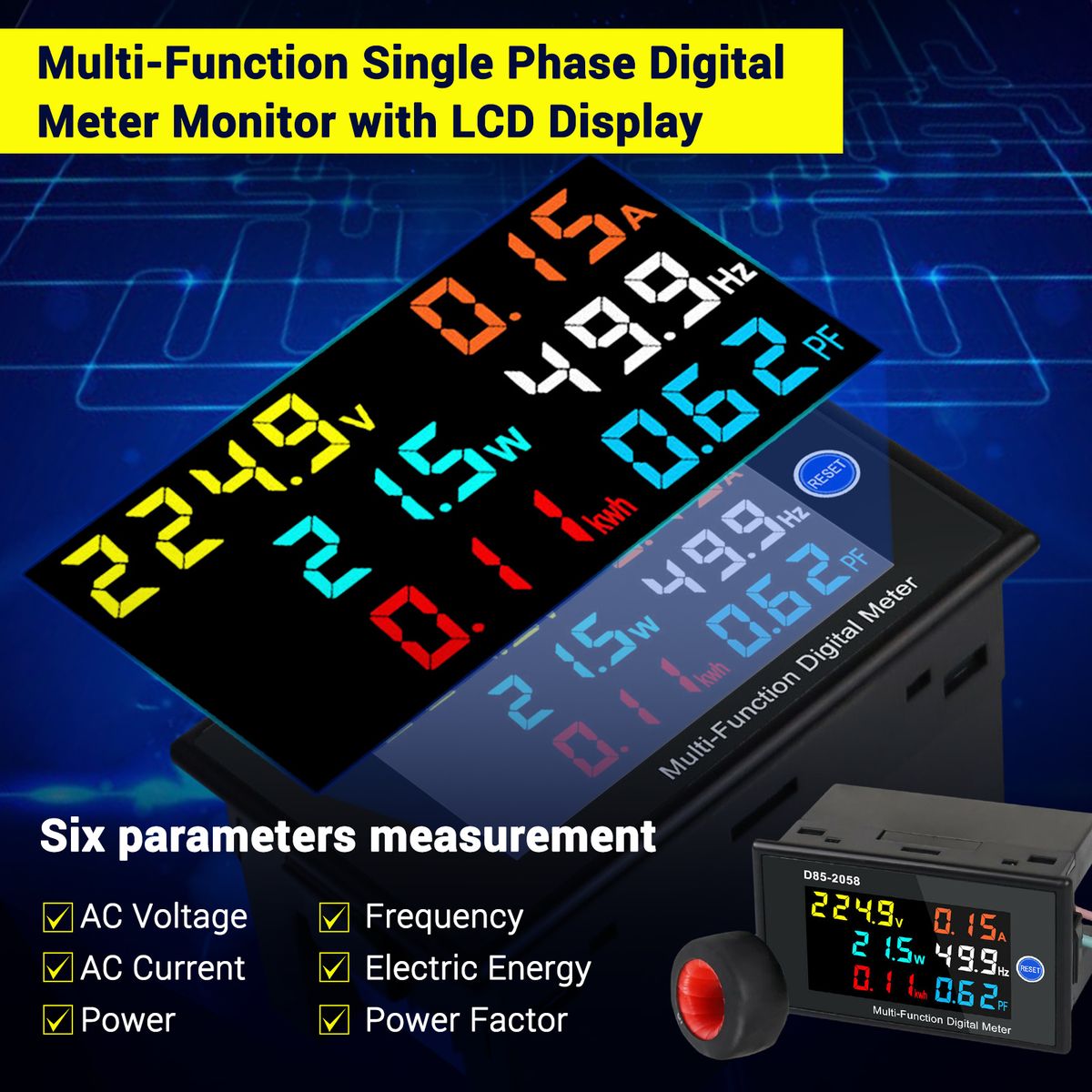

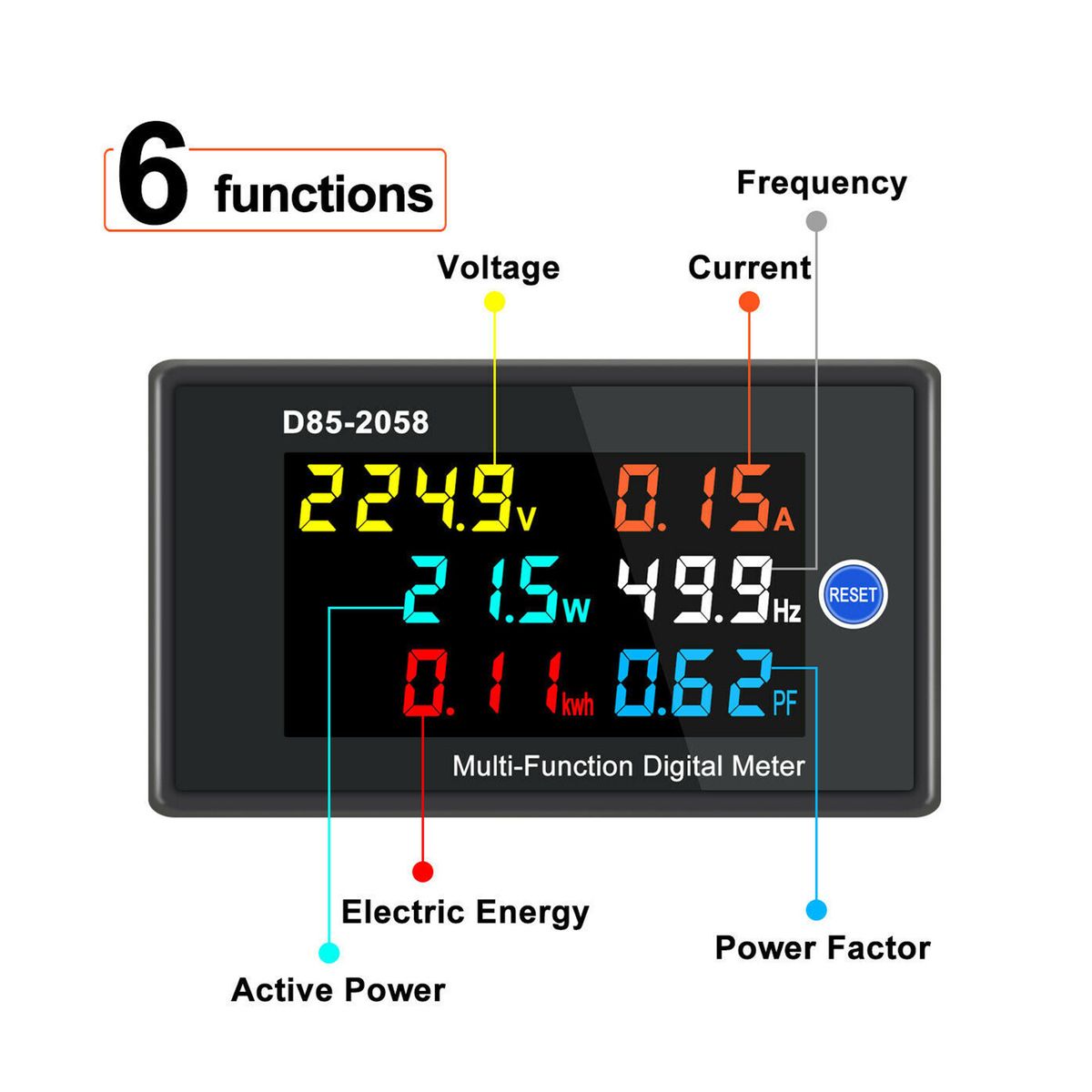

Multi-function digital meter can measure and display 6 parameters, including AC voltage, AC current, power, frequency, electric energy and power factor at the same time.

With power-down memory function: When the meter is powered off during use, the meter';s accumulated power value will be stored automatically (the previous data will not be lost).

Equipped with a LCD HD display, which is clear and easy to read.

There\'s a reset button on the right side of the display which can reset the accumulated values to zero if pressed and held for 5 seconds.

One digital meter to monitor household power consumption in real time.

Specifications:

Material: ABS

Color: Black

Measurement Range:

AC voltage: AC 40.0-300.0V / AC 200.0-450.0V (Optional)

AC current: AC 0-99.99A, Minimum resolution is 0.01A

Power: 0-30000W(AC 40.0-300.0V); 0-45000W(AC 200.0-450.0V) 0-9999.9W minimum display resolution is 0.1W, otherwise Minimum resolution is 1W.

Electric energy: 0-9 999 999kwh.

0-9999.999kwh minimum resolution is 0.001kwh ;

10000,00-99999.99kwh minimum resolution is 0.01kwh ;

100000.0-999999.9kwh minimum resolution is 0.1kwh;

Otherwise minimum resolution is 1kwh

Accuracy: 1% plusmn;2 words

Measuring speed: 2 times per second

100A current transformer hole diameter 15.5mm

Working temperature: -10～+50℃

Working humidity: 10～80% (no condensation)

Working pressure: 80～106kPa

Size: 70 * 40 * 39mm / 2.75 * 1.57 * 1.53in

Weight: 83g / 2.92oz

Package Weight: 90g / 3.17oz

Package Size: 9*4.5*4.5cm / 3.54 * 1.77 * 1.77in
