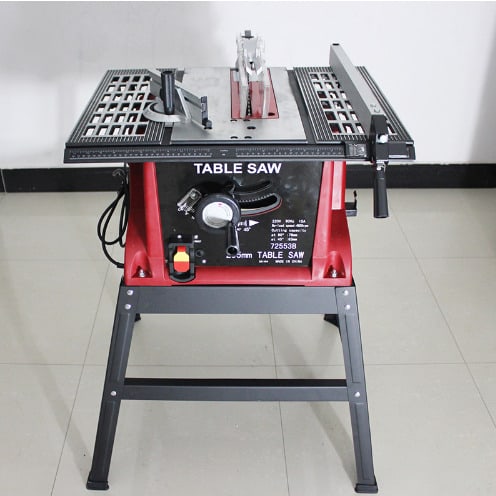

Wood Table Saw Cutting Machine- 10inch -TS10P

• Powder coated aluminium table with one rear and two side extension tables.
• Supplied with 40 tooth TCT blade and 2200W motor with electric brake feature.
• Adjustable blade height and tilt, up to 45°.
• Fitted with circuit breaker reset switch.
• Includes quick lock rip-fence with magnifying viewfinder, mitre gauge, dust extraction port, push stick and sturdy metal stand.
• Fitted with BS approved 13Amp plug.
• Accessories Included
  1 x Dust extraction connector, 2 x TCT saw blades (24 and 48 teeth), 2 x AAA batteries for laser
  Features
  • Ideal for cutting wood, boards or small panels
  • Idle speed 4250 min-1
  • Cross top can be pivoted from -45° to +45°
  • Saw blade rotating range stepless 0° to 45°
  • Cutting depth 90°:80mm/45°:55mm
  • Working height 87cm (approx.)
  • Includes underframe
  • Saw blade protection
  • Dust exhaust device
  • Locking lever with 2 different height stops
  • Crosscut fence with angle adjustment
  • Rip fence with aluminium
  • Push stick with clamp

Specification:

• Model No: TS10P
• Motor Power: 2200W - 230V
• Saw Blade Ø: 254mm
• Arbor Ø: 16mm
• Speed: 4500rpm
• Maximum Depth of 90º Cut: 80mm
• Maximum Depth of 45º Cut: 55mm
• Table Size (W x D): 430 x 638mm
• Table Extension Sizes (W x D):
• Side (x2): 638 x 150mm
• Rear: 430 x 180mm
• Dust Extraction ID/OD: 21/31mm
• Replacement Blade: TS10P.60
