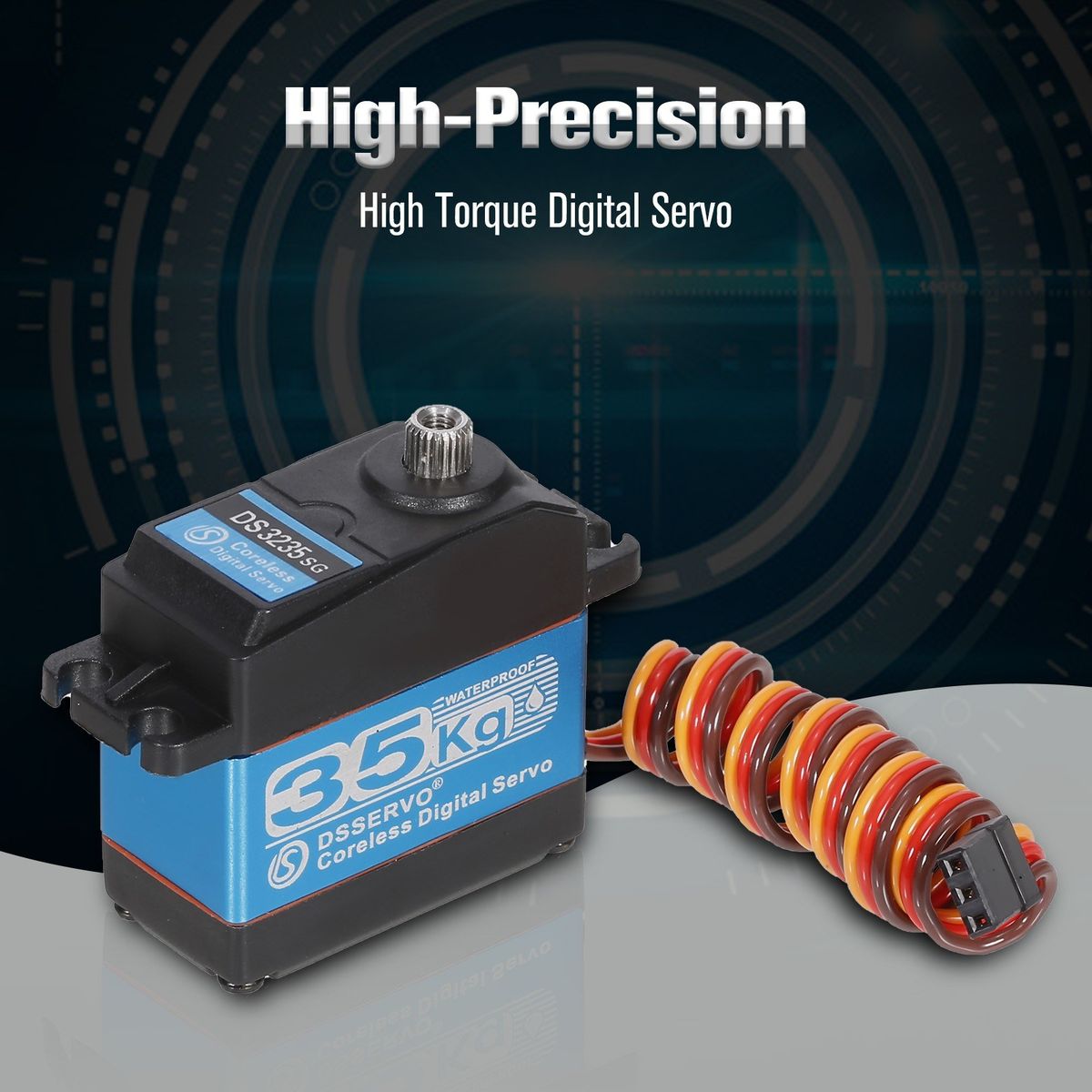

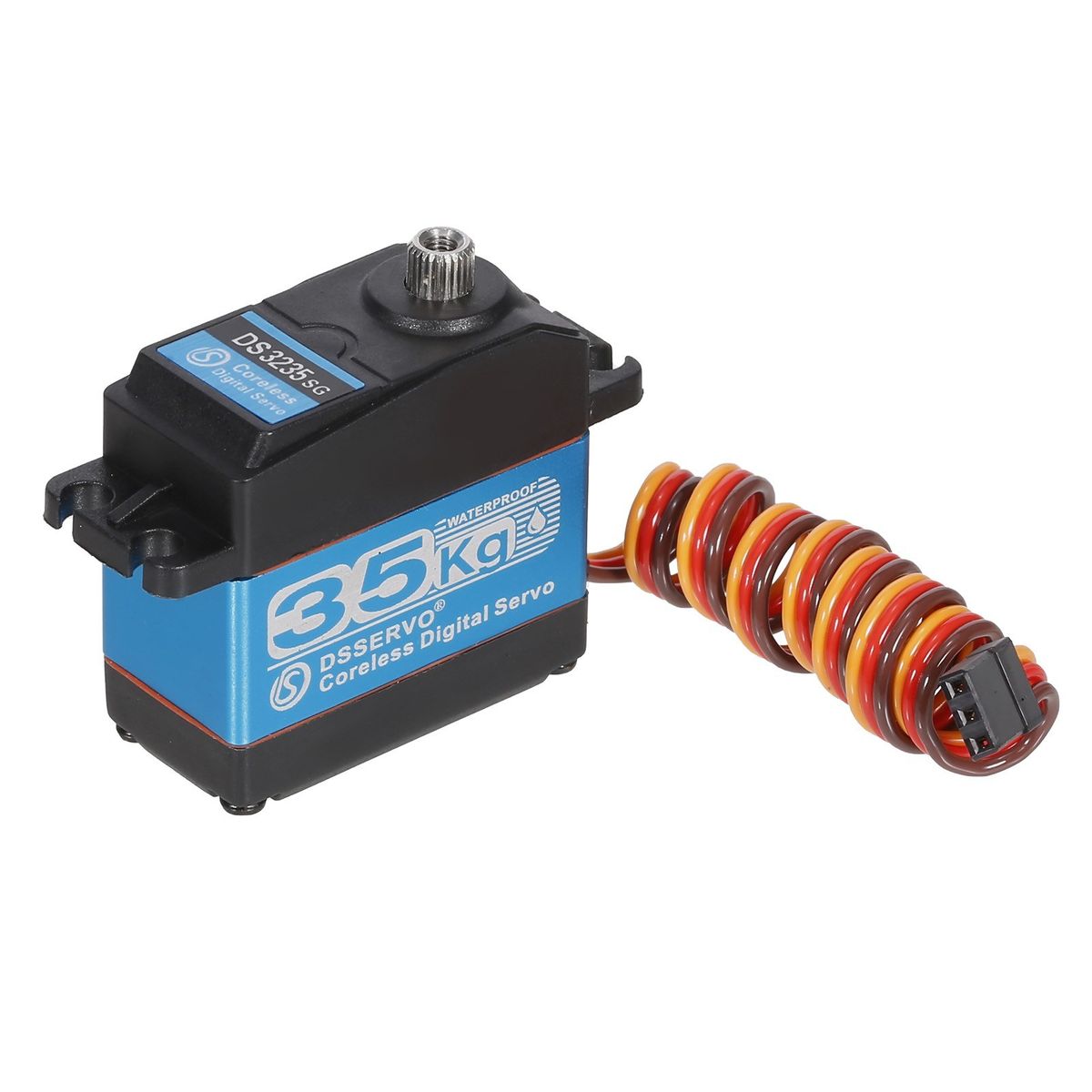

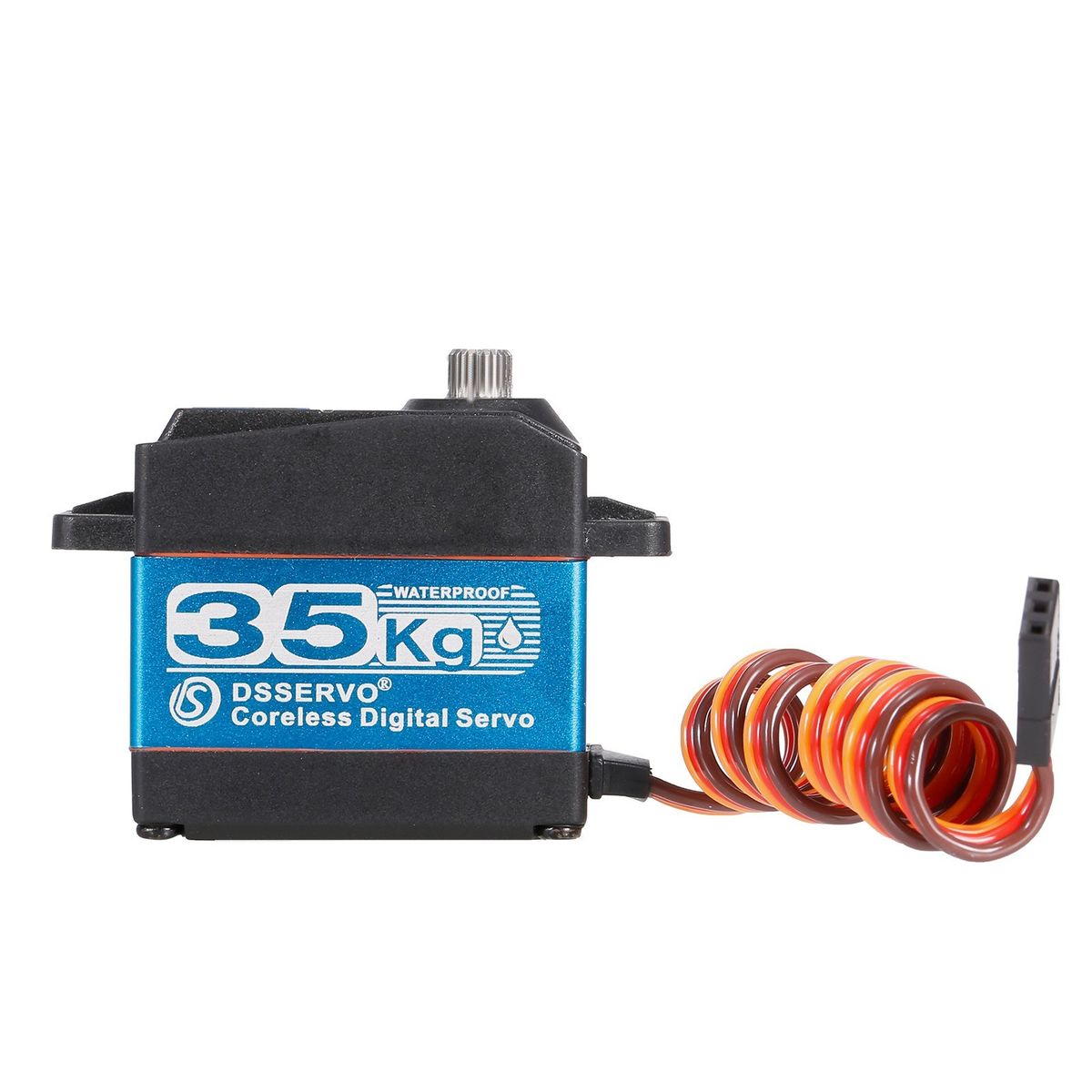

35KG Servo IP66 Waterproof High Torque Digital Servo For

IP66 waterproof steering servo can be commonly applied to remote control climbing cars, 1/10 1/8 RC crawlers, helicopter, robots, mechanical arms, and other remote control toys.

Target people:

1. Those remote control toy enthusiasts who want to modify their RC toys.

2. University professors and students who are interested in robotics.

3. People who work in the machinery or medical industry.

Features:

Made of high-precision aluminum and copper, it is durable.

Composed of a coreless motor, the servo can work at a higher speed with less power consumption.

It is used to change the torque, speed, and angle of RC toys, robots, mechanical arms, and other remote control toys.

Applying high-precision production technology to reduce production deviation and improve product tightness.

The maximum torque of this steering servo for the RC car is up to 35kg/cm and speed is up to 0.11sec/60 deg;.

After-sales Service Guarantee: Any problem, please contact our store without hesitation. Honor to serve you!

Specifications:

Name: 35kg Coreless Digital Servo

Model: DS3235

Dead Band: 3 mu;sec

Operating Voltage: 5V~7.4Volts

Operating Speed (5V): 0.13sec / 60 deg; at no load

Operating Speed (7.4V): 0.11sec / 60 deg; at no load

Stall Torque (5V): 29 kg/cm

Stall Torque (7.4V): 35kg/cm

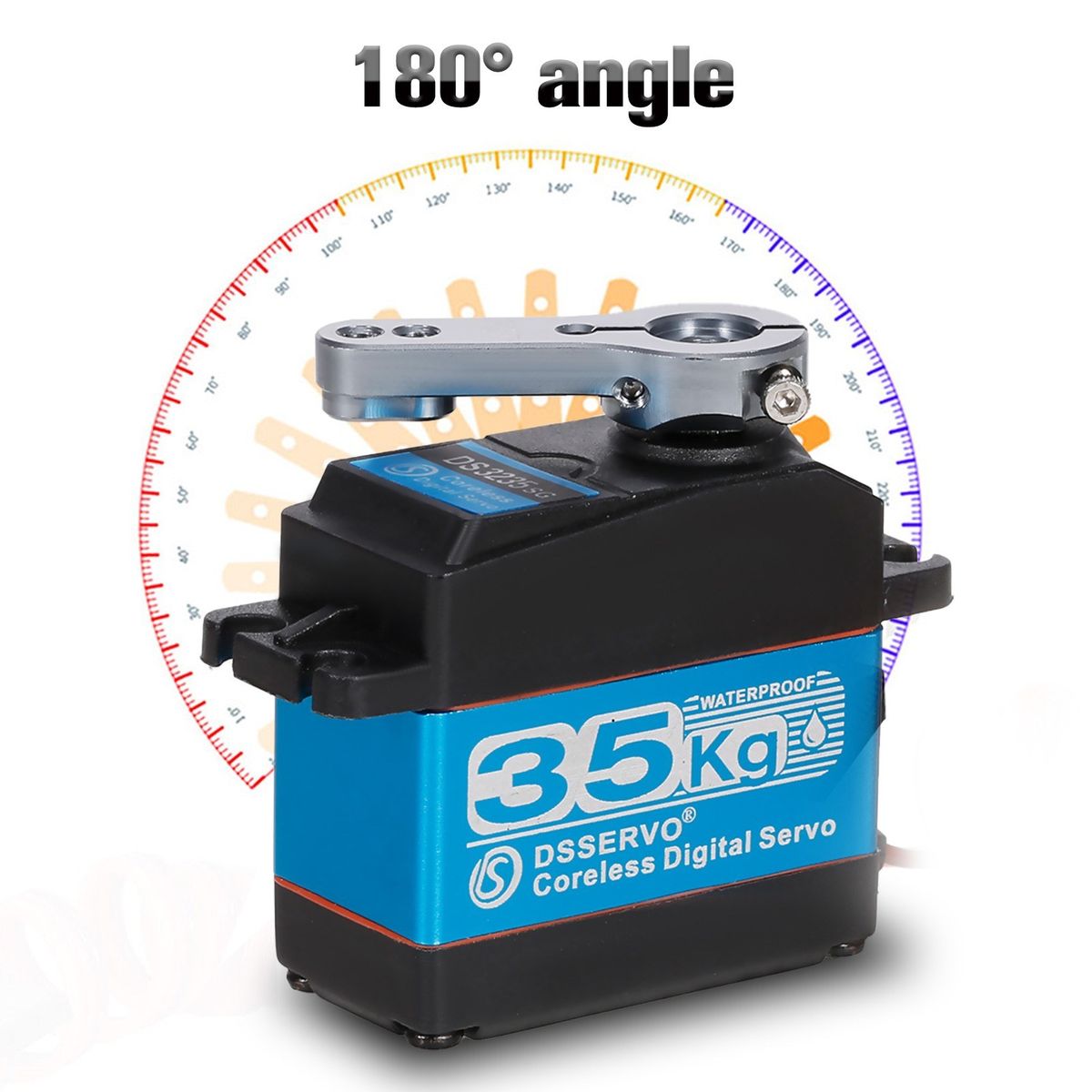

Operating Angle: 180 deg;

Motor Type: Coreless motor

Gear Type: Copper amp; Aluminum

Working Frequency: 50-330Hz

Size(excluded cable): 40*37*20mm/1.57*1.46*0.79in

Suitable for: 1/10 1/8RC car, RC airplane, and RC helicopter

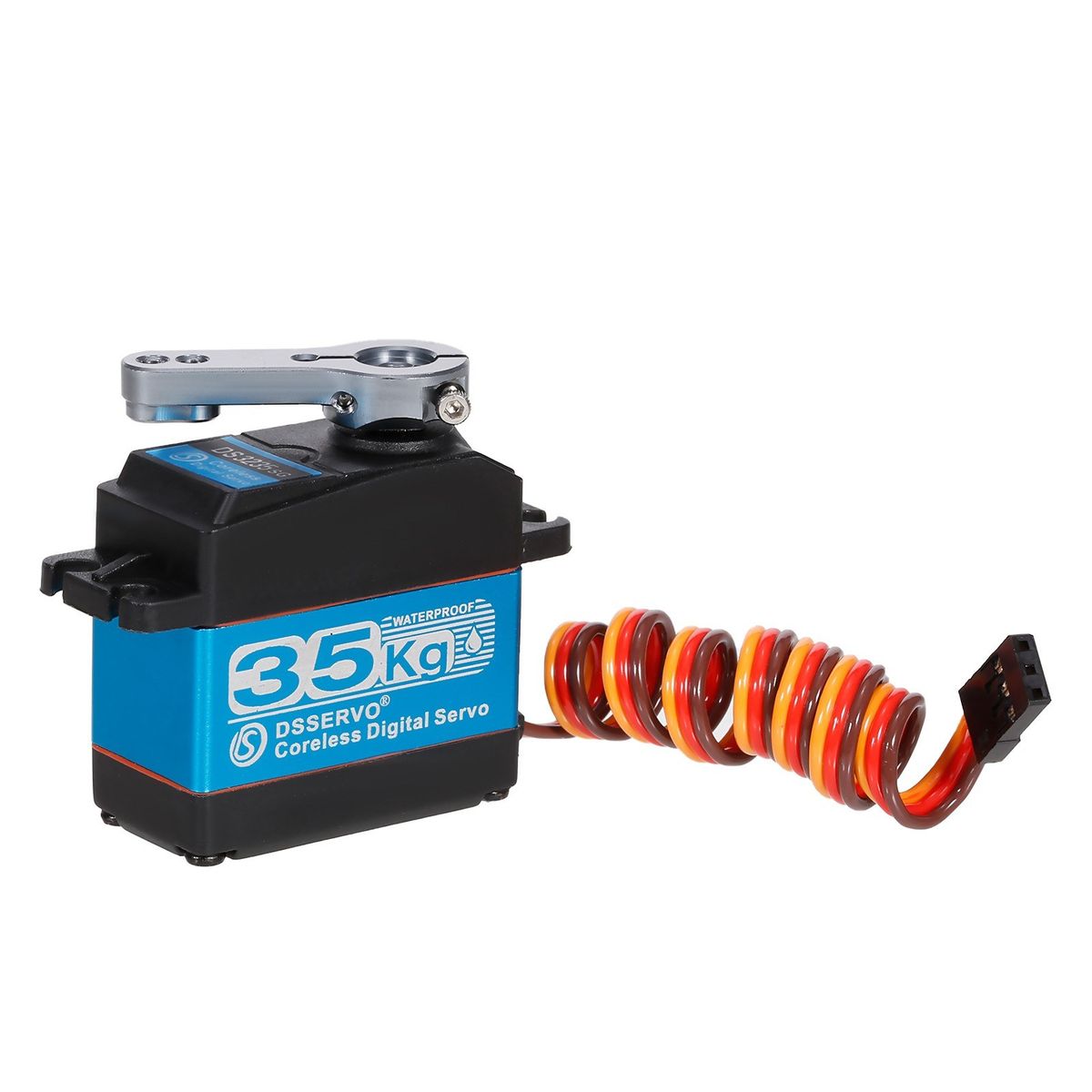

Servo Arm

Main Material: Metal

Color: Blue

Quantity: 1pc

Teeth Number: 25T

Geared Hole Inner Diameter: 3mm

Overall Size: 35 * 14 * 5mm/1.38 * 0.55 * 0.20in

Package information:

Package size: 10.5*8*2.5cm/ 4.13*3.15*0.98in

Package weight:81g

Polybag packing.

Note:

* There could be a few deviations due to manual measurement or slight color difference owing to photographing condition. Thank you for your understanding.

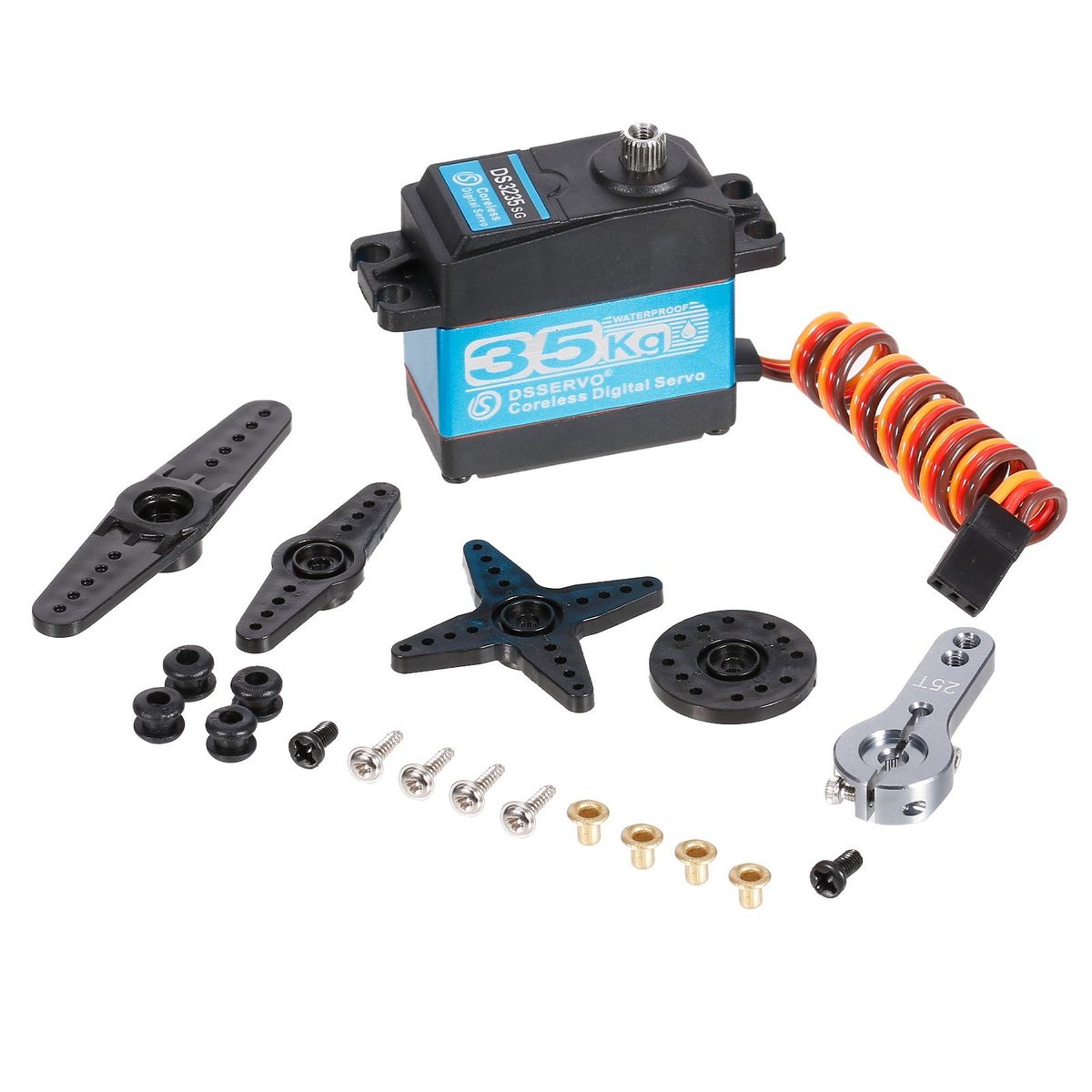

Packing list:

1 * 35kg Coreless Digital Servo

1 * Metal Servo Arm

1 * Other Parts
